Dacor
Gas Range

Model # DR30DNGH Official Dacor gas range

Here are the diagrams and repair parts for Official Dacor DR30DNGH gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

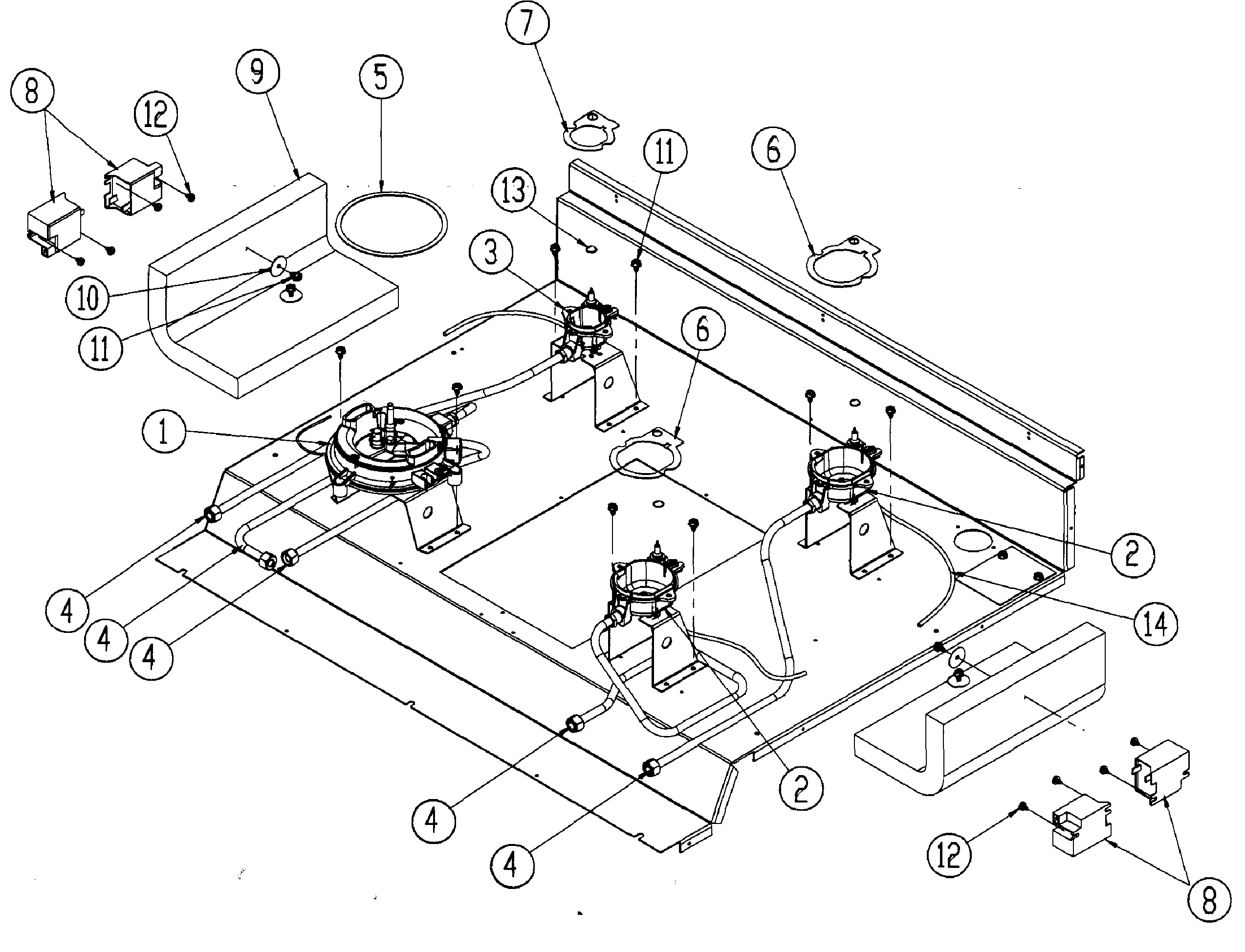

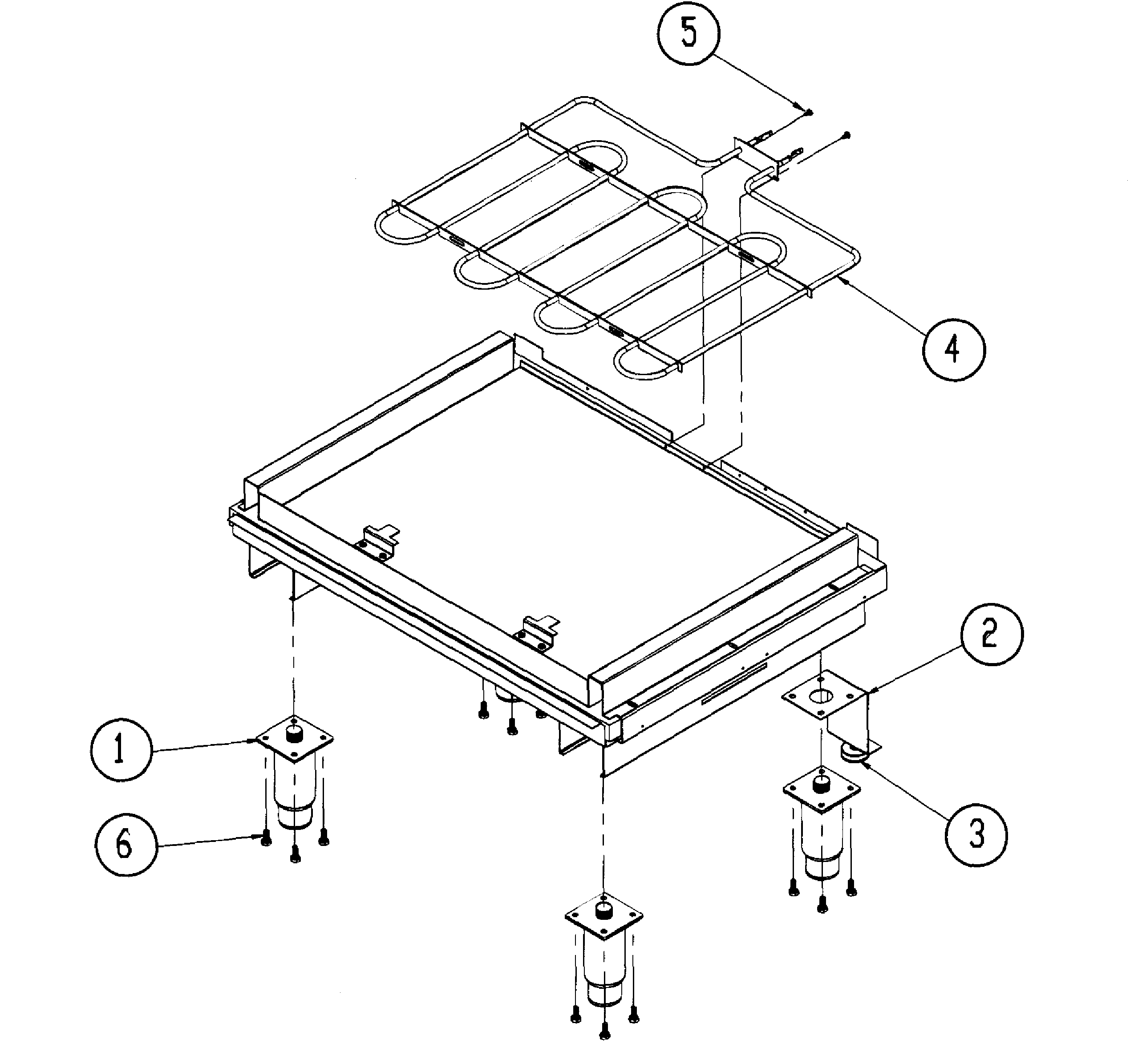

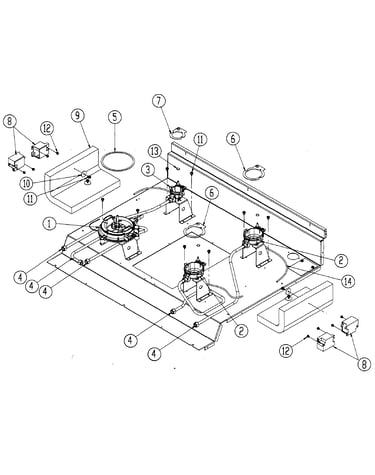

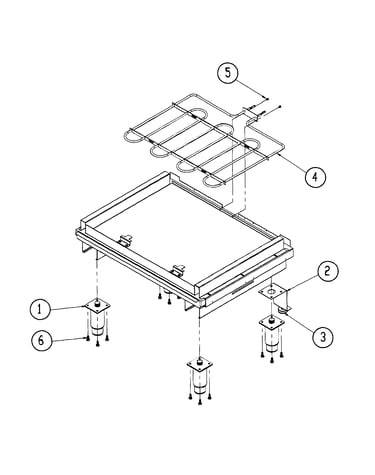

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 115 parts  |
Nut 83308
#6

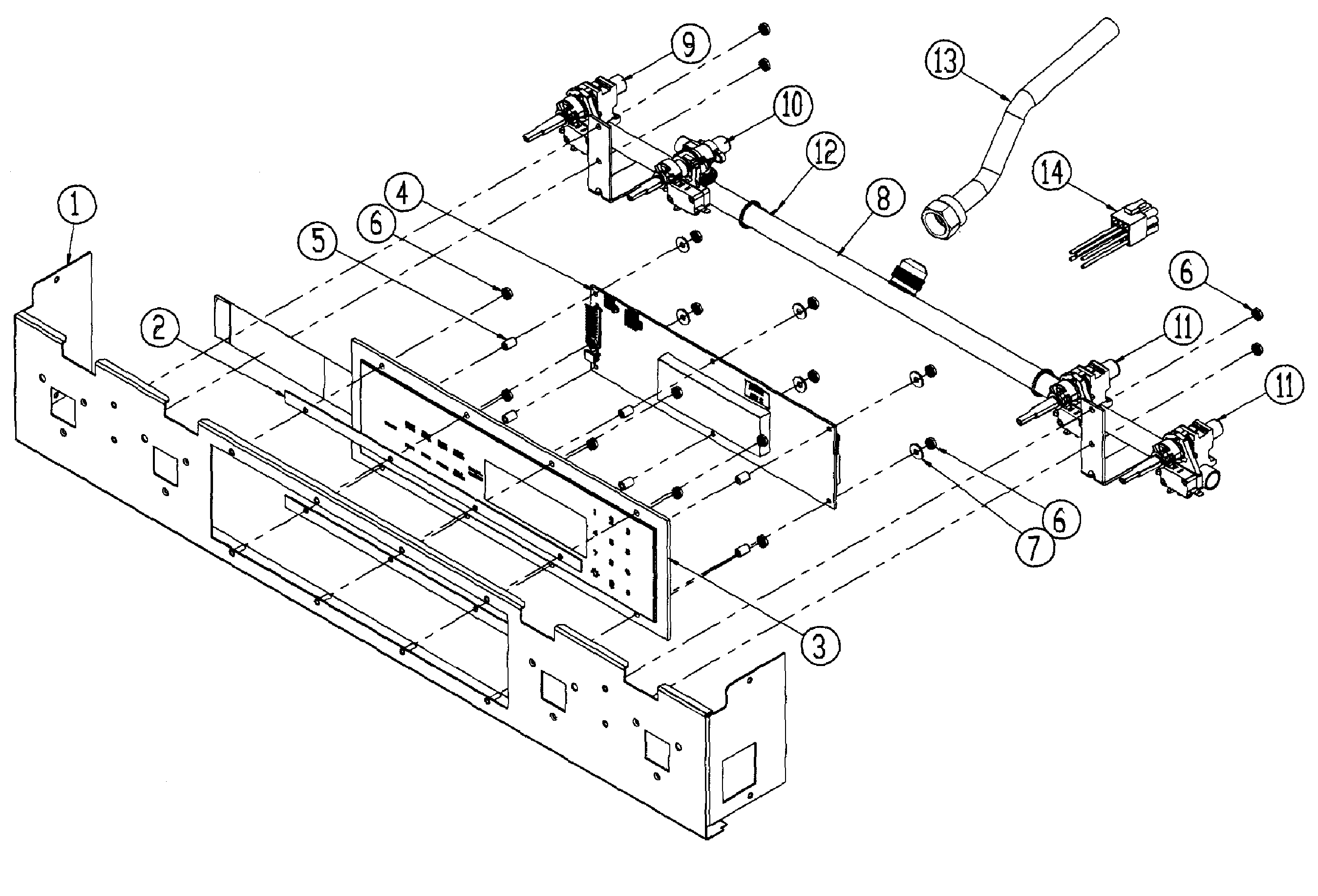

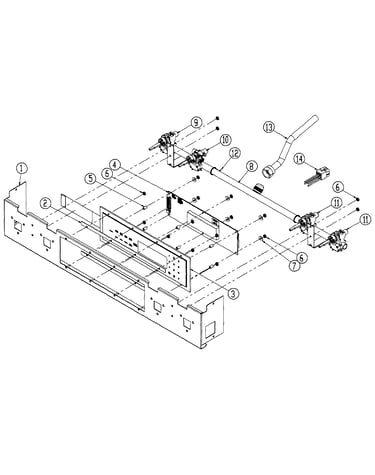

Manifold assy diagram

Nut

Part #83308

This item is not returnable
$2.16
In Stock
Panel 701284
#3

Manifold assy diagram

Panel

Part #701284

$181.99
In Stock
Appliance Screw, #8 X 3/8-in 83263
#10

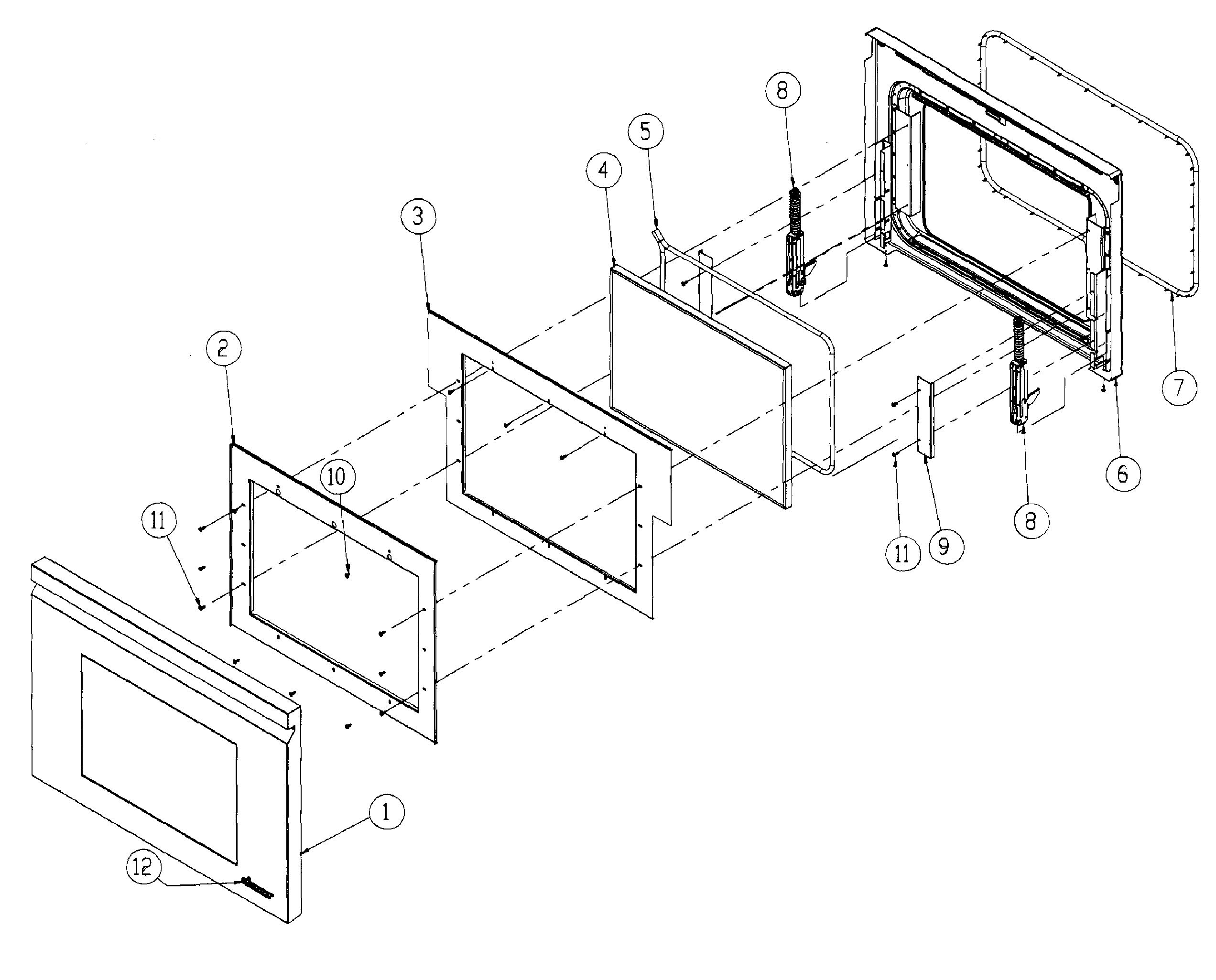

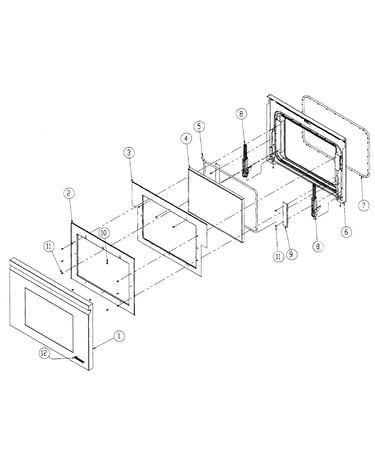

Door assy diagram

Appliance screw, #8 x 3/8-in

Part #83263

This item is not returnable
$2.16
In Stock
Appliance Screw 83534
#1C

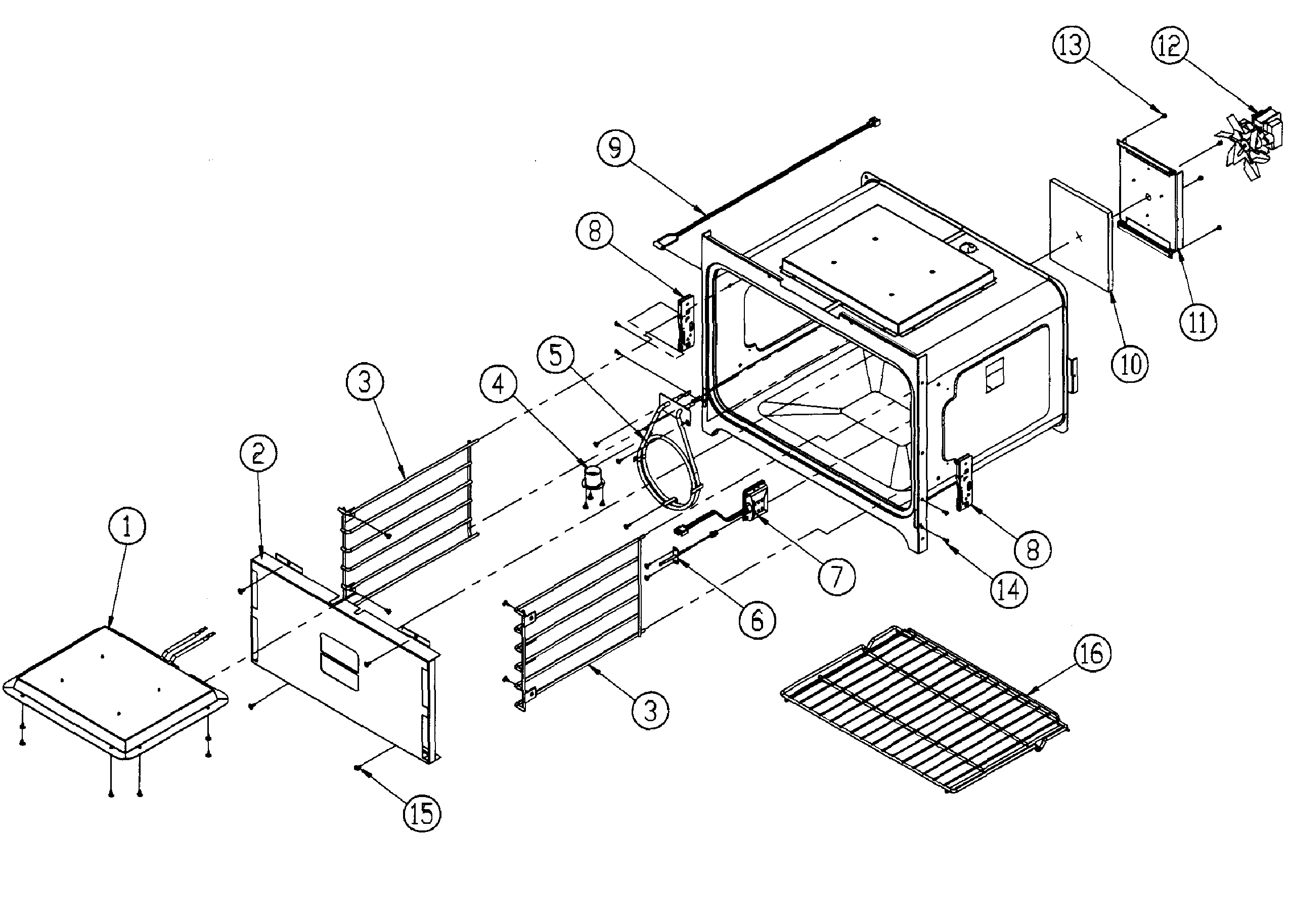

Oven assy diagram

Appliance screw

Part #83534

This item is not returnable
$2.16
Back Order
Range Surface Burner Cap 102593
#8

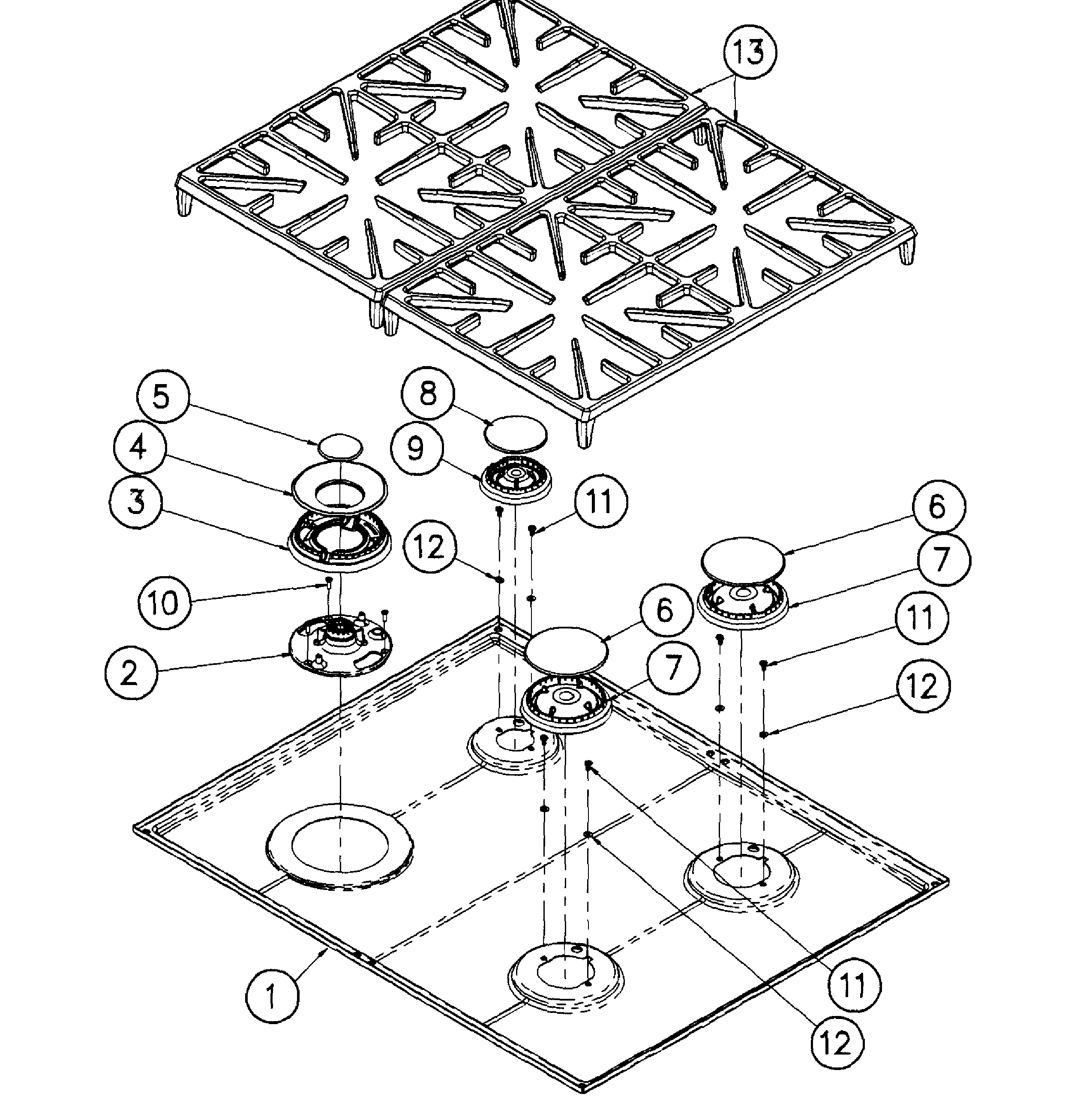

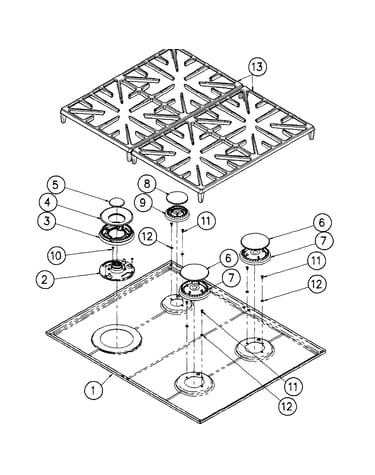

Upper cooktop diagram

Range surface burner cap

Part #102593

$9.99
Back Order
Cooktop Trim Ring 100122CH
#2

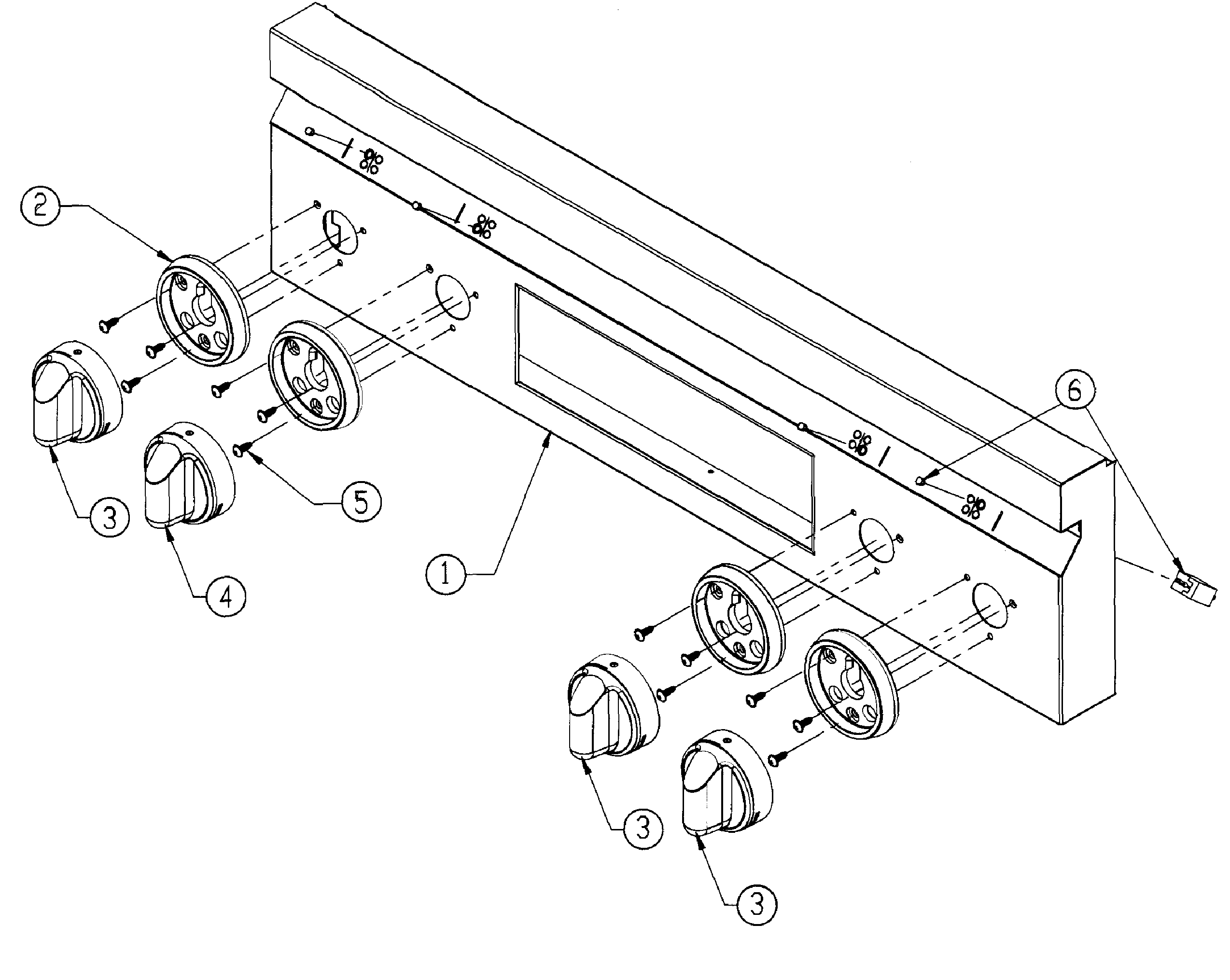

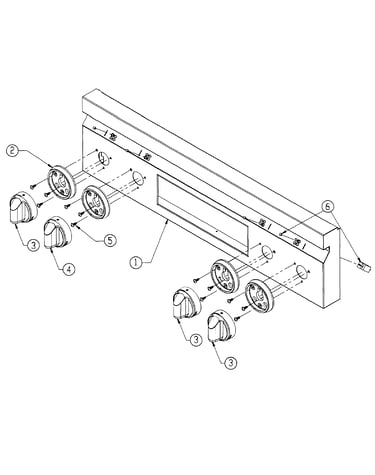

Control panel diagram

Cooktop trim ring

Part #100122CH

$44.99
In Stock
Hex Nut #8 83048
#14

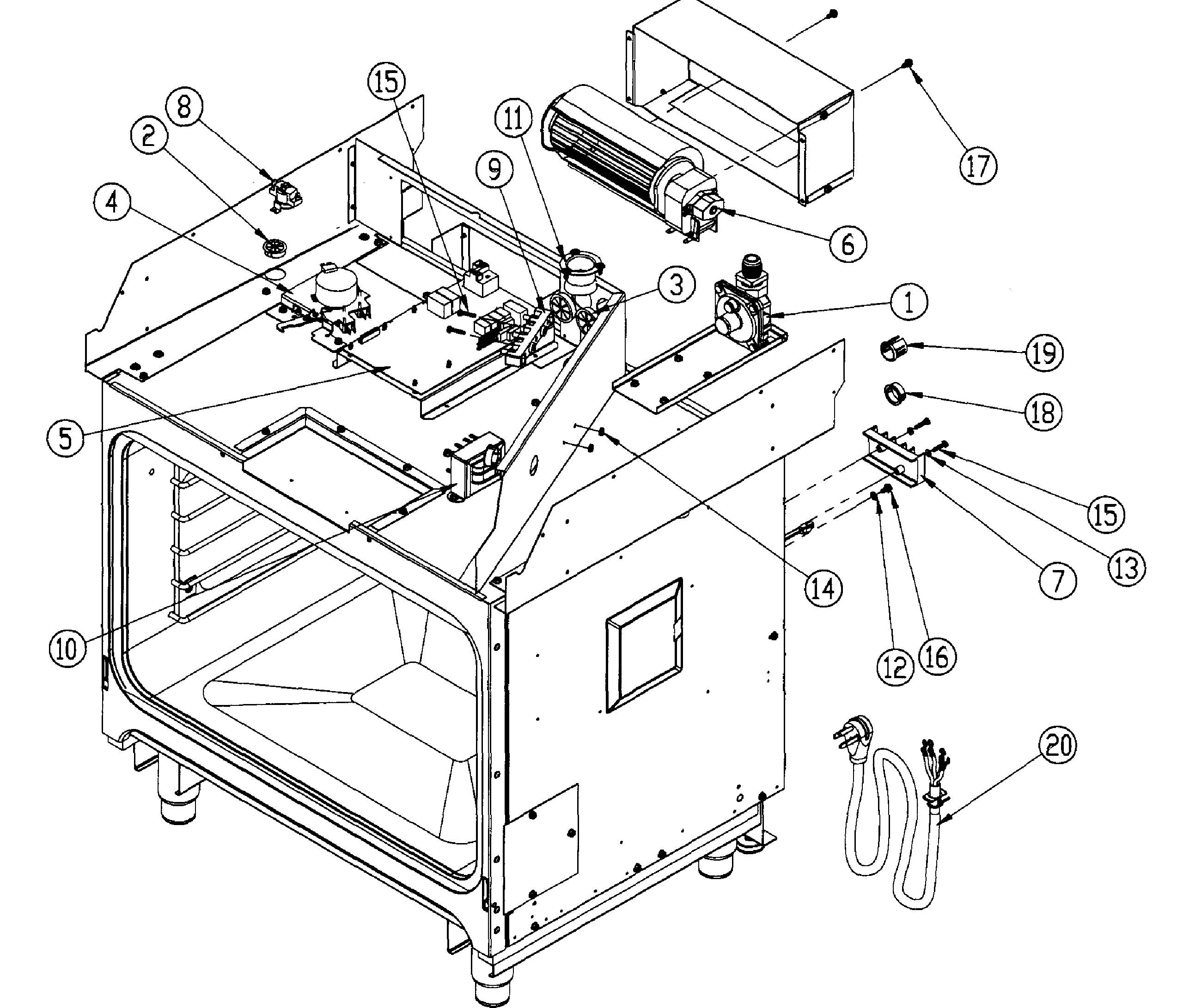

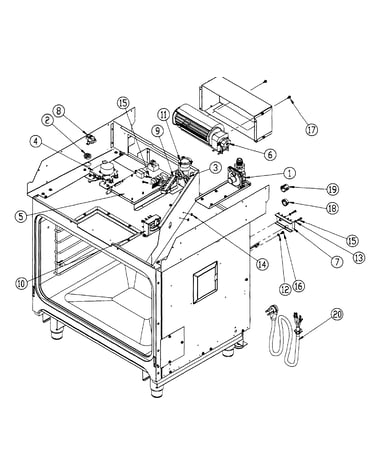

Top case assy diagram

Hex nut #8

Part #83048

This item is not returnable
$2.16
In Stock

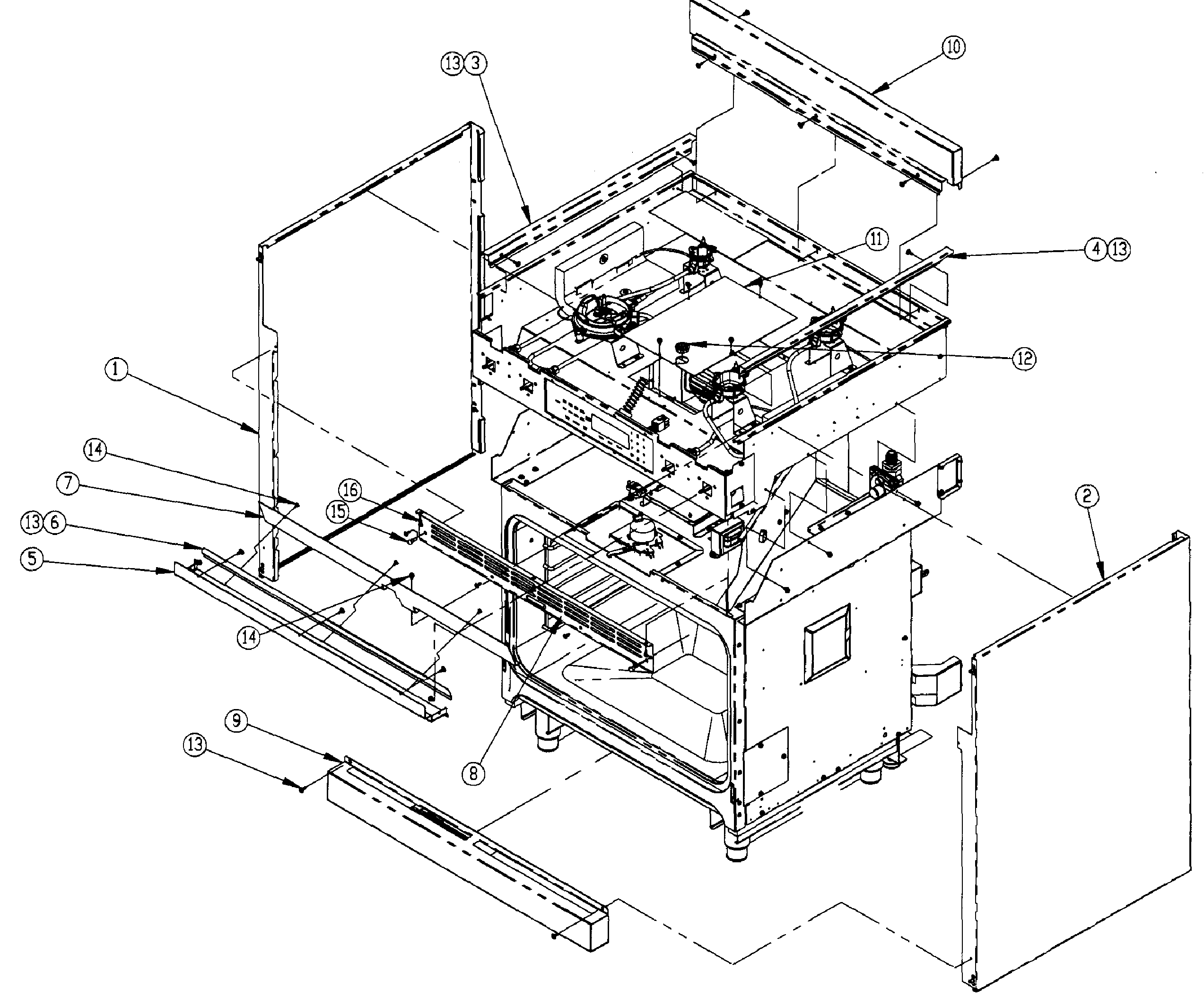

Kick Panel 701299
#9

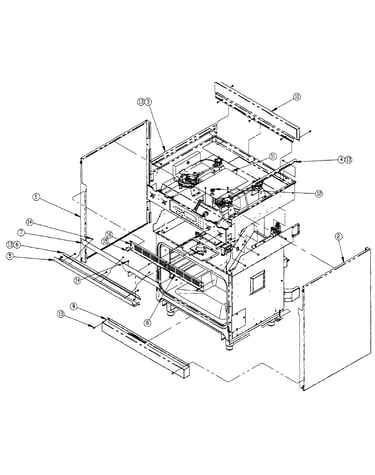

Outer assy diagram

Kick panel

Part #701299

$50.49
In Stock
Bushing 92191-03
#3

Top case assy diagram

Bushing

Part #92191-03

This item is not returnable
$2.16
In Stock
Range Oven Rack 103807
#16

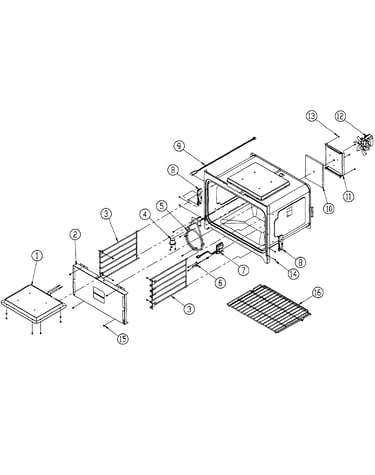

Oven assy diagram

Range oven rack

Part #103807

$73.01
In Stock
