Model # 867768823 Official Kenmore gas-fired horizontal furnace
Here are the diagrams and repair parts for Official Kenmore 867768823 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for
867768823 Gas-Fired Horizontal Furnace
#NI
All parts diagram
Thermostat
Part #42-9295
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Thermostate
Part #42-9235
The manufacturer no longer makes this part, and there's no substitute part
#22B
Blower assembly diagram
Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)
Part #600587
$130.20 |
8% OFF Phone Price : $142.20
In Stock
#6
Control box diagram
Transformer
Part #86852
Replaced by #90-4031F
?
Manufacturer substitution
This part replaces 86852. Substitute parts can look different from the original.
$10.99
In Stock
#16B

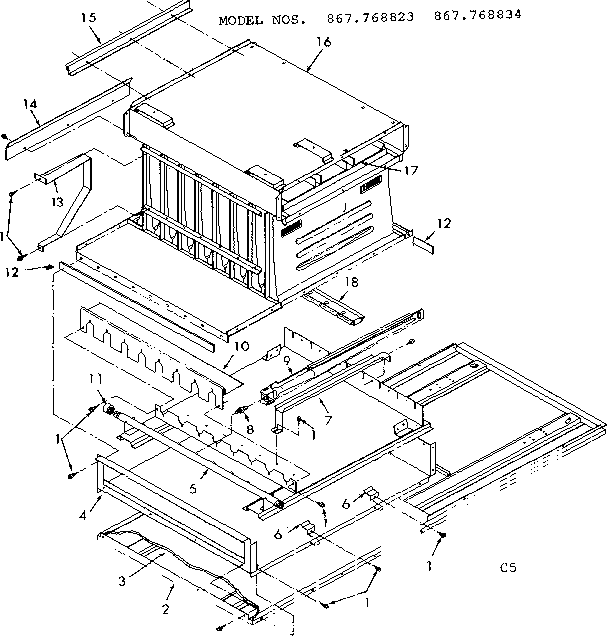

Heat exchanger diagram
Excngr ht
Part #89711
Replaced by #606632
?
Manufacturer substitution
This part replaces 89711. Substitute parts can look different from the original.
$1455.14
In Stock
#8
Control box diagram
Pilot tube
Part #91464
Replaced by #100108370
?
Manufacturer substitution
This part replaces 91464. Substitute parts can look different from the original.
$36.67
In Stock
#7
Control box diagram
F/l cont
Part #87056
The manufacturer no longer makes this part, and there's no substitute part
#9
Control box diagram
Valve
Part #92922
Replaced by #36C53-418
?
Manufacturer substitution
This part replaces 92922. Substitute parts can look different from the original.
$615.82 |
$12.00 OFF Phone Price : $627.82
In Stock
#NI
All parts diagram
Transformer
Part #700579
Replaced by #8A94-51
?
Manufacturer substitution
This part replaces 700579. Substitute parts can look different from the original.
$30.49
In Stock
#13
Control box diagram
Thermocouple
Part #92097
Replaced by #H06E-36
?
Manufacturer substitution
This part replaces 92097. Substitute parts can look different from the original.
$14.91 |
12% OFF Phone Price : $16.91
In Stock
