Hoover
Carpet Cleaner

Model # FH50210 SERIES B Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover FH50210-SERIES-B carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Carpet Cleaner Motor Assembly 304337001
#28

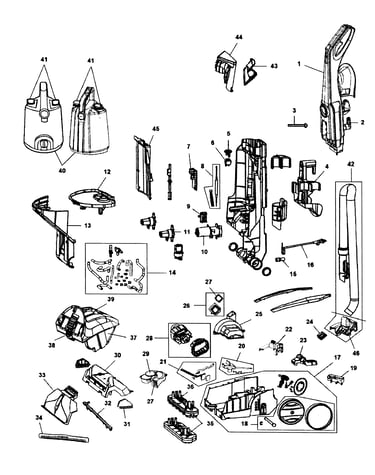

Main assy diagram

Carpet cleaner motor assembly

Part #304337001

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Base Nozzle 520887001
#30

Main assy diagram

Carpet cleaner base nozzle

Part #520887001

The manufacturer no longer makes this part, and there's no substitute part

Fascia-blu 440001379
#13

Main assy diagram

Fascia-blu

Part #440001379

The manufacturer no longer makes this part, and there's no substitute part

Pump Gear 440003898
#10A

Main assy diagram

Pump gear

Part #440003898

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Base (seaside Blue) 440001372
#17

Main assy diagram

Carpet cleaner base (seaside blue)

Part #440001372

The manufacturer no longer makes this part, and there's no substitute part

Wiring Kit 440003873
#8A

Main assy diagram

Wiring kit

Part #440003873

The manufacturer no longer makes this part, and there's no substitute part

Recovery Tank 440003874
#37

Main assy diagram

Recovery tank

Part #440003874

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Tool Storage Tray 523753001
#4

Main assy diagram

Carpet cleaner tool storage tray

Part #523753001

The manufacturer no longer makes this part, and there's no substitute part

Seal Kit 440001374
#26

Main assy diagram

Seal kit

Part #440001374

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Solution Valve Seal 563226001
#40B

Main assy diagram

Carpet cleaner solution valve seal

Part #563226001

The manufacturer no longer makes this part, and there's no substitute part
