Model # 14340501 Official Craftsman 4-cycle engine
Here are the diagrams and repair parts for Official Craftsman 14340501 4-cycle engine, as well as links to manuals and error code tables, if available.
By Schematic
By Part

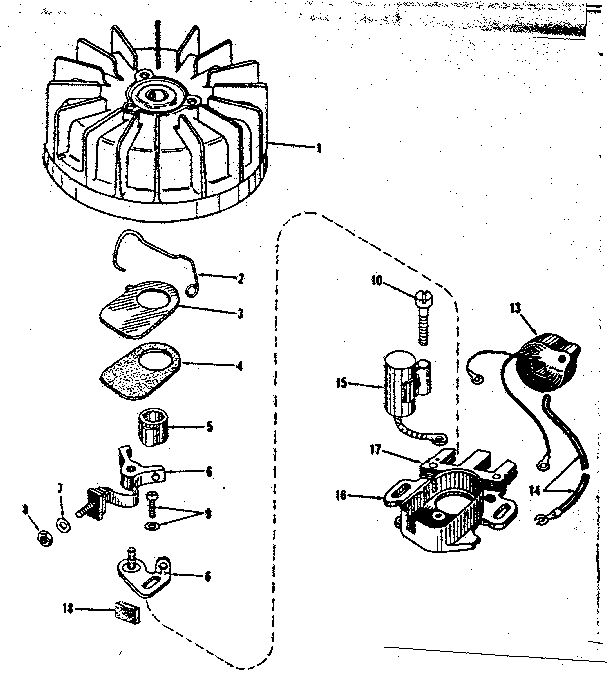

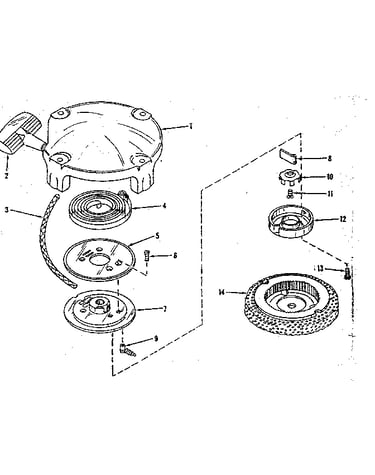

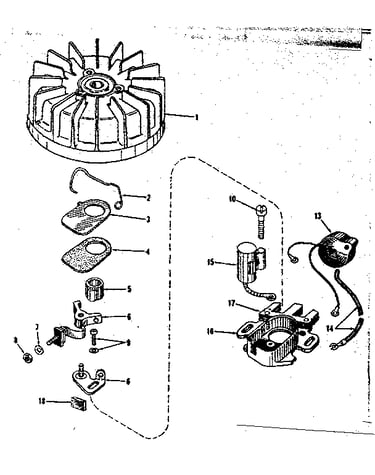

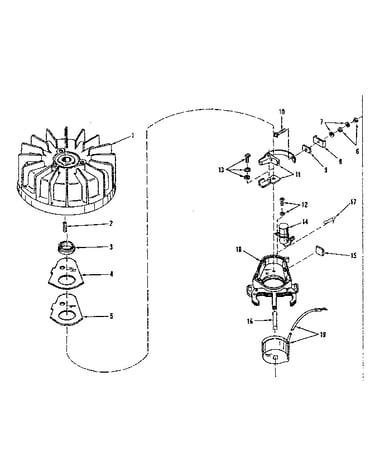

SELECT DIAGRAM
Browse Parts for
14340501 4-Cycle Engine
#20

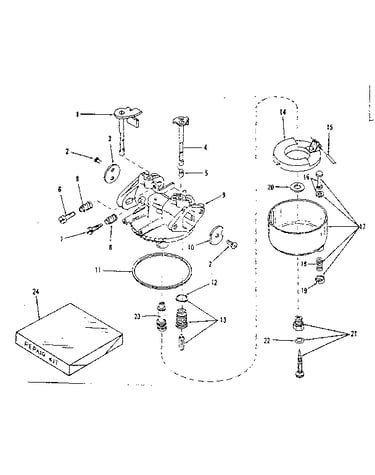

Carburetor no. 29329 (lmg-138) diagram
Gasket
Part #27110
The manufacturer no longer makes this part, and there's no substitute part
#55

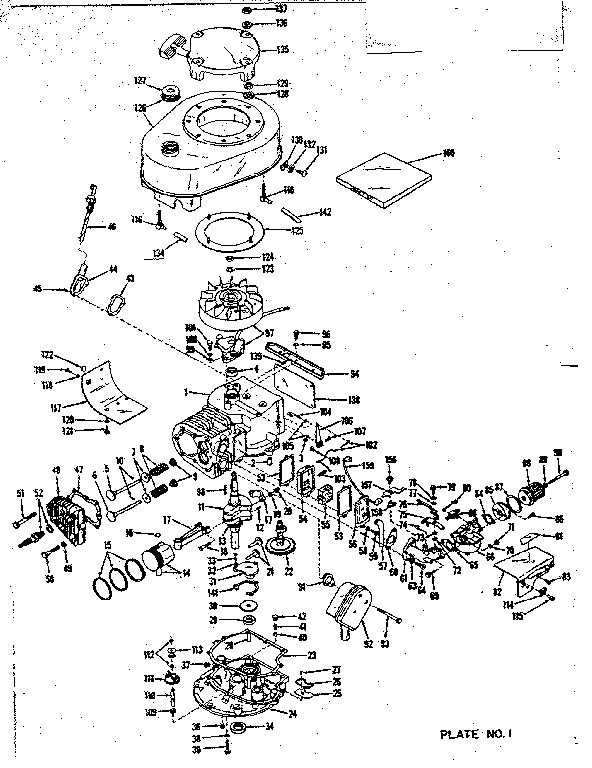

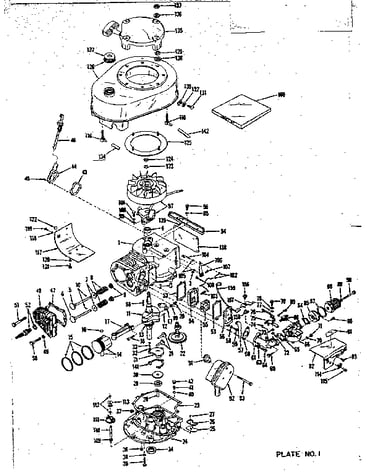

Basic engine diagram
Breather element air filter
Part #28424
The manufacturer no longer makes this part, and there's no substitute part
#57
Basic engine diagram
Tube
Part #27627
The manufacturer no longer makes this part, and there's no substitute part
#56
Basic engine diagram
Cover
Part #28425
The manufacturer no longer makes this part, and there's no substitute part
#13
Basic engine diagram
Gear
Part #27884
The manufacturer no longer makes this part, and there's no substitute part
#131
Basic engine diagram
Screw
Part #14396
The manufacturer no longer makes this part, and there's no substitute part
#114
Basic engine diagram
Clip
Part #27793
The manufacturer no longer makes this part, and there's no substitute part
#54
Basic engine diagram
/brether asy
Part #28423
The manufacturer no longer makes this part, and there's no substitute part
#12
Basic engine diagram
Pin
Part #27378
The manufacturer no longer makes this part, and there's no substitute part
#14
Carburetor no. 29329 (lmg-138) diagram
/carb float
Part #27105
The manufacturer no longer makes this part, and there's no substitute part
