Model # LA5530XTW0 Official Whirlpool washer
Here are the diagrams and repair parts for Official Whirlpool LA5530XTW0 washer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

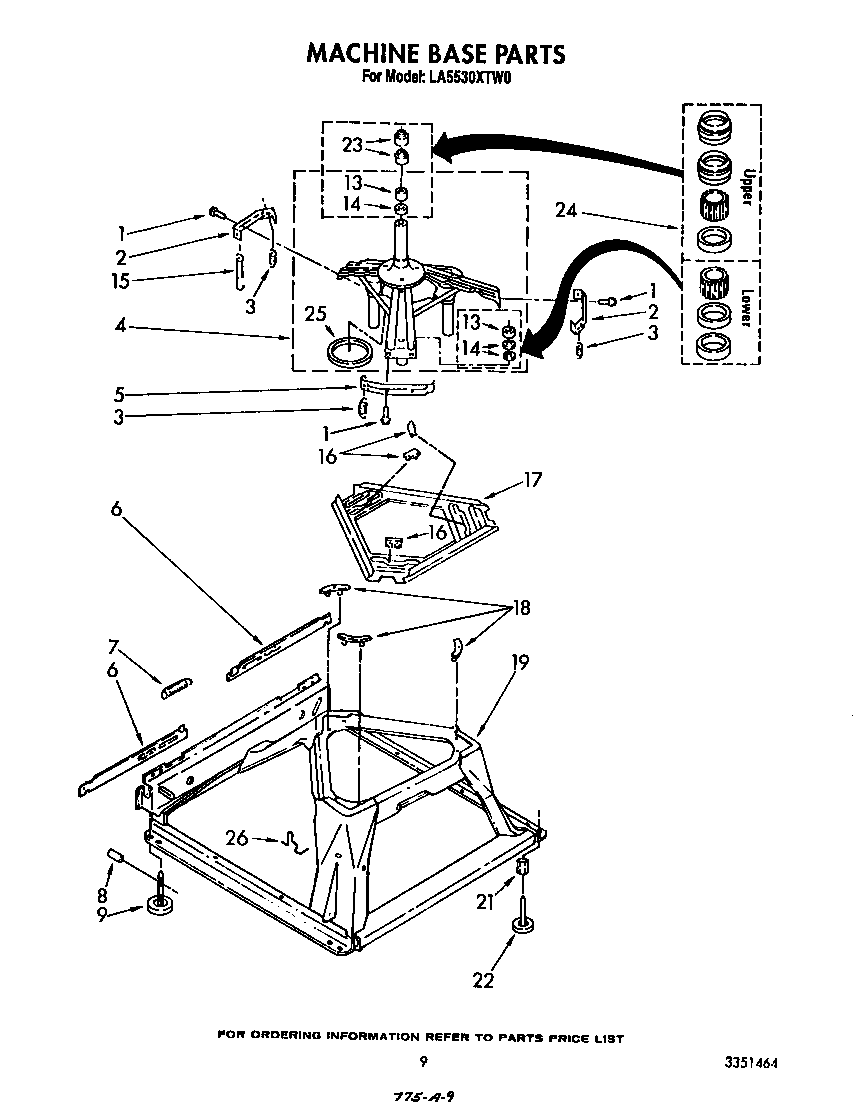

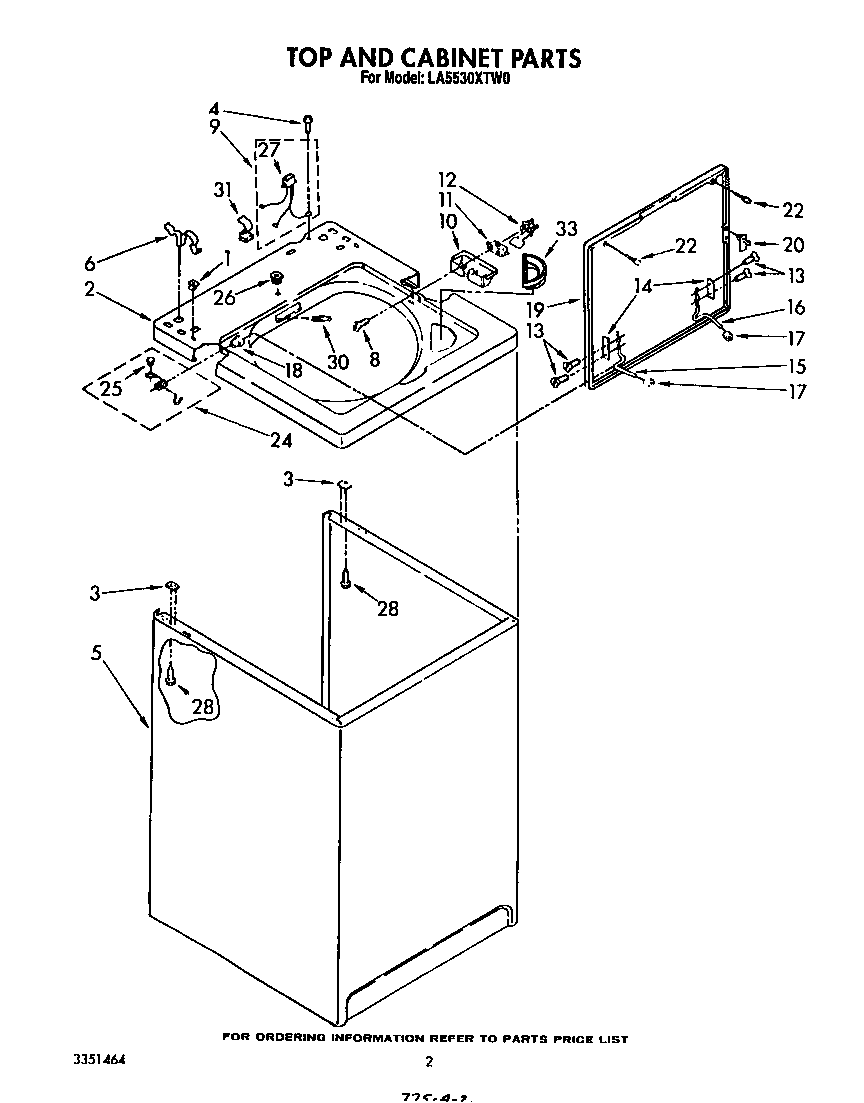

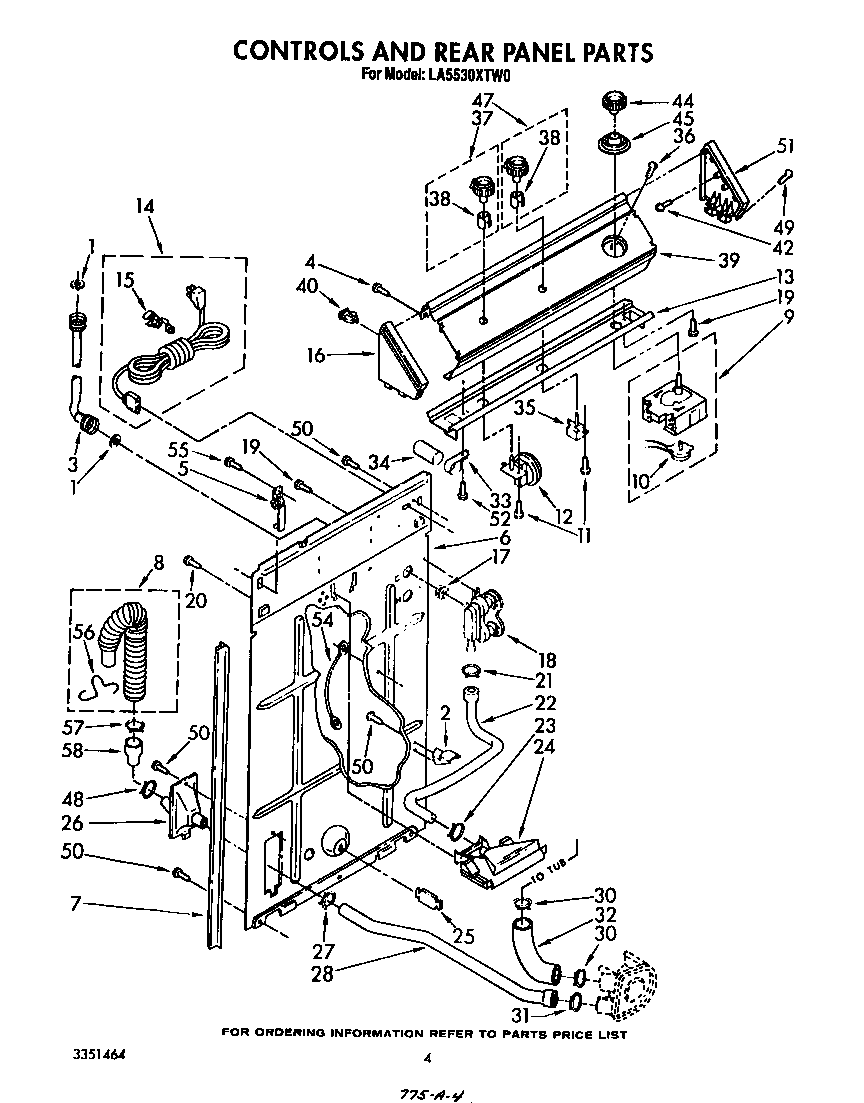

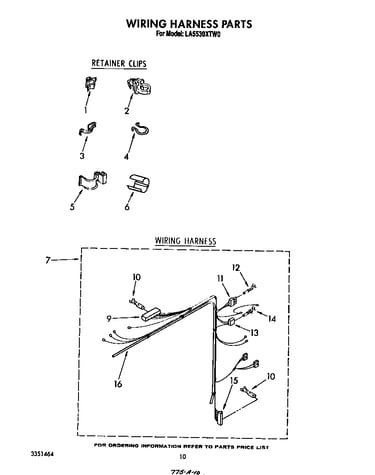

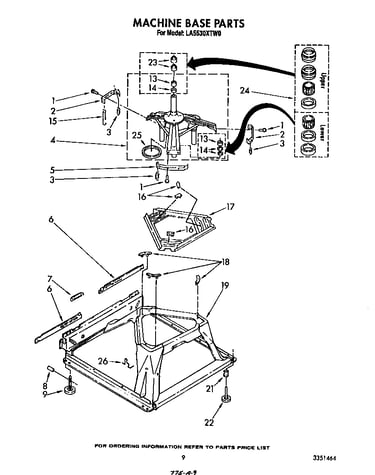

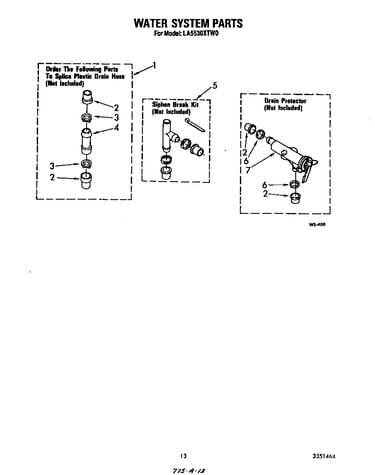

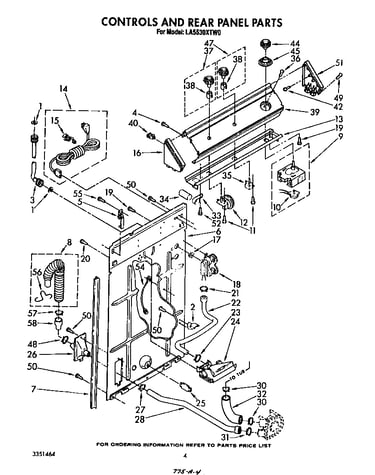

SELECT DIAGRAM
Browse Parts forLA5530XTW0 Washer
- #21

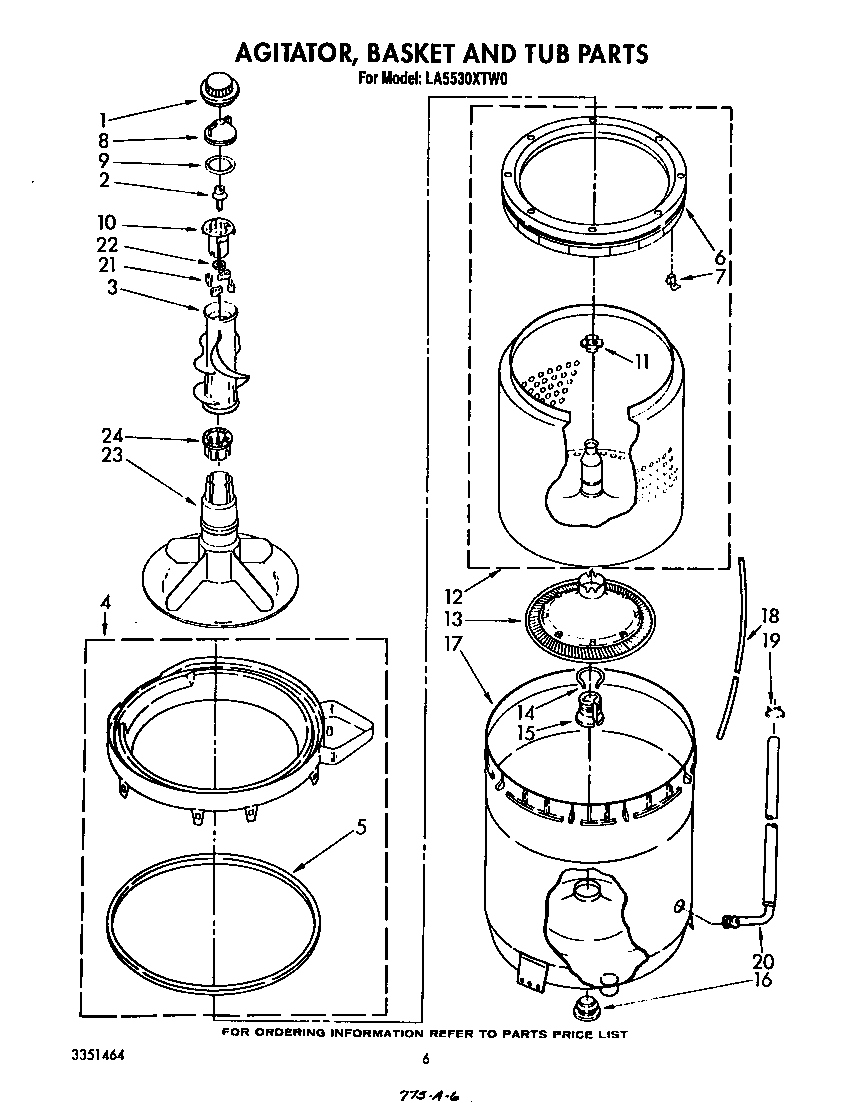

Agitator, basket and tub diagram
Agitator dogPart #387091
Replaced by #80040
?Manufacturer substitutionThis part replaces 387091. Substitute parts can look different from the original.$6.91 |13% OFF Phone Price : $7.91In Stock - #13

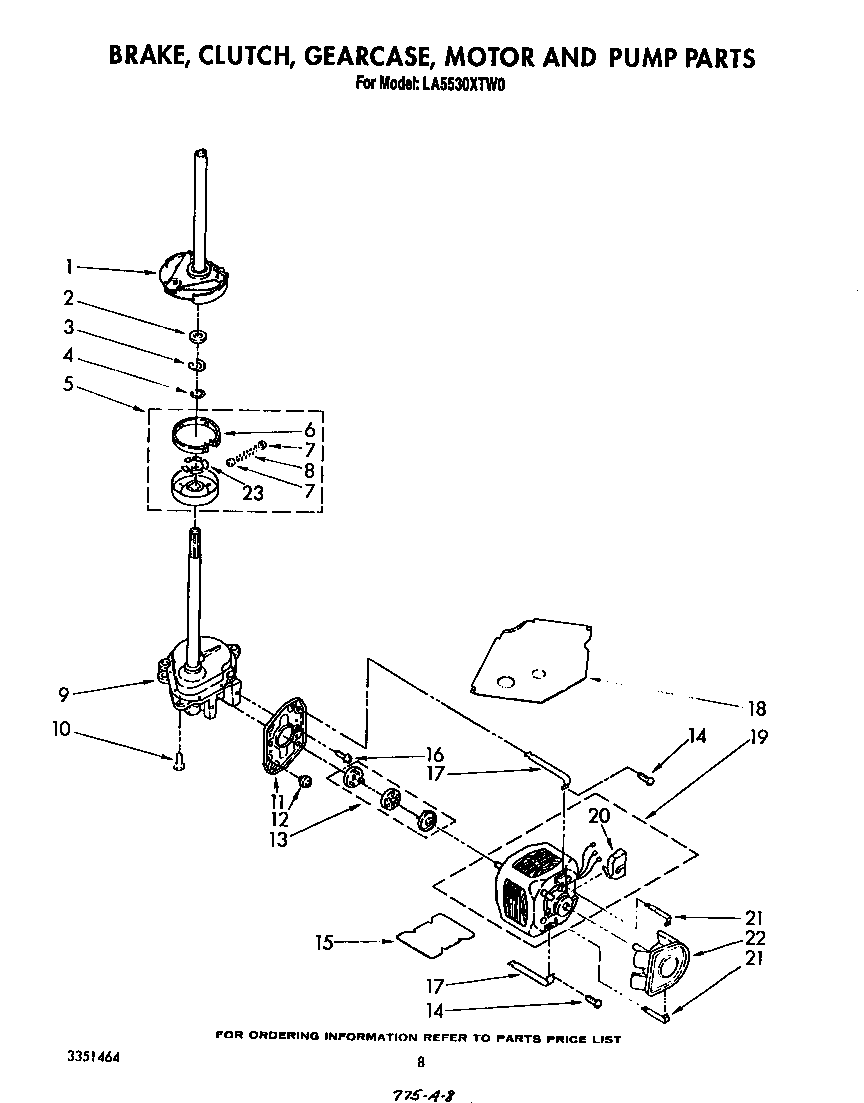

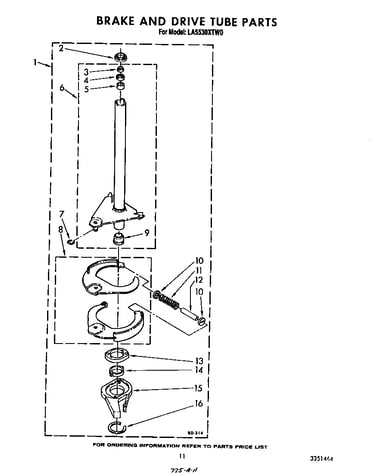

Brake, clutch, gearcase, motor and pump diagram
CouplingPart #62693
Replaced by #285753A
?Manufacturer substitutionThis part replaces 62693. Substitute parts can look different from the original.$20.95 |22% OFF Phone Price : $26.95In Stock - #27

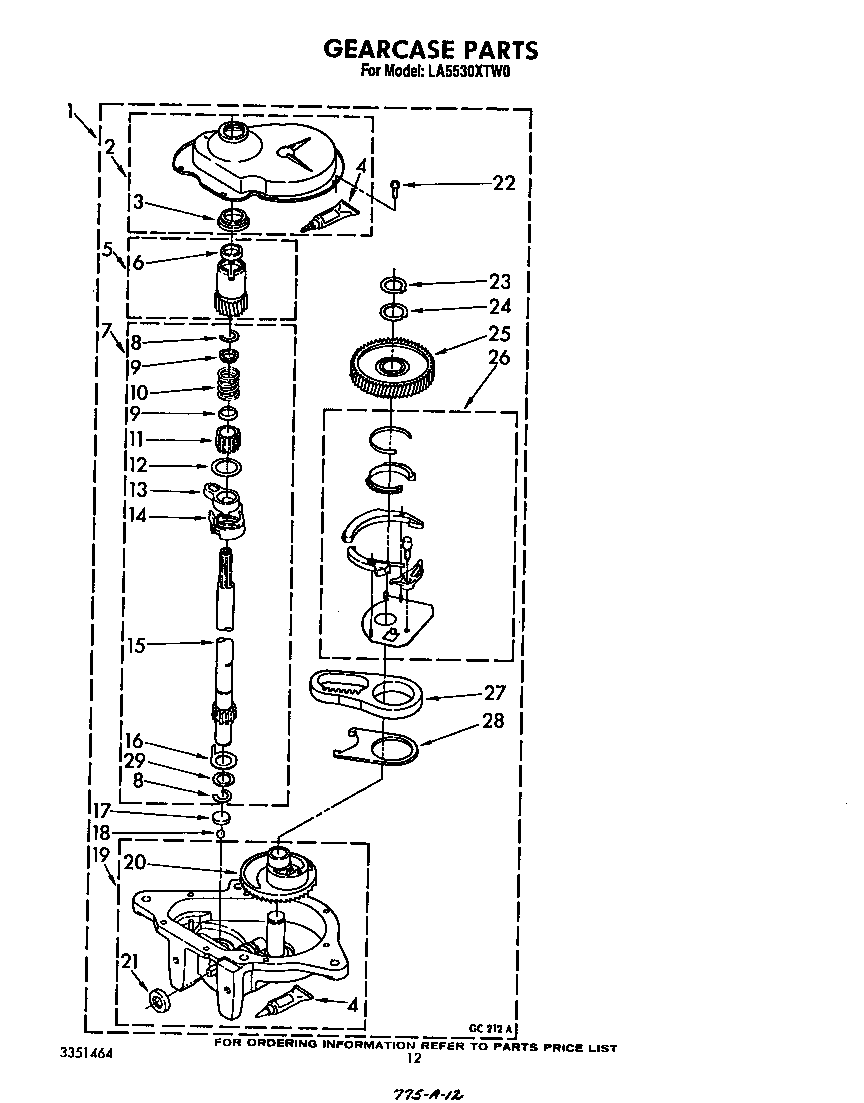

Gearcase diagram
RackPart #62534
Replaced by #3360629
?Manufacturer substitutionThis part replaces 62534. Substitute parts can look different from the original.$200.61 |6% OFF Phone Price : $212.61In Stock - #5
Gearcase diagram
PinionPart #63320
Replaced by #3360629
?Manufacturer substitutionThis part replaces 63320. Substitute parts can look different from the original.$200.61 |6% OFF Phone Price : $212.61In Stock - #28
Gearcase diagram
ActuatorPart #62621
Replaced by #3360629
?Manufacturer substitutionThis part replaces 62621. Substitute parts can look different from the original.$200.61 |6% OFF Phone Price : $212.61In Stock - #25
Gearcase diagram
GearPart #62570
Replaced by #3360629
?Manufacturer substitutionThis part replaces 62570. Substitute parts can look different from the original.$200.61 |6% OFF Phone Price : $212.61In Stock - Gear case
Part #389246
Replaced by #3360629
?Manufacturer substitutionThis part replaces 389246. Substitute parts can look different from the original.$200.61 |6% OFF Phone Price : $212.61In Stock - #5
Brake, clutch, gearcase, motor and pump diagram
ClutchPart #3350115
Replaced by #285785
?Manufacturer substitutionThis part replaces 3350115. Substitute parts can look different from the original.$29.44 |17% OFF Phone Price : $35.44In Stock - Basketdriv
Part #388951
Replaced by #W10820043
?Manufacturer substitutionThis part replaces 388951. Substitute parts can look different from the original.$101.16 |11% OFF Phone Price : $113.16In Stock - #15
Agitator, basket and tub diagram
Washer drive blockPart #389140
Replaced by #WP389140
?Manufacturer substitutionThis part replaces 389140. Substitute parts can look different from the original.$21.99 |21% OFF Phone Price : $27.99In Stock
