Amana
Countertop Microwave

Model # AH2285.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana AH2285A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

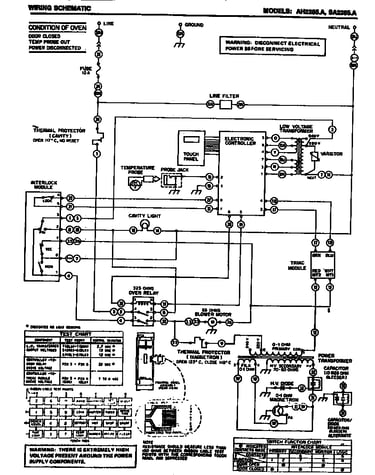

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Exhaust Duct M65D339
#11A

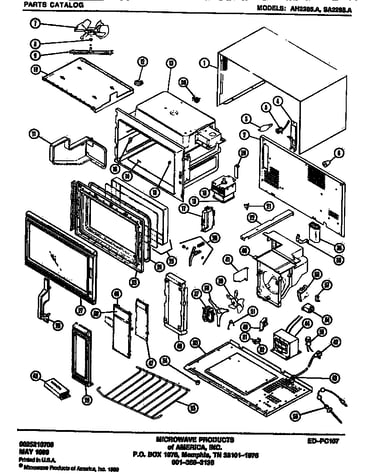

Replacement parts diagram

Exhaust duct

Part #M65D339

The manufacturer no longer makes this part, and there's no substitute part

Keps Nut 8-32 M1D763
#42C

Replacement parts diagram

Keps nut 8-32

Part #M1D763

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support M20D340
#22A

Replacement parts diagram

Bracket support

Part #M20D340

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mtg. M1D942
#28B

Replacement parts diagram

Screw, handle mtg.

Part #M1D942

The manufacturer no longer makes this part, and there's no substitute part

Low-voltage Transformer M60D147
#49A

Replacement parts diagram

Low-voltage transformer

Part #M60D147

The manufacturer no longer makes this part, and there's no substitute part

Magnetron M57D36
#18A

Replacement parts diagram

Magnetron

Part #M57D36

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Frame M7D813
#29A

Replacement parts diagram

Control panel frame

Part #M7D813

The manufacturer no longer makes this part, and there's no substitute part

Back Support-right M2D427
#16

Replacement parts diagram

Back support-right

Part #M2D427

The manufacturer no longer makes this part, and there's no substitute part

Clip, Door Shim M2D797
#27C

Replacement parts diagram

Clip, door shim

Part #M2D797

The manufacturer no longer makes this part, and there's no substitute part

Interlock Switch Module M14D299
#17A

Replacement parts diagram

Interlock switch module

Part #M14D299

The manufacturer no longer makes this part, and there's no substitute part
