Model # DW954TY1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW954TY1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Black & Decker Spring 152347-00
#43

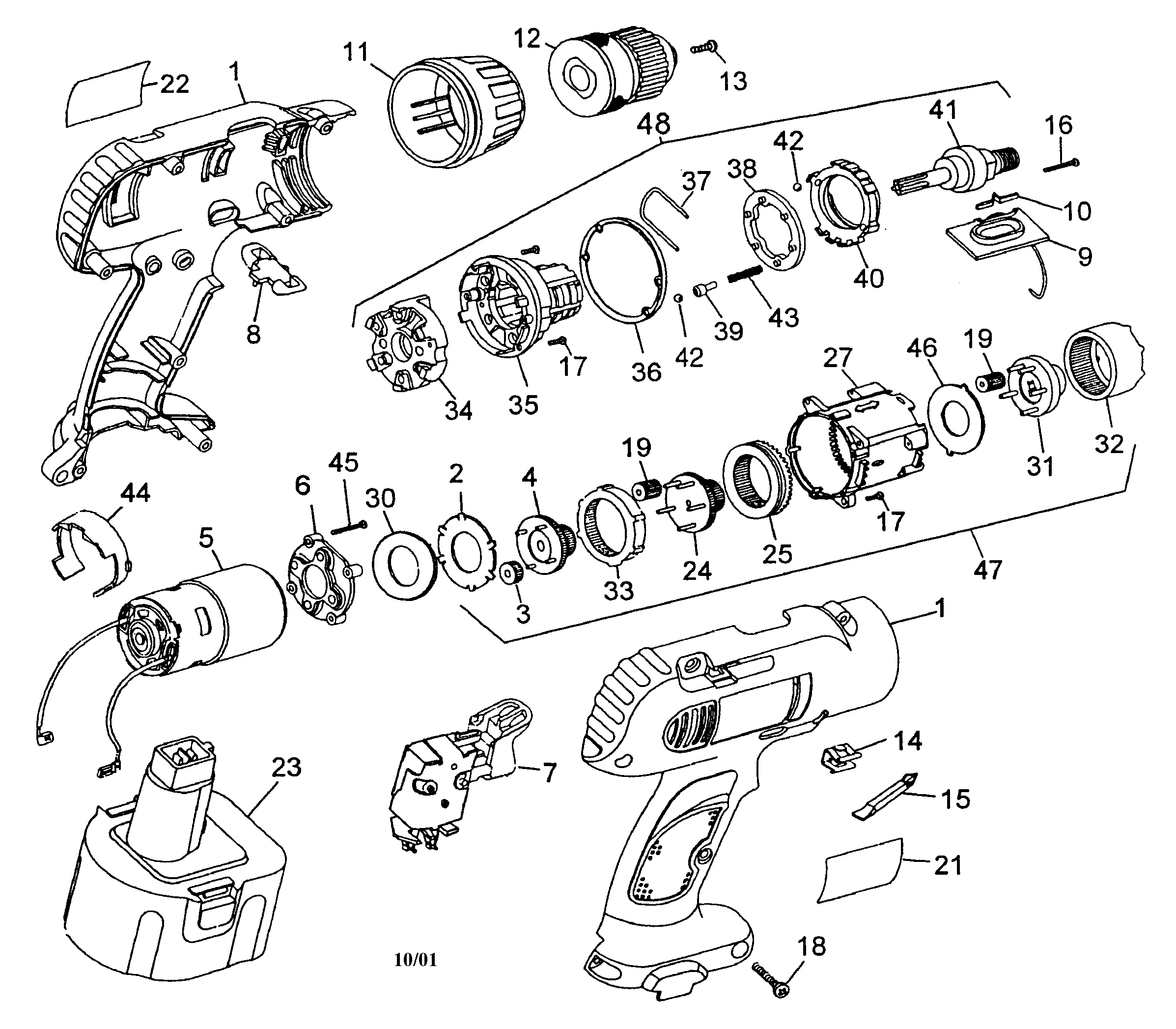

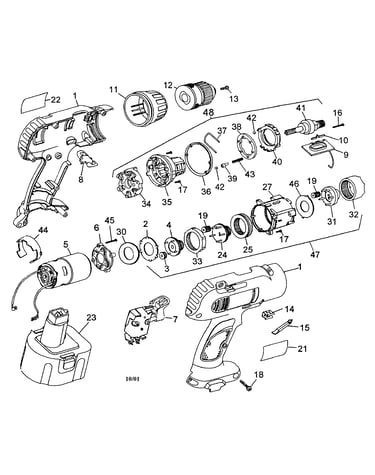

Drill housing diagram

Black & decker spring

Part #152347-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 148204-00
#13

Drill housing diagram

Screw

Part #148204-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 805004-00
#36

Drill housing diagram

Black & decker washer

Part #805004-00

The manufacturer no longer makes this part, and there's no substitute part

Carrier 372272-02
#24

Drill housing diagram

Carrier

Part #372272-02

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Screw 98091-10
#17

Drill housing diagram

Black & decker screw

Part #98091-10

The manufacturer no longer makes this part, and there's no substitute part

Ring Gear 805063-03
#33

Drill housing diagram

Ring gear

Part #805063-03

The manufacturer no longer makes this part, and there's no substitute part

Spindle 386279-00
#41

Drill housing diagram

Spindle

Part #386279-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Pin 380793-00
#39

Drill housing diagram

Black & decker pin

Part #380793-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Washer 798954-00
#2

Drill housing diagram

Black & decker washer

Part #798954-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Plate 380792-00
#38

Drill housing diagram

Black & decker plate

Part #380792-00

The manufacturer no longer makes this part, and there's no substitute part
