Craftsman
Gas Walk-Behind Mower

Model # 917378422 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378422 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 250 parts  |
Belt, 21-in 175064
#47

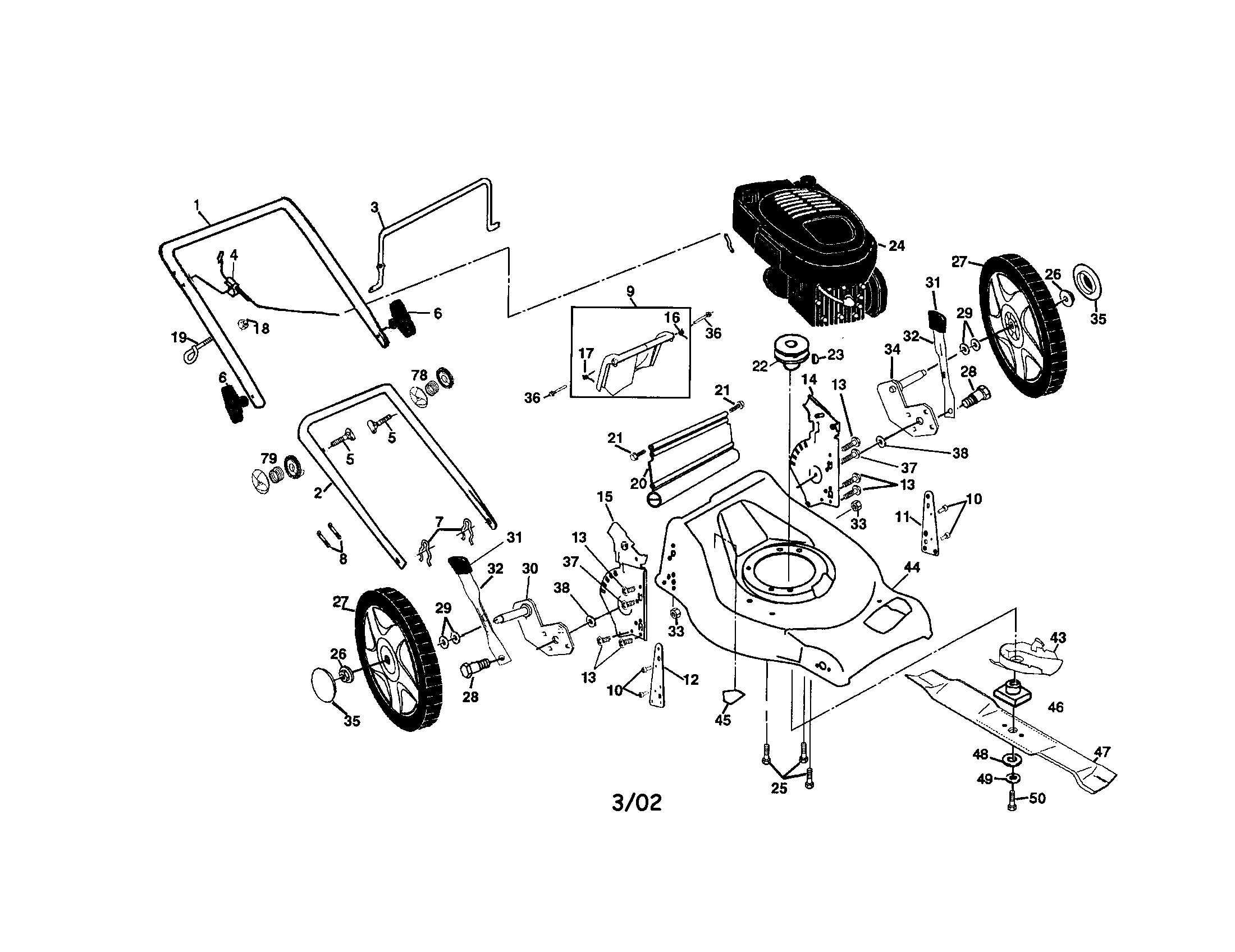

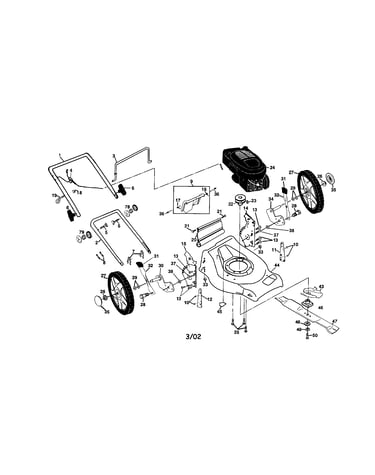

Engine/handles diagram

Belt, 21-in

Part #175064

Replaced by #532406712

?
Manufacturer substitution
This part replaces 175064. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$22.79 |
21% OFF Phone Price : $28.79
In Stock
Lawn Mower Height Adjuster Knob 701037
#18

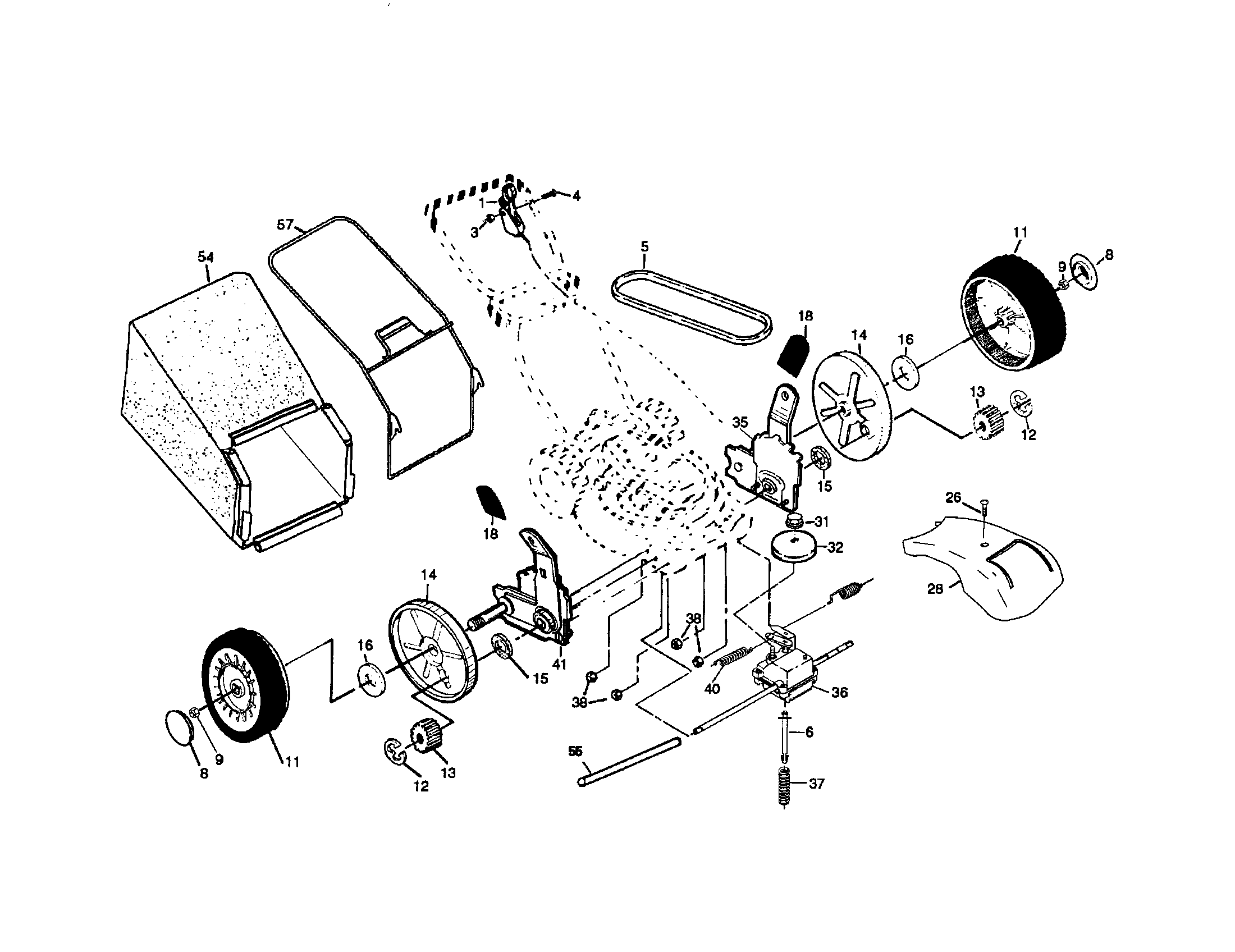

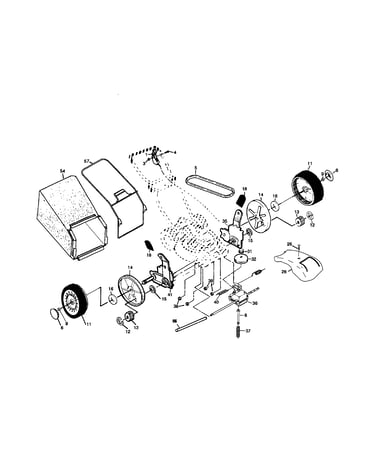

Wheels/tires/bag diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#46

Engine/handles diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Nut 132004
#18

Engine/handles diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#21

Engine/handles diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn Mower Drive Wheel, 8 X 2-in (replaces 180767, 532180775, 5321807-75) 180775
#11

Wheels/tires/bag diagram

Lawn mower drive wheel, 8 x 2-in (replaces 180767, 532180775, 5321807-75)

Part #180775

Replaced by #532180775

?
Manufacturer substitution
This part replaces 180775. Substitute parts can look different from the original.
$39.98
In Stock
Rope Guide 179585
#19

Engine/handles diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Wheels/tires/bag diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Weed Eater Lawn & Garden Equipment Screw, 14-20 X 5/8-in 17060410
#13

Engine/handles diagram

Weed eater lawn & garden equipment screw, 14-20 x 5/8-in

Part #17060410

Replaced by #817060410

?
Manufacturer substitution
This part replaces 17060410. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Ground Drive Belt, 3/8 X 32-1/2-in (replaces 532175436) 175436
#5

Wheels/tires/bag diagram

Lawn mower ground drive belt, 3/8 x 32-1/2-in (replaces 532175436)

Part #175436

Replaced by #532175436

?
Manufacturer substitution
This part replaces 175436. Substitute parts can look different from the original.

Get free shipping with Automatic Reorder

$26.64
In Stock
