Model # FHWC3060LSA Official Frigidaire range hood

Here are the diagrams and repair parts for Official Frigidaire FHWC3060LSA range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

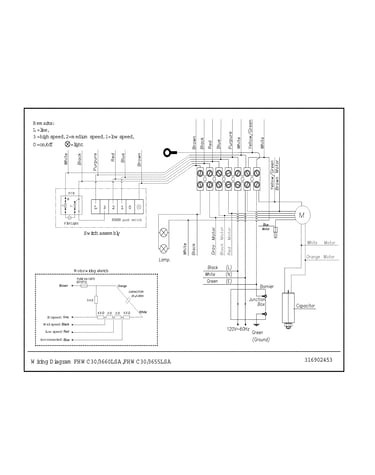

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Range Hood Grease Filter 5304482272
#23

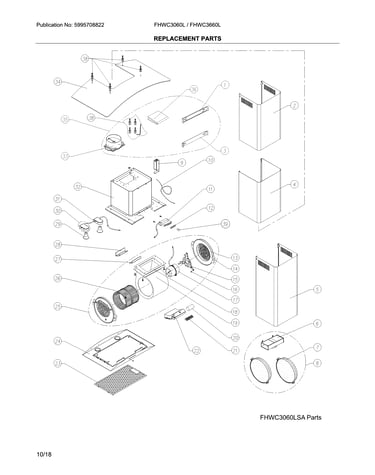

Replacement parts diagram

Range hood grease filter

Part #5304482272

BEST SELLER
$42.90 |
12% OFF Phone Price : $48.90
In Stock
Range Hood Blower Assembly 5304482255
#25

Replacement parts diagram

Range hood blower assembly

Part #5304482255

Replaced by #5304532176

?
Manufacturer substitution
This part replaces 5304482255. Substitute parts can look different from the original.
$207.36
In Stock
Range Hood Switch Assembly 5304482236
#11

Replacement parts diagram

Range hood switch assembly

Part #5304482236

$114.66 |
9% OFF Phone Price : $126.66
In Stock
Range Hood Charcoal Filter 5304482231
#7

Replacement parts diagram

Range hood charcoal filter

Part #5304482231

$97.72 |
11% OFF Phone Price : $109.72
In Stock
Range Hood Fan Motor 5304482242
#17

Replacement parts diagram

Range hood fan motor

Part #5304482242

$329.36 |
$12.00 OFF Phone Price : $341.36
In Stock
Range Hood Flue Cover, Lower 5304482268
#4

Replacement parts diagram

Range hood flue cover, lower

Part #5304482268

$158.22 |
7% OFF Phone Price : $170.22
In Stock
Bracket 5304482267
#3

Replacement parts diagram

Bracket

Part #5304482267

This item is not returnable
$9.14
In Stock
Range Hood Installation 5304482277
#35

Replacement parts diagram

Range hood installation

Part #5304482277

$72.93
In Stock
Range Hood Blower Wheel Assembly 5304482256
#26

Replacement parts diagram

Range hood blower wheel assembly

Part #5304482256

$46.03 |
12% OFF Phone Price : $52.03
In Stock
Range Hood Light Socket 5304482258
#30

Replacement parts diagram

Range hood light socket

Part #5304482258

$46.89 |
11% OFF Phone Price : $52.89
In Stock
