Electrolux
Washer

Model # EFLS210TIS01 Official Electrolux washer

Here are the diagrams and repair parts for Official Electrolux EFLS210TIS01 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

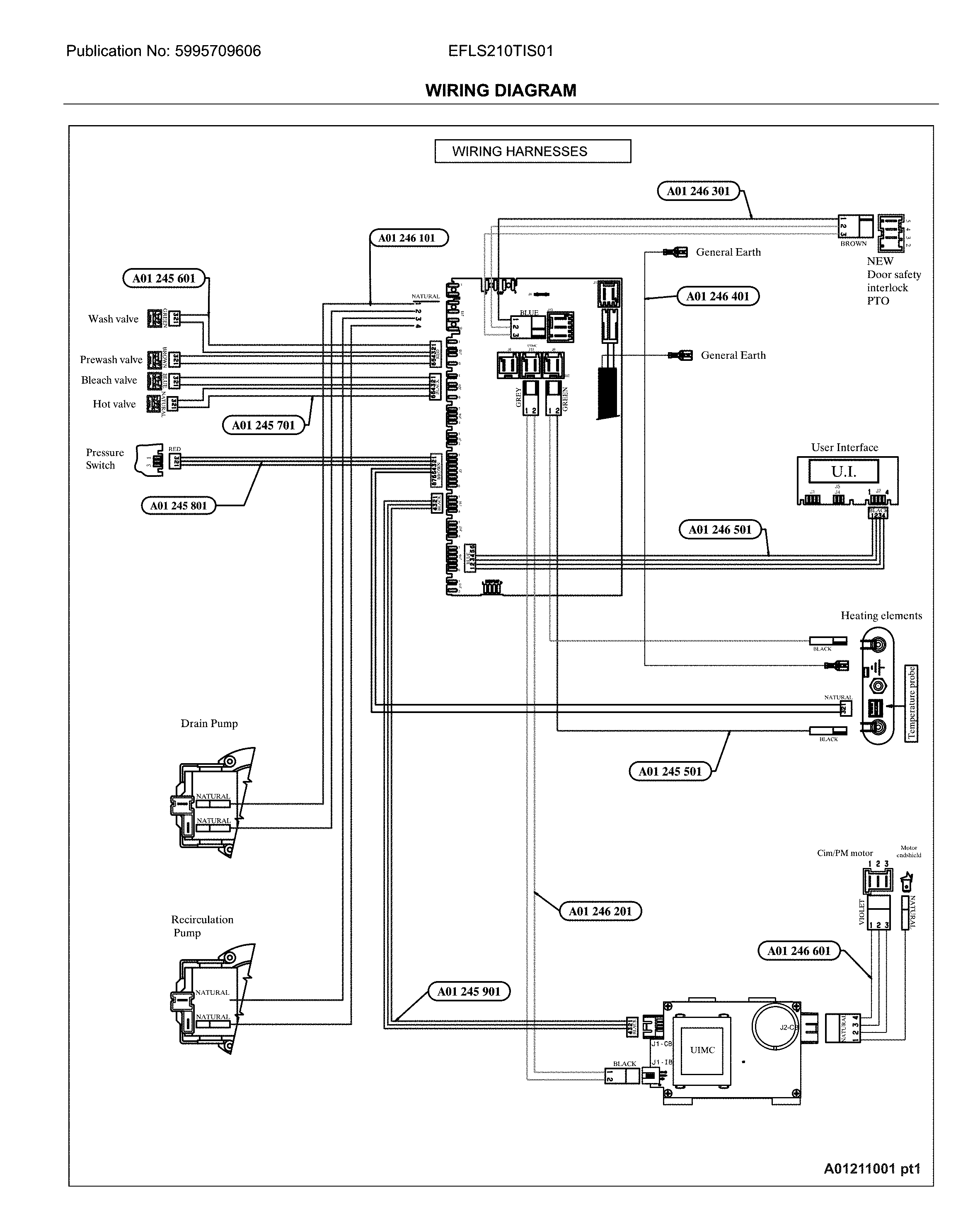

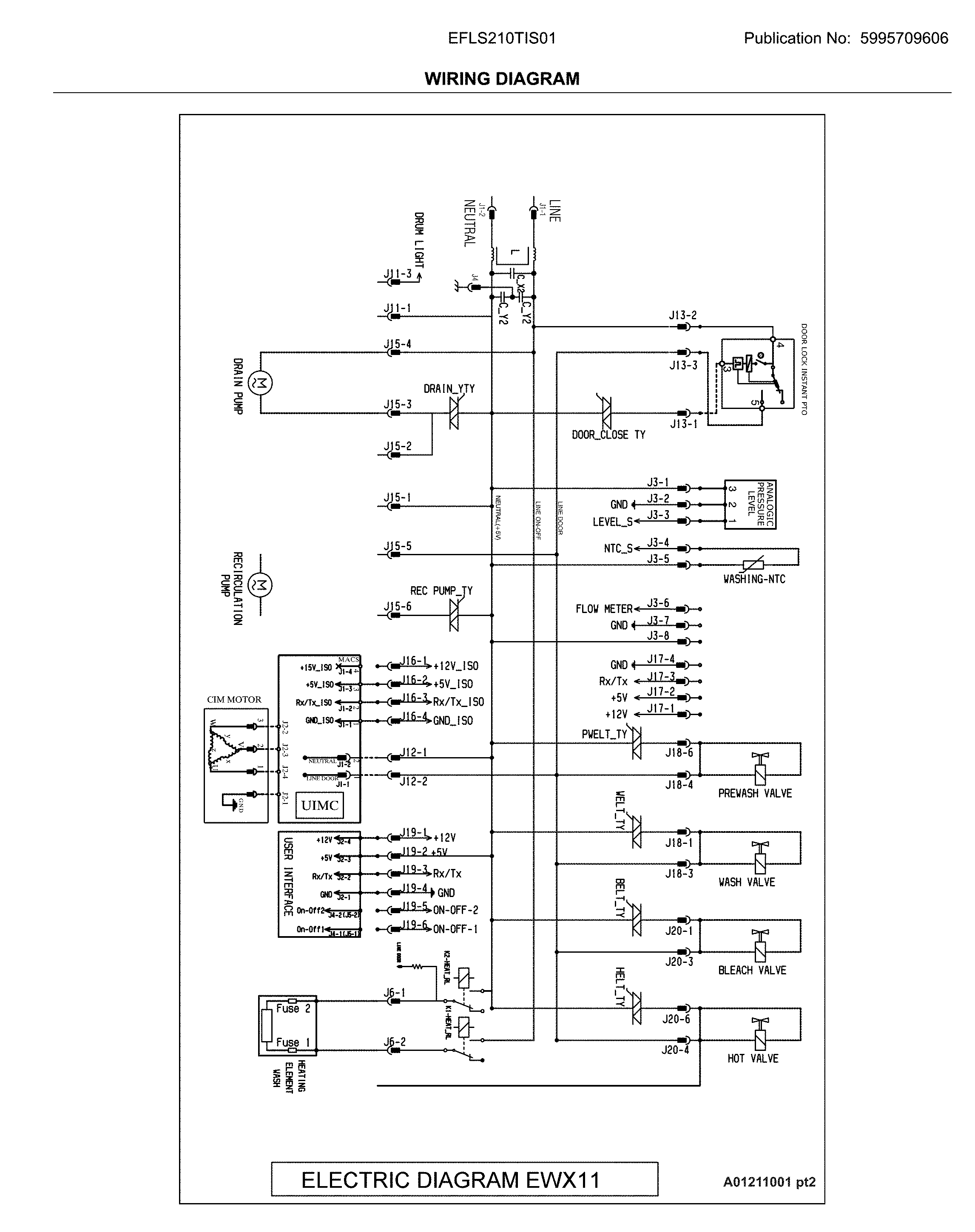

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 106 parts  |
Washer 3-way Water Inlet Valve 132518842
#507

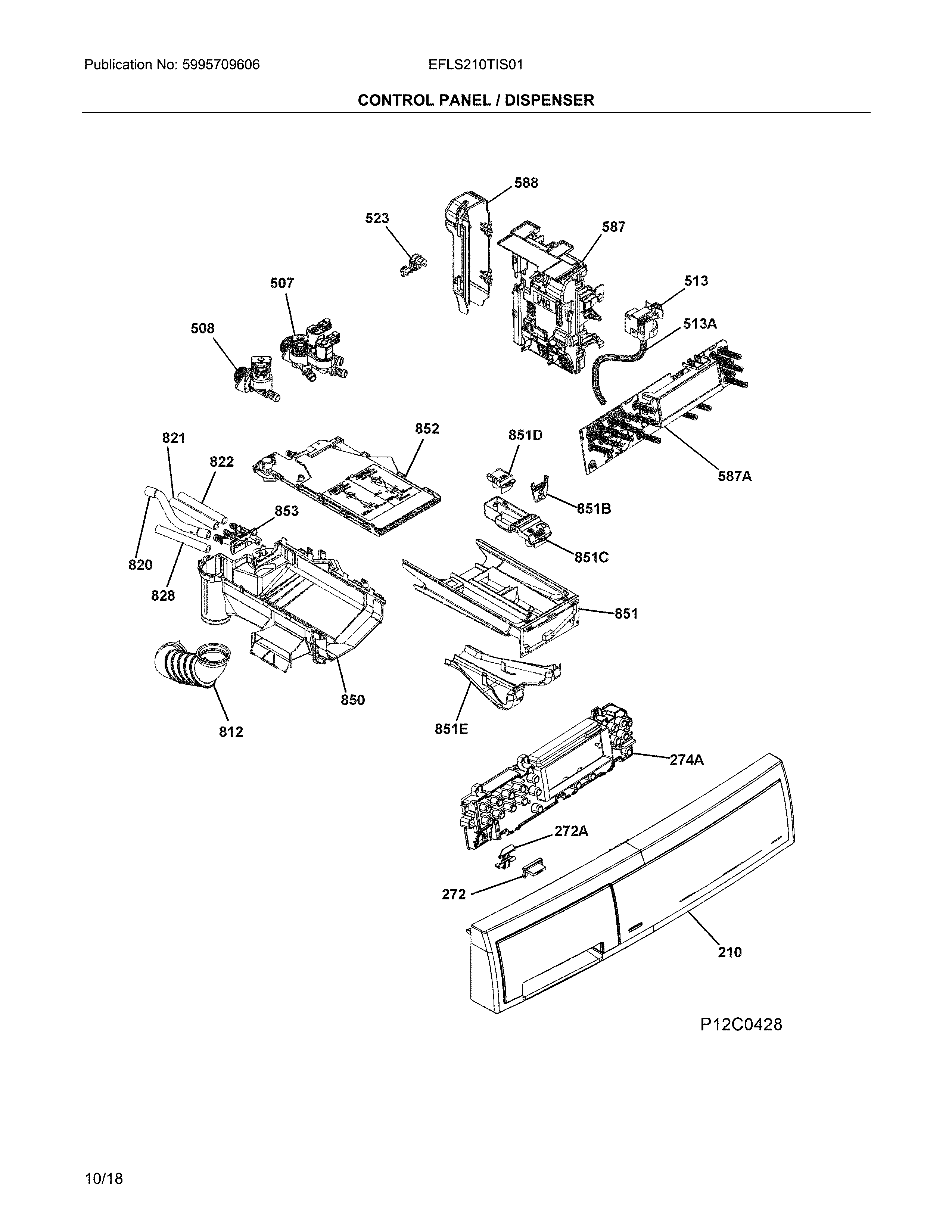

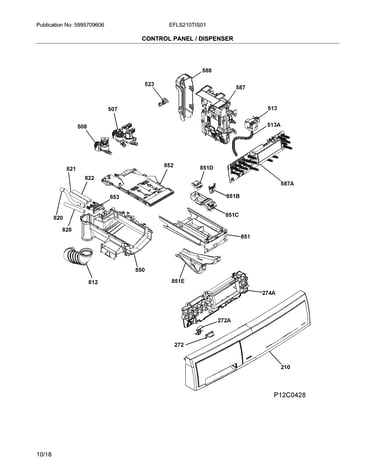

Control panel/dispenser diagram

Washer 3-way water inlet valve

Part #132518842

$76.70 |
7% OFF Phone Price : $82.70
In Stock
Washer Door Lock 808455304
#521

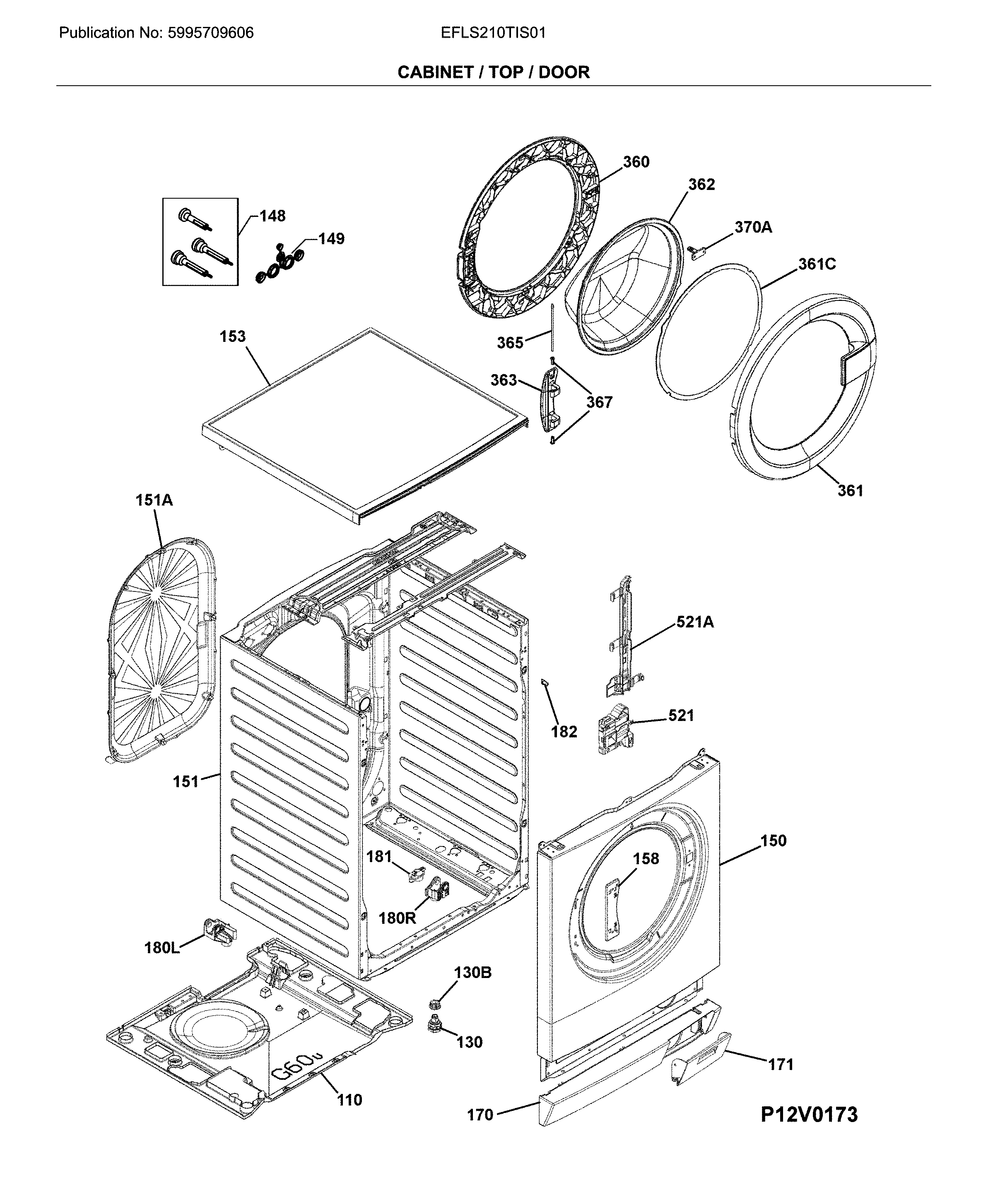

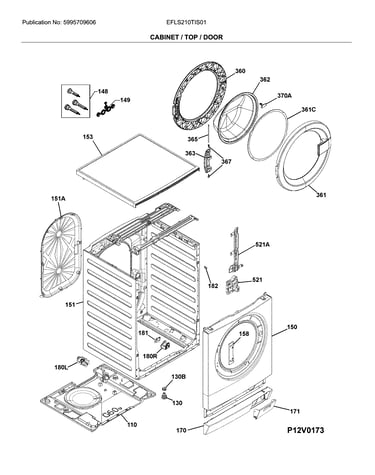

Cabinet/top/door diagram

Washer door lock

Part #808455304

$70.89 |
8% OFF Phone Price : $76.89
In Stock
Washer Drain Pump 132611913
#506

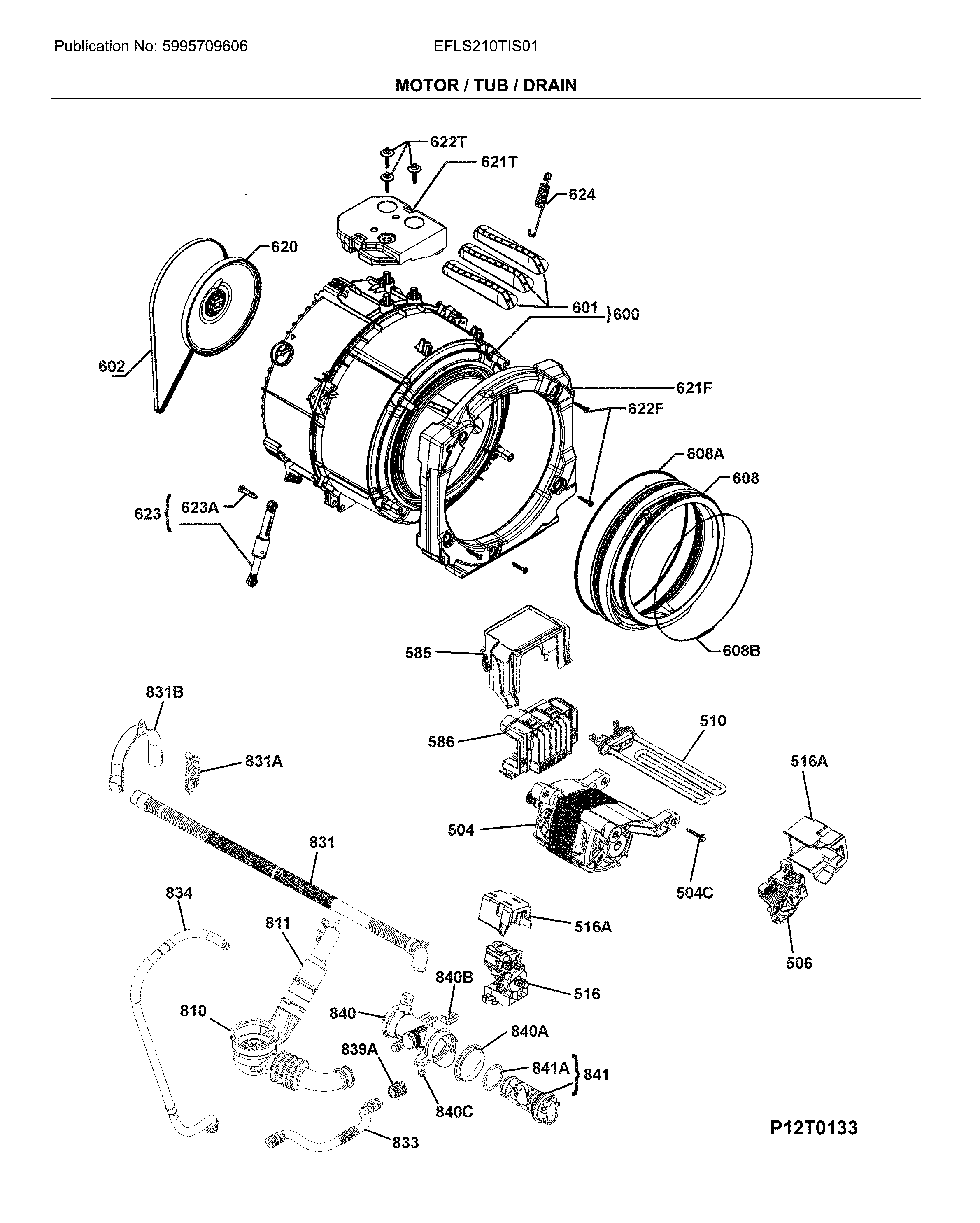

Motor/tub/drain diagram

Washer drain pump

Part #132611913

$113.36 |
10% OFF Phone Price : $125.36
In Stock
Washer Dispenser Valve 132744701
#508

Control panel/dispenser diagram

Washer dispenser valve

Part #132744701

$64.13 |
9% OFF Phone Price : $70.13
In Stock
Clamp 132556200
#608

Motor/tub/drain diagram

Clamp

Part #132556200

$57.73
In Stock
Switch 132819501
#513

Control panel/dispenser diagram

Switch

Part #132819501

Replaced by #379221604

?
Manufacturer substitution
This part replaces 132819501. Substitute parts can look different from the original.
$35.91
In Stock
Washer Cover 807756001
#521

Cabinet/top/door diagram

Washer cover

Part #807756001

$84.93
In Stock
Filter,assy ,diaphragm ,diamondafter Serial No.736xxxxx A06486401
#841

Motor/tub/drain diagram

Filter,assy ,diaphragm ,diamondafter serial no.736xxxxx

Part #A06486401

$35.64
In Stock
Washer Door Boot Spring Clamp, Large 132562100
#608

Motor/tub/drain diagram

Washer door boot spring clamp, large

Part #132562100

$102.09 |
11% OFF Phone Price : $114.09
In Stock
Washer Drain Hose 132771400
#831

Motor/tub/drain diagram

Washer drain hose

Part #132771400

$108.78
In Stock
