Model # 7KSB4027MDR0 Official KitchenAid blender

Here are the diagrams and repair parts for Official KitchenAid 7KSB4027MDR0 blender, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Blender Drive Coupling W11294881
#13

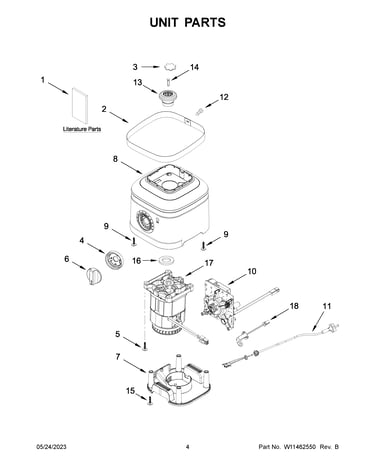

Unit parts diagram

Blender drive coupling

Part #W11294881

Replaced by #W11627528

?
Manufacturer substitution
This part replaces W11294881. Substitute parts can look different from the original.
BEST SELLER
$10.49 |
16% OFF Phone Price : $12.49
In Stock
Screw 3400814
#15

Unit parts diagram

Screw

Part #3400814

Replaced by #WP3400814

?
Manufacturer substitution
This part replaces 3400814. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw, Coupler W11174445
#14

Unit parts diagram

Screw, coupler

Part #W11174445

Replaced by #W11486756

?
Manufacturer substitution
This part replaces W11174445. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Upper Base (black Matte) W11245946
#8

Unit parts diagram

Upper base (black matte)

Part #W11245946

$91.87
In Stock
Upper Base (white) W11245949
#8E

Unit parts diagram

Upper base (white)

Part #W11245949

$89.25
In Stock
Upper Base (passion Red) W11245947
#8D

Unit parts diagram

Upper base (passion red)

Part #W11245947

$89.25
In Stock
Upper Base (contour Silver) W11279715
#8B

Unit parts diagram

Upper base (contour silver)

Part #W11279715

$89.25
In Stock
Lid Assembly W11279642
#1

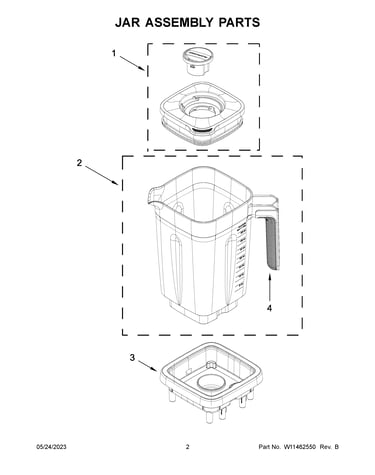

Jar assembly parts diagram

Lid assembly

Part #W11279642

$49.99 |
11% OFF Phone Price : $55.99
In Stock
Cord, Power (black) W11392823
#11

Unit parts diagram

Cord, power (black)

Part #W11392823

$31.00
In Stock
Upper Base (matte Vintage Blue) W11245952
#8A

Unit parts diagram

Upper base (matte vintage blue)

Part #W11245952

$89.25
In Stock
