Model # AHG50LCG1 Official GE dehumidifier

Here are the diagrams and repair parts for Official GE AHG50LCG1 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Ge Base WK89X10006
#1

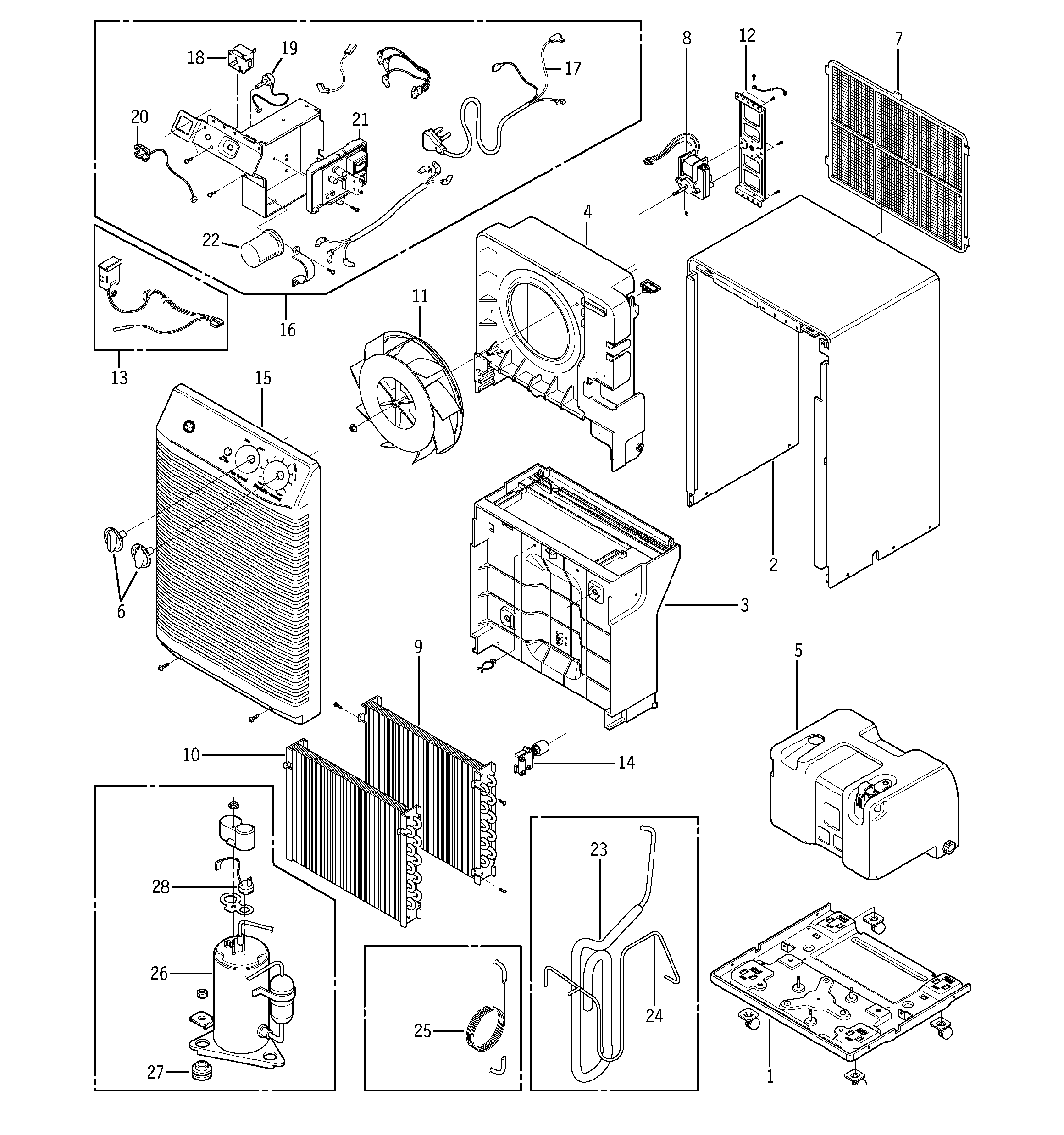

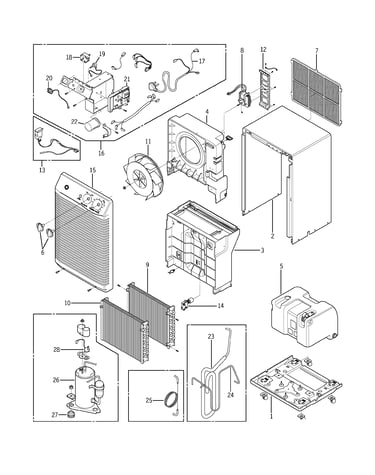

Dehumidifier diagram

Ge base

Part #WK89X10006

$39.99
In Stock
Shroud Assembly WK76X10007
#4

Dehumidifier diagram

Shroud assembly

Part #WK76X10007

The manufacturer no longer makes this part, and there's no substitute part

Tube WK57X10012
#25

Dehumidifier diagram

Tube

Part #WK57X10012

The manufacturer no longer makes this part, and there's no substitute part

Mounting Motor WK65X10001
#12

Dehumidifier diagram

Mounting motor

Part #WK65X10001

The manufacturer no longer makes this part, and there's no substitute part

Barrier Asse WK76X10006
#3

Dehumidifier diagram

Barrier asse

Part #WK76X10006

The manufacturer no longer makes this part, and there's no substitute part

Tube WK57X10010
#23

Dehumidifier diagram

Tube

Part #WK57X10010

The manufacturer no longer makes this part, and there's no substitute part

Sensor WK23X10007
#13

Dehumidifier diagram

Sensor

Part #WK23X10007

The manufacturer no longer makes this part, and there's no substitute part

Tube WK57X10011
#24

Dehumidifier diagram

Tube

Part #WK57X10011

The manufacturer no longer makes this part, and there's no substitute part

Dehumidifier Knob Assembly WK12X10002
#6

Dehumidifier diagram

Dehumidifier knob assembly

Part #WK12X10002

The manufacturer no longer makes this part, and there's no substitute part

Power Board Pcb WK27X10014
#20

Dehumidifier diagram

Power board pcb

Part #WK27X10014

The manufacturer no longer makes this part, and there's no substitute part
