Model # U3715930 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U3715930 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
Nut 160031--
#15

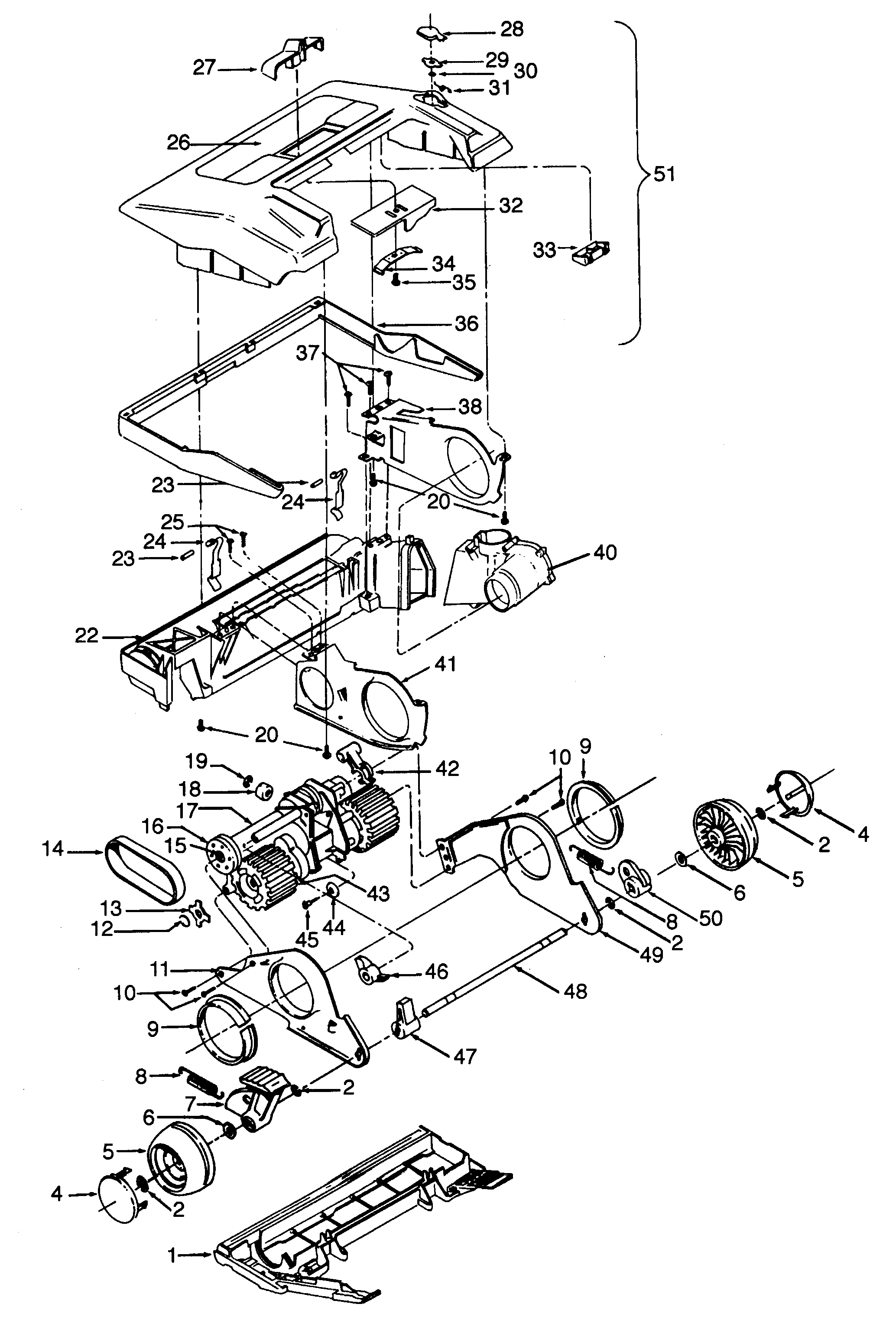

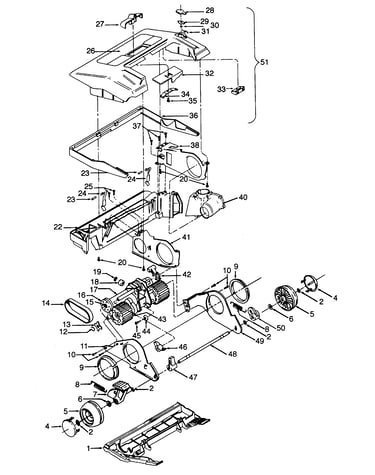

Hood diagram

Nut

Part #160031--

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#59

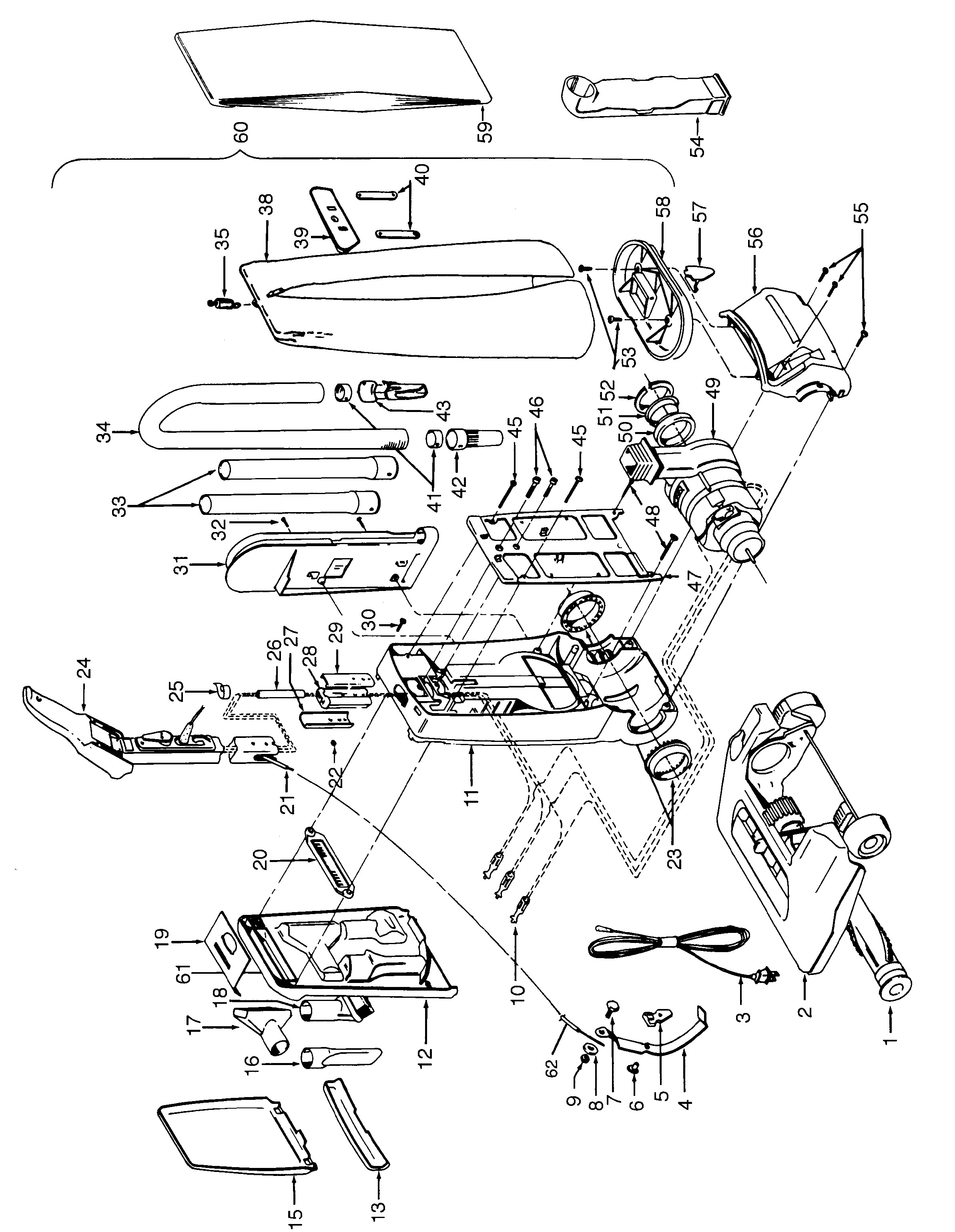

Cleaningtools, mainbody, outerbag diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Pulley 38537001
#16

Hood diagram

Kenmore pulley

Part #38537001

The manufacturer no longer makes this part, and there's no substitute part

Nut 33426001
#16

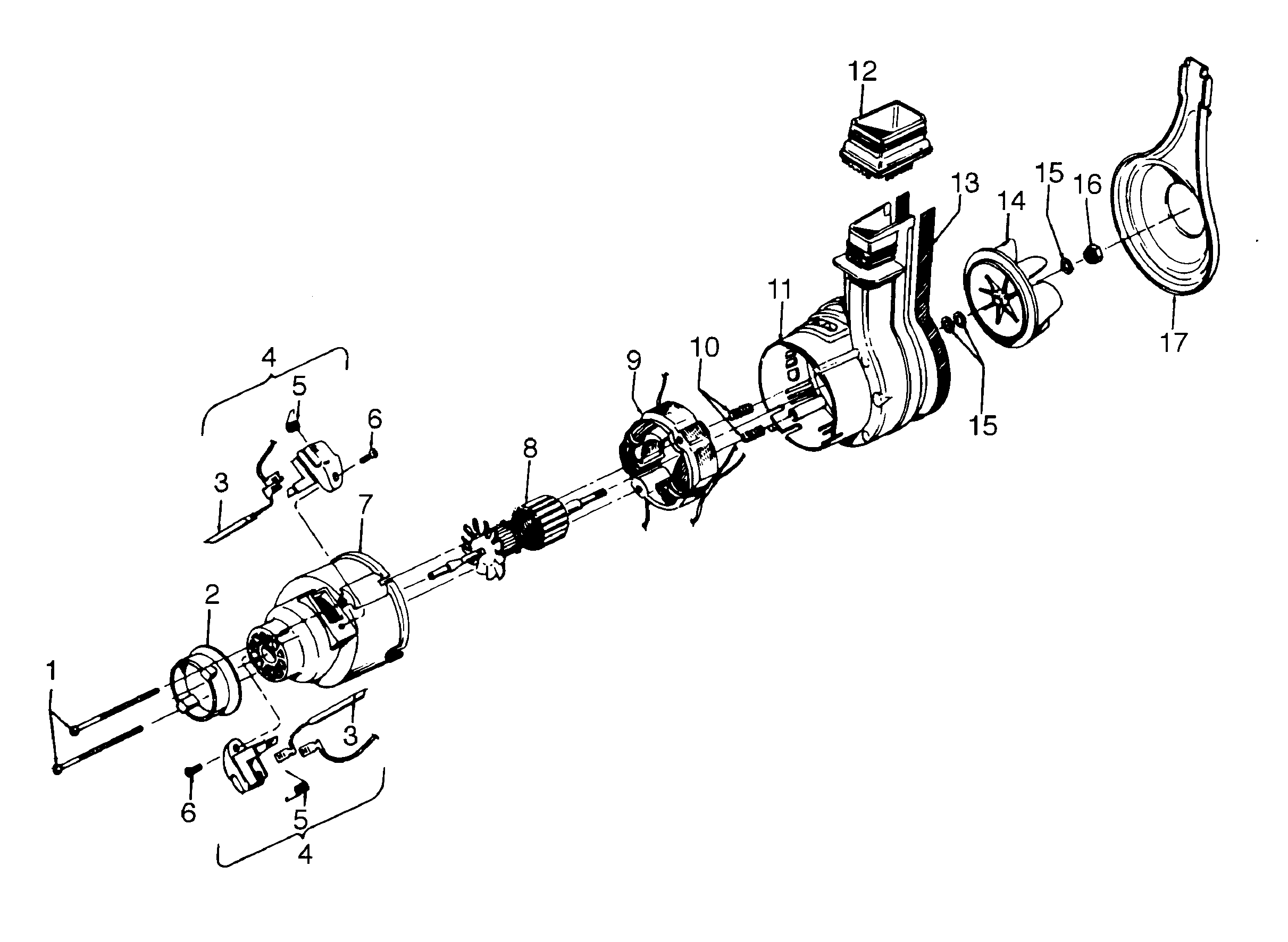

Motor assembly diagram

Nut

Part #33426001

The manufacturer no longer makes this part, and there's no substitute part

Motor Mount 32162003
#2

Motor assembly diagram

Motor mount

Part #32162003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

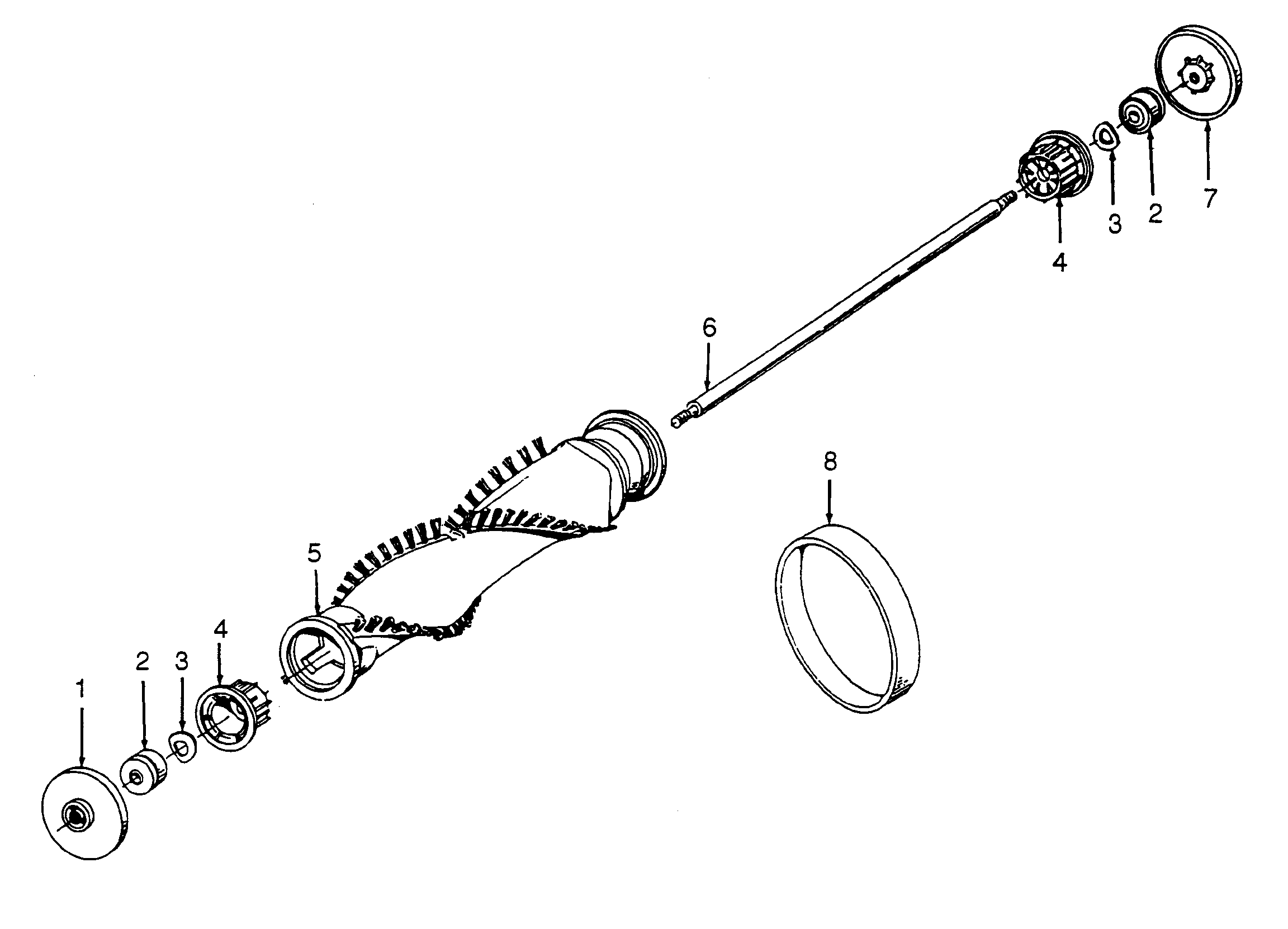

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447041
#18

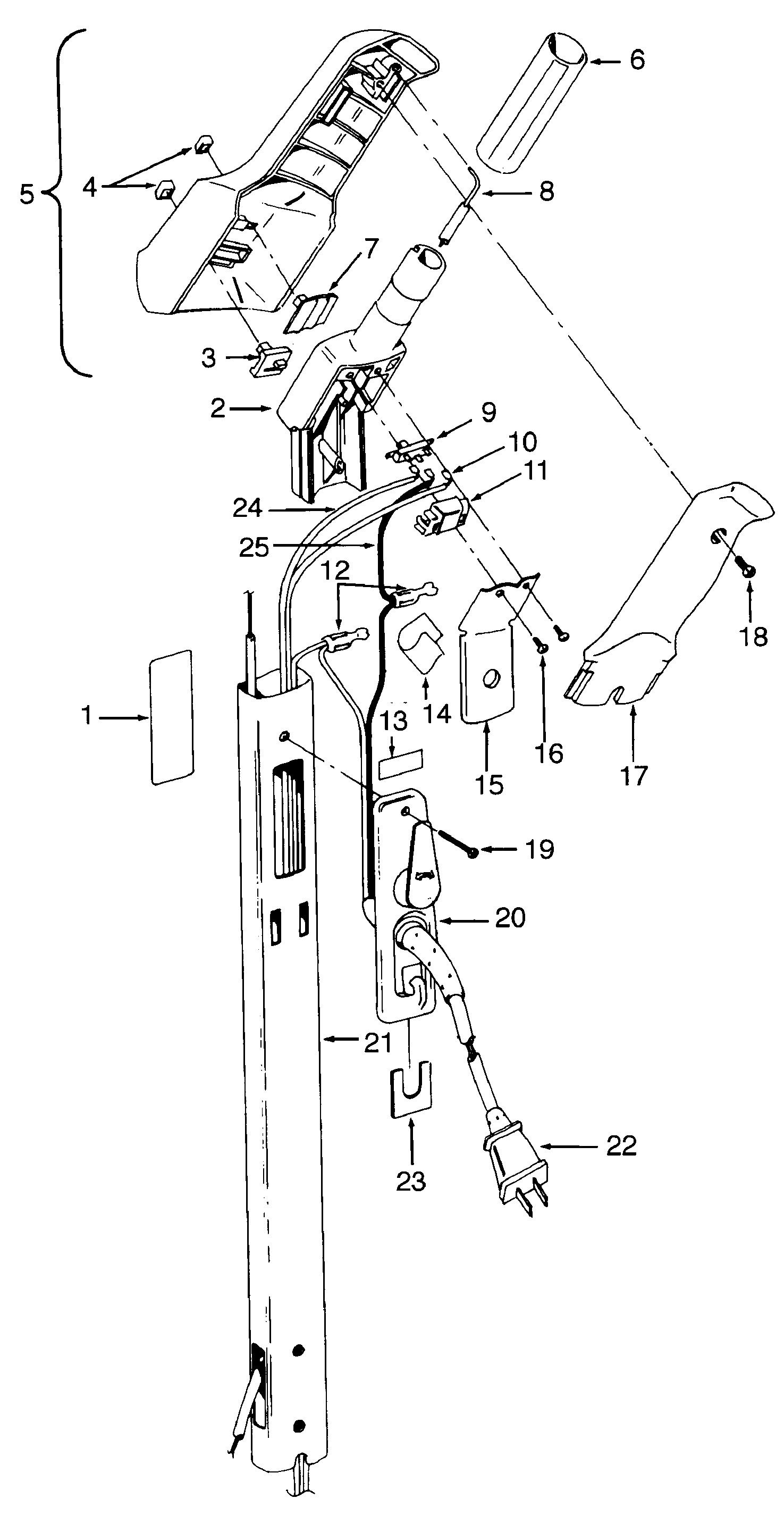

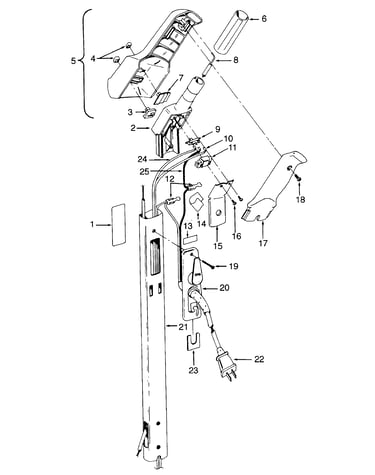

Handle diagram

Regina vacuum screw

Part #21447041

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Terminal 27666702
#10

Handle diagram

Kenmore terminal

Part #27666702

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Keylock 160040AY
#13

Hood diagram

Kenmore keylock

Part #160040AY

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21447019
#48

Cleaningtools, mainbody, outerbag diagram

Carpet cleaner screw

Part #21447019

The manufacturer no longer makes this part, and there's no substitute part
