Model # F8115S Official Black & Decker iron

Here are the diagrams and repair parts for Official Black & Decker F8115S iron, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
F8115S Iron
Spring 168235-00
#7

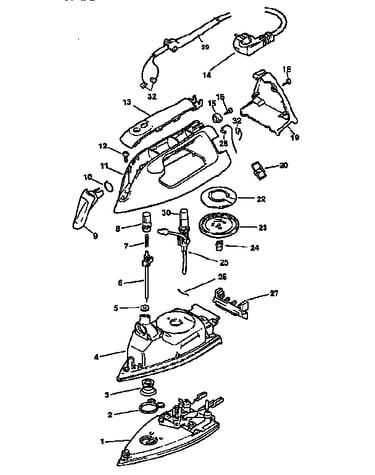

Replacement parts diagram

Spring

Part #168235-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Bezel 172086-04
#20

Replacement parts diagram

Black & decker bezel

Part #172086-04

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 171717-03
#14

Replacement parts diagram

Ac cord

Part #171717-03

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief Screw 171693-00
#16

Replacement parts diagram

Strain relief screw

Part #171693-00

The manufacturer no longer makes this part, and there's no substitute part

Steam Valve 180595-00
#3

Replacement parts diagram

Steam valve

Part #180595-00

The manufacturer no longer makes this part, and there's no substitute part

Temperature Dial 168816-05
#23

Replacement parts diagram

Temperature dial

Part #168816-05

The manufacturer no longer makes this part, and there's no substitute part

Fill Spout 168948-09
#9

Replacement parts diagram

Fill spout

Part #168948-09

The manufacturer no longer makes this part, and there's no substitute part

Baffle 168819-00
#27

Replacement parts diagram

Baffle

Part #168819-00

The manufacturer no longer makes this part, and there's no substitute part

Bushing 168264-02
#29

Replacement parts diagram

Bushing

Part #168264-02

The manufacturer no longer makes this part, and there's no substitute part

Strain Relief 168822-00
#15

Replacement parts diagram

Strain relief

Part #168822-00

The manufacturer no longer makes this part, and there's no substitute part
