Model # 10115500 Official Craftsman milling machine

Here are the diagrams and repair parts for Official Craftsman 10115500 milling machine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 303 parts  |
Scrw Hex Cap 5/16-18X3/4
Scrw hex cap

Part #5/16-18X3/4

The manufacturer no longer makes this part, and there's no substitute part

Bolt S7-207
#56

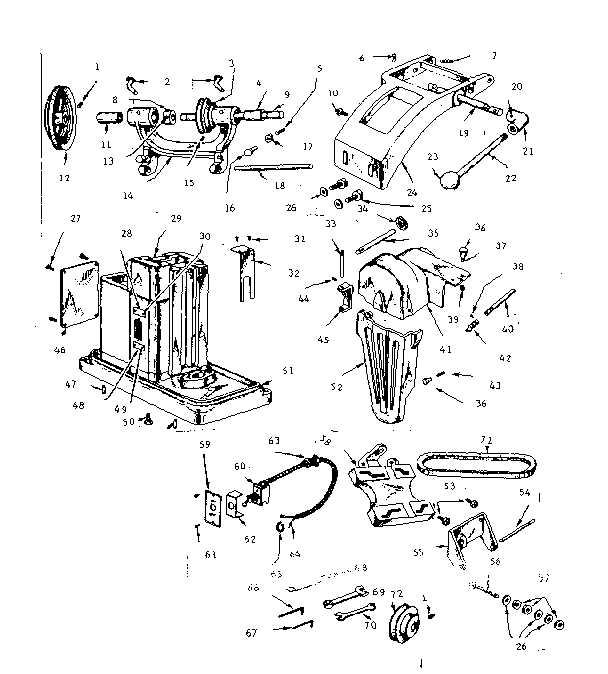

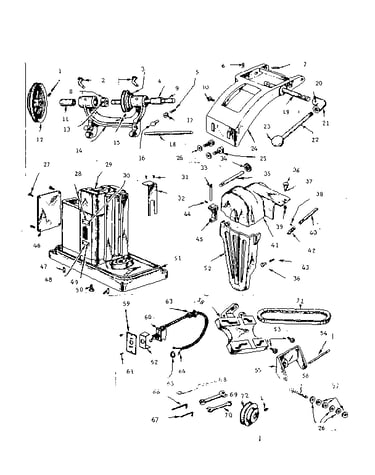

Frame, countershaft, belt guard and motor base parts diagram

Bolt

Part #S7-207

The manufacturer no longer makes this part, and there's no substitute part

Feed Handle Ball 51-56
#23

Frame, countershaft, belt guard and motor base parts diagram

Feed handle ball

Part #51-56

The manufacturer no longer makes this part, and there's no substitute part

Lathe Spring 9-61
#63

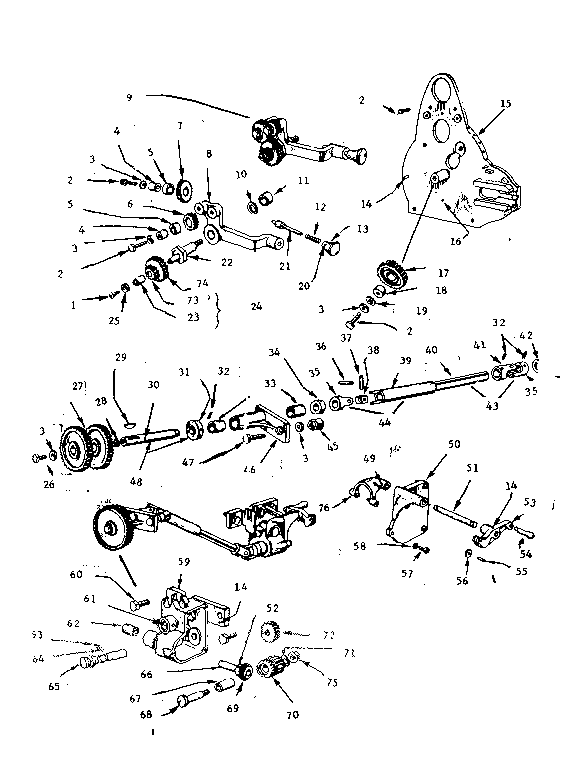

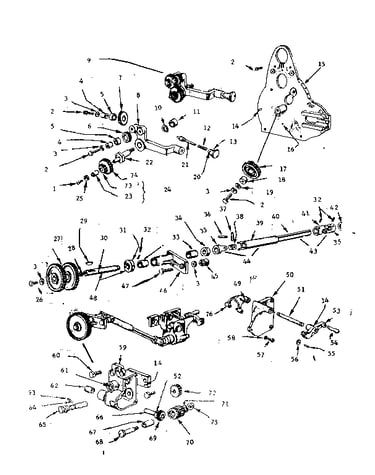

Feed gear and gear box parts diagram

Lathe spring

Part #9-61

The manufacturer no longer makes this part, and there's no substitute part

Switch Plate 41-43A
#59

Frame, countershaft, belt guard and motor base parts diagram

Switch plate

Part #41-43A

The manufacturer no longer makes this part, and there's no substitute part

Spring M6-257
#52

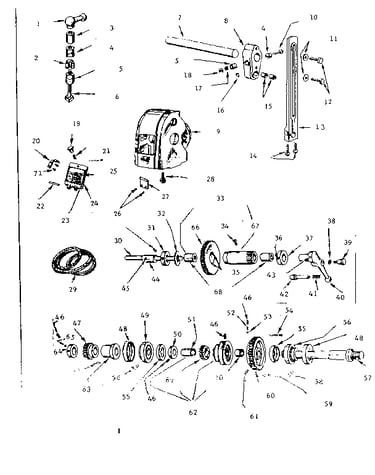

Head and arbor support parts diagram

Spring

Part #M6-257

The manufacturer no longer makes this part, and there's no substitute part

Gear M6-101-48
#29

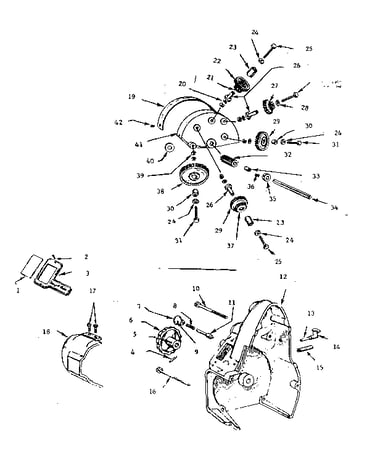

Gear guard parts diagram

Gear

Part #M6-101-48

The manufacturer no longer makes this part, and there's no substitute part

Lathe Gear, 40-tooth M6-101-40
Lathe gear, 40-tooth

Part #M6-101-40

The manufacturer no longer makes this part, and there's no substitute part

Bushing 10F-45
#57

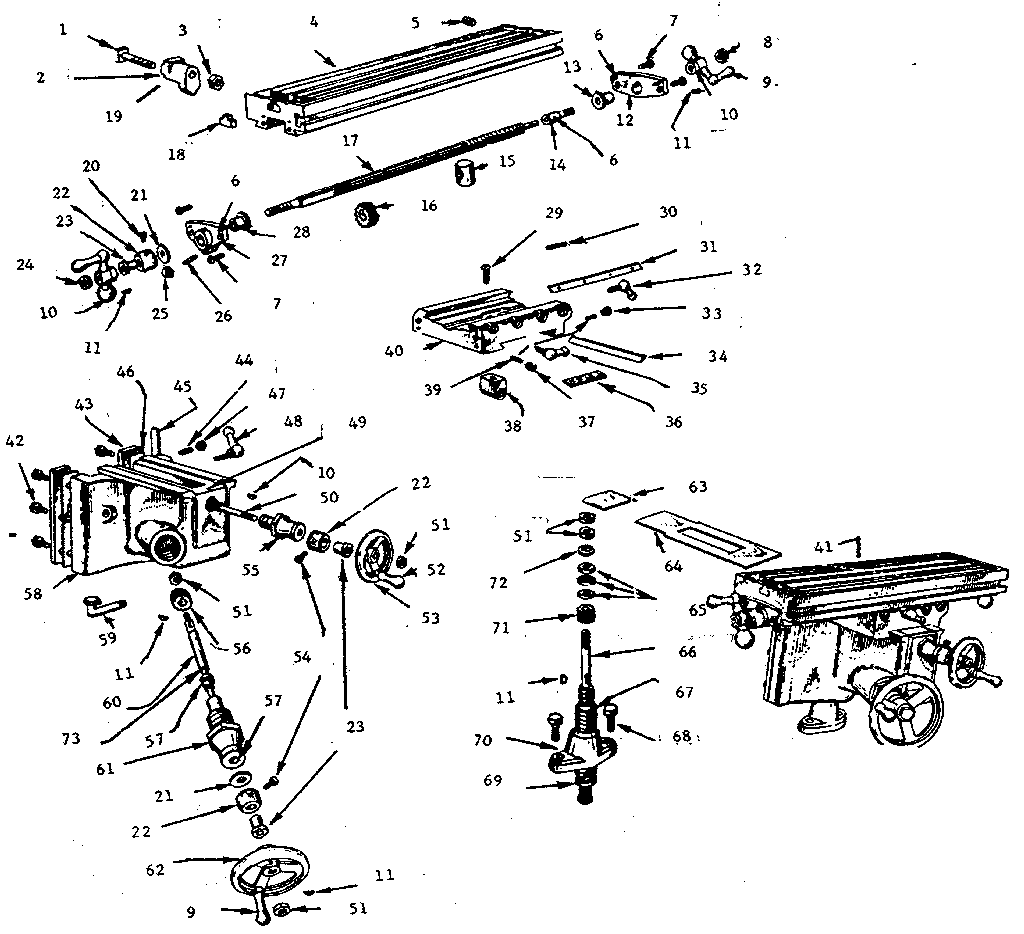

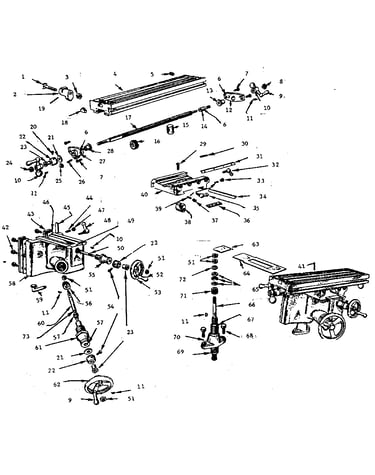

Knee and table parts diagram

Bushing

Part #10F-45

The manufacturer no longer makes this part, and there's no substitute part

Washer M6-93
Washer

Part #M6-93

The manufacturer no longer makes this part, and there's no substitute part
