Kenmore
Electric Range

Model # 79090821409 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79090821409 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 101 parts  |
Frigidaire Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

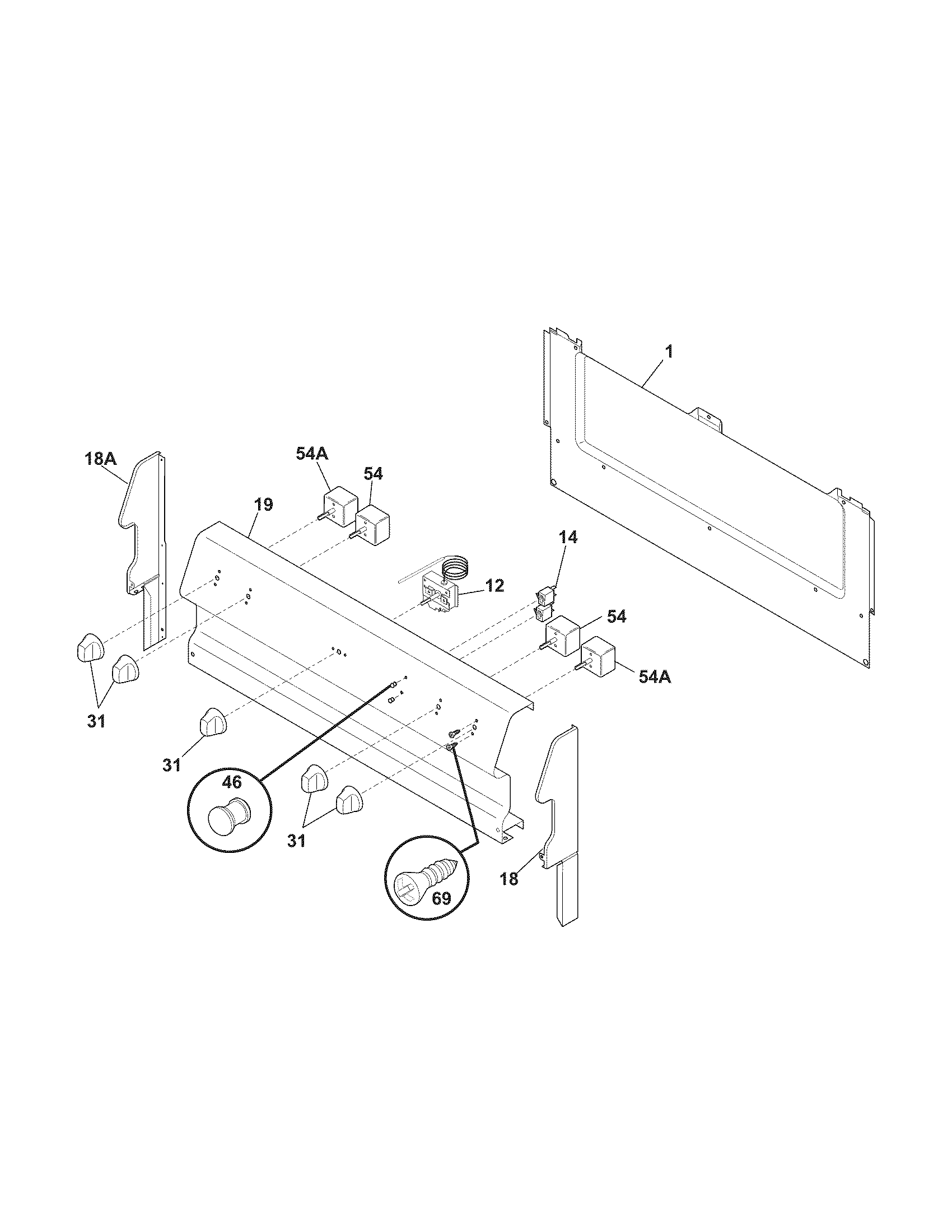

Backguard diagram

Frigidaire range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.82 |
14% OFF Phone Price : $42.82
In Stock
Range Bake Element 316282600
#67

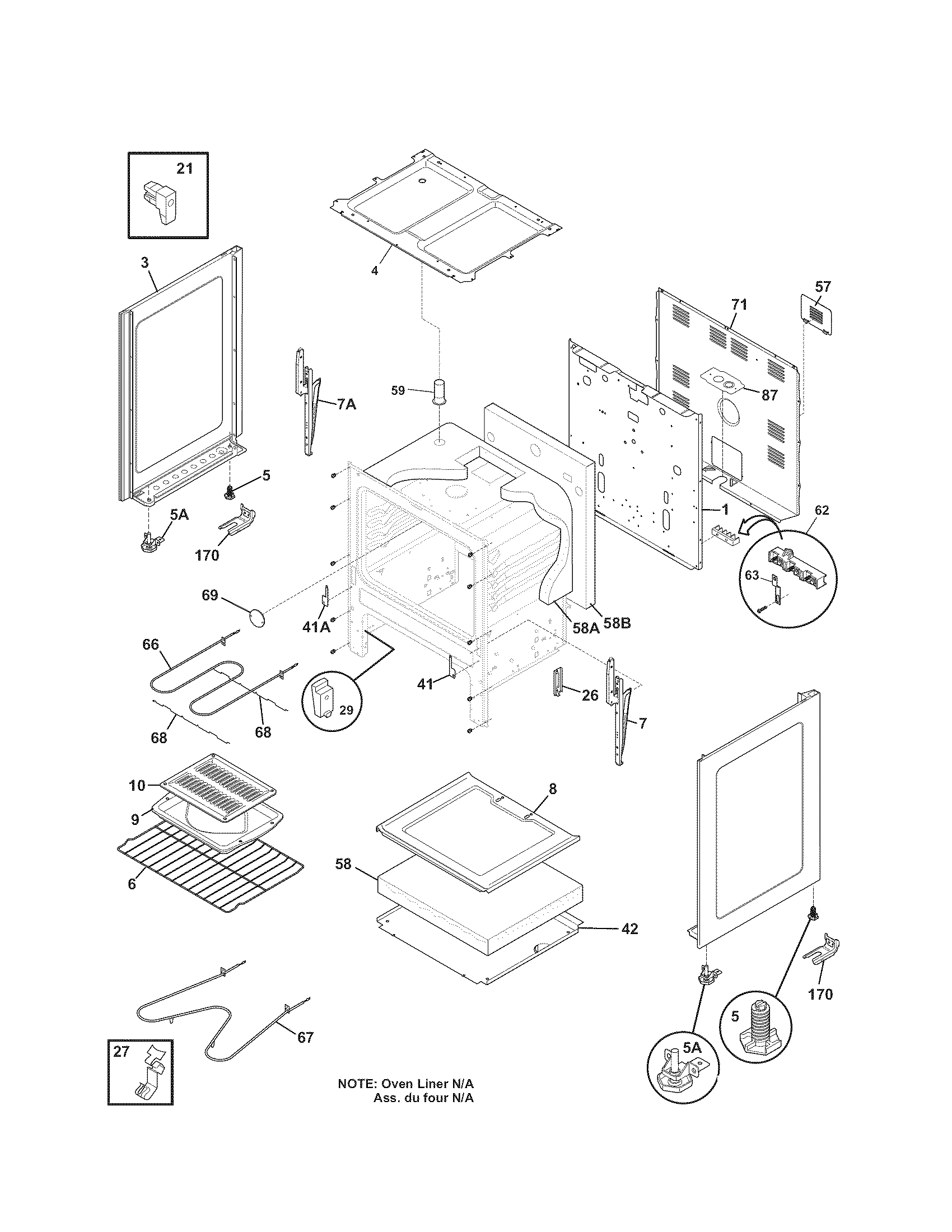

Body diagram

Range bake element

Part #316282600

Replaced by #316075103

?
Manufacturer substitution
This part replaces 316282600. Substitute parts can look different from the original.
BEST SELLER
$25.77 |
19% OFF Phone Price : $31.77
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Galaxy Range Coil Surface Element, 8-in (replaces 318372203, 318372213, 5303015715) 316442300
#15

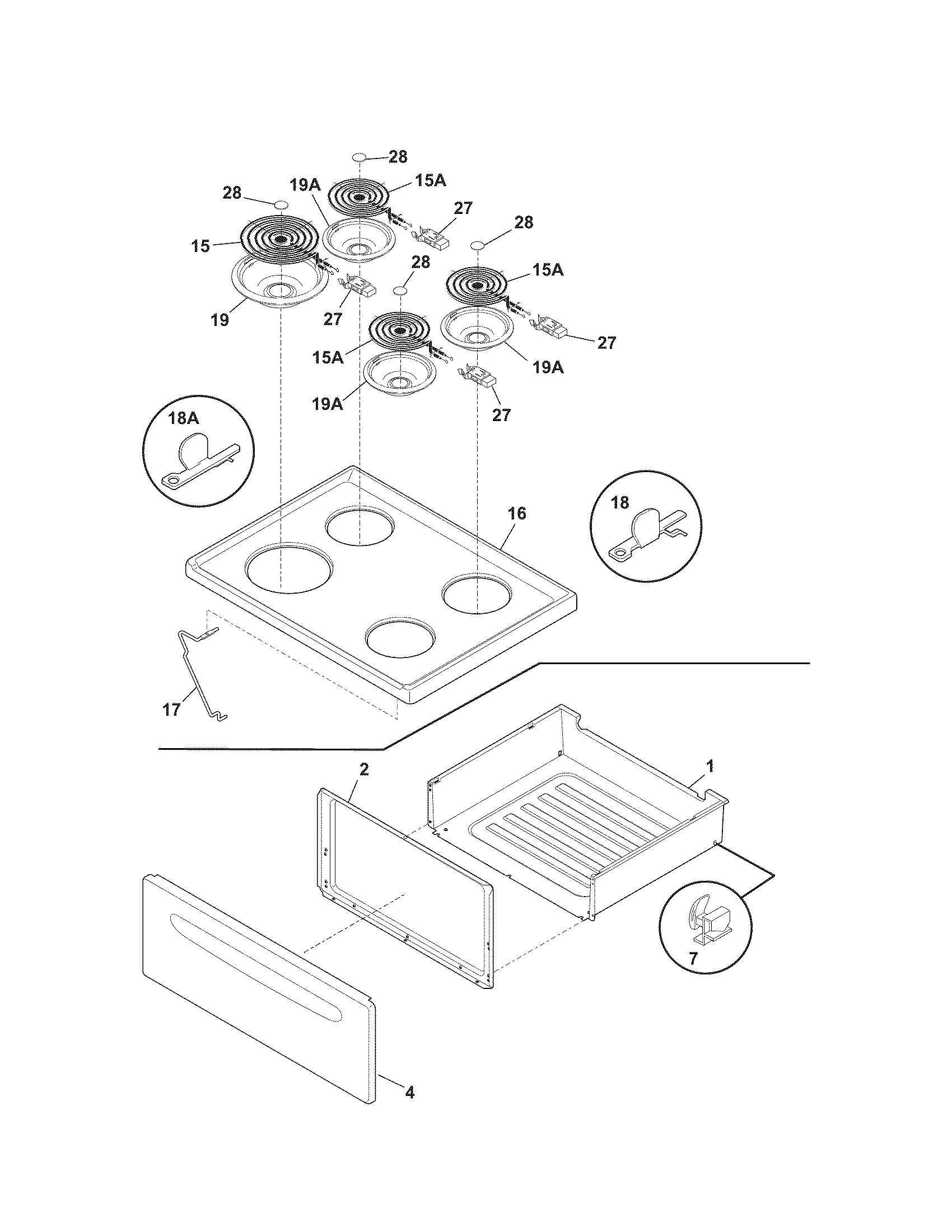

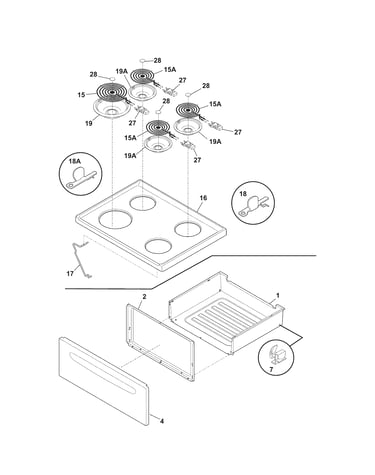

Top/drawer diagram

Galaxy range coil surface element, 8-in (replaces 318372203, 318372213, 5303015715)

Part #316442300

BEST SELLER
$26.03 |
19% OFF Phone Price : $32.03
In Stock
Range Surface Element, 6-in 316439800
#15A

Top/drawer diagram

Range surface element, 6-in

Part #316439800

Replaced by #318372210

?
Manufacturer substitution
This part replaces 316439800. Substitute parts can look different from the original.
BEST SELLER
$24.97 |
19% OFF Phone Price : $30.97
In Stock
Range Washer (replaces 316136500, 7316008401) 316008401
#10B

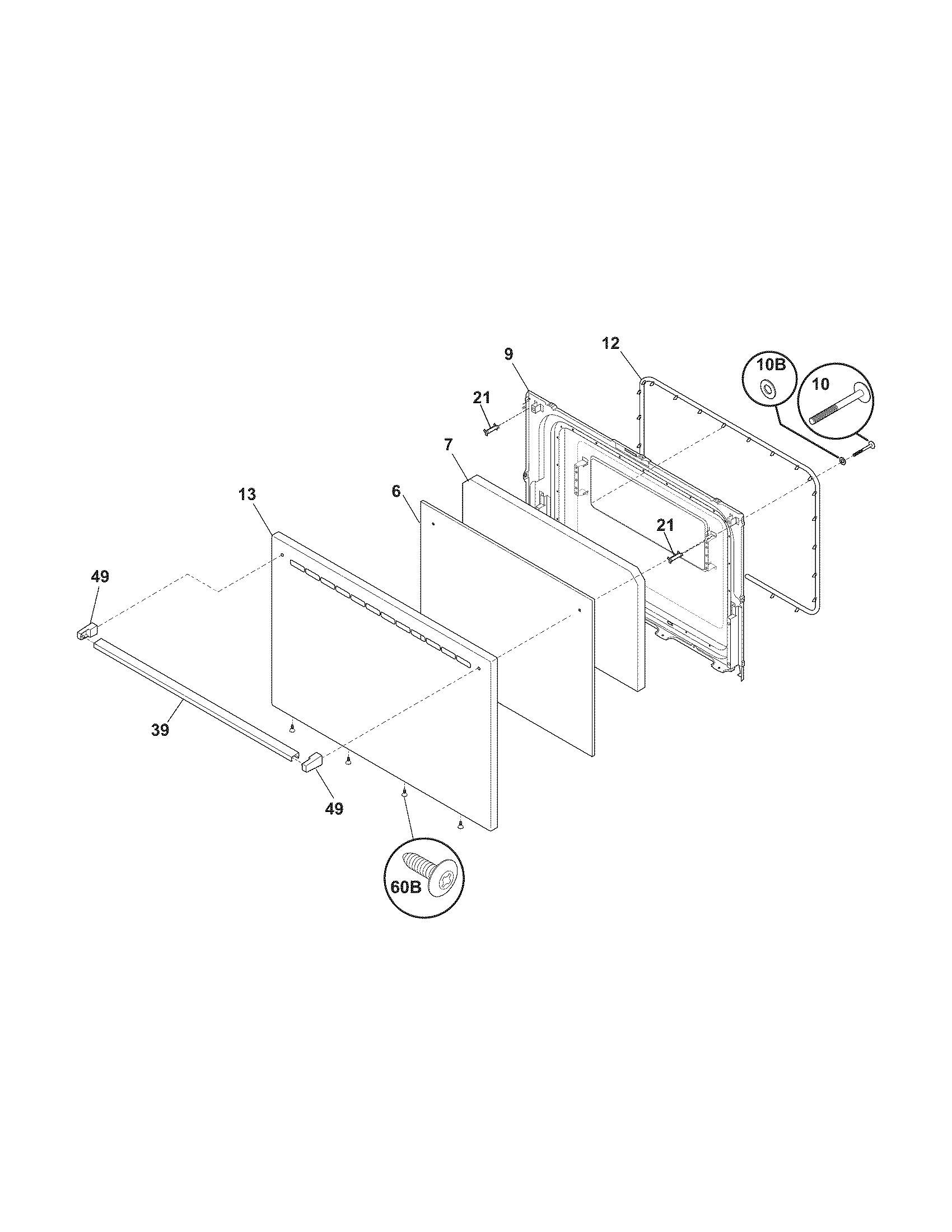

Door diagram

Range washer (replaces 316136500, 7316008401)

Part #316008401

BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Universal/multiflex (frigidaire) Range Oven Door Seal 316239700
#12

Door diagram

Universal/multiflex (frigidaire) range oven door seal

Part #316239700

BEST SELLER
$93.64 |
6% OFF Phone Price : $99.64
In Stock
Range Oven Rack 316067902
#6

Body diagram

Range oven rack

Part #316067902

BEST SELLER
$78.29 |
7% OFF Phone Price : $84.29
In Stock
Range Drawer Glide, Front 316407301
#29

Body diagram

Range drawer glide, front

Part #316407301

Replaced by #807047102

?
Manufacturer substitution
This part replaces 316407301. Substitute parts can look different from the original.
This item is not returnable
$11.79 |
15% OFF Phone Price : $13.79
In Stock
Range Screw, #8-32 X 3/16-in (replaces 5304497581, 73201-2580) 5303288565
#69

Backguard diagram

Range screw, #8-32 x 3/16-in (replaces 5304497581, 73201-2580)

Part #5303288565

This item is not returnable
$3.43
In Stock
