Whirlpool
Room Air Conditioner

Model # ACU088PR1 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool ACU088PR1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Front 8199985
#1

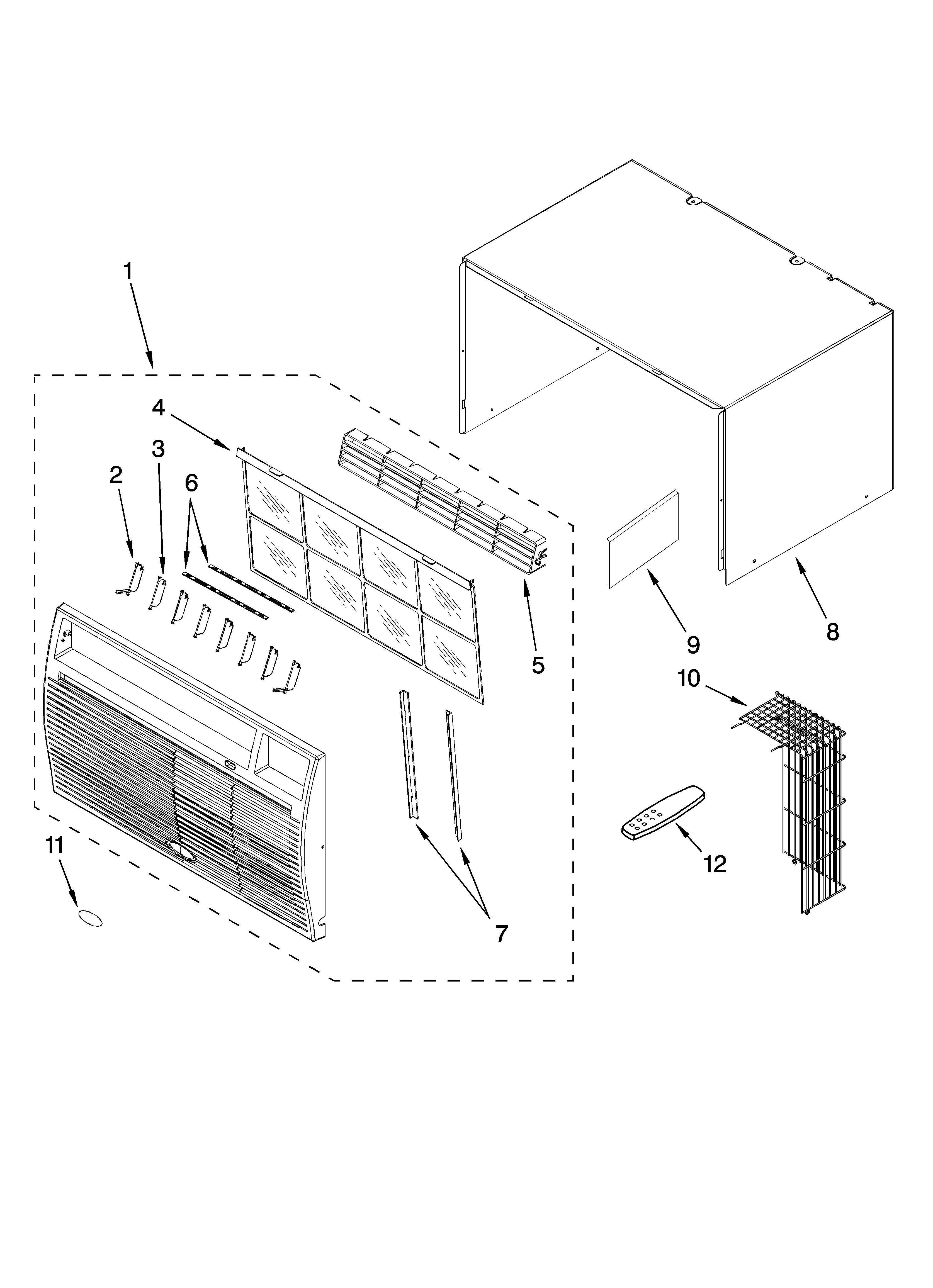

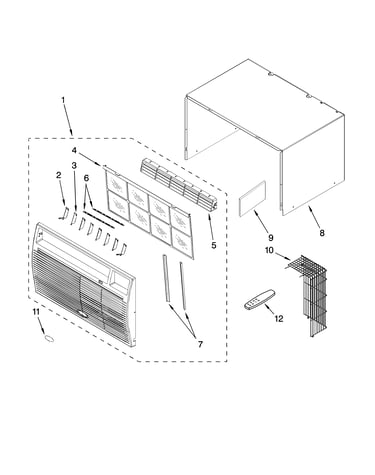

Cabinet parts diagram

Front

Part #8199985

$169.02
In Stock
Energy Guide 8199925
#1A

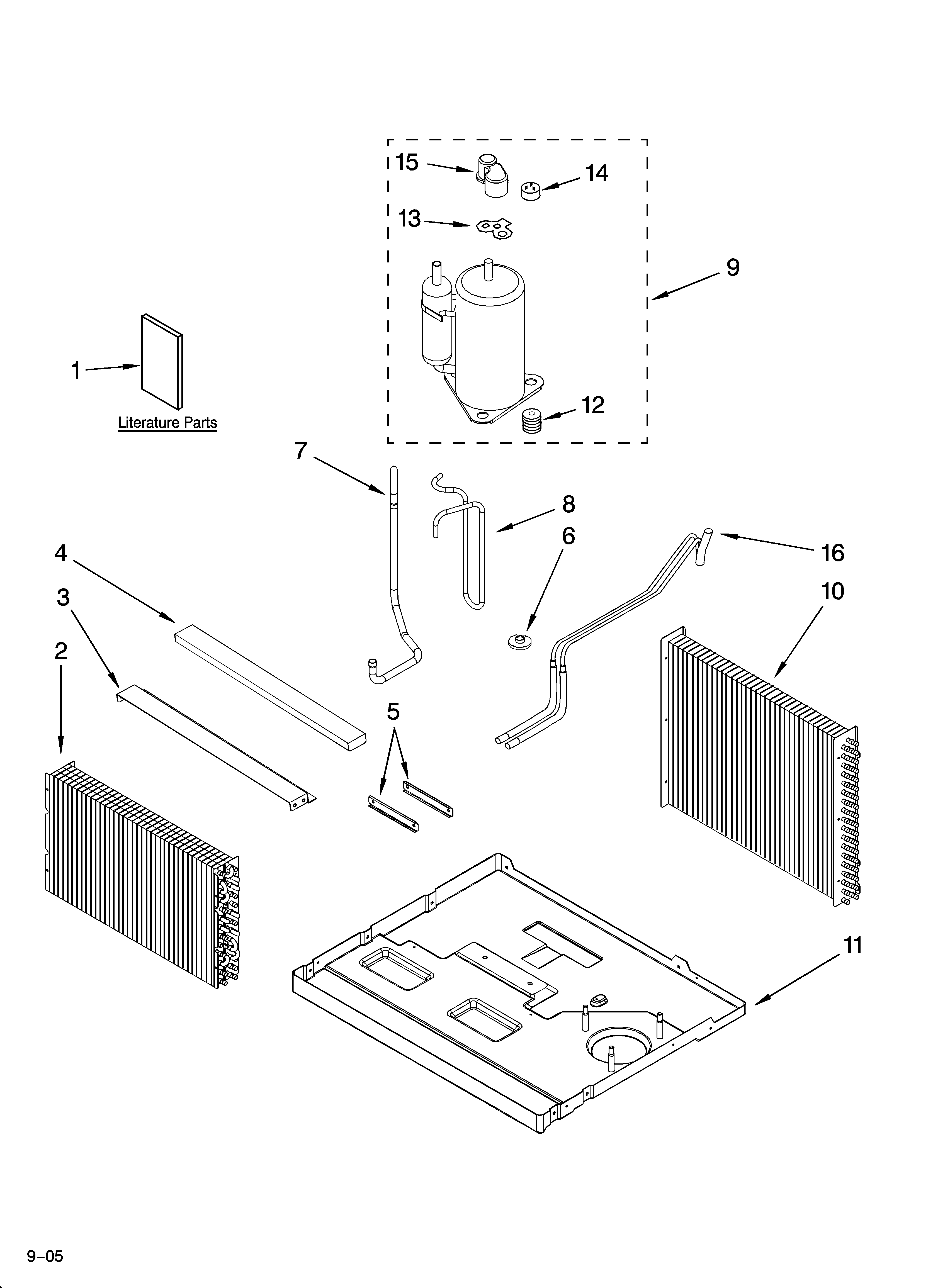

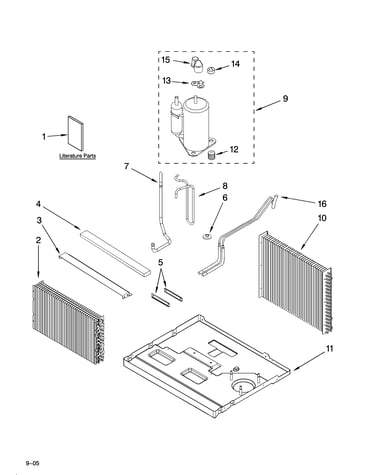

Unit parts diagram

Energy guide

Part #8199925

This item is not returnable
$4.55
In Stock
Capacitor 8199858
#22

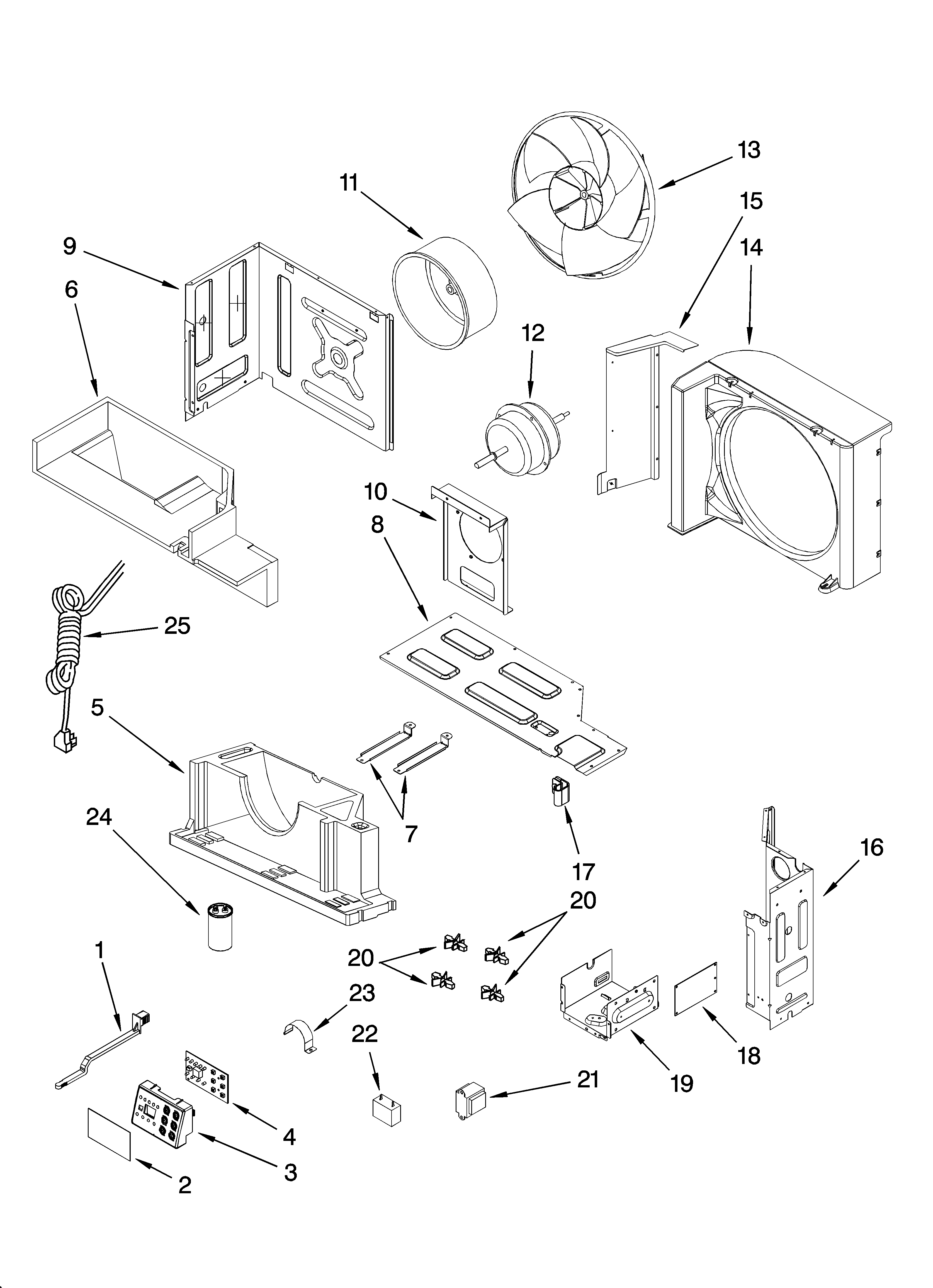

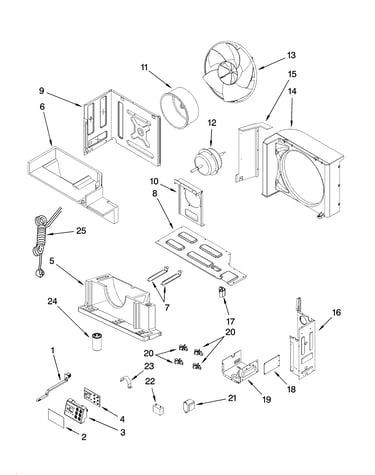

Air flow and control parts diagram

Capacitor

Part #8199858

$40.47
In Stock
Electronic Control 8199833
#4

Air flow and control parts diagram

Electronic control

Part #8199833

The manufacturer no longer makes this part, and there's no substitute part

Scroll 8199857
#5

Air flow and control parts diagram

Scroll

Part #8199857

The manufacturer no longer makes this part, and there's no substitute part

Sleeve, Cabinet 4396818
#NI

Cabinet parts diagram

Sleeve, cabinet

Part #4396818

The manufacturer no longer makes this part, and there's no substitute part

Overload 8199970
#14

Unit parts diagram

Overload

Part #8199970

The manufacturer no longer makes this part, and there's no substitute part

Electronic Control 8199865
#18

Air flow and control parts diagram

Electronic control

Part #8199865

The manufacturer no longer makes this part, and there's no substitute part

Grommet 8199969
#12

Unit parts diagram

Grommet

Part #8199969

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel 8199816
#11

Air flow and control parts diagram

Air conditioner blower wheel

Part #8199816

The manufacturer no longer makes this part, and there's no substitute part
