Circular Saw

Model # 31527815 Official Craftsman 7" electric hand saw

Here are the diagrams and repair parts for Official Craftsman 31527815 7" electric hand saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Screw 1-930993-01
#15

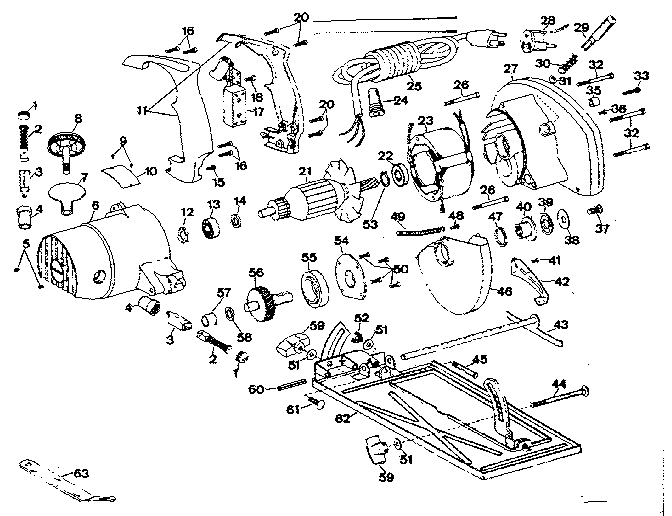

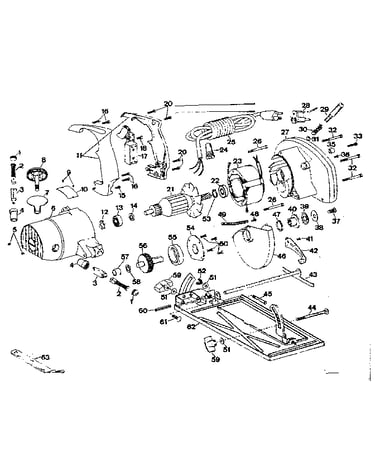

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Lock Pin 1-621338-00
#29

Unit parts diagram

Lock pin

Part #1-621338-00

The manufacturer no longer makes this part, and there's no substitute part

Gr Spld Assy 1-624111-01
#56

Unit parts diagram

Gr spld assy

Part #1-624111-01

The manufacturer no longer makes this part, and there's no substitute part

Brush Assembly 2-624203-02
#2

Unit parts diagram

Brush assembly

Part #2-624203-02

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 1-718602-01
#47

Unit parts diagram

Snap ring

Part #1-718602-01

The manufacturer no longer makes this part, and there's no substitute part

Field Core 3-614758-01
#23

Unit parts diagram

Field core

Part #3-614758-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-940038-35
#16

Unit parts diagram

Screw

Part #1-940038-35

The manufacturer no longer makes this part, and there's no substitute part

Knob-upper 2-717538-01
#8

Unit parts diagram

Knob-upper

Part #2-717538-01

The manufacturer no longer makes this part, and there's no substitute part

Seal 1-622533-00
#31

Unit parts diagram

Seal

Part #1-622533-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-940049-20
#20

Unit parts diagram

Screw

Part #1-940049-20

The manufacturer no longer makes this part, and there's no substitute part
