Amana
Top-Mount Refrigerator

Model # TM18J2-P7791148W Official Amana top-mount stor-mor free-o-frost refrigerator

Here are the diagrams and repair parts for Official Amana TM18J2-P7791148W top-mount stor-mor free-o-frost refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

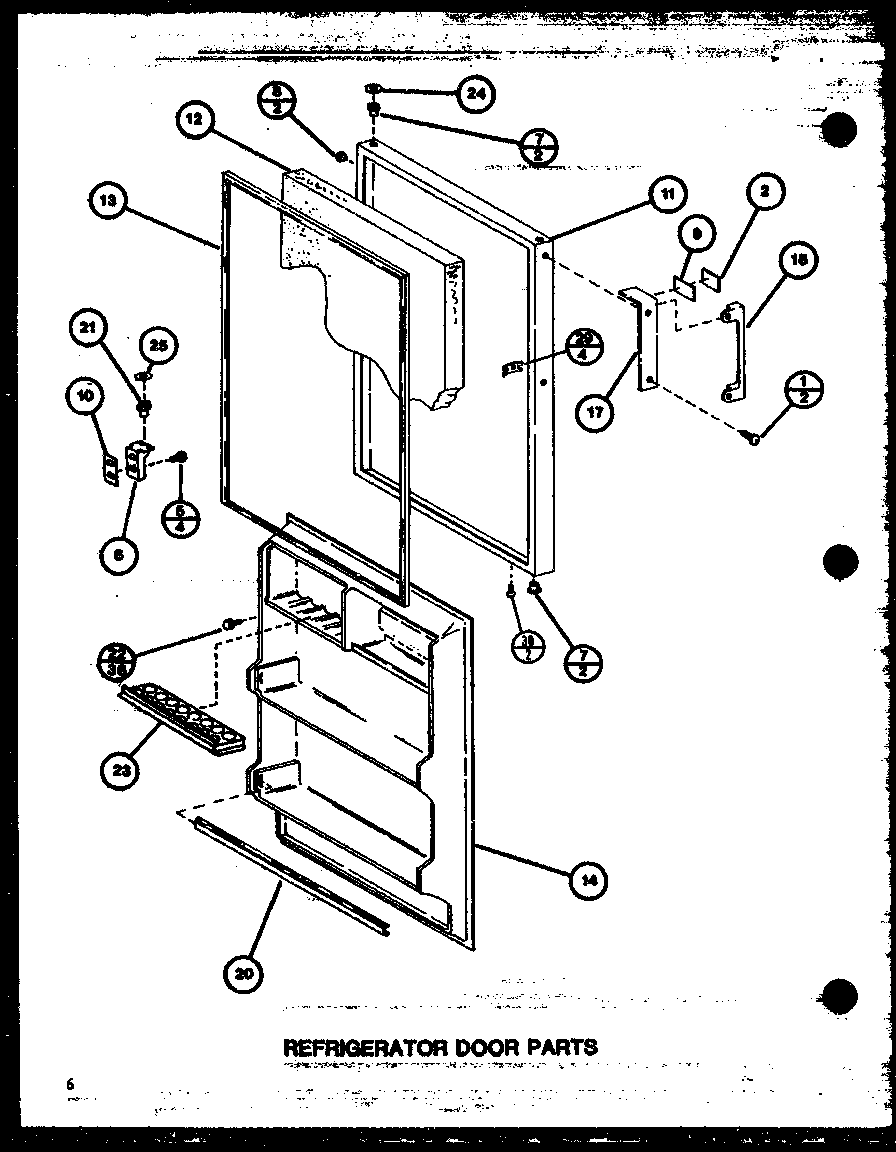

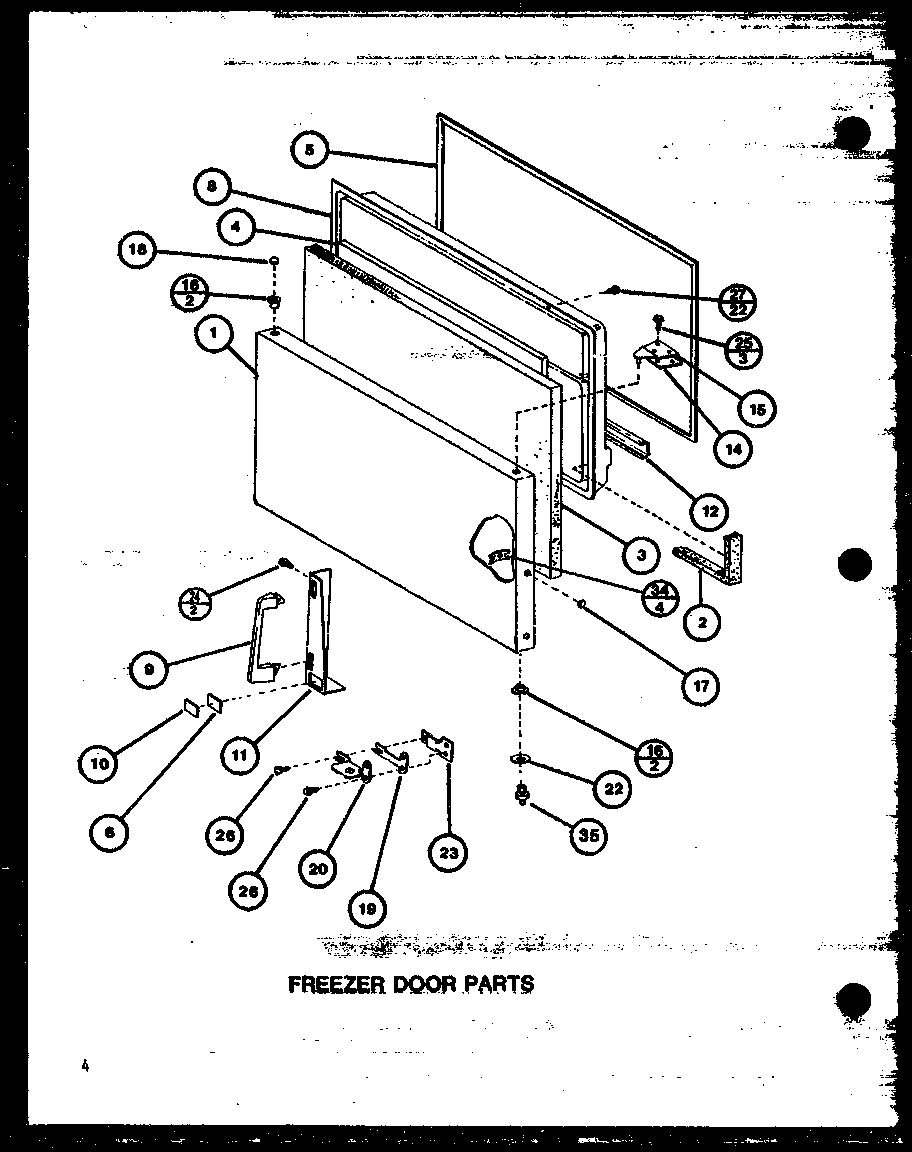

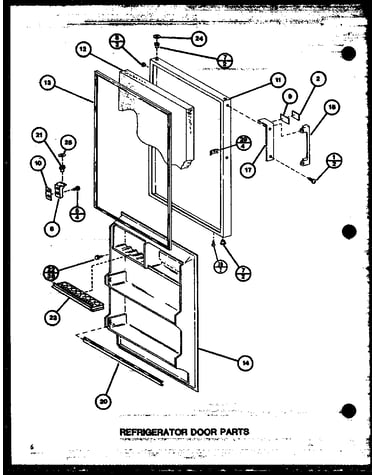

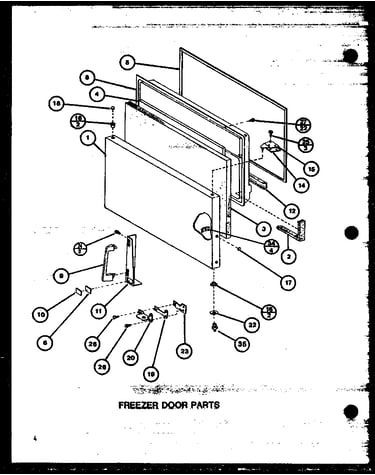

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 196 parts  |
Refrigerator Lamp, 40-watt, 115 To 125-volt A0282803
#1

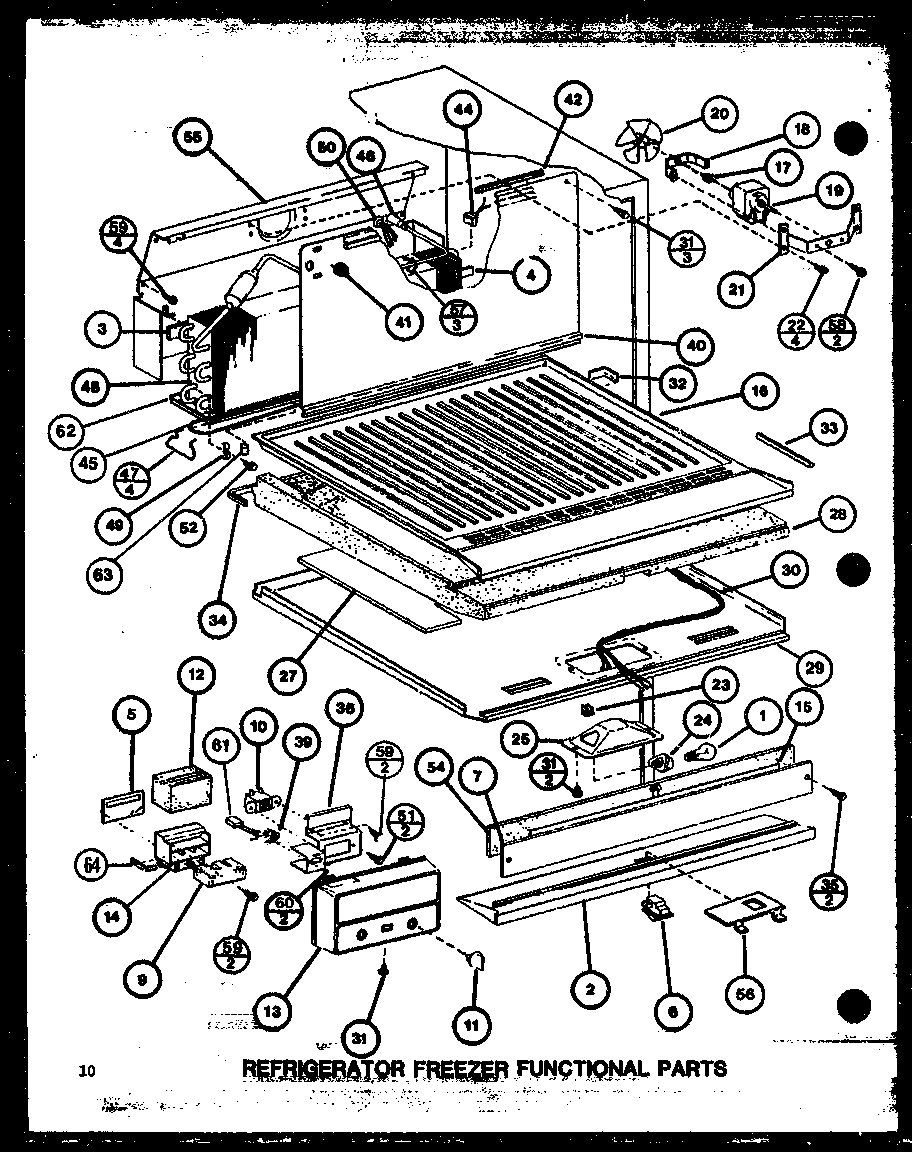

Refrigerator freezer functional parts diagram

Refrigerator lamp, 40-watt, 115 to 125-volt

Part #A0282803

The manufacturer no longer makes this part, and there's no substitute part

Switch C3680304
#6

Refrigerator freezer functional parts diagram

Switch

Part #C3680304

Replaced by #W11384469

?
Manufacturer substitution
This part replaces C3680304. Substitute parts can look different from the original.
BEST SELLER
$23.57 |
20% OFF Phone Price : $29.57
In Stock
Refrigerator Capacitor C8931602
#47

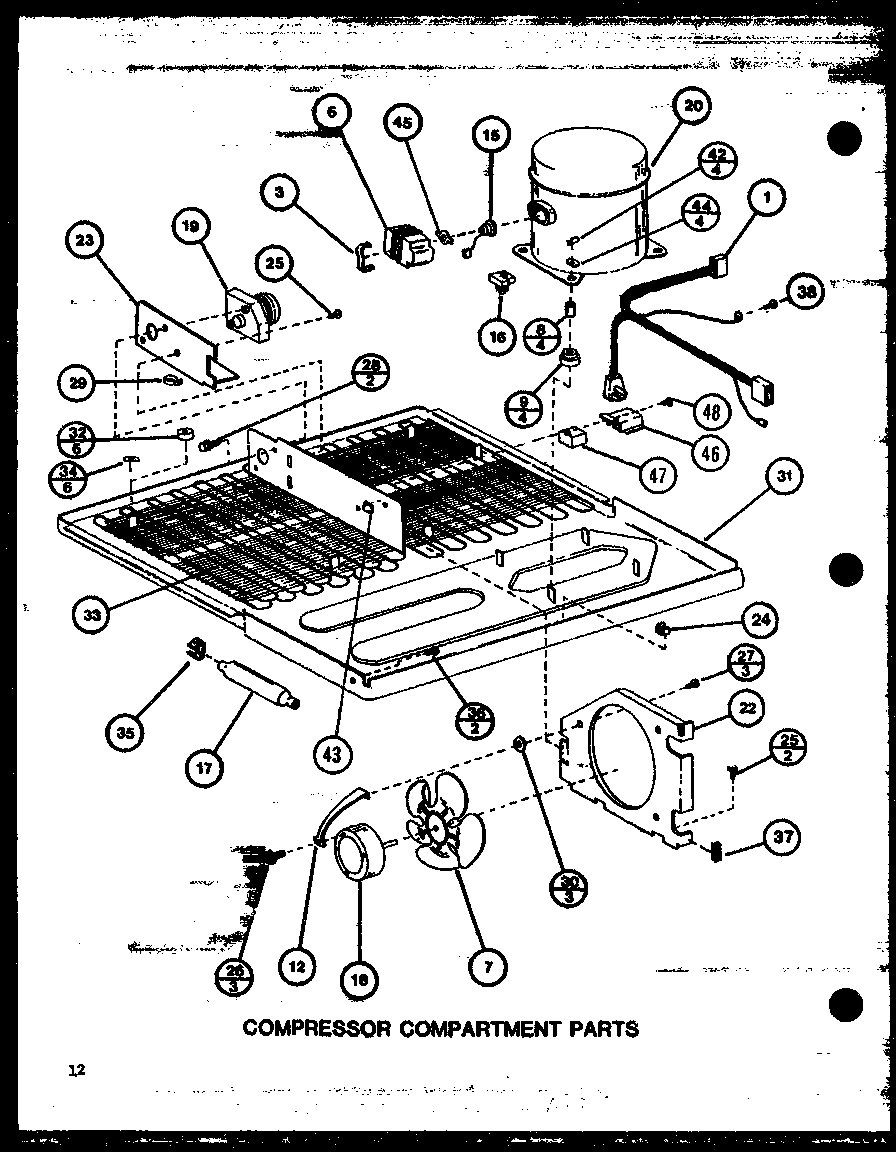

Compressor compartment parts diagram

Refrigerator capacitor

Part #C8931602

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces C8931602. Substitute parts can look different from the original.
BEST SELLER
$52.20 |
10% OFF Phone Price : $58.20
In Stock
Refrigerator Fan Motor D7584001
#18

Compressor compartment parts diagram

Refrigerator fan motor

Part #D7584001

Replaced by #833697

?
Manufacturer substitution
This part replaces D7584001. Substitute parts can look different from the original.
BEST SELLER
$60.49 |
9% OFF Phone Price : $66.49
In Stock
Refrigerator Screw M0222416
Refrigerator screw

Part #M0222416

Replaced by #WPW10348409

?
Manufacturer substitution
This part replaces M0222416. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Refrigerator Screw M0233704
#43

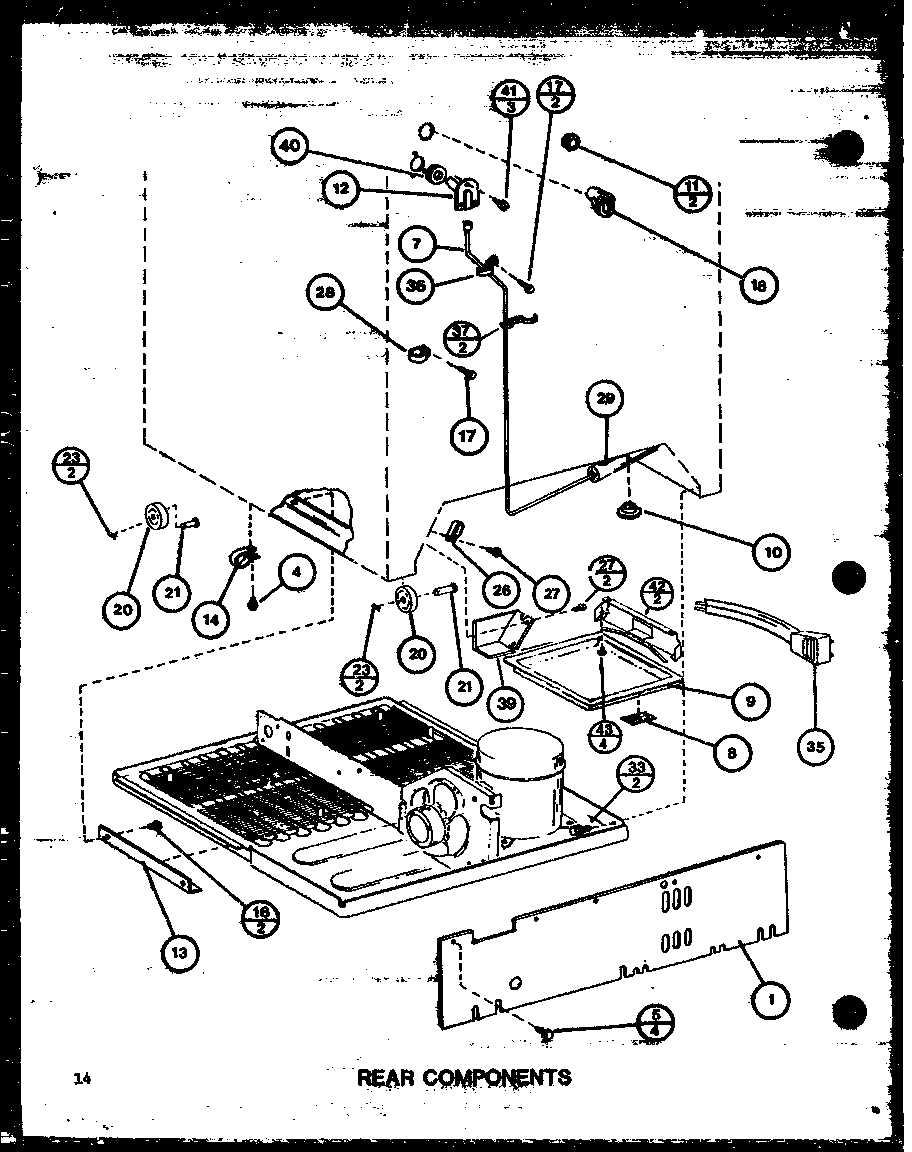

Rear components diagram

Refrigerator screw

Part #M0233704

Replaced by #WP489069

?
Manufacturer substitution
This part replaces M0233704. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw M0214931
#41

Rear components diagram

Refrigerator screw

Part #M0214931

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0214931. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0230917
#31

Refrigerator freezer functional parts diagram

Screw

Part #M0230917

Replaced by #67006425

?
Manufacturer substitution
This part replaces M0230917. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Clip M0117301
#5

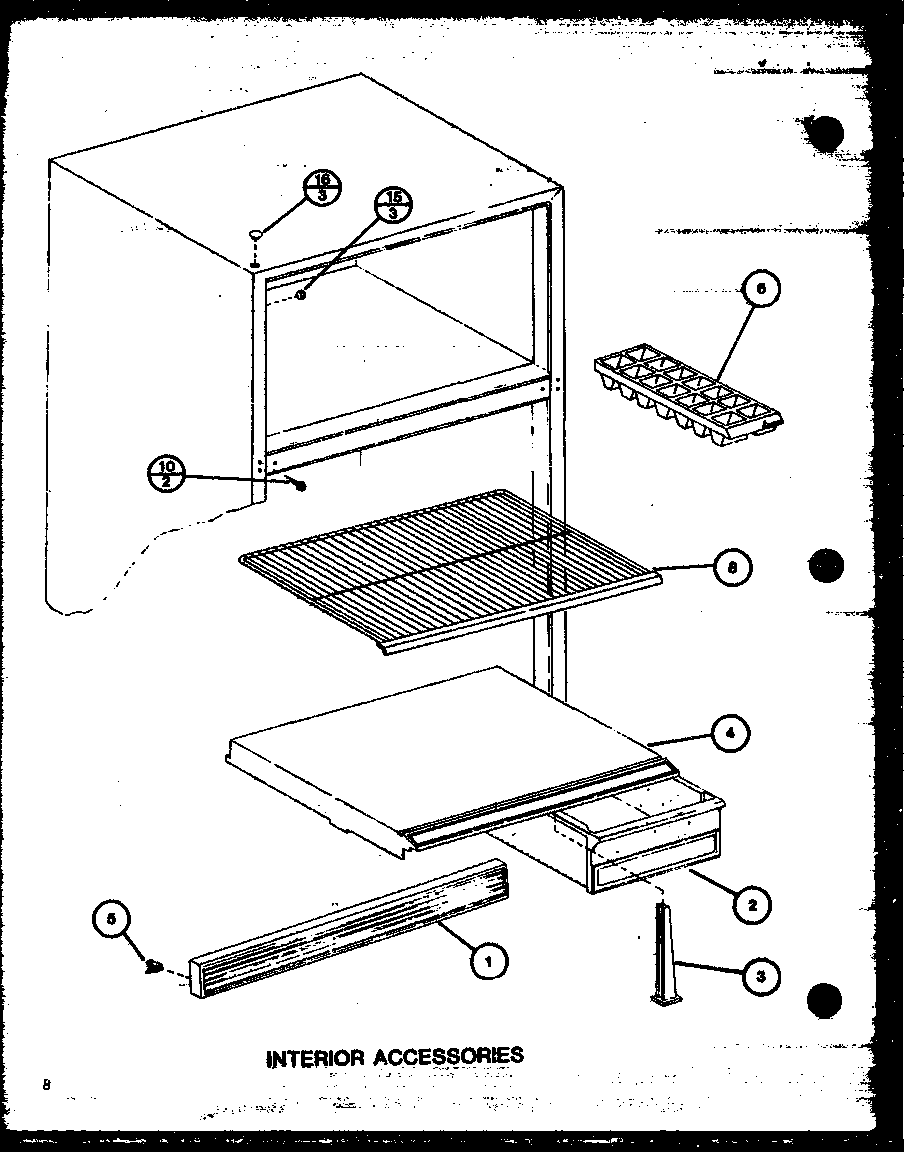

Interior accessories diagram

Clip

Part #M0117301

Replaced by #WPM0117303

?
Manufacturer substitution
This part replaces M0117301. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Evaporator Motor C8891601
#19

Refrigerator freezer functional parts diagram

Evaporator motor

Part #C8891601

The manufacturer no longer makes this part, and there's no substitute part
