Electric Wall Oven

Model # JT910CA2CC Official GE electric oven

Here are the diagrams and repair parts for Official GE JT910CA2CC electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

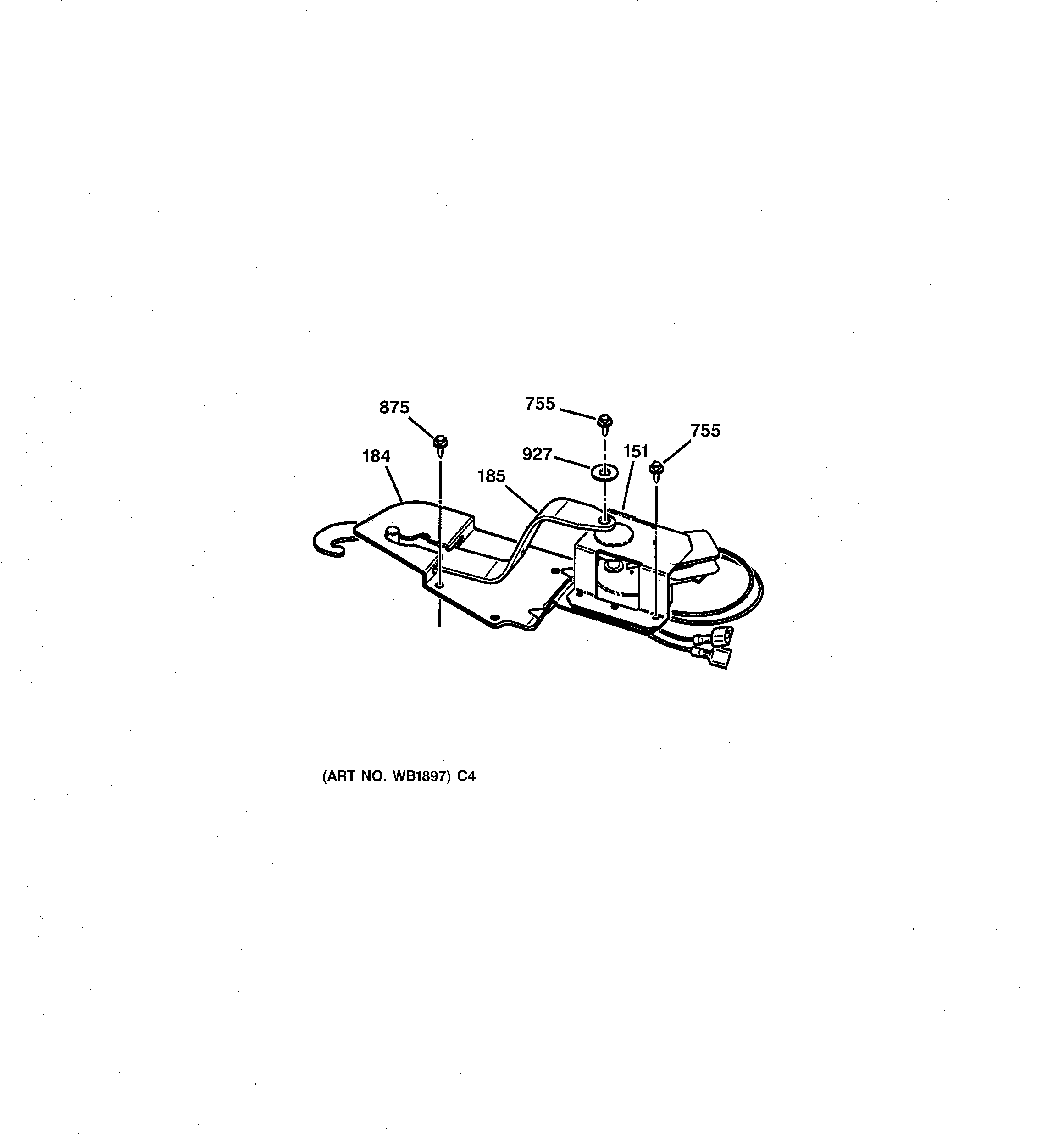

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Oven Lamp Holder WB08T10002
#256

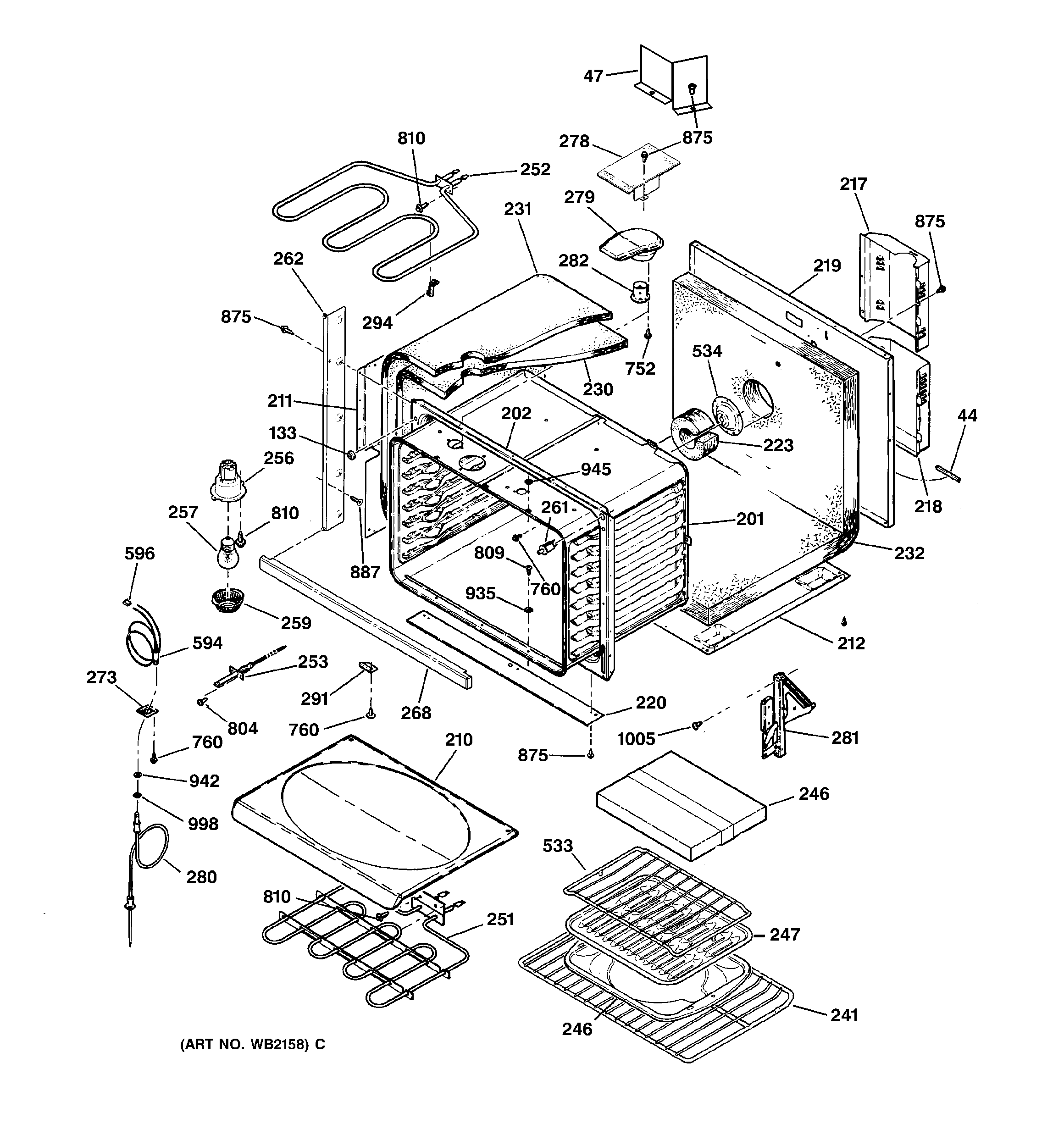

Body parts diagram

Oven lamp holder

Part #WB08T10002

Replaced by #WB08T10002

?
Manufacturer substitution
This part replaces WB08T10002. Substitute parts can look different from the original.
BEST SELLER
$34.45 |
15% OFF Phone Price : $40.45
In Stock
Range Oven Meat Probe Sensor (replaces Wb20k5034, Wb20x5034, Wb20x5064) WB20X5050
#280

Body parts diagram

Range oven meat probe sensor (replaces wb20k5034, wb20x5034, wb20x5064)

Part #WB20X5050

The manufacturer no longer makes this part, and there's no substitute part

Broil Support WB02X9719
#294

Body parts diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wall Oven Door Hinge, Left (replaces Wb14k5015) WB14T10006
#281

Body parts diagram

Wall oven door hinge, left (replaces wb14k5015)

Part #WB14T10006

$61.13 |
9% OFF Phone Price : $67.13
In Stock
Convex Element WB44T10001
#298

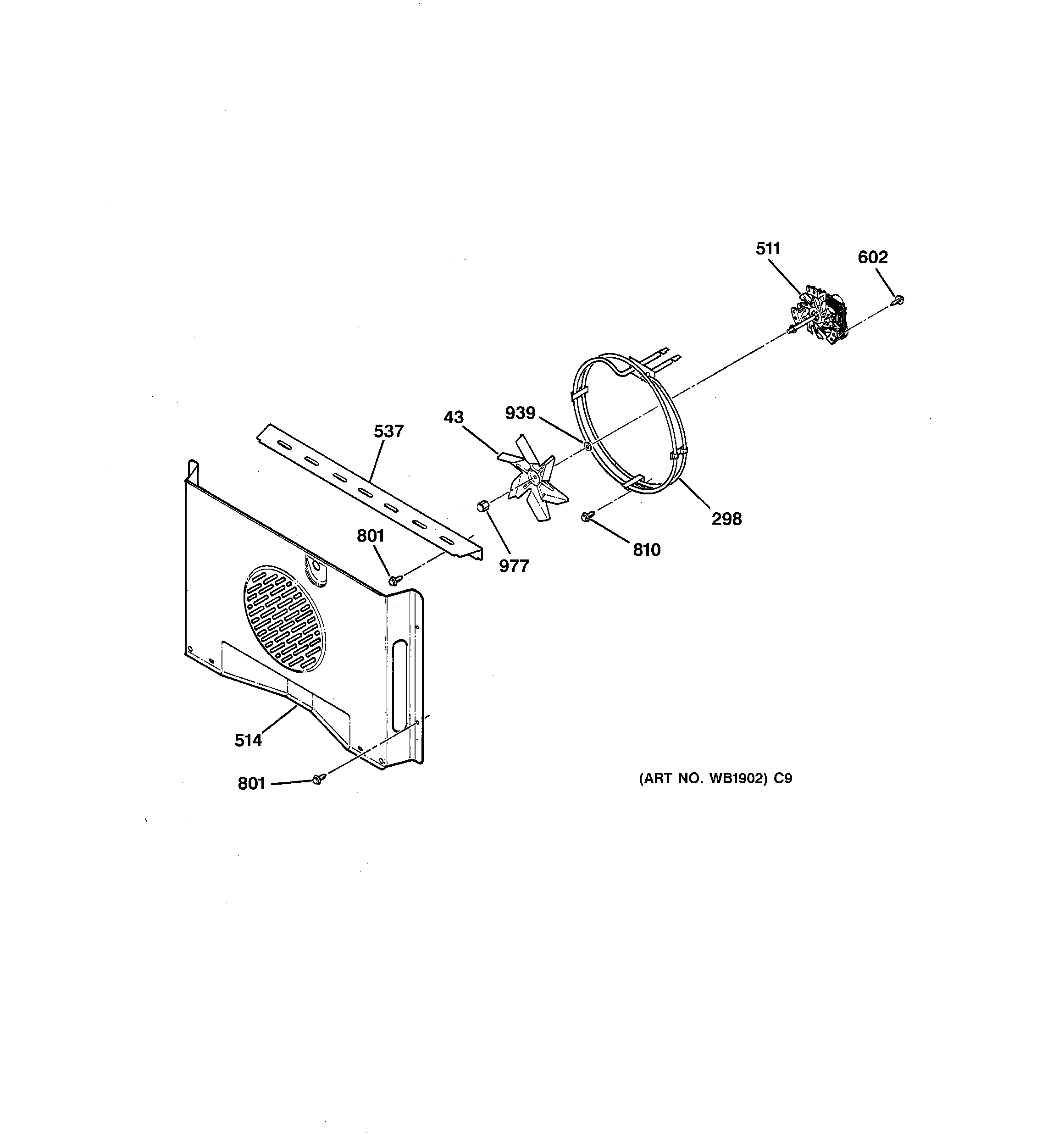

Convection fan diagram

Convex element

Part #WB44T10001

Replaced by #WB44T10053

?
Manufacturer substitution
This part replaces WB44T10001. Substitute parts can look different from the original.
$57.06 |
10% OFF Phone Price : $63.06
In Stock
Screw WB01M0001
#801

Convection fan diagram

Screw

Part #WB01M0001

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01M0001. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Screw WB01K5150
#699

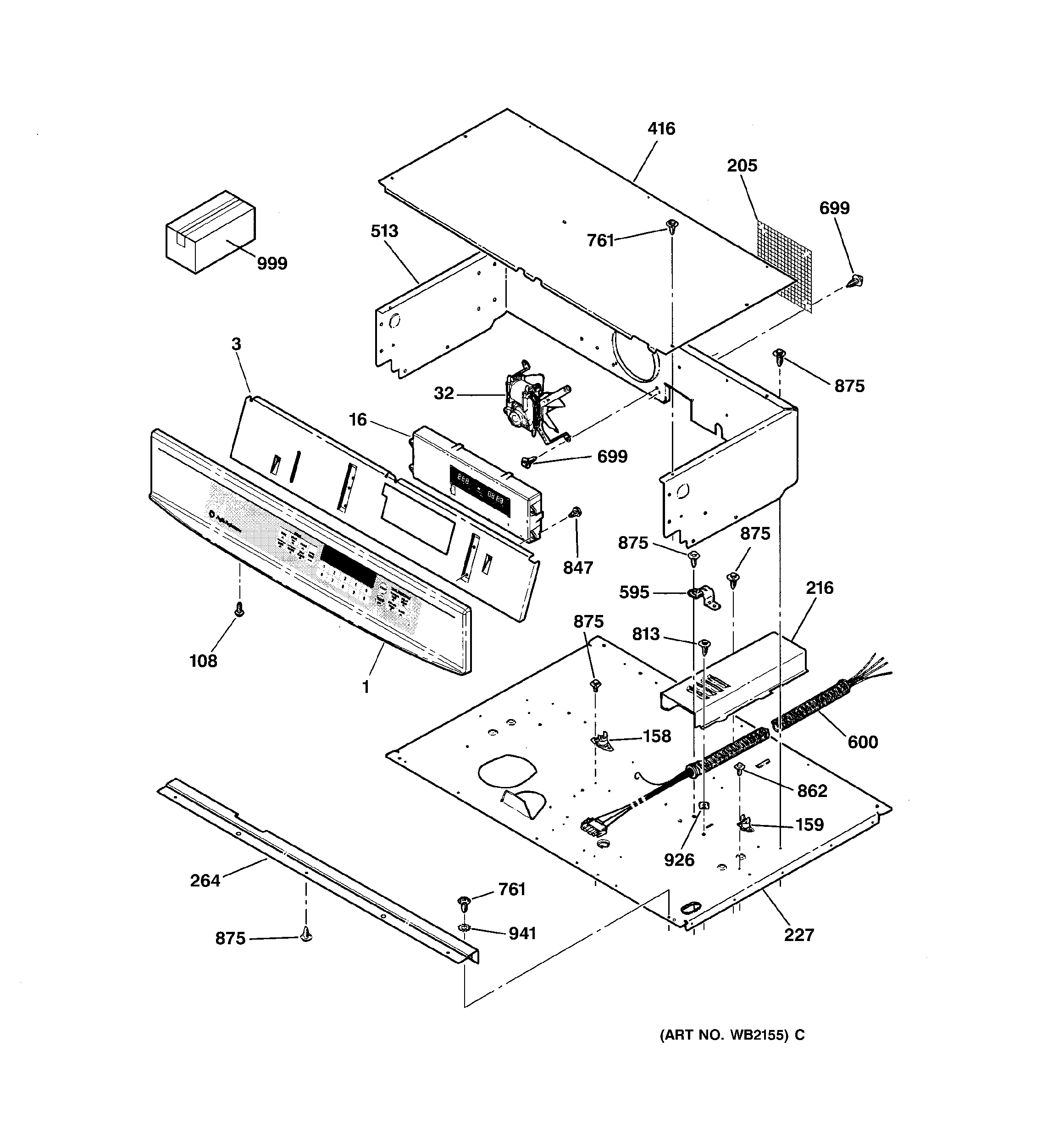

Control panel diagram

Screw

Part #WB01K5150

Replaced by #WB1M1

?
Manufacturer substitution
This part replaces WB01K5150. Substitute parts can look different from the original.
This item is not returnable
$6.09 |
14% OFF Phone Price : $7.09
In Stock
Nut WB02T10017
#977

Convection fan diagram

Nut

Part #WB02T10017

This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
Oven Door Glass WB56K0020
#338

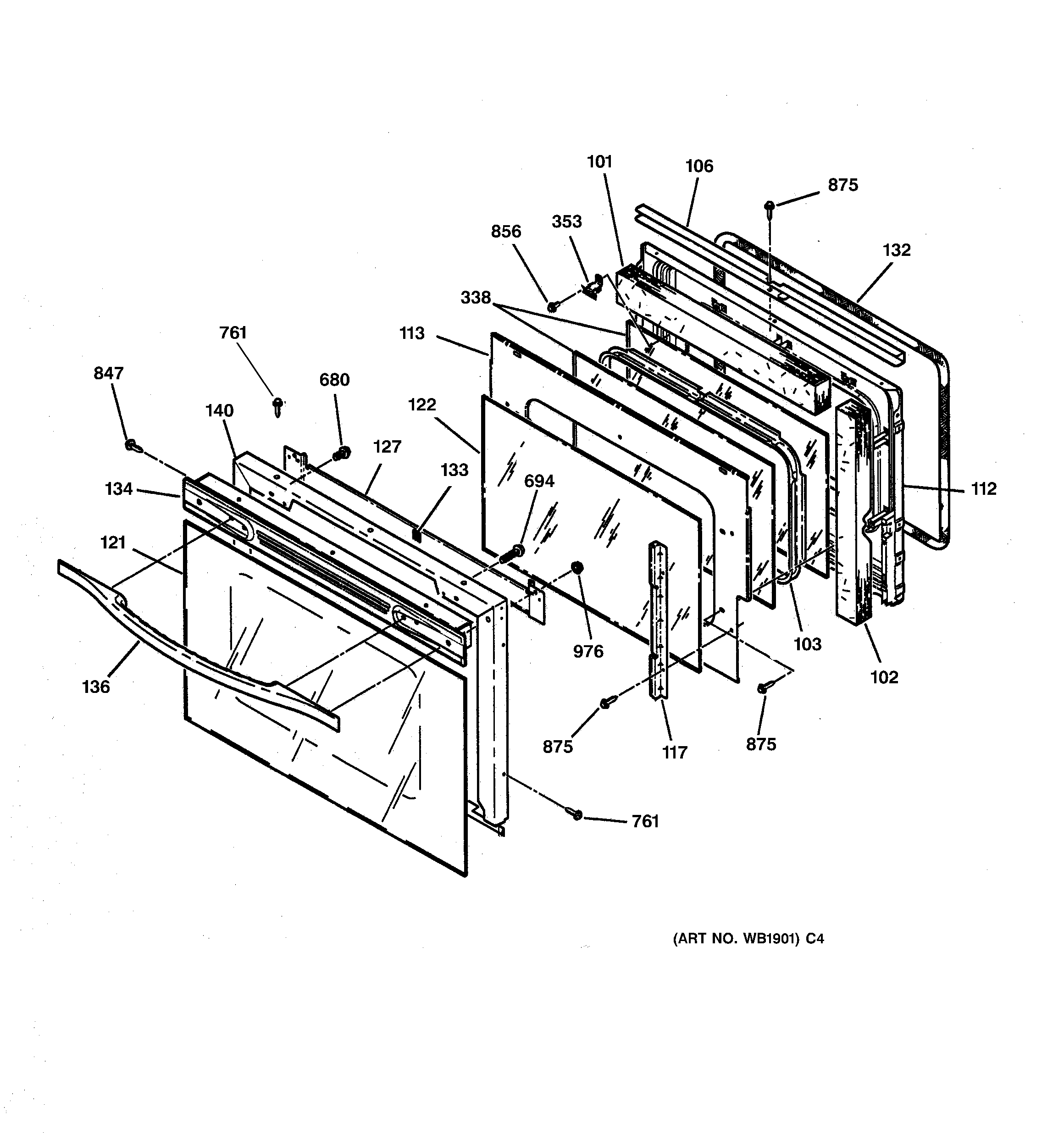

Door diagram

Oven door glass

Part #WB56K0020

Replaced by #WB56K20

?
Manufacturer substitution
This part replaces WB56K0020. Substitute parts can look different from the original.
$230.28 |
5% OFF Phone Price : $242.28
In Stock
Fan Blade WB02T10018
#43

Convection fan diagram

Fan blade

Part #WB02T10018

Replaced by #WB02T10289

?
Manufacturer substitution
This part replaces WB02T10018. Substitute parts can look different from the original.
This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
