Model # SHE33P05UC/59 Official Bosch dishwasher

Here are the diagrams and repair parts for Official Bosch SHE33P05UC/59 dishwasher, as well as links to manuals and error code tables, if available.

By Schematic
By Part

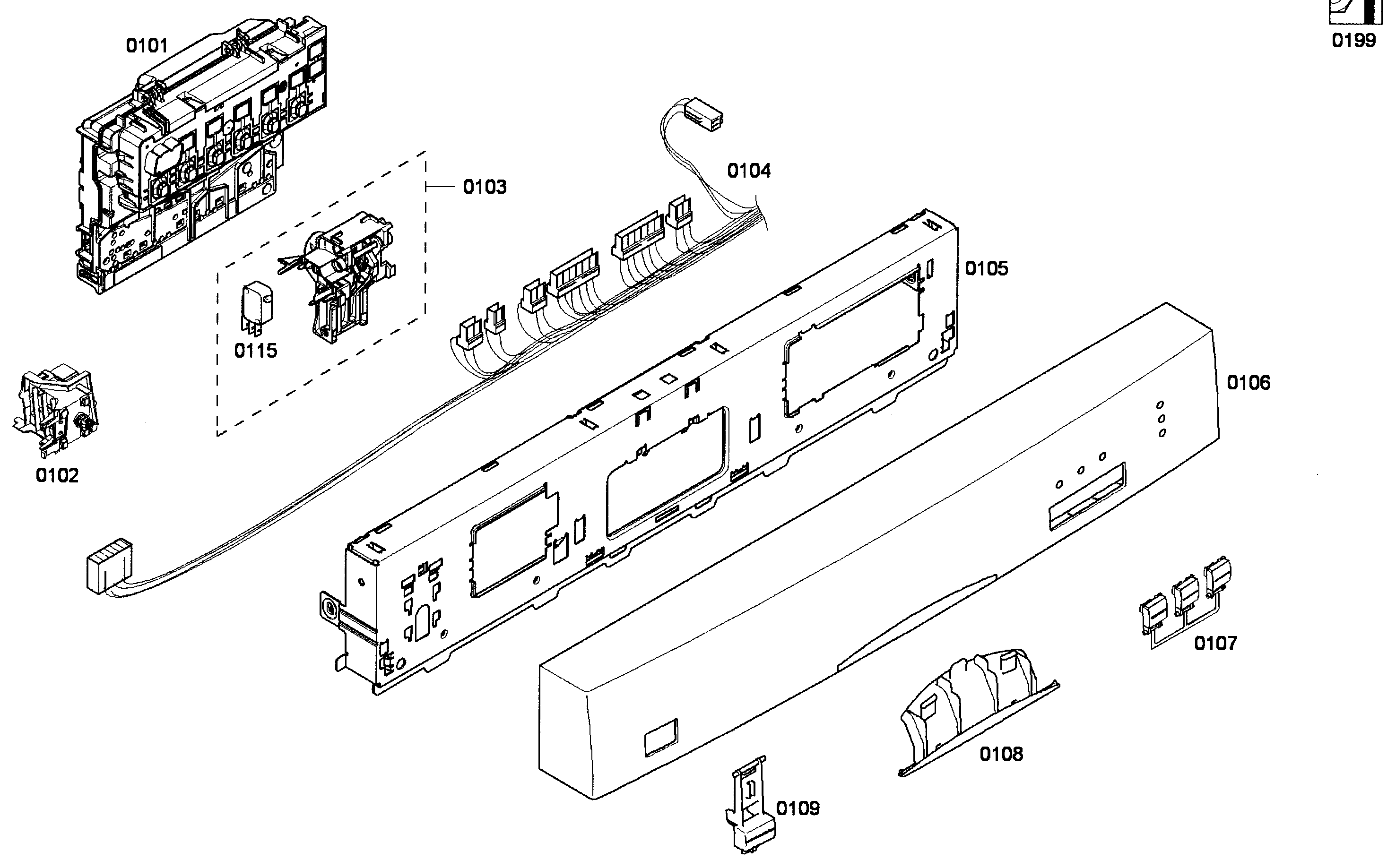

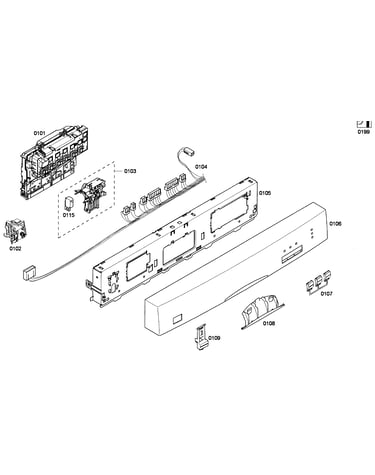

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forSHE33P05UC/59 Dishwasher

  • Dishwasher Recirculation Pump Assembly 442548
    #419

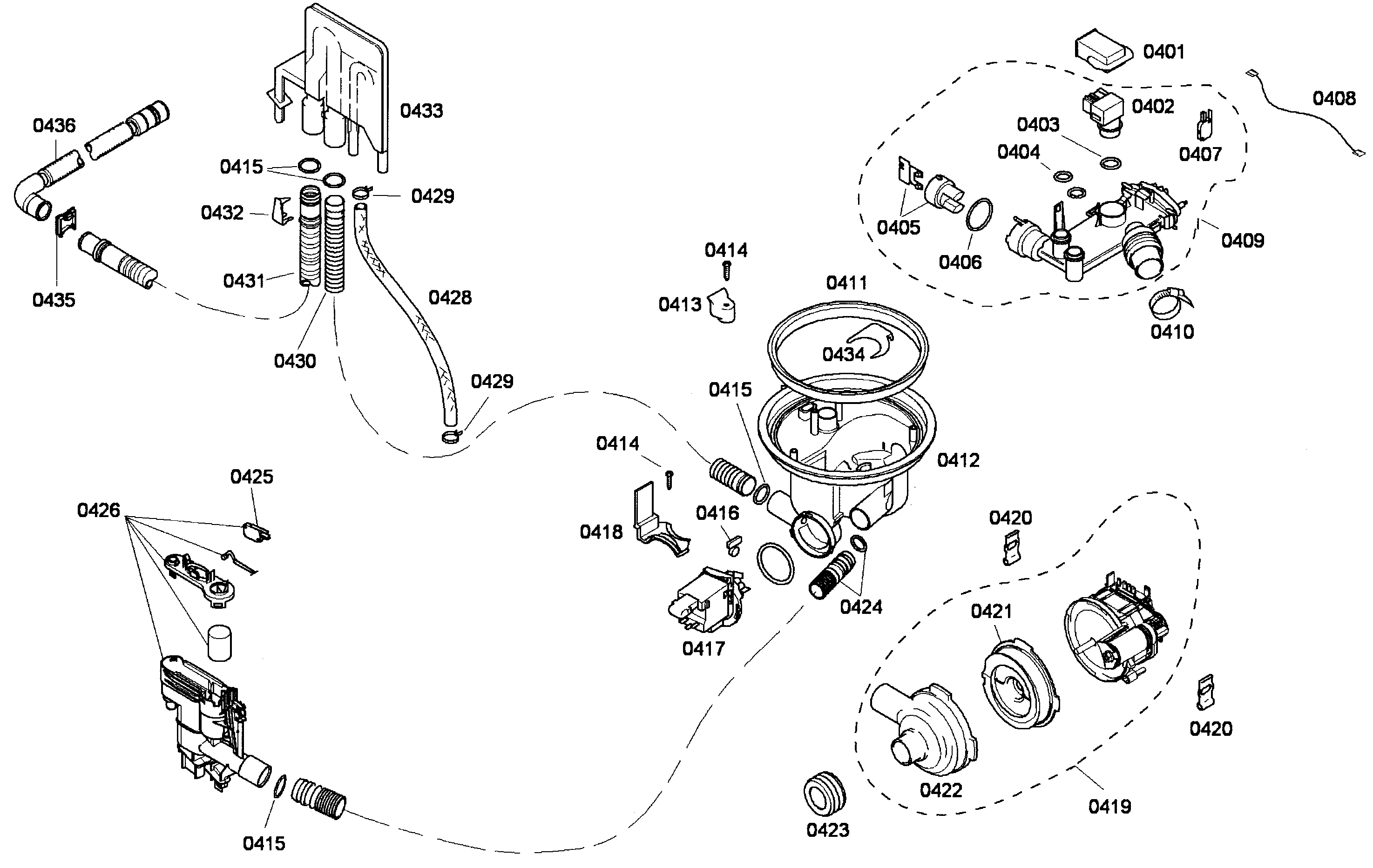

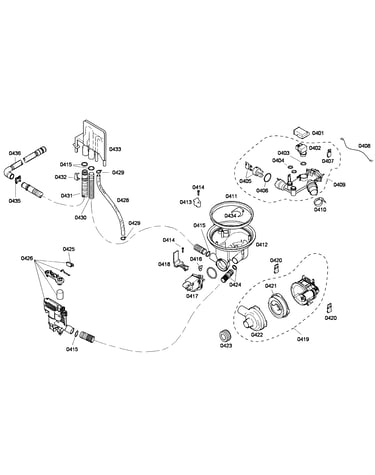

    Pump diagram

    Dishwasher recirculation pump assembly

    Part #442548

    Replaced by #00442548

    ?
    Manufacturer substitution
    This part replaces 442548. Substitute parts can look different from the original.
    BEST SELLER
    $243.67
    5% OFF Phone Price : $255.67
    In Stock
  • Heater 480317
    #409

    Pump diagram

    Heater

    Part #480317

    Replaced by #00480317

    ?
    Manufacturer substitution
    This part replaces 480317. Substitute parts can look different from the original.
    BEST SELLER
    $260.67
    $12.00 OFF Phone Price : $272.67
    In Stock
  • Door Seal 432490
    #203

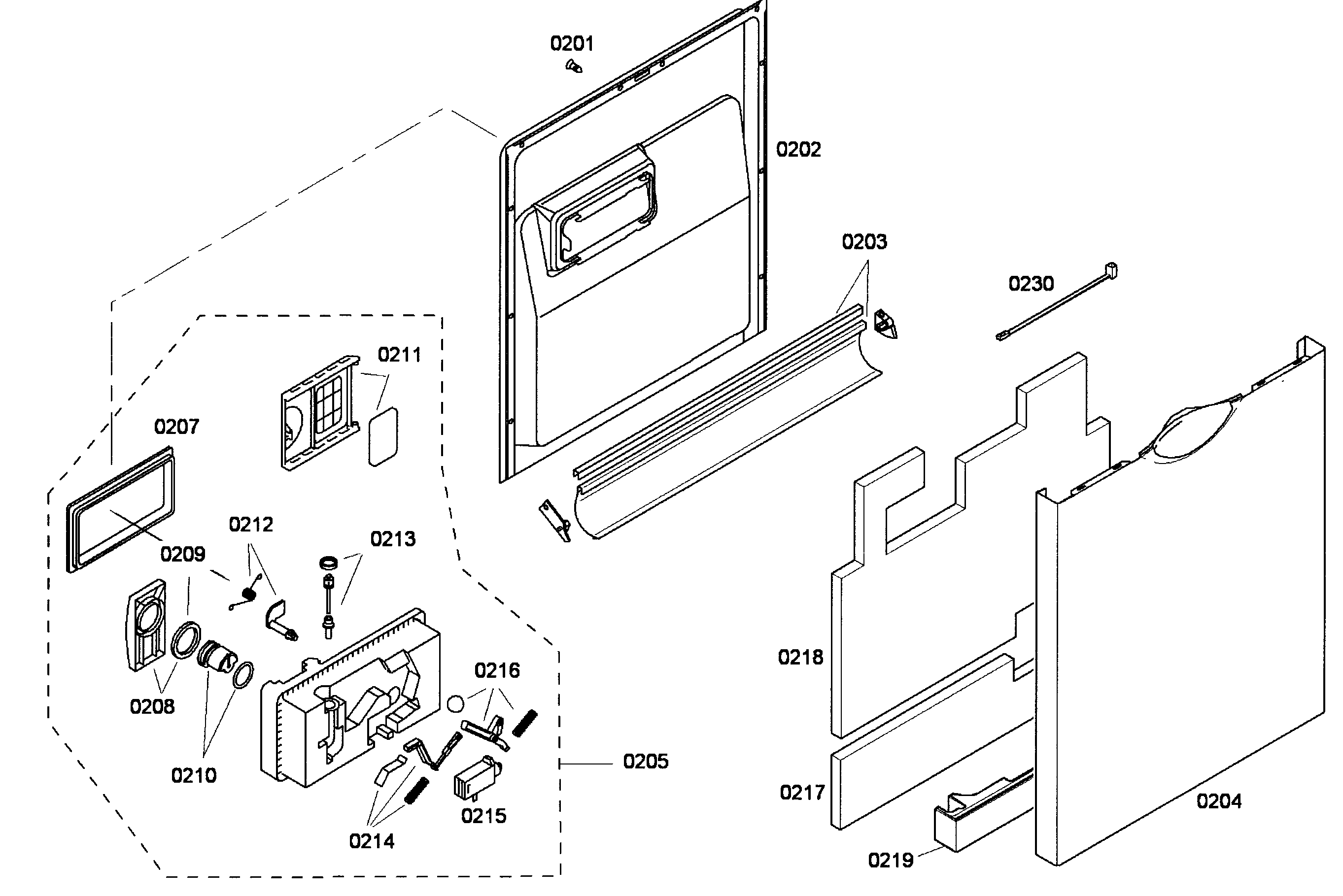

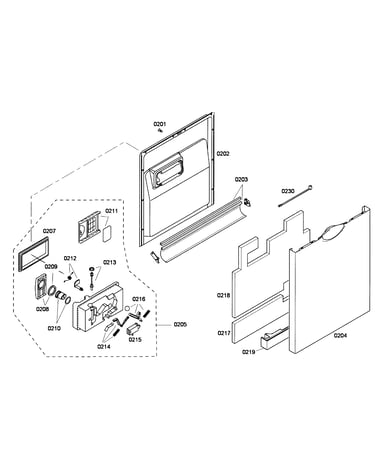

    Door assy diagram

    Door seal

    Part #432490

    Replaced by #00432490

    ?
    Manufacturer substitution
    This part replaces 432490. Substitute parts can look different from the original.
    BEST SELLER
    $34.83
    15% OFF Phone Price : $40.83
    In Stock
  • Dishwasher Water Inlet Valve 607335
    #520

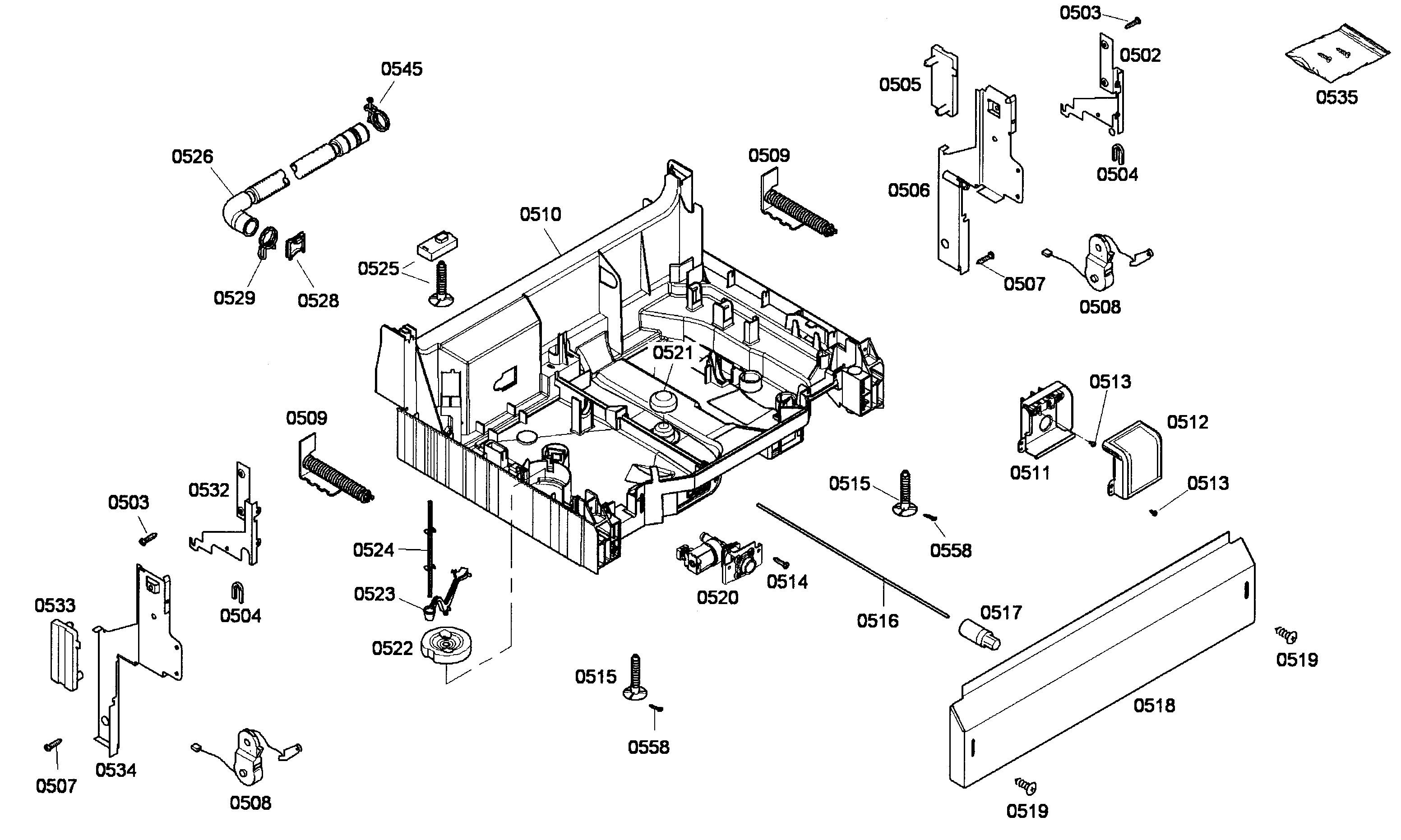

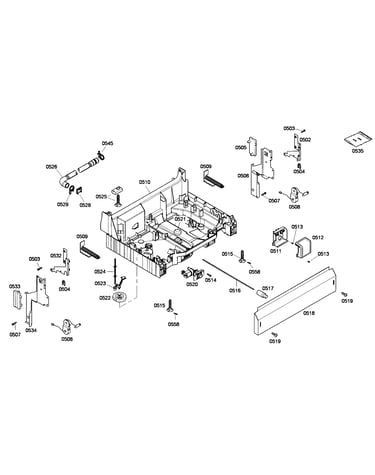

    Base assy diagram

    Dishwasher water inlet valve

    Part #607335

    Replaced by #00607335

    ?
    Manufacturer substitution
    This part replaces 607335. Substitute parts can look different from the original.
    $54.62
    10% OFF Phone Price : $60.62
    In Stock
  • Dishwasher Wash Pump Gasket 171598
    #423

    Pump diagram

    Dishwasher wash pump gasket

    Part #171598

    Replaced by #00171598

    ?
    Manufacturer substitution
    This part replaces 171598. Substitute parts can look different from the original.
    $28.09
    18% OFF Phone Price : $34.09
    In Stock
  • Dishwasher Mounting Set 619985
    #312

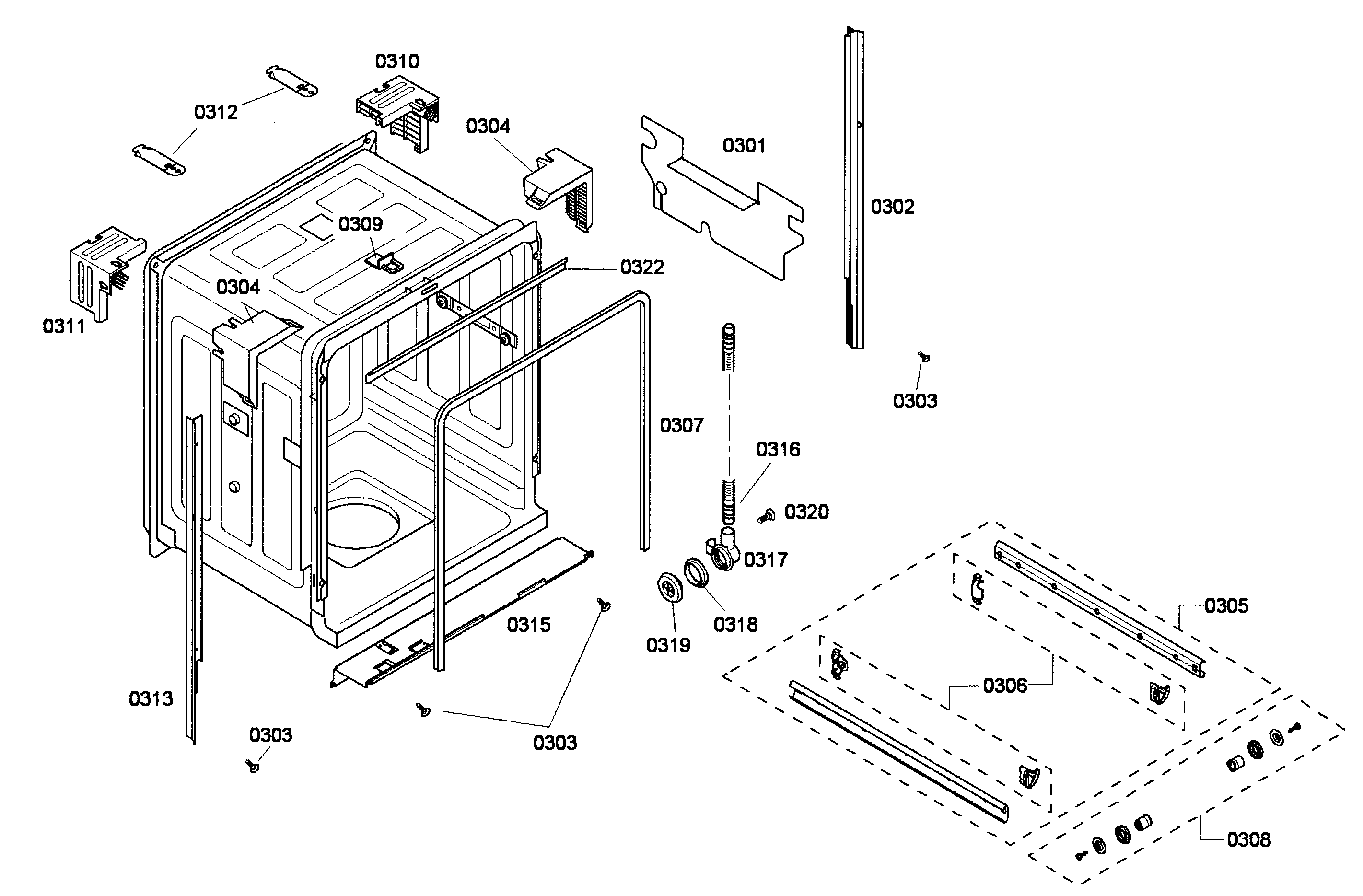

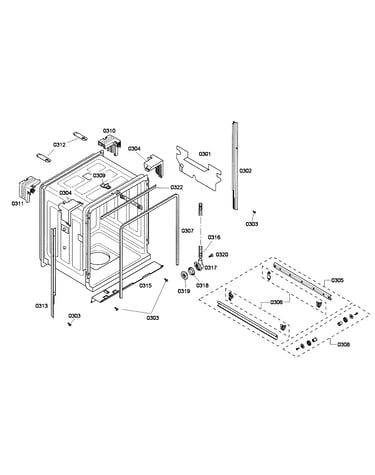

    Cabinet diagram

    Dishwasher mounting set

    Part #619985

    Replaced by #00619985

    ?
    Manufacturer substitution
    This part replaces 619985. Substitute parts can look different from the original.
    $13.89
    13% OFF Phone Price : $15.89
    In Stock
  • Wheel (gray) 611666
    #605

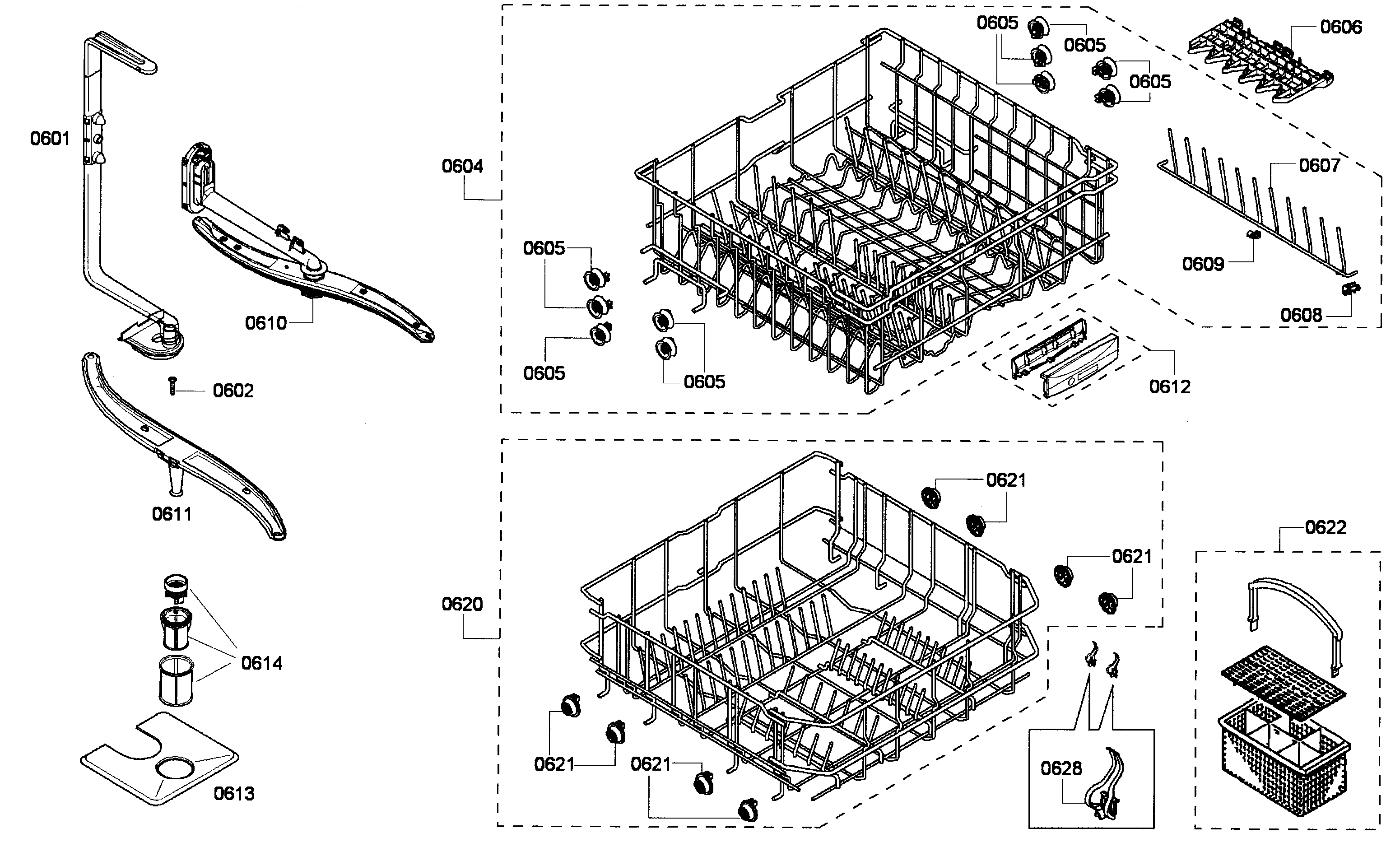

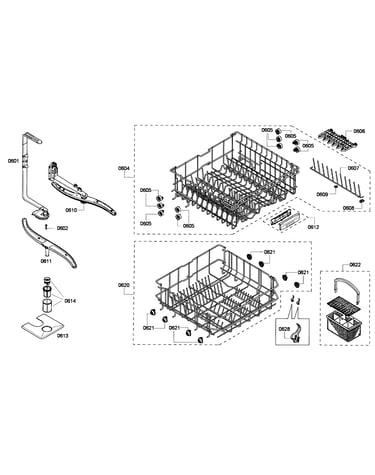

    Baskets diagram

    Wheel (gray)

    Part #611666

    Replaced by #00611666

    ?
    Manufacturer substitution
    This part replaces 611666. Substitute parts can look different from the original.
    $13.00
    13% OFF Phone Price : $15.00
    In Stock
  • Holder 616990
    #608

    Baskets diagram

    Holder

    Part #616990

    The manufacturer no longer makes this part, and there's no substitute part

  • Dishwasher Water Inlet Valve 263833
    #433

    Pump diagram

    Dishwasher water inlet valve

    Part #263833

    Replaced by #00263833

    ?
    Manufacturer substitution
    This part replaces 263833. Substitute parts can look different from the original.
    $150.10
    7% OFF Phone Price : $162.10
    In Stock
  • Dishwasher Spray Arm 448806
    #611

    Baskets diagram

    Dishwasher spray arm

    Part #448806

    Replaced by #00448806

    ?
    Manufacturer substitution
    This part replaces 448806. Substitute parts can look different from the original.
    This item is not returnable
    $26.69
    18% OFF Phone Price : $32.69
