Model # 66515958794 Official Kenmore dishwasher

Here are the diagrams and repair parts for Official Kenmore 66515958794 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

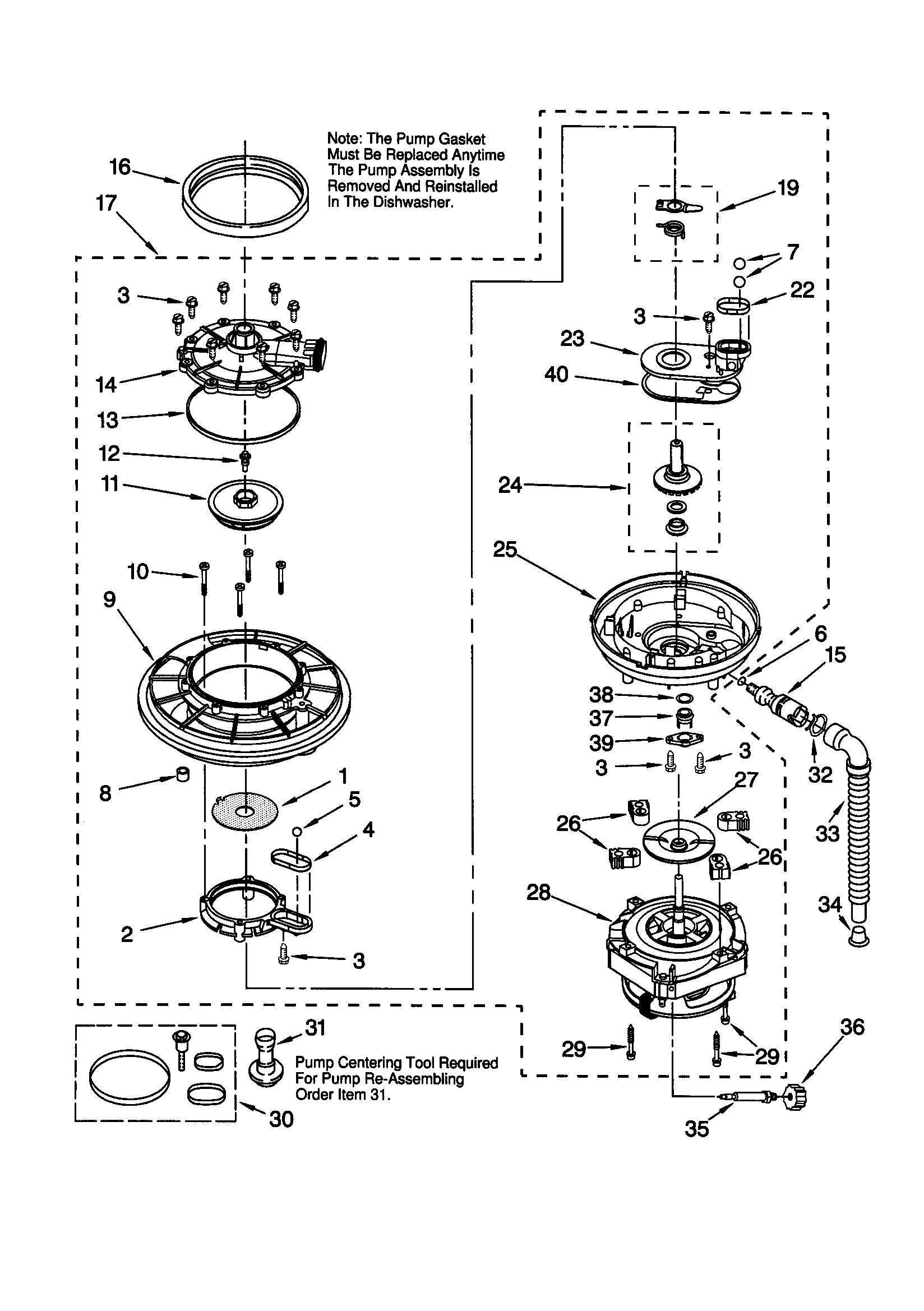

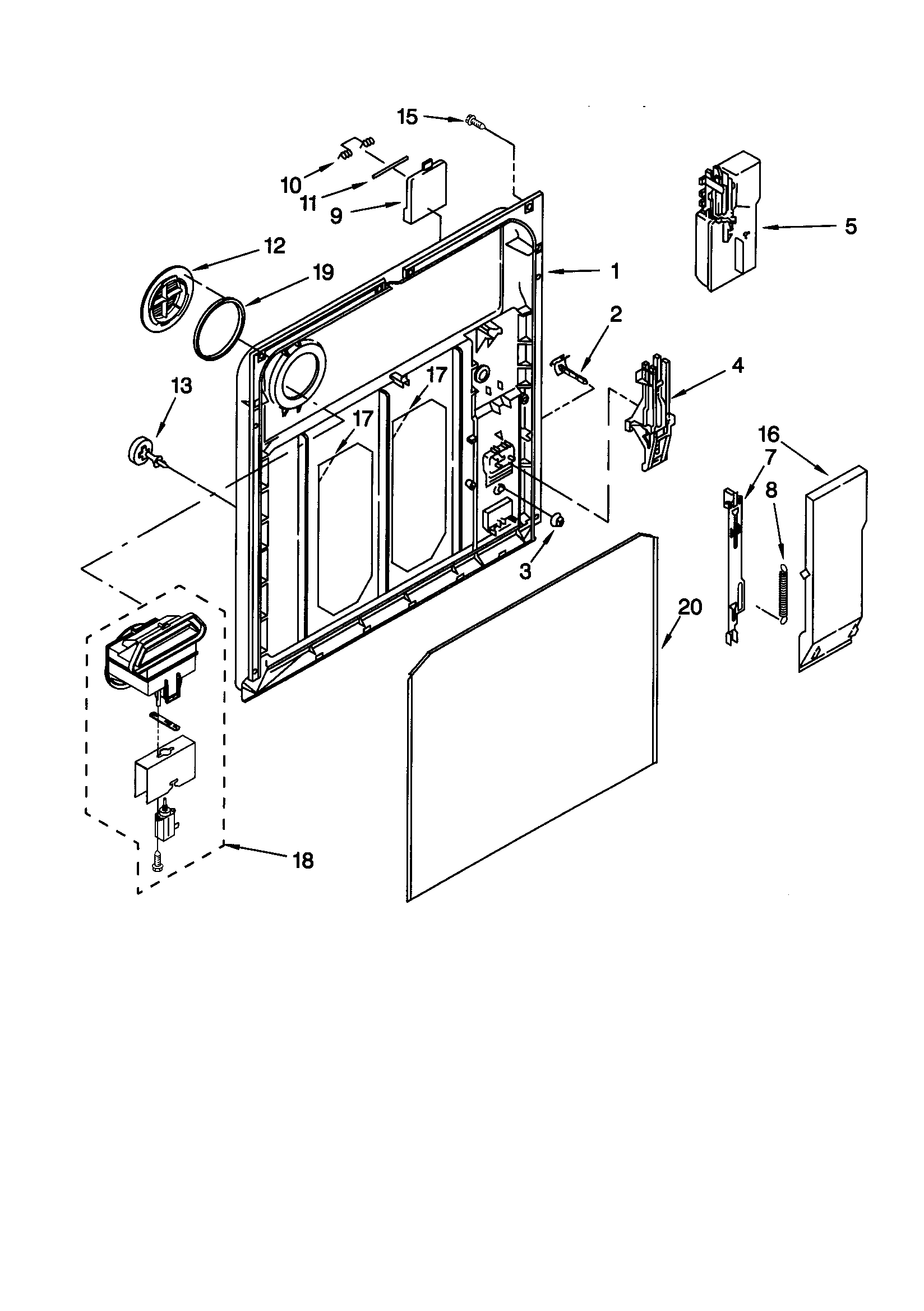

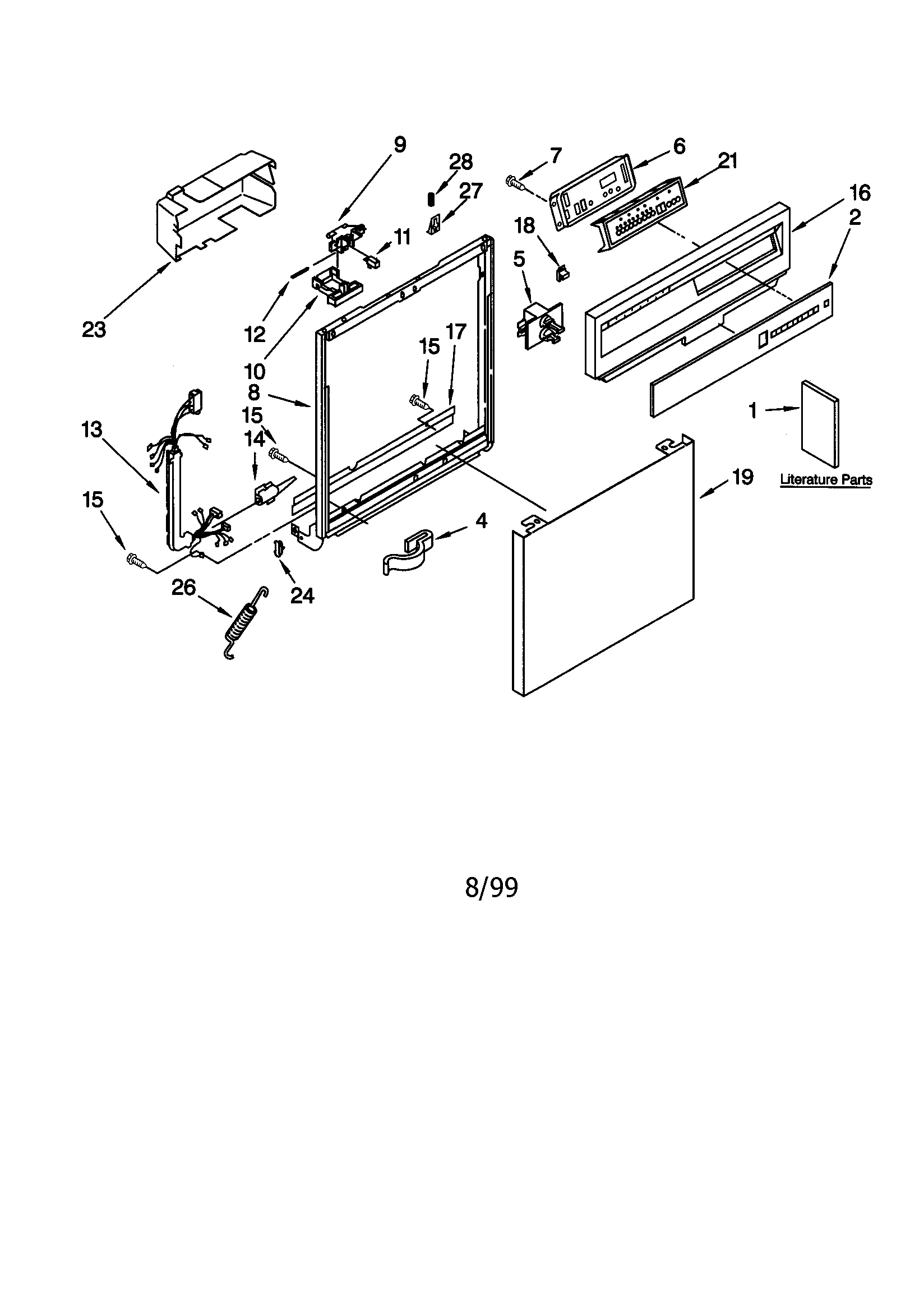

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 209 parts  |
Silverware Basket 3380781
#7

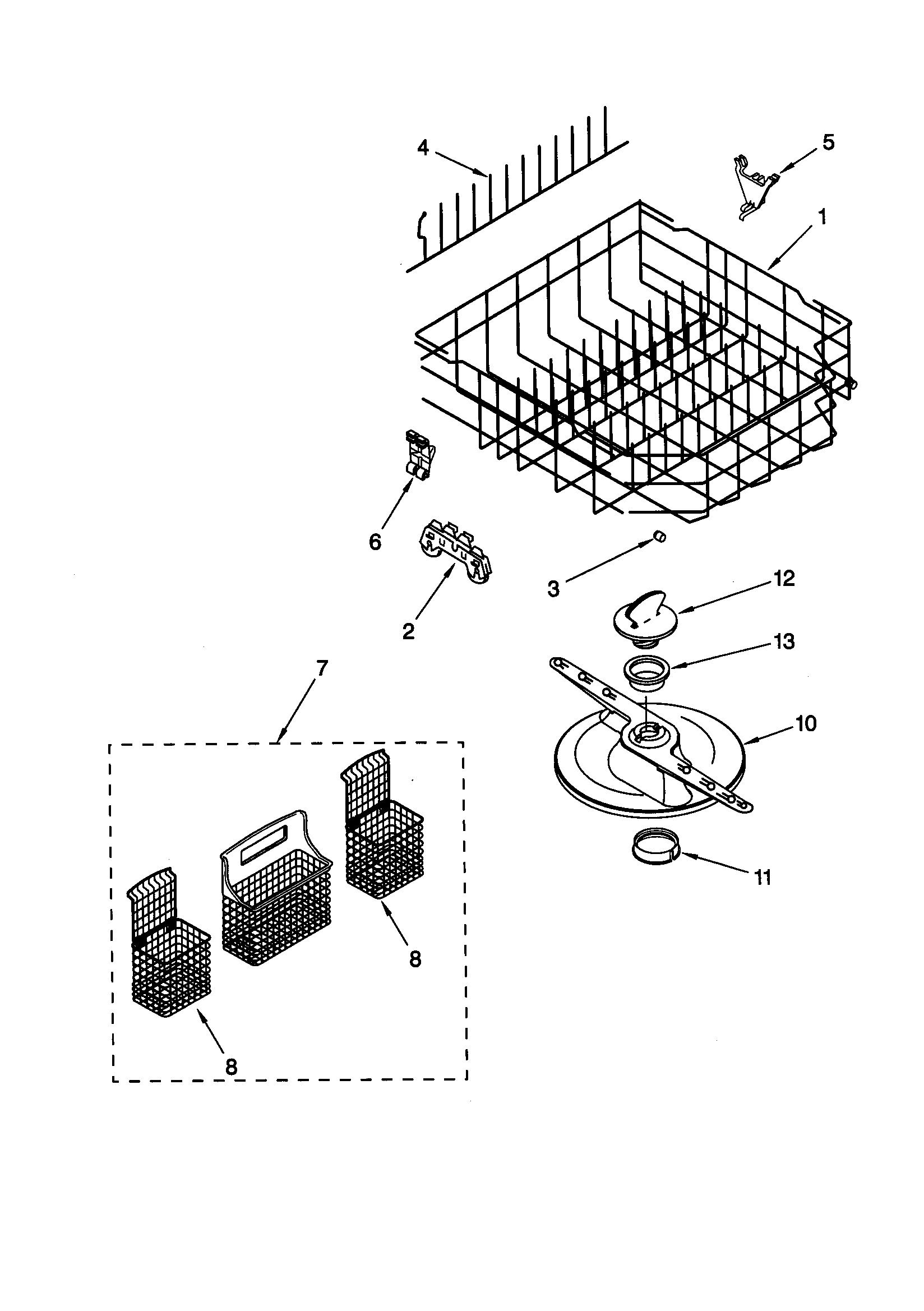

Lower dishrack diagram

Silverware basket

Part #3380781

Replaced by #W10807920

?
Manufacturer substitution
This part replaces 3380781. Substitute parts can look different from the original.
BEST SELLER
$57.74 |
9% OFF Phone Price : $63.74
In Stock
Adhesive 675652

#NI

All parts diagram

Adhesive

Part #675652

Replaced by #W10841140

?
Manufacturer substitution
This part replaces 675652. Substitute parts can look different from the original.
BEST SELLER
$14.99 |
12% OFF Phone Price : $16.99
In Stock
Dishwasher Spray Arm 3378147
#13

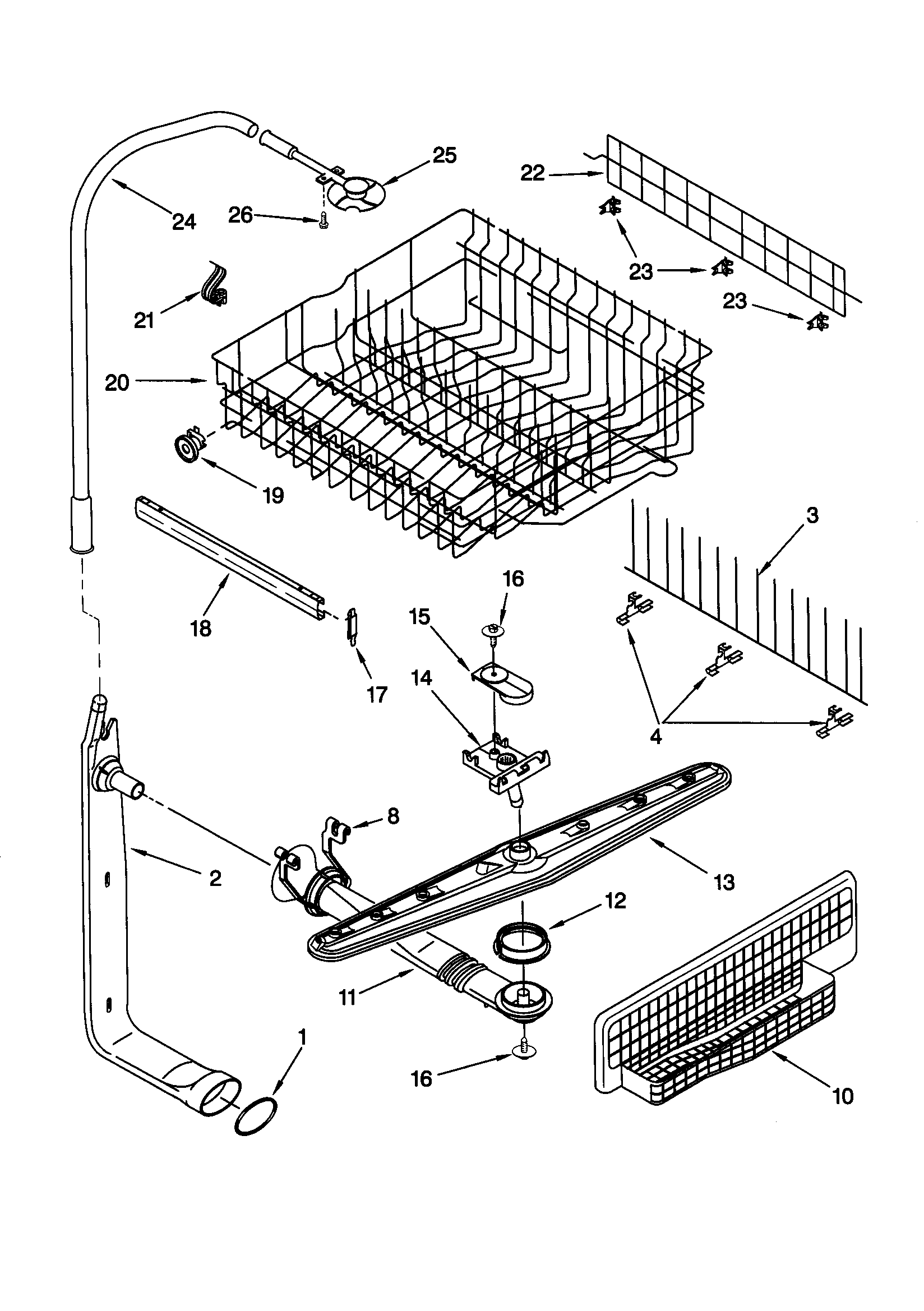

Upper dishrack/water feed diagram

Dishwasher spray arm

Part #3378147

Replaced by #675808

?
Manufacturer substitution
This part replaces 3378147. Substitute parts can look different from the original.
BEST SELLER
$37.42 |
14% OFF Phone Price : $43.42
In Stock
Dishwasher Door Seal 3376927
#10

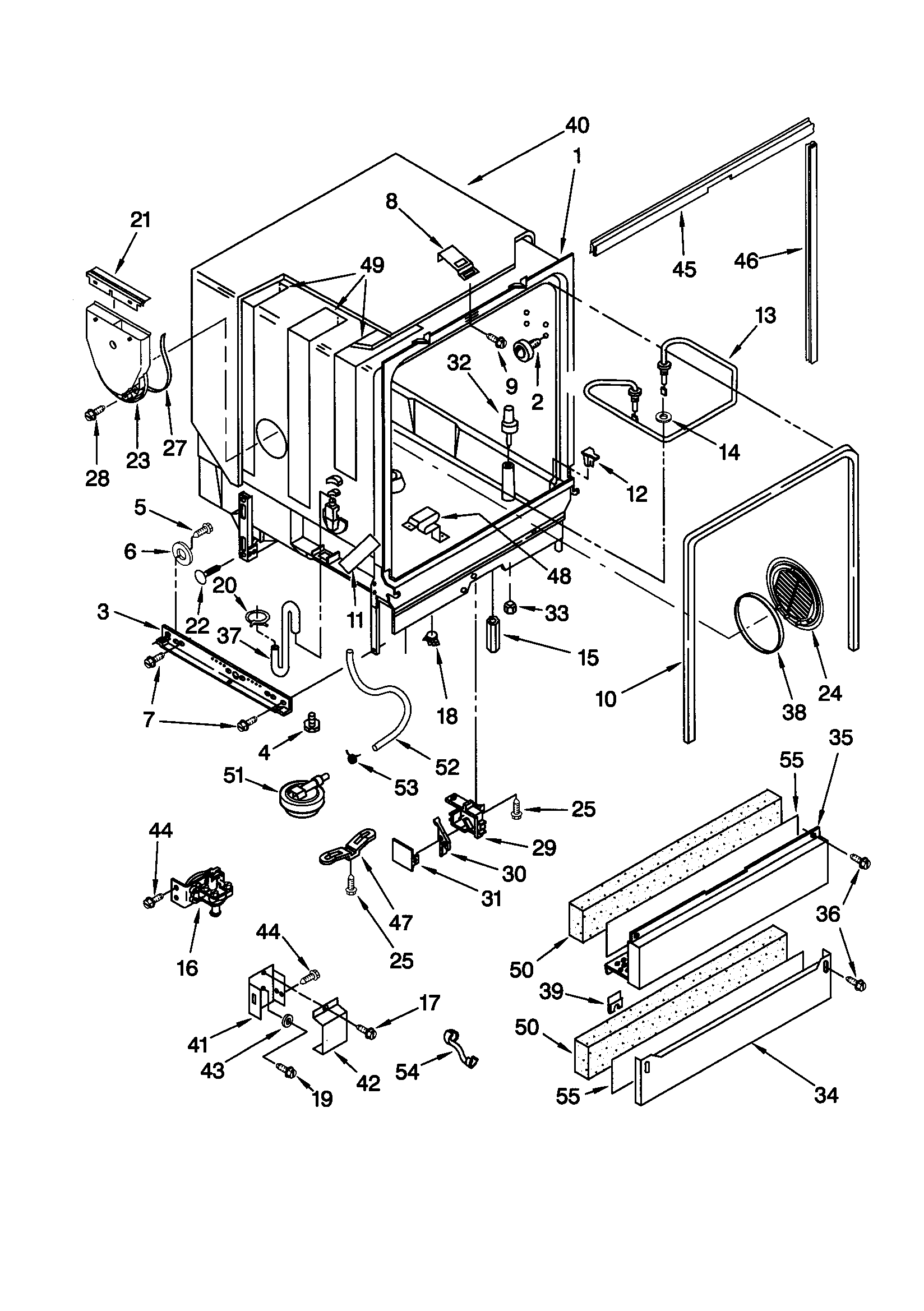

Tub assembly diagram

Dishwasher door seal

Part #3376927

Replaced by #WPW10509257

?
Manufacturer substitution
This part replaces 3376927. Substitute parts can look different from the original.
BEST SELLER
$40.49 |
13% OFF Phone Price : $46.49
In Stock
Clamp 301958
#20

Tub assembly diagram

Clamp

Part #301958

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 301958. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Dishwasher Lower Spray Arm Seal 3376846
Dishwasher lower spray arm seal

Part #3376846

Replaced by #WP3376846

?
Manufacturer substitution
This part replaces 3376846. Substitute parts can look different from the original.
BEST SELLER
$11.61 |
15% OFF Phone Price : $13.61
In Stock
Dishwasher Dishrack 3379952
#1

Lower dishrack diagram

Dishwasher dishrack

Part #3379952

Replaced by #W10833650

?
Manufacturer substitution
This part replaces 3379952. Substitute parts can look different from the original.
BEST SELLER
$203.11 |
6% OFF Phone Price : $215.11
Back Order
Track 9742998
#18

Upper dishrack/water feed diagram

Track

Part #9742998

Replaced by #WP3385089

?
Manufacturer substitution
This part replaces 9742998. Substitute parts can look different from the original.
BEST SELLER
$42.97 |
12% OFF Phone Price : $48.97
In Stock
Dishwasher Heating Element Rubber Washer 717273
#14

Tub assembly diagram

Dishwasher heating element rubber washer

Part #717273

Replaced by #WP717273

?
Manufacturer substitution
This part replaces 717273. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.19 |
14% OFF Phone Price : $7.19
In Stock
Inlet Valve 8274221
#16

Tub assembly diagram

Inlet valve

Part #8274221

Replaced by #W10844024

?
Manufacturer substitution
This part replaces 8274221. Substitute parts can look different from the original.
BEST SELLER
$54.73 |
10% OFF Phone Price : $60.73
In Stock
