Frigidaire
Top-Mount Refrigerator

Model # FRT18LR7AW2 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire FRT18LR7AW2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

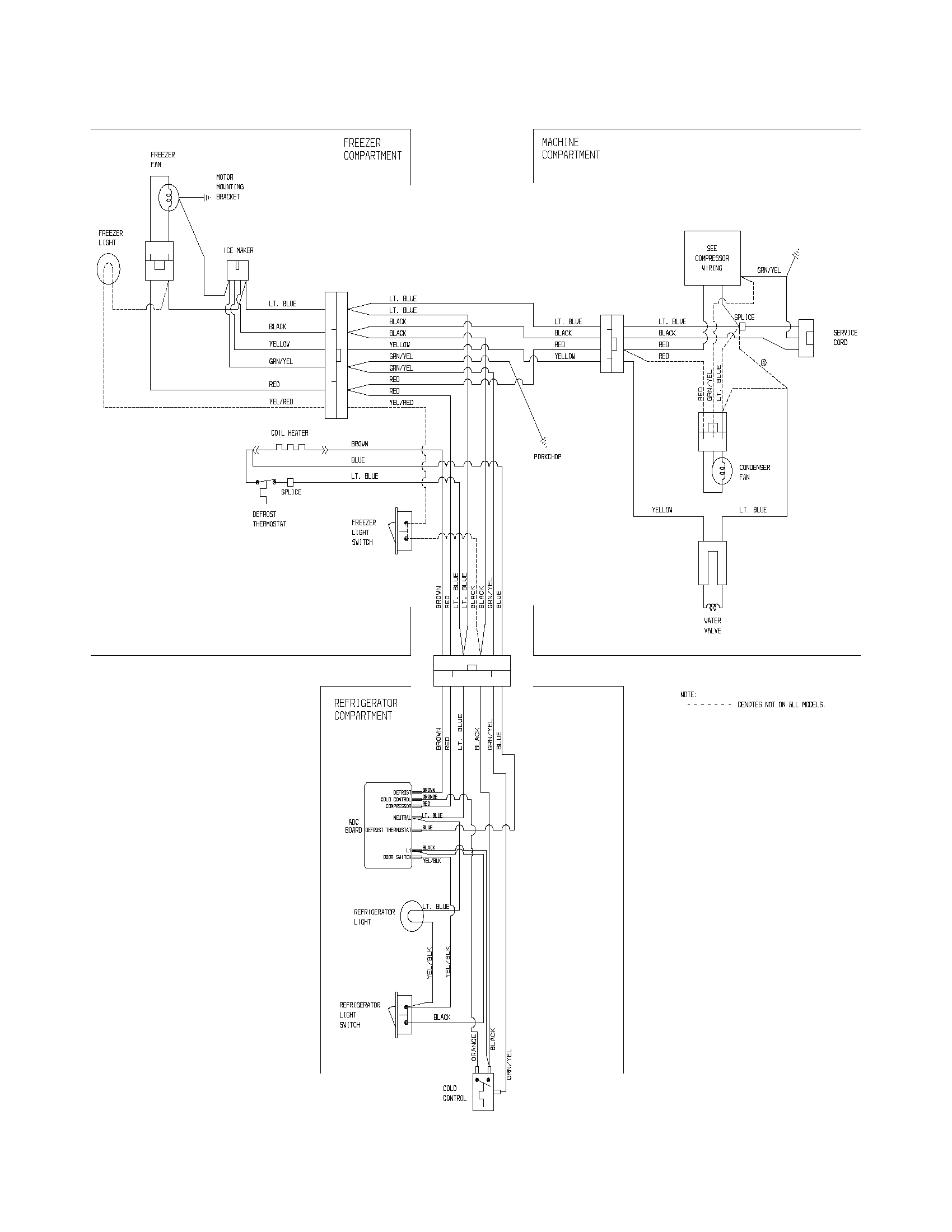

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |
Ice Maker Mold 5303320545
#17

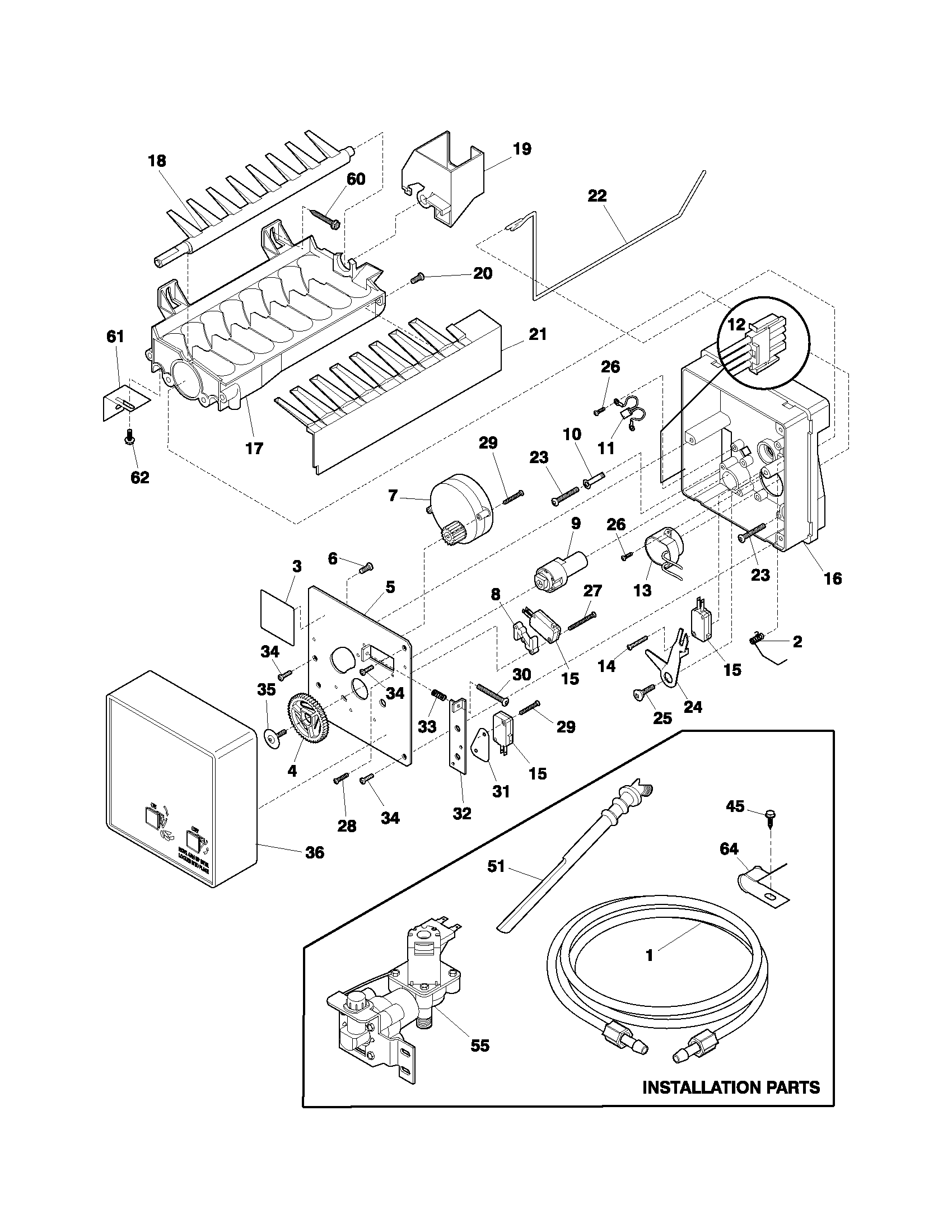

Ice maker diagram

Ice maker mold

Part #5303320545

Replaced by #241798231

?
Manufacturer substitution
This part replaces 5303320545. Substitute parts can look different from the original.
BEST SELLER
$153.02 |
7% OFF Phone Price : $165.02
In Stock
Refrigerator Filter Drier 218944001
#4

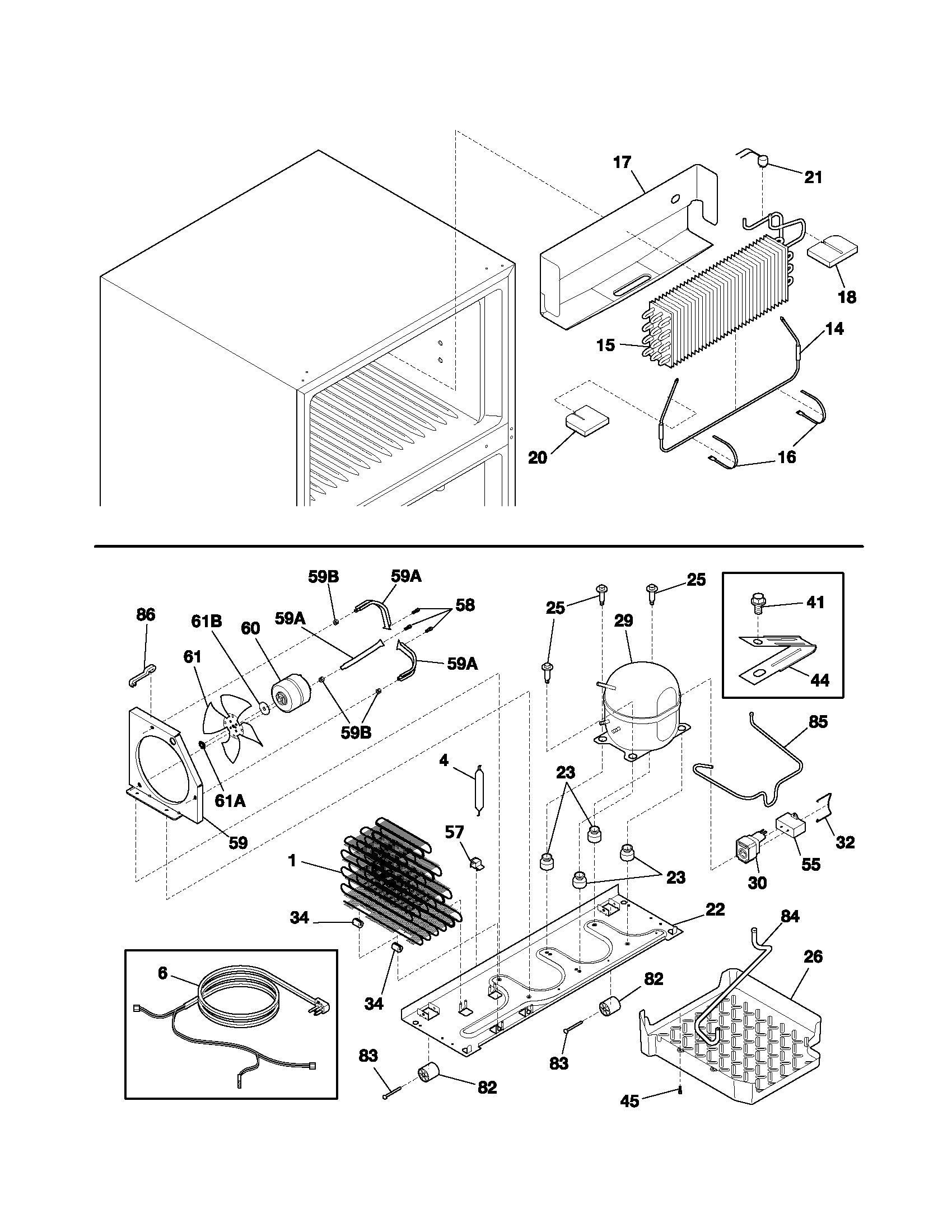

System diagram

Refrigerator filter drier

Part #218944001

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 218944001. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Gasket-wh 240514606
#2

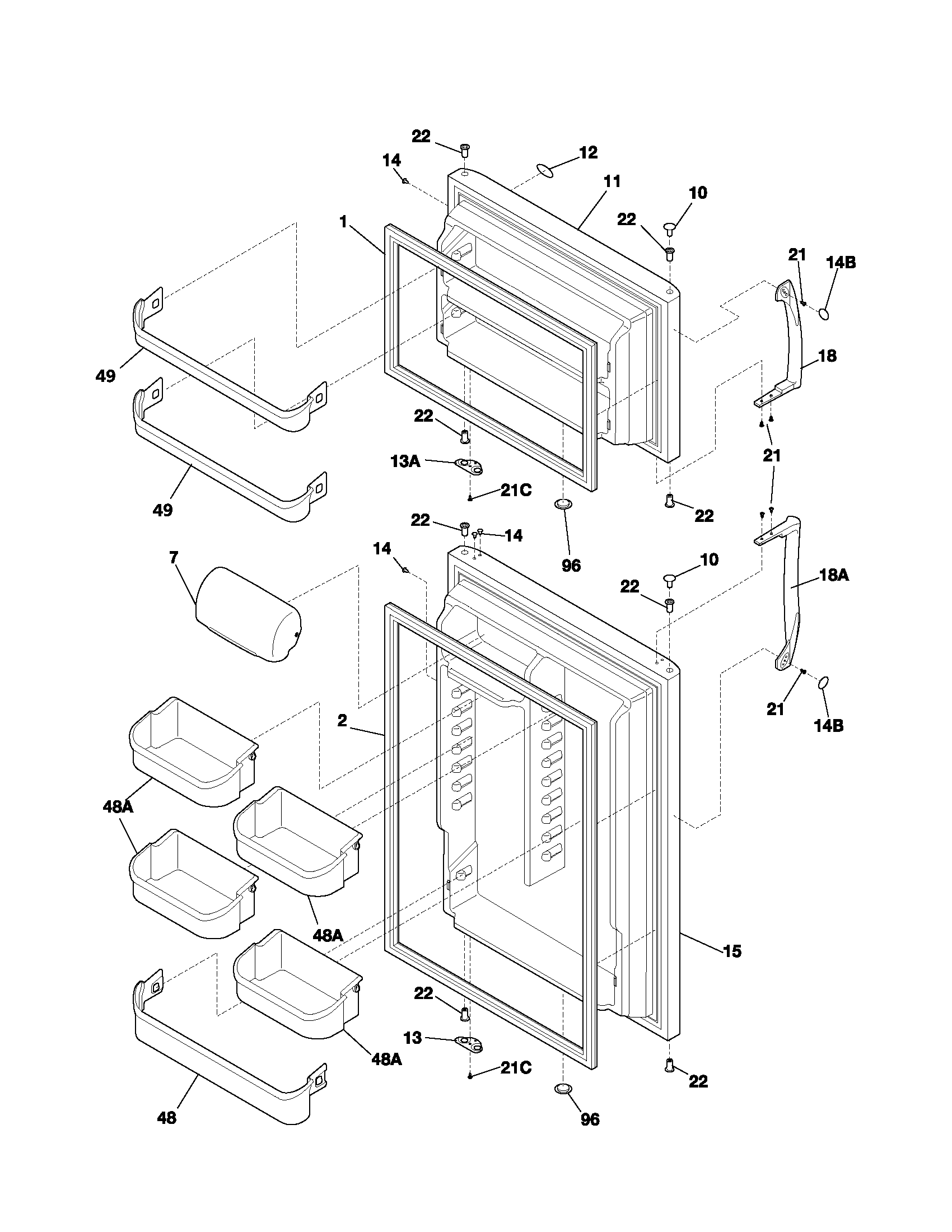

Door diagram

Gasket-wh

Part #240514606

Replaced by #241872513

?
Manufacturer substitution
This part replaces 240514606. Substitute parts can look different from the original.
BEST SELLER
$100.58 |
11% OFF Phone Price : $112.58
In Stock
Refrigerator Pan Insert 240350643
#47

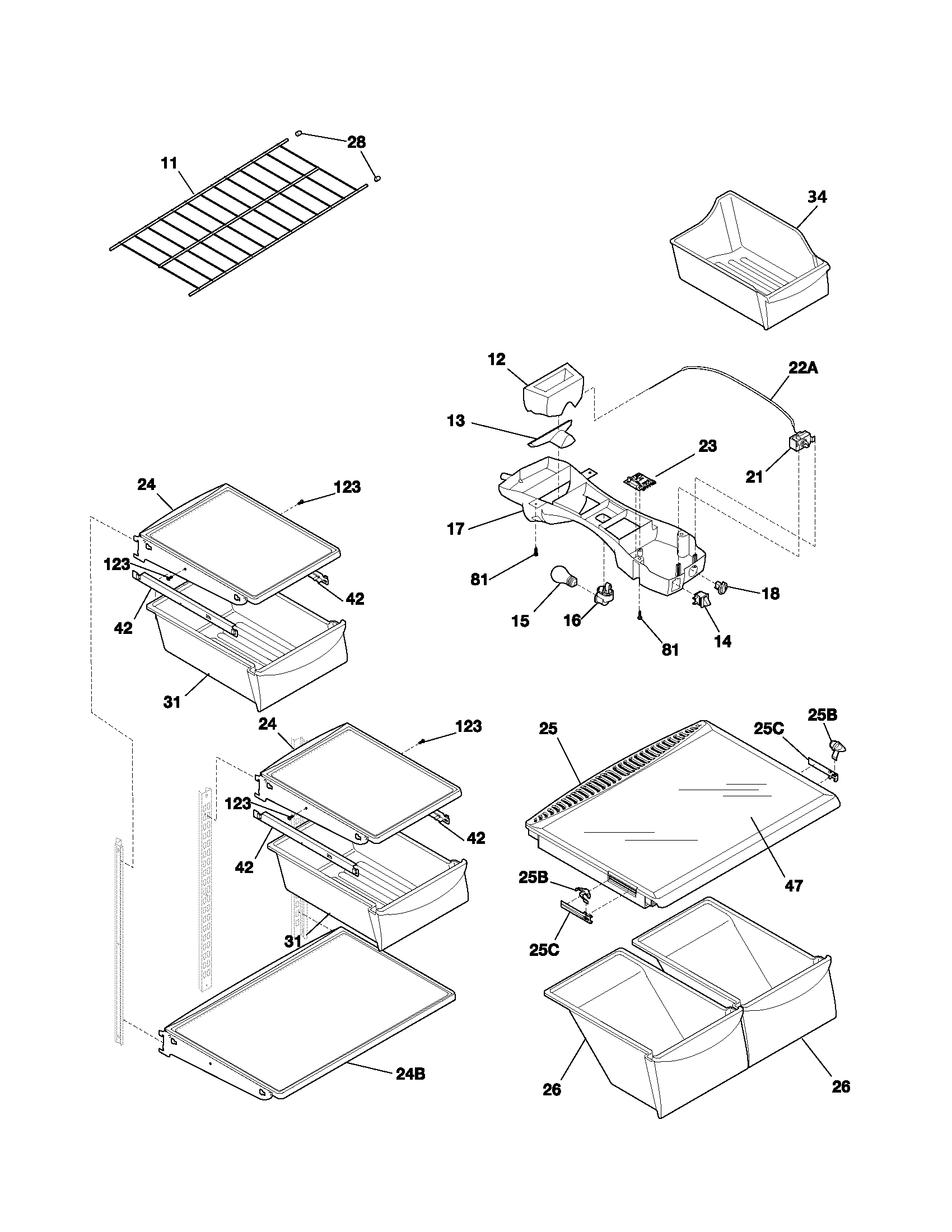

Shelves diagram

Refrigerator pan insert

Part #240350643

Replaced by #240350608

?
Manufacturer substitution
This part replaces 240350643. Substitute parts can look different from the original.
BEST SELLER
$104.62 |
10% OFF Phone Price : $116.62
In Stock
Refrigerator Door Bin (replaces 240338104) 240338101
#48

Door diagram

Refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$49.71 |
11% OFF Phone Price : $55.71
In Stock
Refrigerator Water Valve 240380301
#55

Ice maker diagram

Refrigerator water valve

Part #240380301

Replaced by #242252603

?
Manufacturer substitution
This part replaces 240380301. Substitute parts can look different from the original.
BEST SELLER
$51.04 |
11% OFF Phone Price : $57.04
In Stock
Washer 240311301
#34

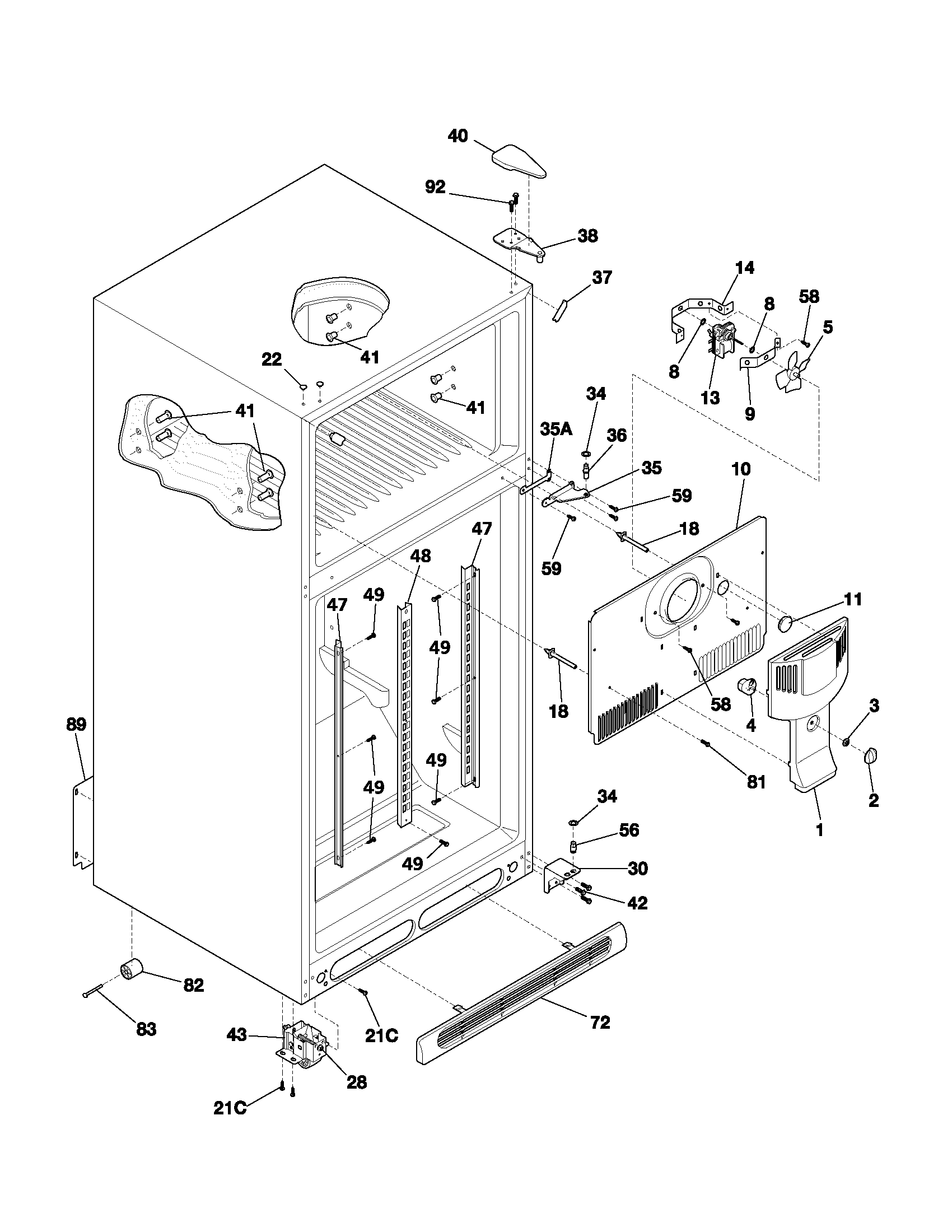

Cabinet diagram

Washer

Part #240311301

Replaced by #240311303

?
Manufacturer substitution
This part replaces 240311301. Substitute parts can look different from the original.
BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Crisper Drawer Cover Frame 240364714
#25

Shelves diagram

Refrigerator crisper drawer cover frame

Part #240364714

Replaced by #240364787

?
Manufacturer substitution
This part replaces 240364714. Substitute parts can look different from the original.
BEST SELLER
$86.14 |
7% OFF Phone Price : $92.14
In Stock
Refrigerator Defrost Bi-metal Thermostat (replaces 241619705) 5303918202
#21

System diagram

Refrigerator defrost bi-metal thermostat (replaces 241619705)

Part #5303918202

BEST SELLER
$27.56 |
18% OFF Phone Price : $33.56
In Stock
Refrigerator Door Gallon Bin (replaces 240338203) 240338201
#48A

Door diagram

Refrigerator door gallon bin (replaces 240338203)

Part #240338201

BEST SELLER
$49.80 |
11% OFF Phone Price : $55.80
In Stock
