Model # 786721170 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 786721170 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Slide Plug 1240P
#60

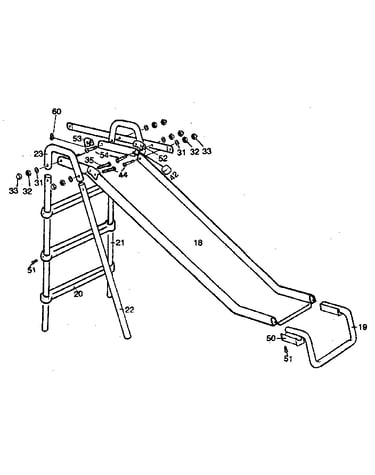

Slide assembly diagram

Slide plug

Part #1240P

The manufacturer no longer makes this part, and there's no substitute part

Lower Drop B92221M
#14

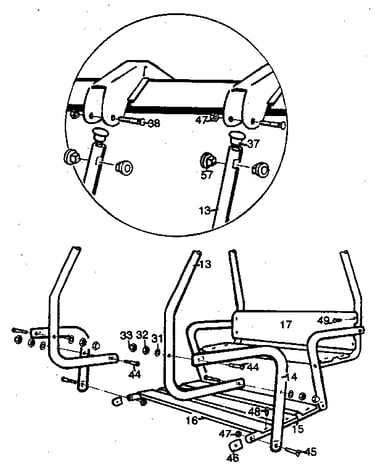

Lawn swing assembly diagram

Lower drop

Part #B92221M

The manufacturer no longer makes this part, and there's no substitute part

3/4 S.m. S 1681P
#49

Lawn swing assembly diagram

3/4 s.m. s

Part #1681P

The manufacturer no longer makes this part, and there's no substitute part

Bolt Bent 71P
#29

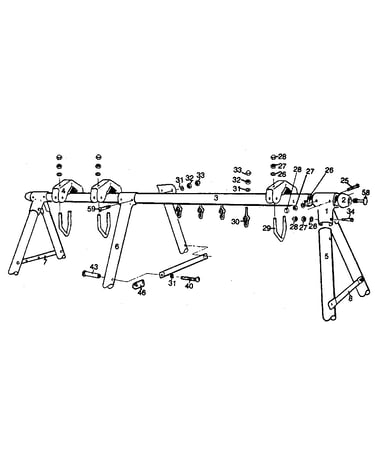

A-frame assembly diagram

Bolt bent

Part #71P

The manufacturer no longer makes this part, and there's no substitute part

Hardware Kit For A-frame Assembly (key Nos. 25-27, 29, 31, 32, 34, 40, 43, 59) A-163

#NI

All parts diagram

Hardware kit for a-frame assembly (key nos. 25-27, 29, 31, 32, 34, 40, 43, 59)

Part #A-163

The manufacturer no longer makes this part, and there's no substitute part

Seat 1527P
#17

Lawn swing assembly diagram

Seat

Part #1527P

The manufacturer no longer makes this part, and there's no substitute part

Step Bolt 1960P
#41

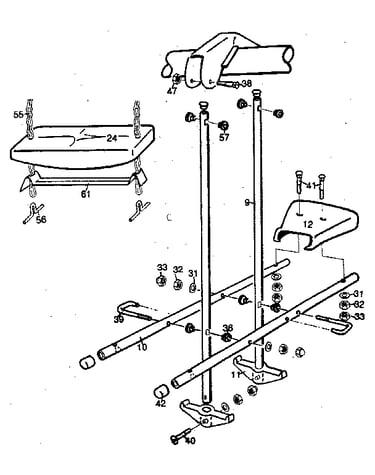

Swing seats & airglide assembly diagram

Step bolt

Part #1960P

The manufacturer no longer makes this part, and there's no substitute part

End Cap Mo 1531P
#53

Slide assembly diagram

End cap mo

Part #1531P

The manufacturer no longer makes this part, and there's no substitute part

Nylon Bush 1472P
#36

Swing seats & airglide assembly diagram

Nylon bush

Part #1472P

The manufacturer no longer makes this part, and there's no substitute part

Bracket Mtg B90570M
#4

A-frame assembly diagram

Bracket mtg

Part #B90570M

The manufacturer no longer makes this part, and there's no substitute part
