Model # HC-151 (08001001-10999999) Official Echo hedge clipper

Here are the diagrams and repair parts for Official Echo HC-151-08001001-10999999 hedge clipper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

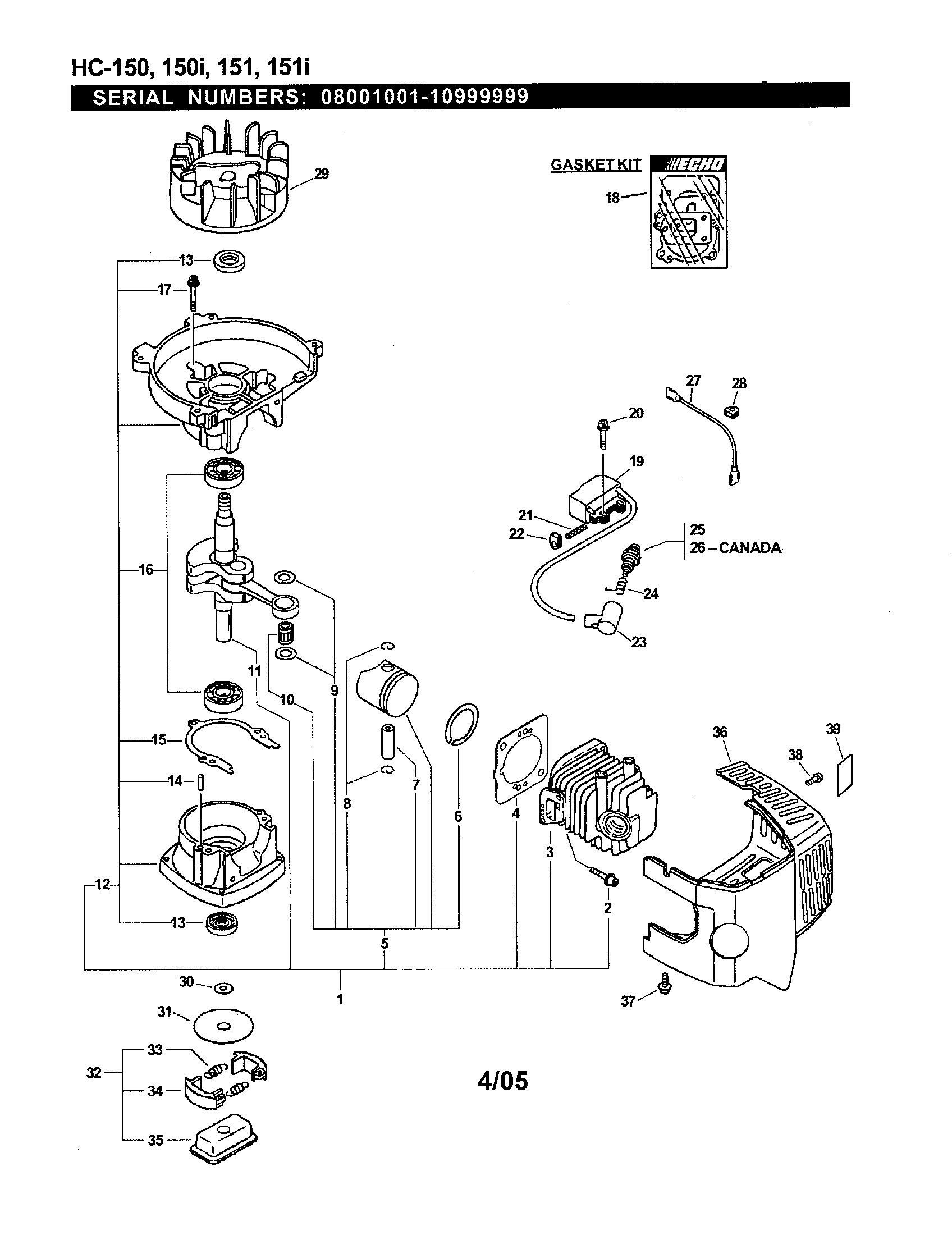

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 184 parts  |
Lawn & Garden Equipment Screw 17723644330
#8

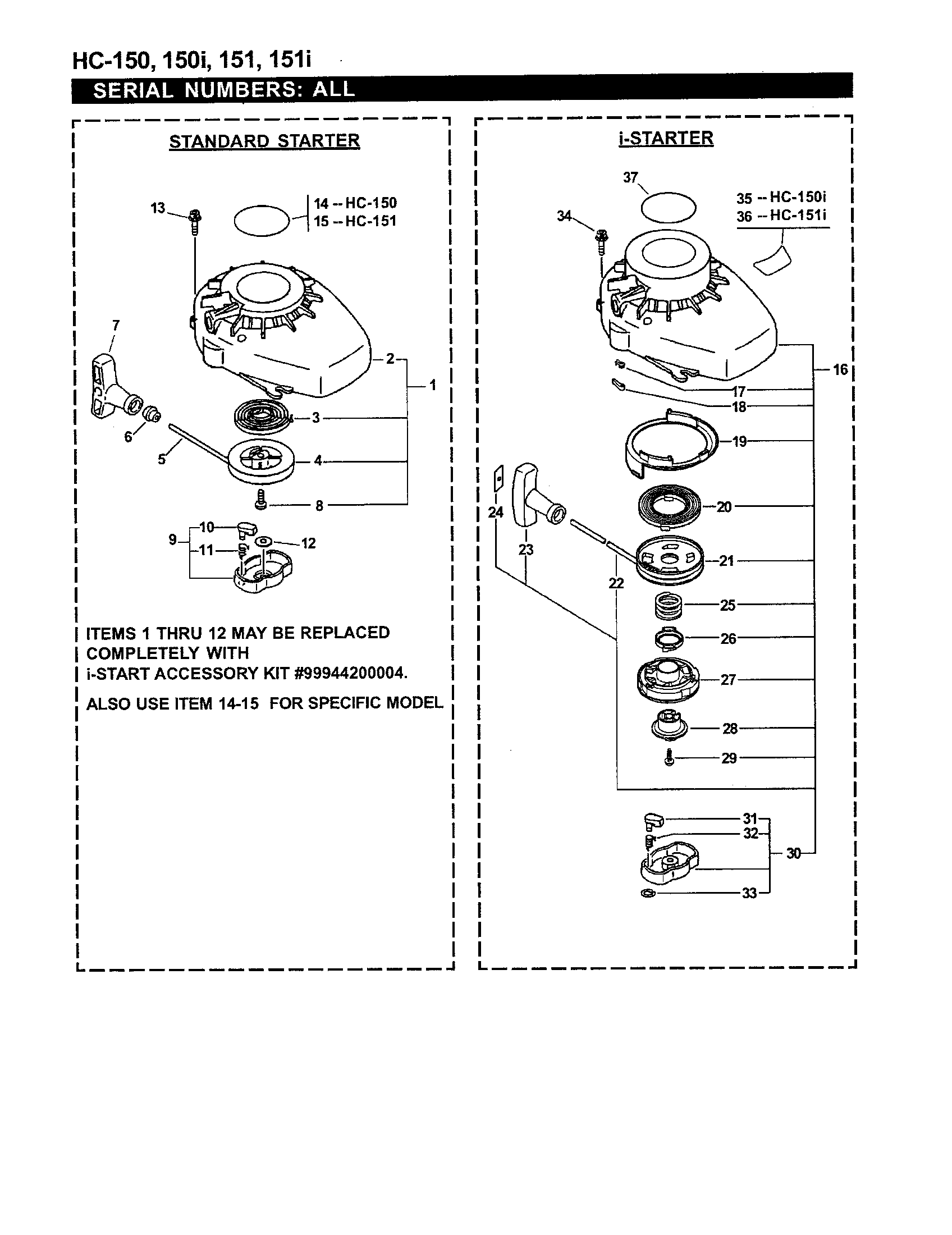

Standard starter/i-starter diagram

Lawn & garden equipment screw

Part #17723644330

The manufacturer no longer makes this part, and there's no substitute part

Lead, Ground V485000080
#12

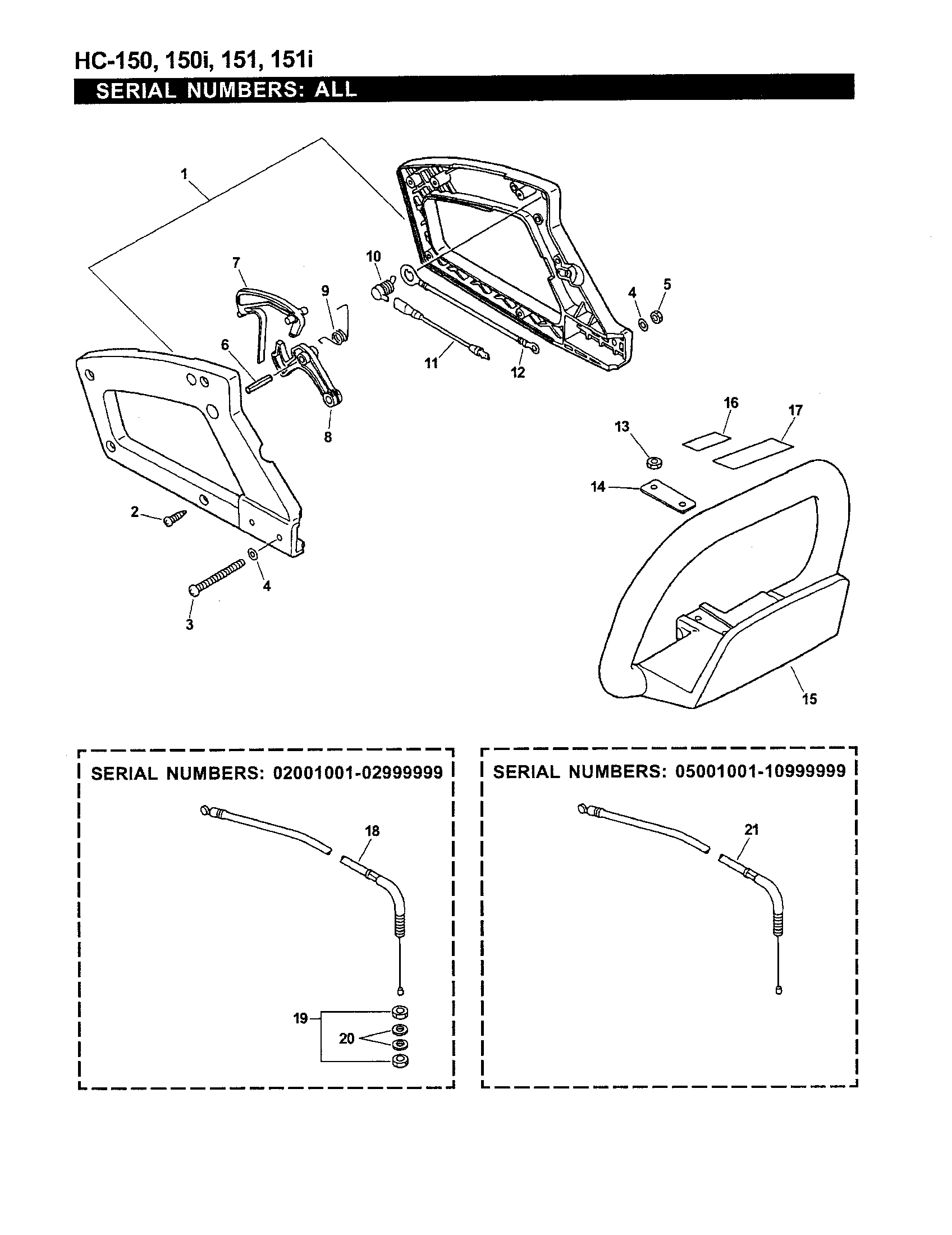

Handle/ignition/throttle cable diagram

Lead, ground

Part #V485000080

The manufacturer no longer makes this part, and there's no substitute part

Fuel Line 13201007530
#4

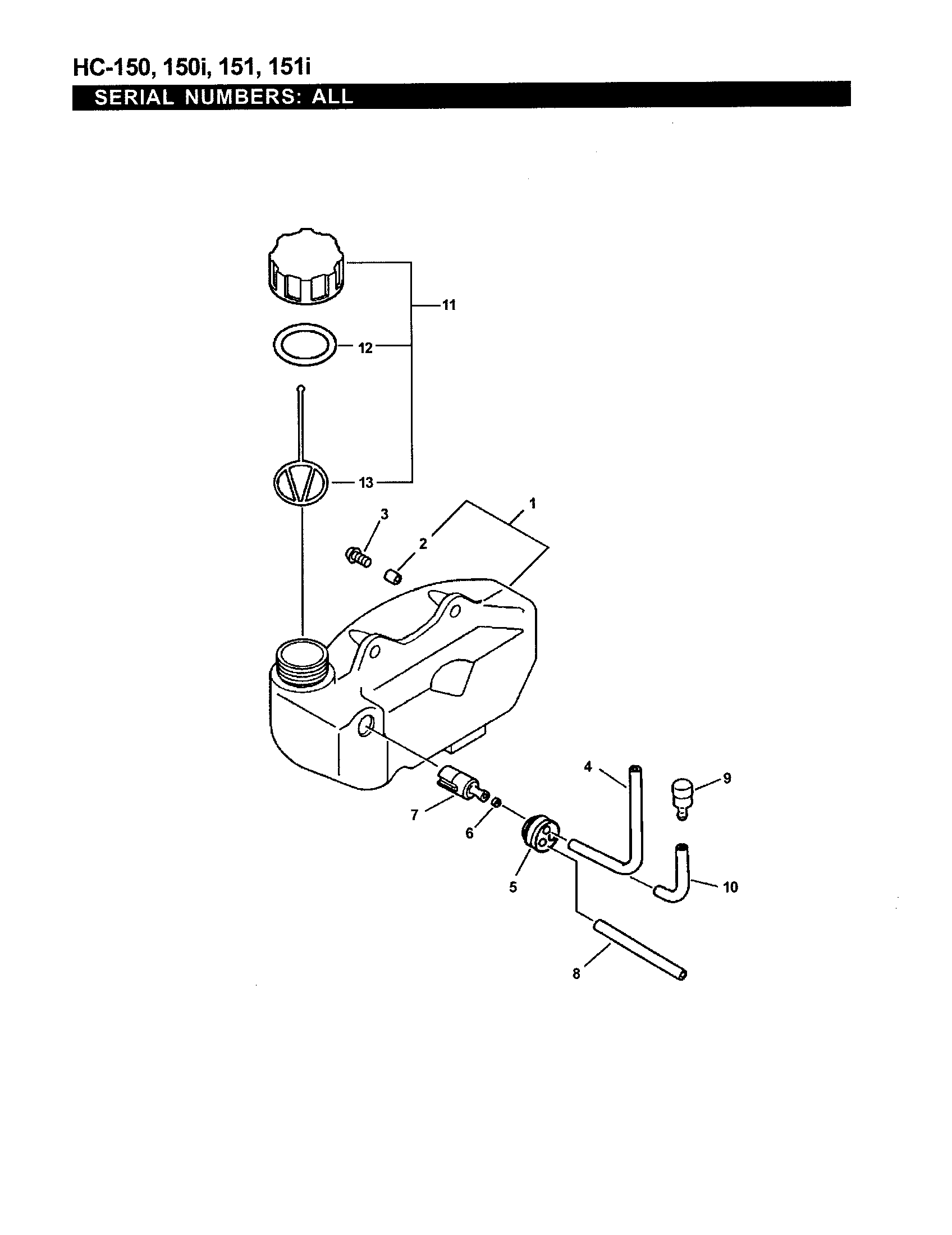

Fuel system diagram

Fuel line

Part #13201007530

The manufacturer no longer makes this part, and there's no substitute part

Filter 13031054130
#3

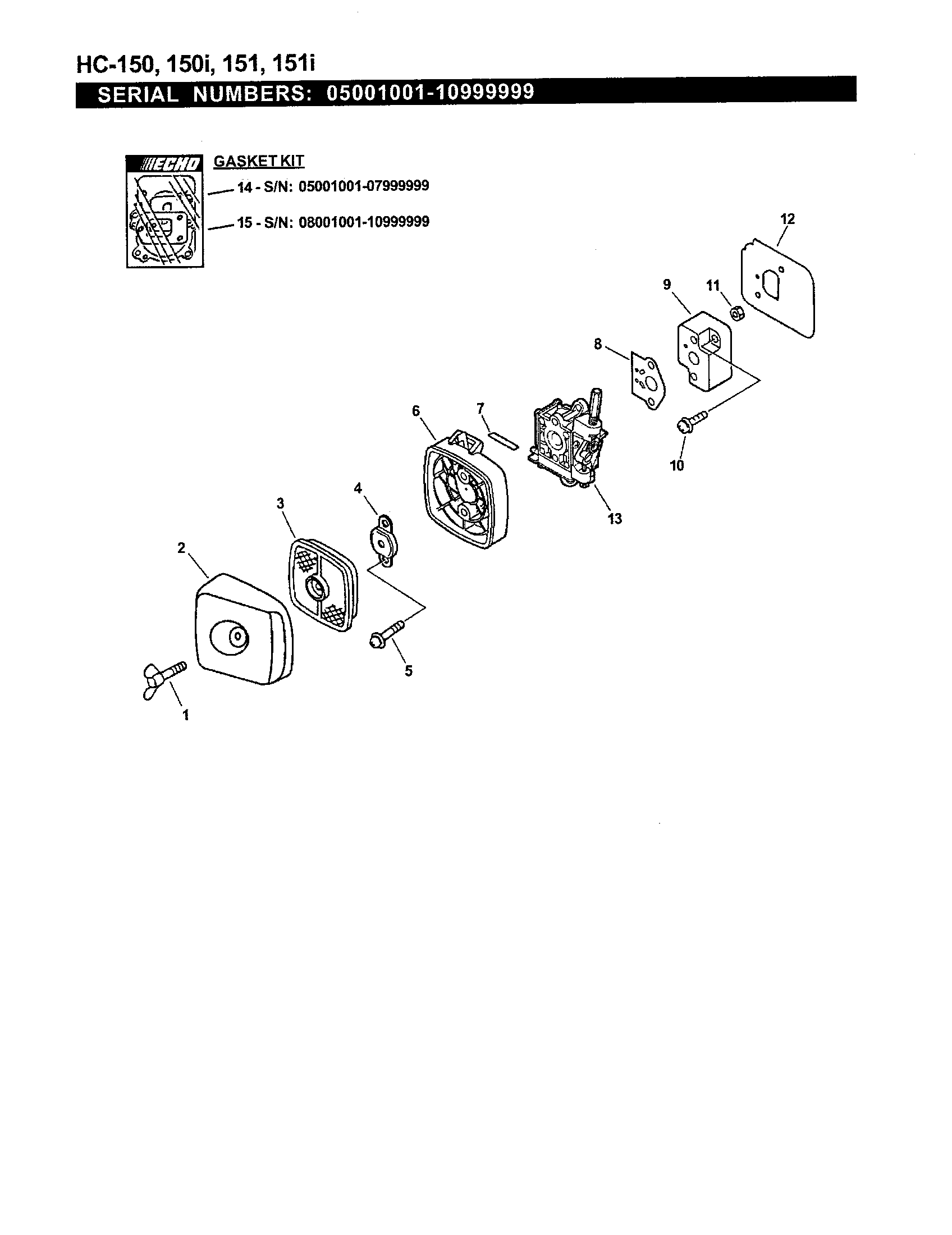

Intake diagram

Filter

Part #13031054130

The manufacturer no longer makes this part, and there's no substitute part

Screw (3) 9136704010
#17

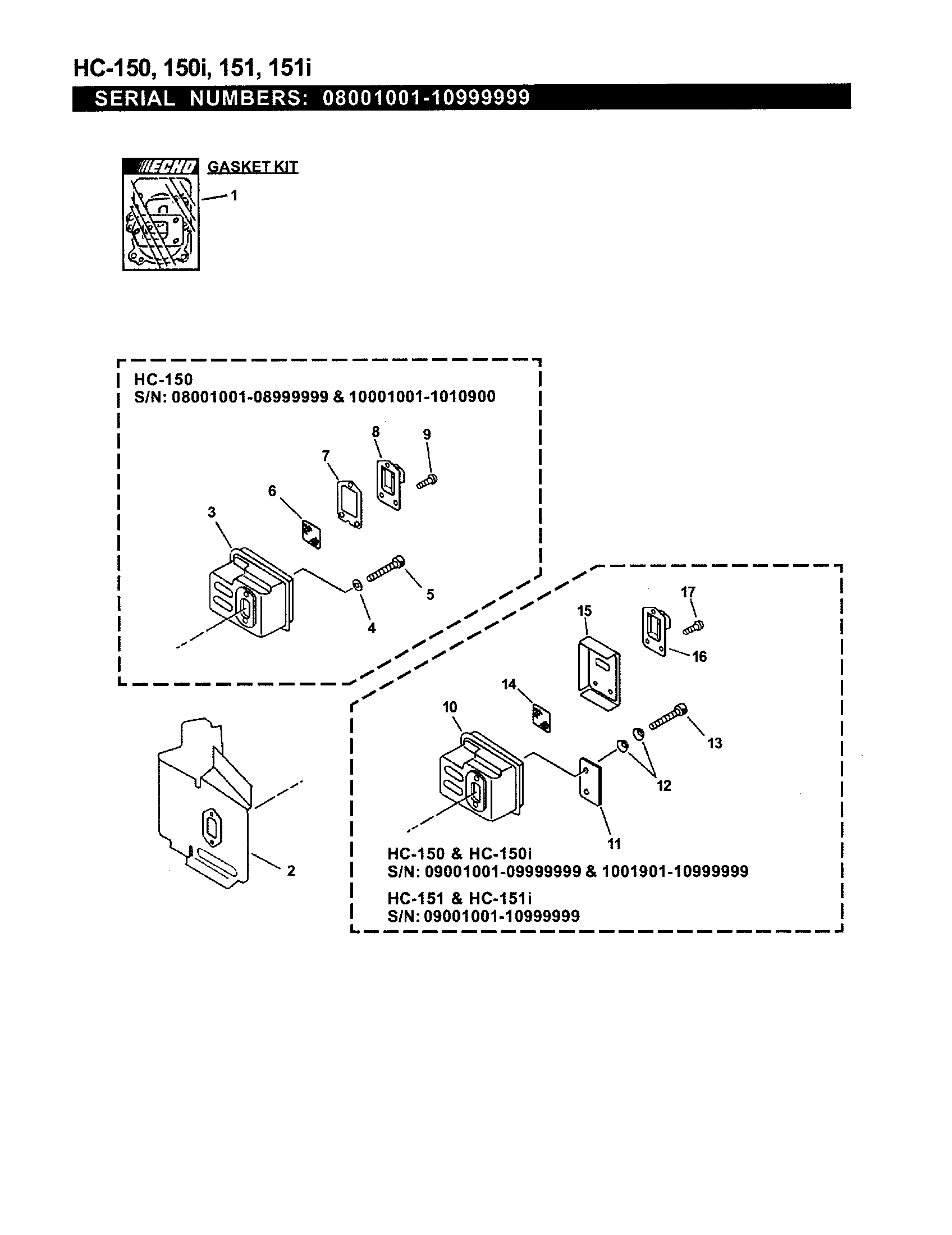

Exhaust diagram

Screw (3)

Part #9136704010

The manufacturer no longer makes this part, and there's no substitute part

Wrench, W/screwdriver 89541006960
#29

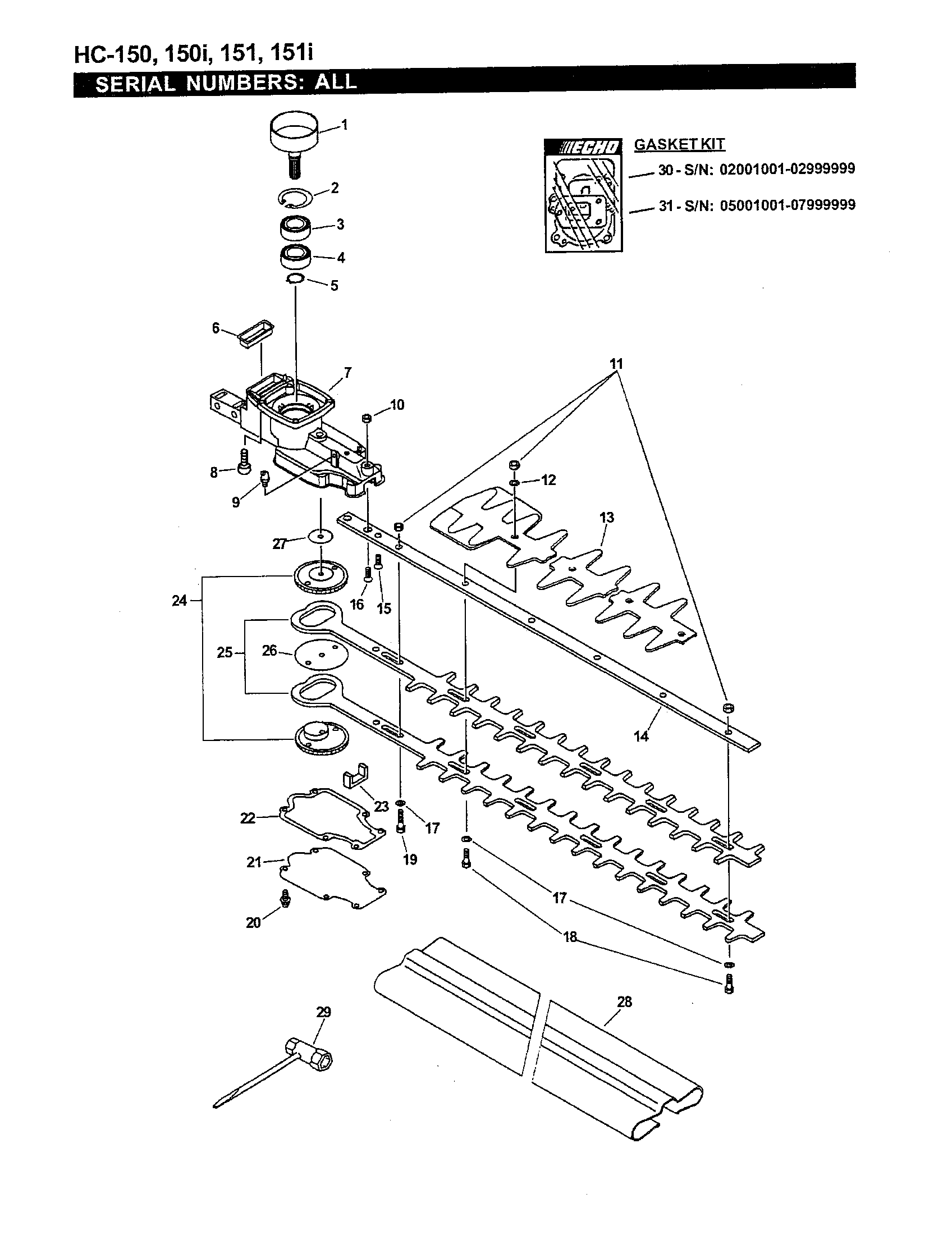

Cutters/gearcase/tools diagram

Wrench, w/screwdriver

Part #89541006960

The manufacturer no longer makes this part, and there's no substitute part

Swivel P005001240
#5

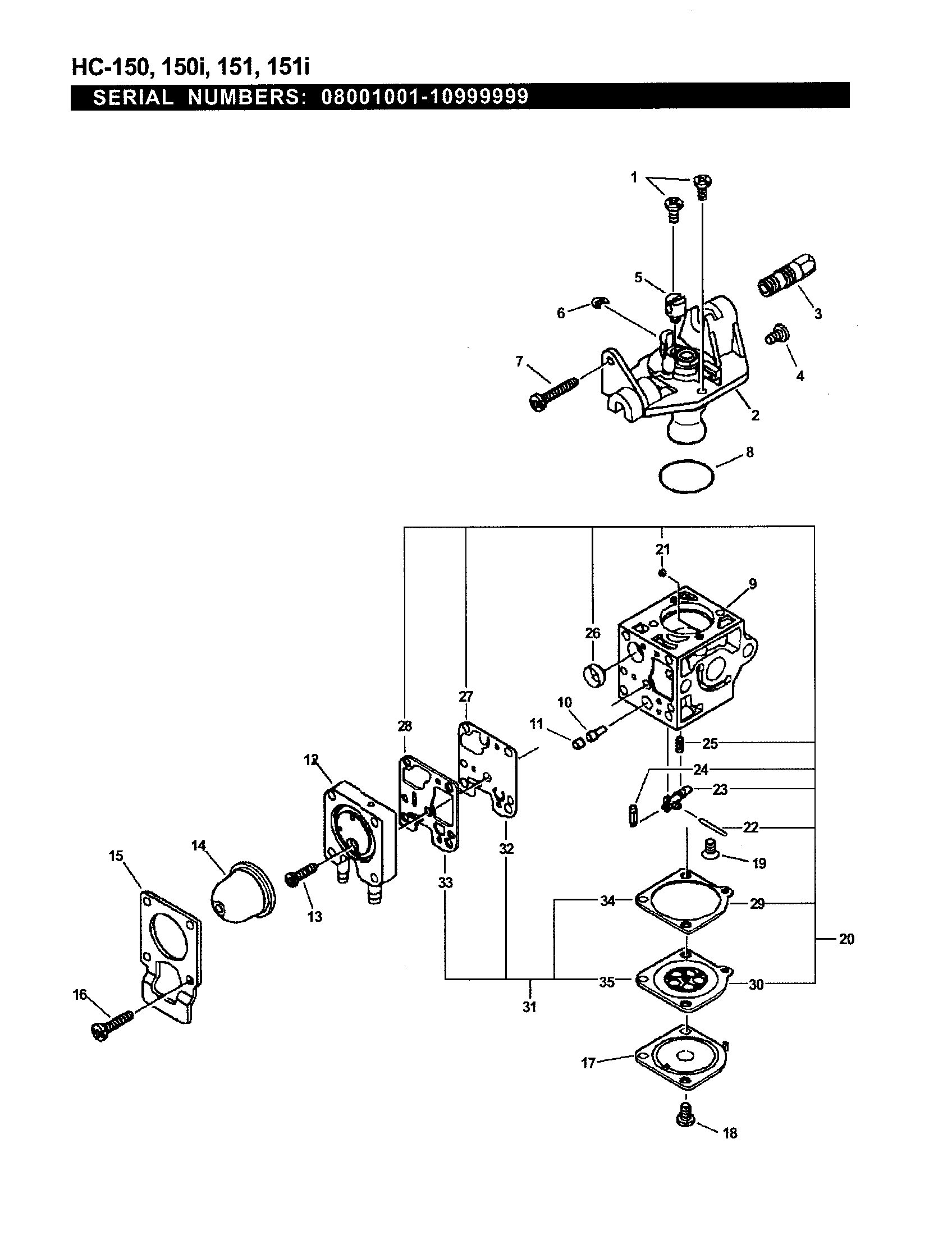

Carburetor - rb-k75 diagram

Swivel

Part #P005001240

The manufacturer no longer makes this part, and there's no substitute part

Rewind Spring P022004680
#20

Standard starter/i-starter diagram

Rewind spring

Part #P022004680

The manufacturer no longer makes this part, and there's no substitute part

Rope, Starter -3 X 1000mm (bulk Option: 99944444000)(standard Starter) 17722610120
#5

Standard starter/i-starter diagram

Rope, starter -3 x 1000mm (bulk option: 99944444000)(standard starter)

Part #17722610120

The manufacturer no longer makes this part, and there's no substitute part

Starter Grip 17722811120
#7

Standard starter/i-starter diagram

Starter grip

Part #17722811120

The manufacturer no longer makes this part, and there's no substitute part
