Model # PHB920SF1SS Official GE electric range

Here are the diagrams and repair parts for Official GE PHB920SF1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

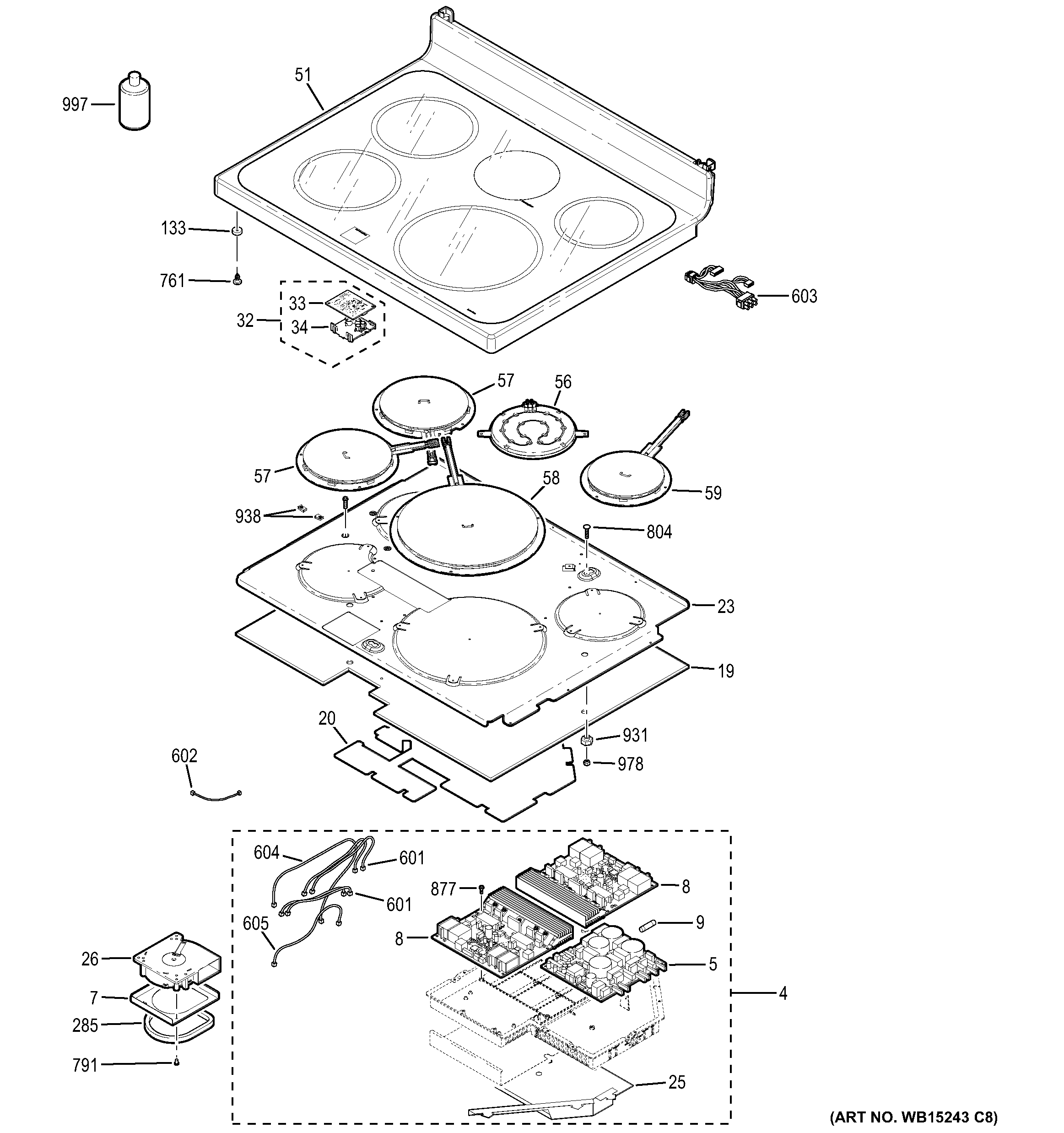

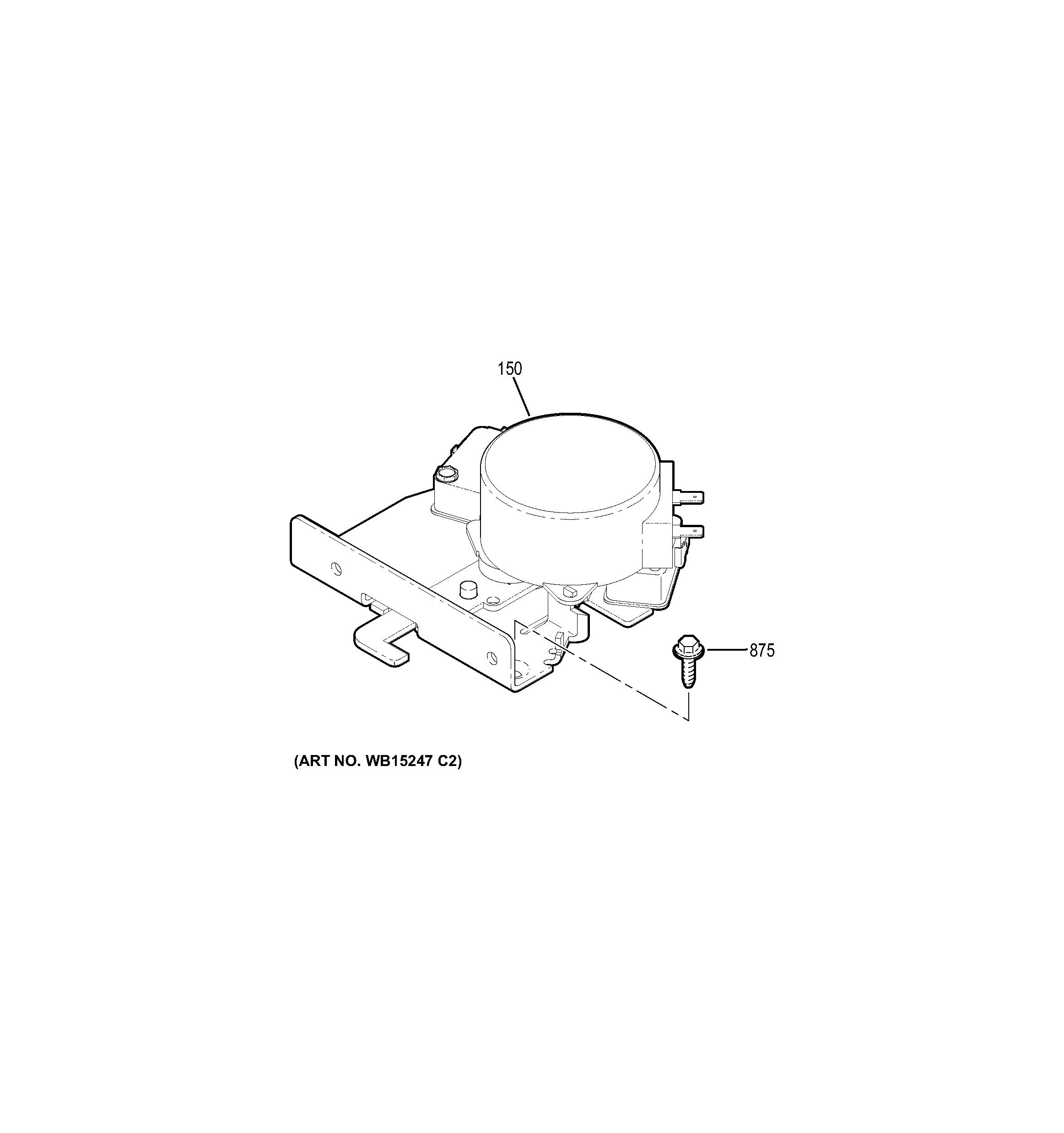

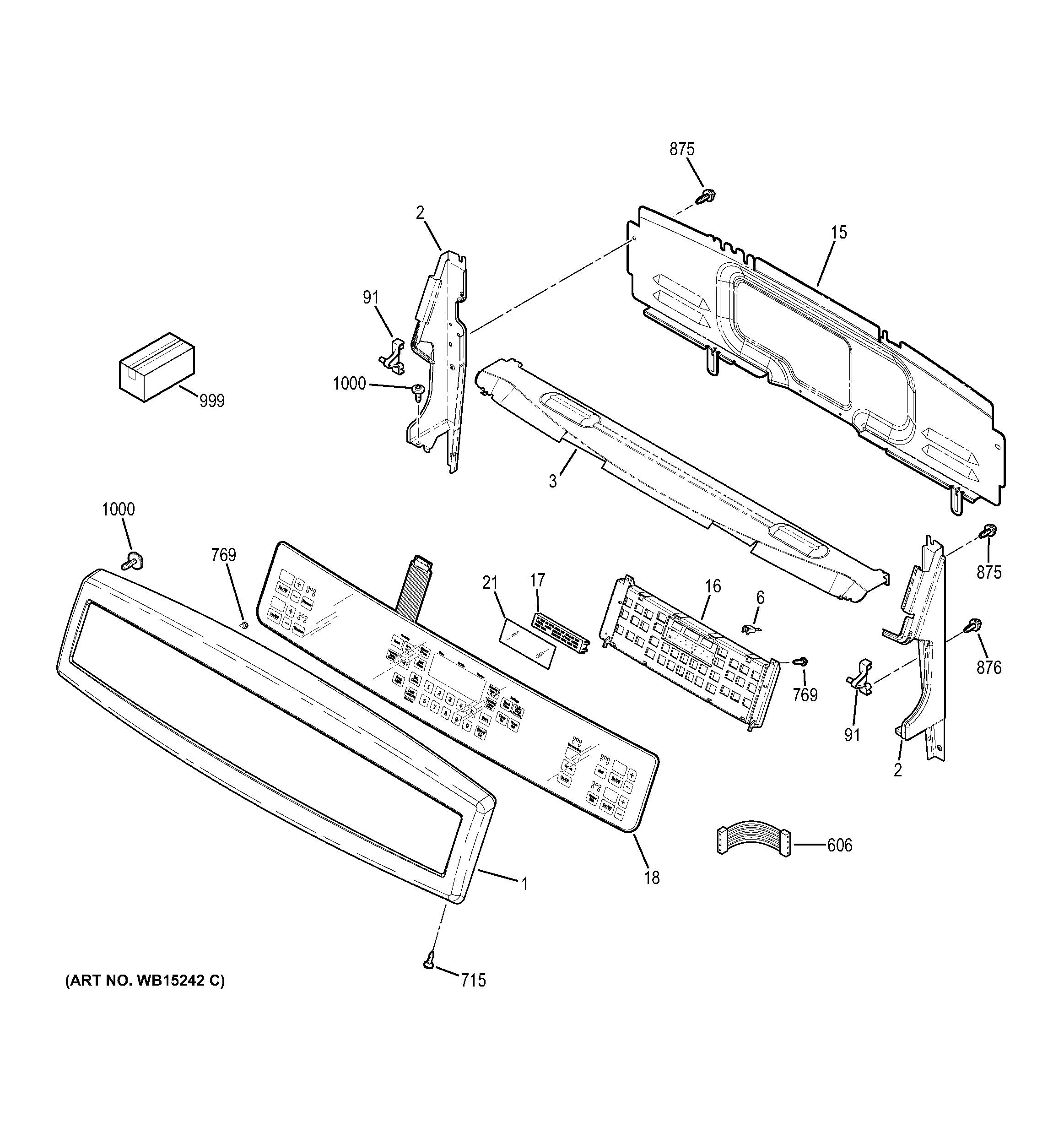

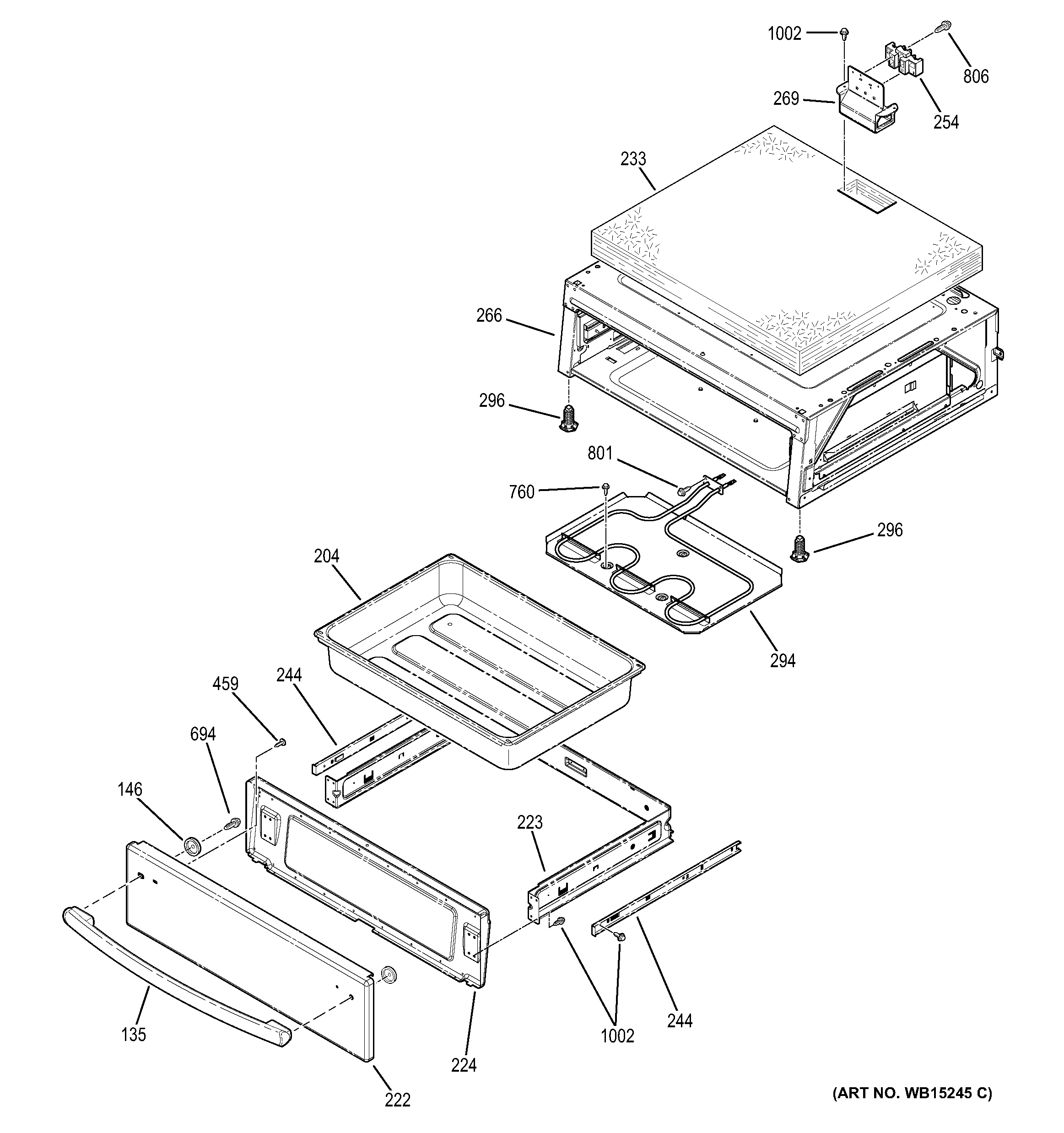

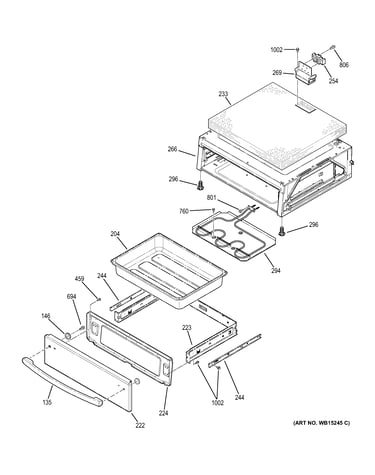

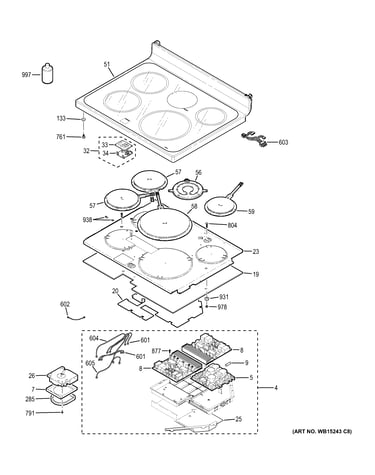

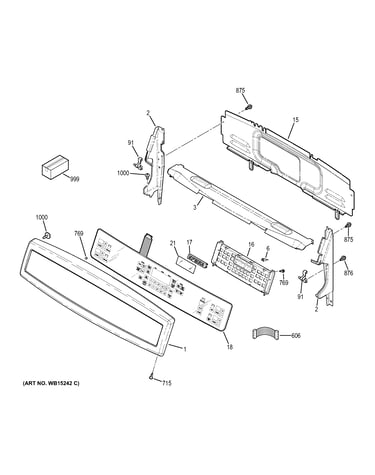

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 154 parts  |
Wall Oven Temperature Sensor WB21T10007
#253

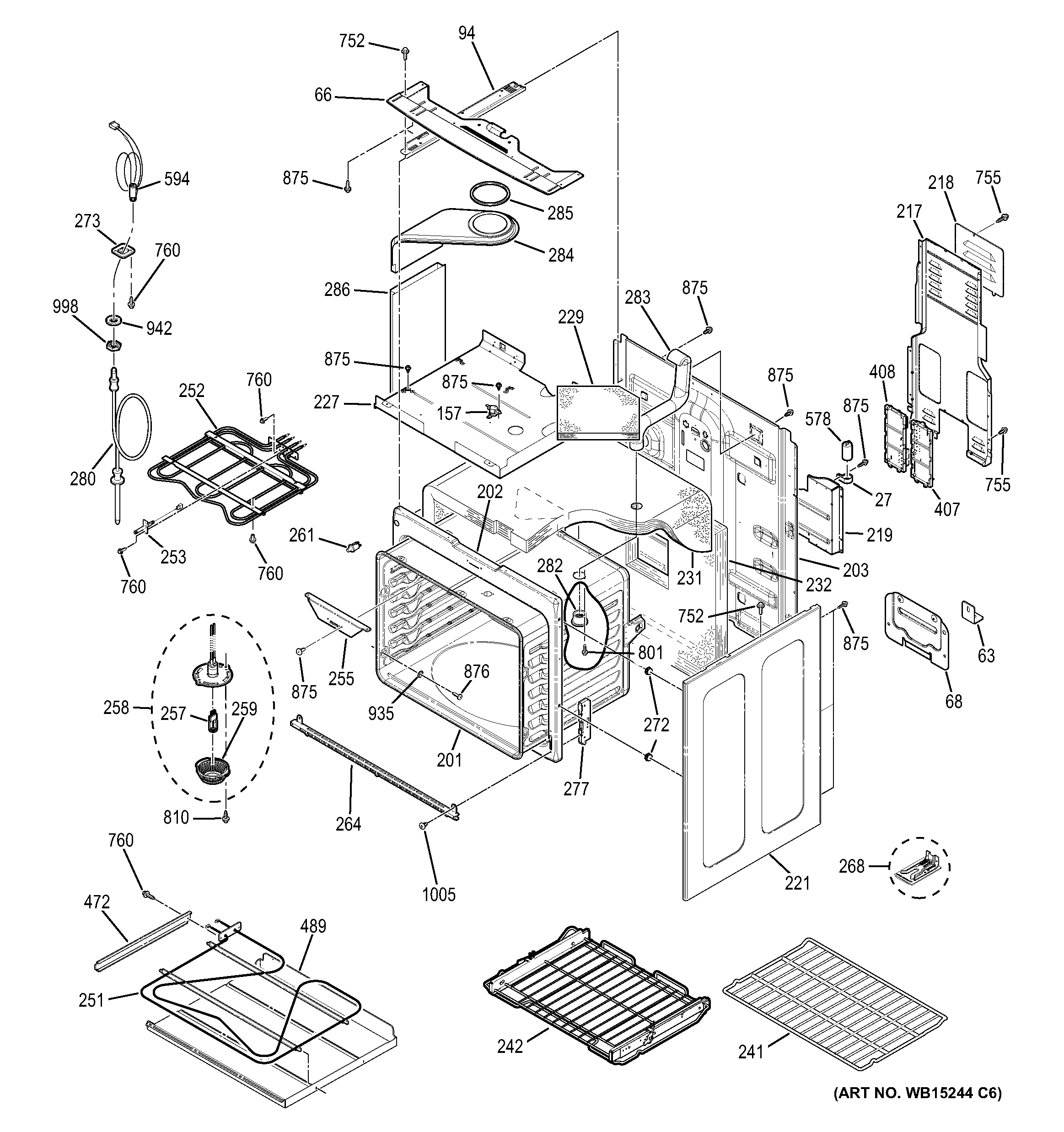

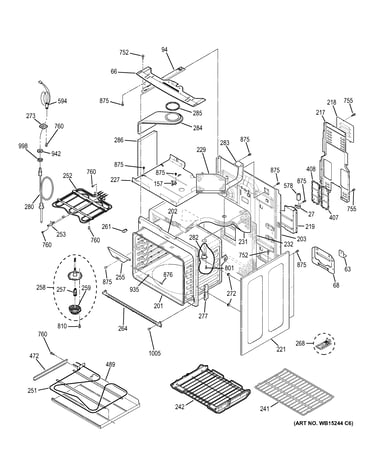

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range High-limit Thermostat WB24T10164
#157

Body parts diagram

Range high-limit thermostat

Part #WB24T10164

Replaced by #WB24X46906

?
Manufacturer substitution
This part replaces WB24T10164. Substitute parts can look different from the original.
BEST SELLER
$99.57 |
11% OFF Phone Price : $111.57
In Stock
Oven Door Glass WB55T10191
#338

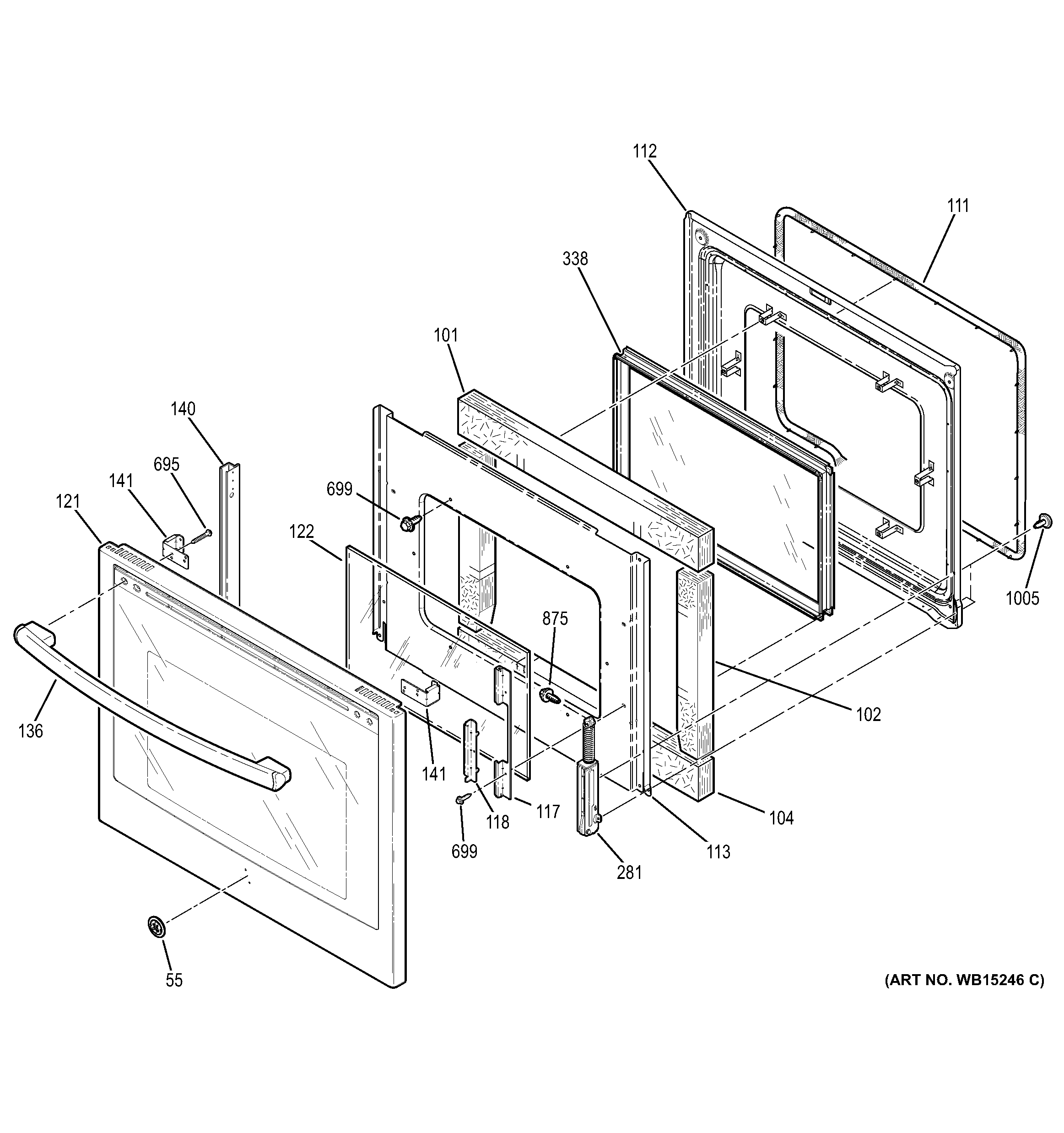

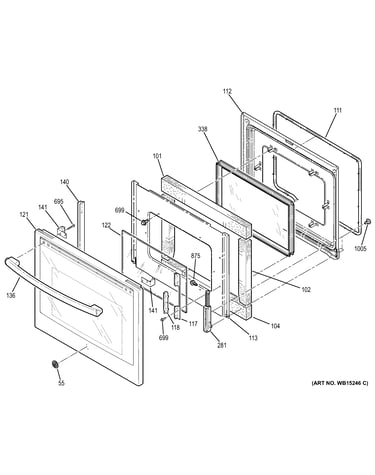

Door diagram

Oven door glass

Part #WB55T10191

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10191. Substitute parts can look different from the original.
BEST SELLER
$101.93 |
11% OFF Phone Price : $113.93
In Stock
Range Oven Door Switch (replaces 71001129, Wb24k10004, Wb24t10112, Wb24x25231, Wb24x5316) WB24T10147
#261

Body parts diagram

Range oven door switch (replaces 71001129, wb24k10004, wb24t10112, wb24x25231, wb24x5316)

Part #WB24T10147

This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Range Bake Element (replaces Wb44t10049) WB44T10104
#251

Body parts diagram

Range bake element (replaces wb44t10049)

Part #WB44T10104

Replaced by #WB44X45499

?
Manufacturer substitution
This part replaces WB44T10104. Substitute parts can look different from the original.
$63.11
In Stock
Dryer Screw WH2X930
Dryer screw

Part #WH2X930

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Inner Glass WB57K5230
#122

Door diagram

Range oven door inner glass

Part #WB57K5230

$121.80 |
9% OFF Phone Price : $133.80
In Stock
Range Convection Fan Blade WB02T10289
#43

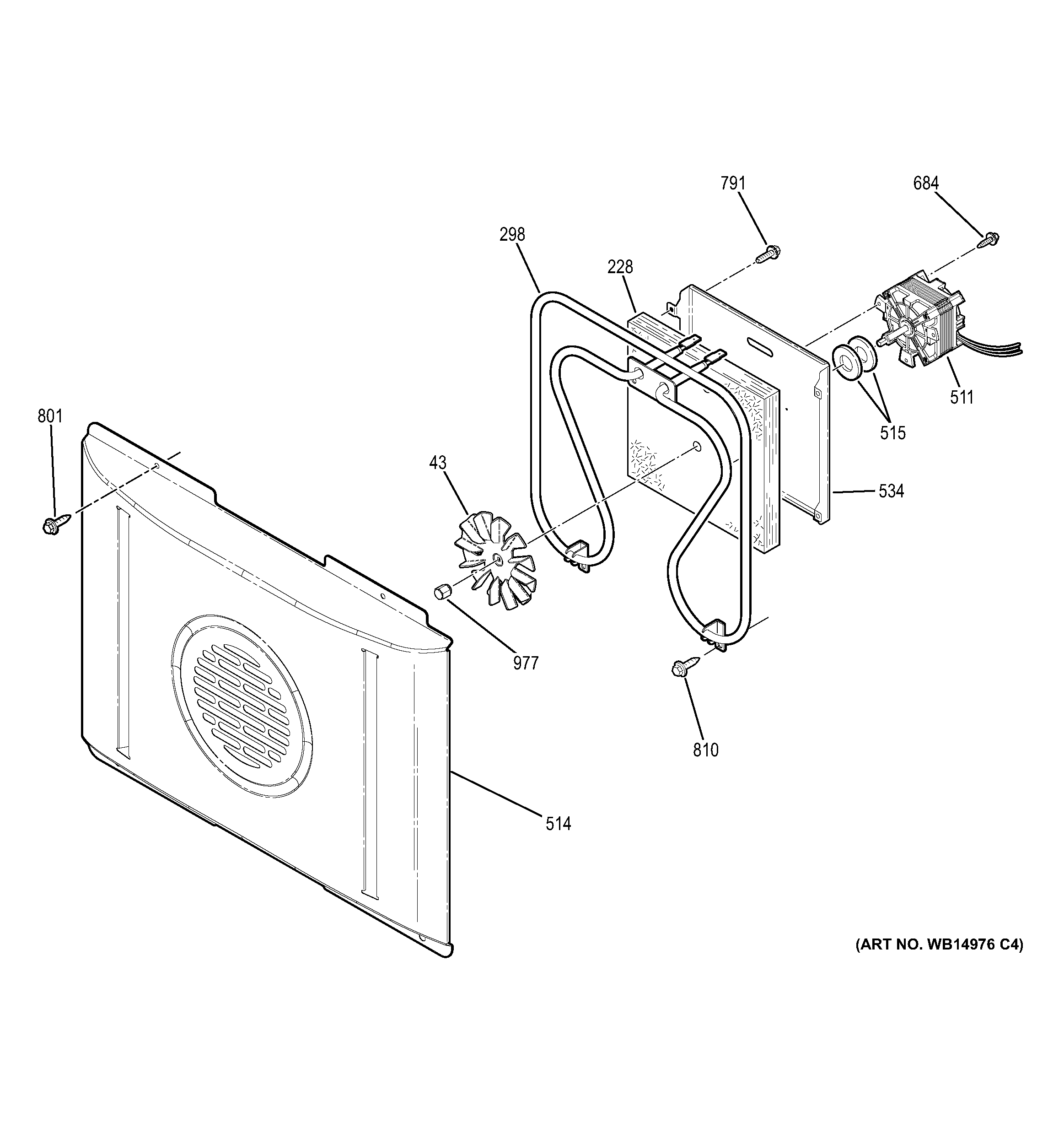

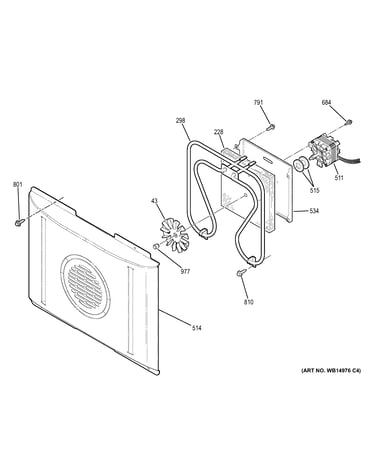

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
Screw WH02X0930
Screw

Part #WH02X0930

Replaced by #WH2X930

?
Manufacturer substitution
This part replaces WH02X0930. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Convection Fan Motor Start Capacitor WB27T10662
#578

Body parts diagram

Range convection fan motor start capacitor

Part #WB27T10662

$6.51 |
13% OFF Phone Price : $7.51
In Stock
