Model # 72035 Official Sears gym set

Here are the diagrams and repair parts for Official Sears 72035 gym set, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Nylon Bush 1472P
#16

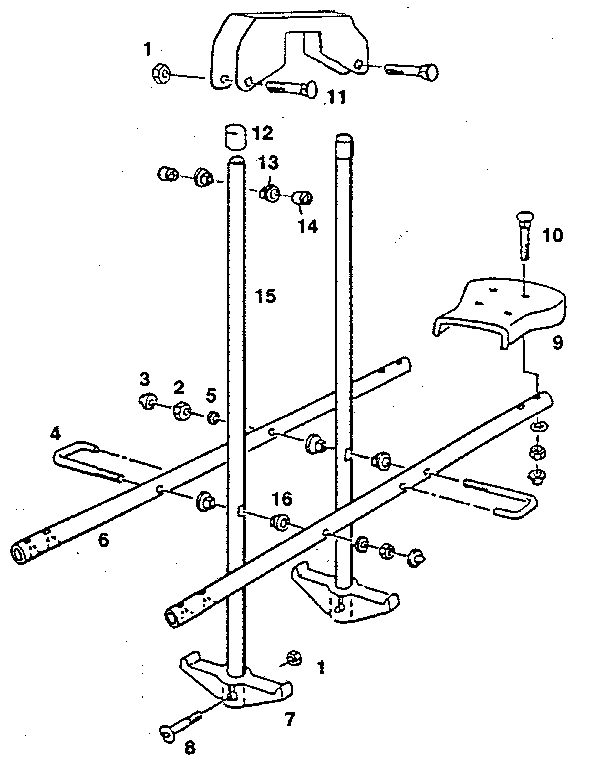

Airglide assembly diagram

Nylon bush

Part #1472P

The manufacturer no longer makes this part, and there's no substitute part

Hand Rail 90631M
#1

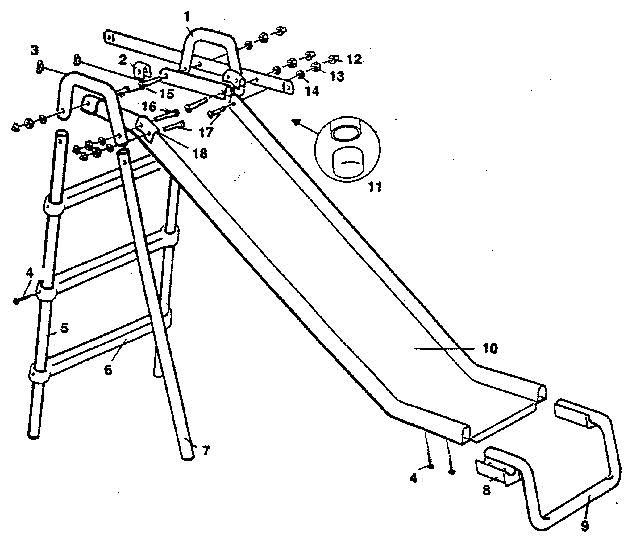

Slide assembly diagram

Hand rail

Part #90631M

The manufacturer no longer makes this part, and there's no substitute part

End Cap 1534P
#2

Slide assembly diagram

End cap

Part #1534P

The manufacturer no longer makes this part, and there's no substitute part

Top Bar 88201M
#18

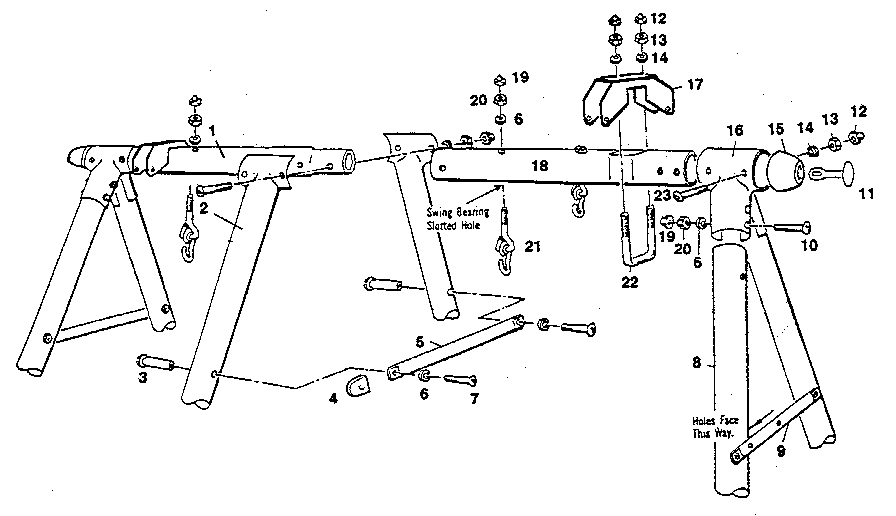

A-frame assembly diagram

Top bar

Part #88201M

The manufacturer no longer makes this part, and there's no substitute part

Gap Cover 1533P
#18

Slide assembly diagram

Gap cover

Part #1533P

The manufacturer no longer makes this part, and there's no substitute part

Seat Swing 1567P
#16

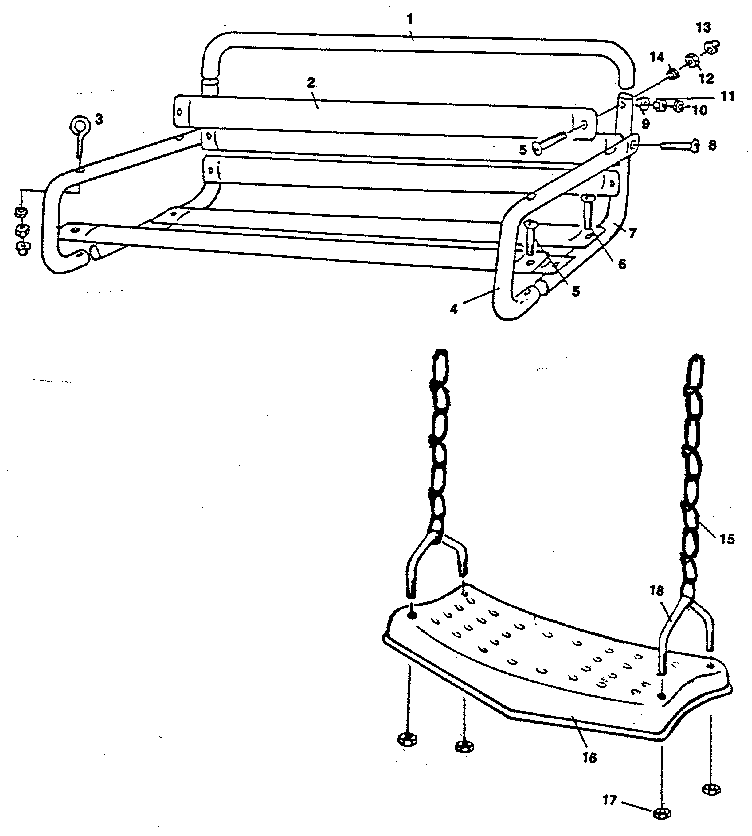

Garden and play swing assembly diagram

Seat swing

Part #1567P

The manufacturer no longer makes this part, and there's no substitute part

3/16 Hex N 1212P
#12

Garden and play swing assembly diagram

3/16 hex n

Part #1212P

The manufacturer no longer makes this part, and there's no substitute part

1/4 Nylock 1203P
1/4 nylock

Part #1203P

The manufacturer no longer makes this part, and there's no substitute part

1/4x1-1/2 514P
1/4x1-1/2

Part #514P

The manufacturer no longer makes this part, and there's no substitute part

Leg 90112S
#8

A-frame assembly diagram

Leg

Part #90112S

The manufacturer no longer makes this part, and there's no substitute part
