Model # 24ANA148A0030030 Official Carrier air conditioner
Here are the diagrams and repair parts for Official Carrier 24ANA148A0030030 air conditioner, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic

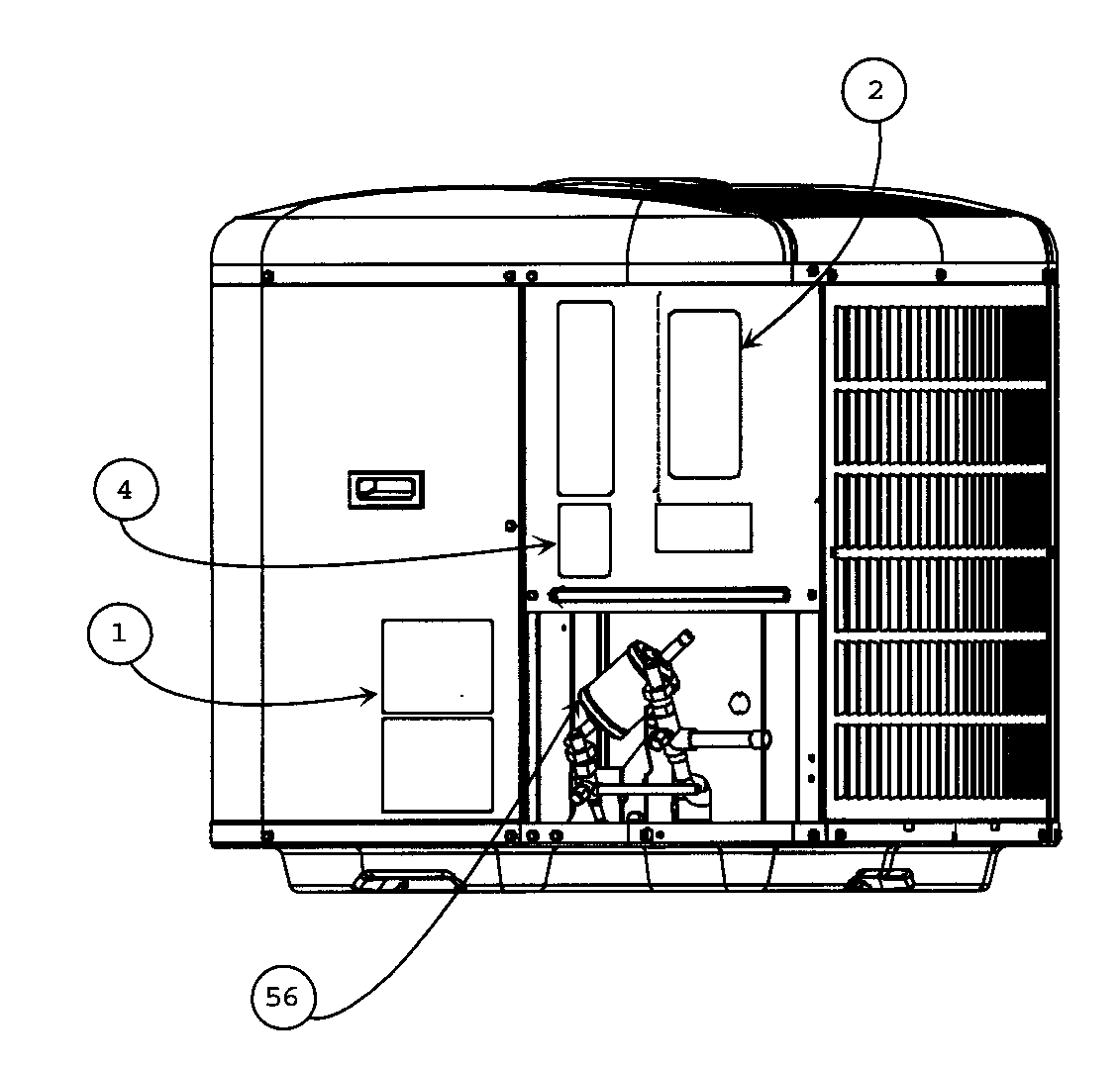

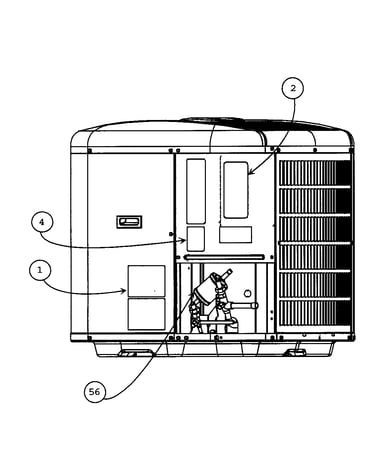

SELECT DIAGRAM
Browse Parts for
24ANA148A0030030 Air Conditioner
#NI

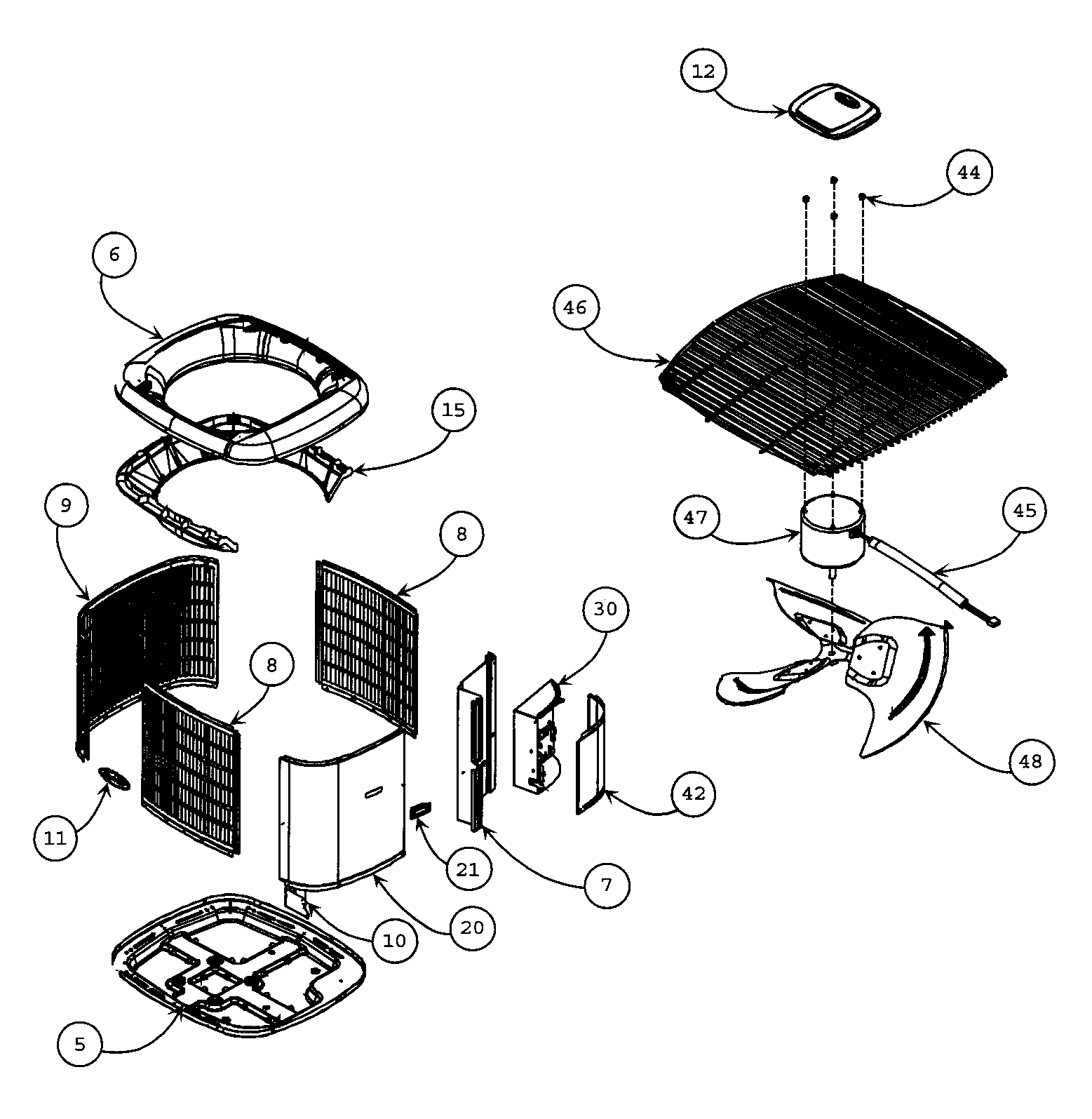

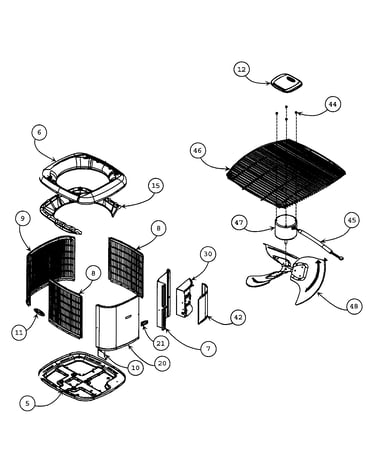

Cabinet parts 1 diagram
Plug assembly
Part #P298-001
$91.62
In Stock
#37

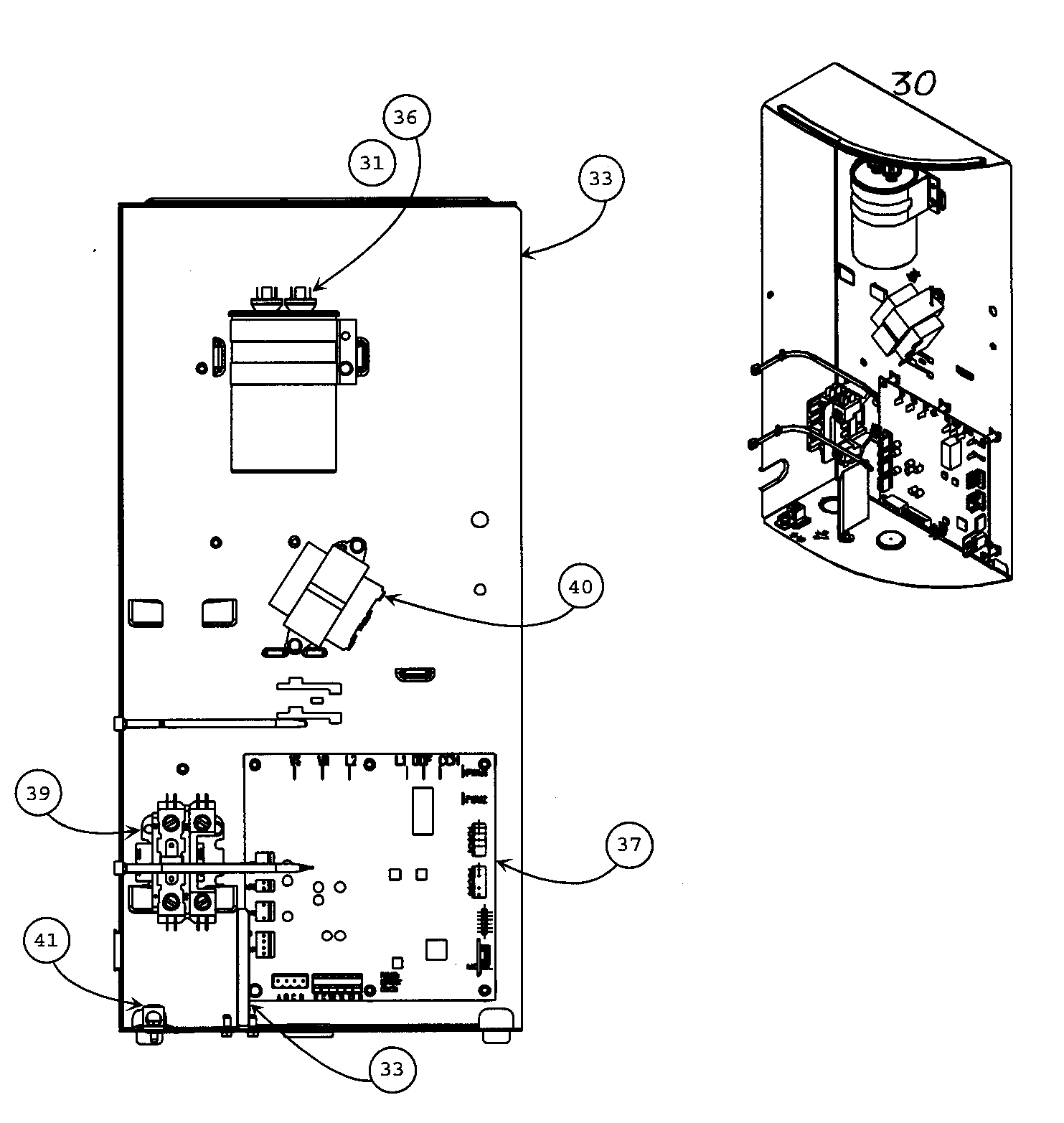

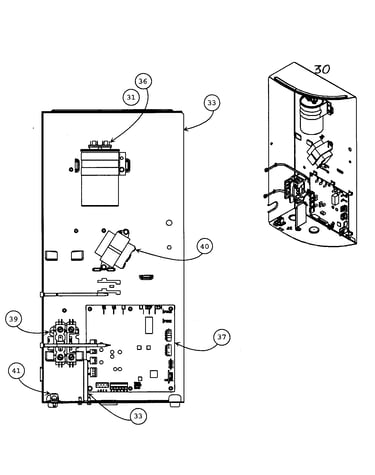

Cabinet parts 2 diagram
Circ pcb
Part #HK38EA010
Replaced by #HK38EA023
?
Manufacturer substitution
This part replaces HK38EA010. Substitute parts can look different from the original.
$971.19 |
$12.00 OFF Phone Price : $983.19
In Stock
#48
Cabinet parts 1 diagram
Fan
Part #LA01RA006
Replaced by #LA01RA036
?
Manufacturer substitution
This part replaces LA01RA006. Substitute parts can look different from the original.
$292.29
In Stock
#47
Cabinet parts 1 diagram
Fan motor
Part #HC38GE237
Replaced by #HC38GR239
?
Manufacturer substitution
This part replaces HC38GE237. Substitute parts can look different from the original.
$1123.61
In Stock
#42
Cabinet parts 1 diagram
Box cover
Part #331248-7156
$354.12
In Stock
#NI
Cabinet parts 1 diagram
Heater crk
Part #HT32CH220
$97.09
In Stock
#NI
Cabinet parts 1 diagram
Switch
Part #HK02ZB425
$110.26
In Stock
#NI
Cabinet parts 1 diagram
Connector
Part #HY84EF001
$14.26
In Stock
#NI
Cabinet parts 1 diagram
Paint
Part #313974-760
$50.00
In Stock
#NI
Cabinet parts 1 diagram
Expansion valve
Part #EA36YD141
$321.22
In Stock
