Canister Vacuum

Model # 34621185010 Official Kenmore canister vacuum

Here are the diagrams and repair parts for Official Kenmore 34621185010 canister vacuum, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
34621185010 Vacuum Cleaners
Brush Assembly 90570
#NI

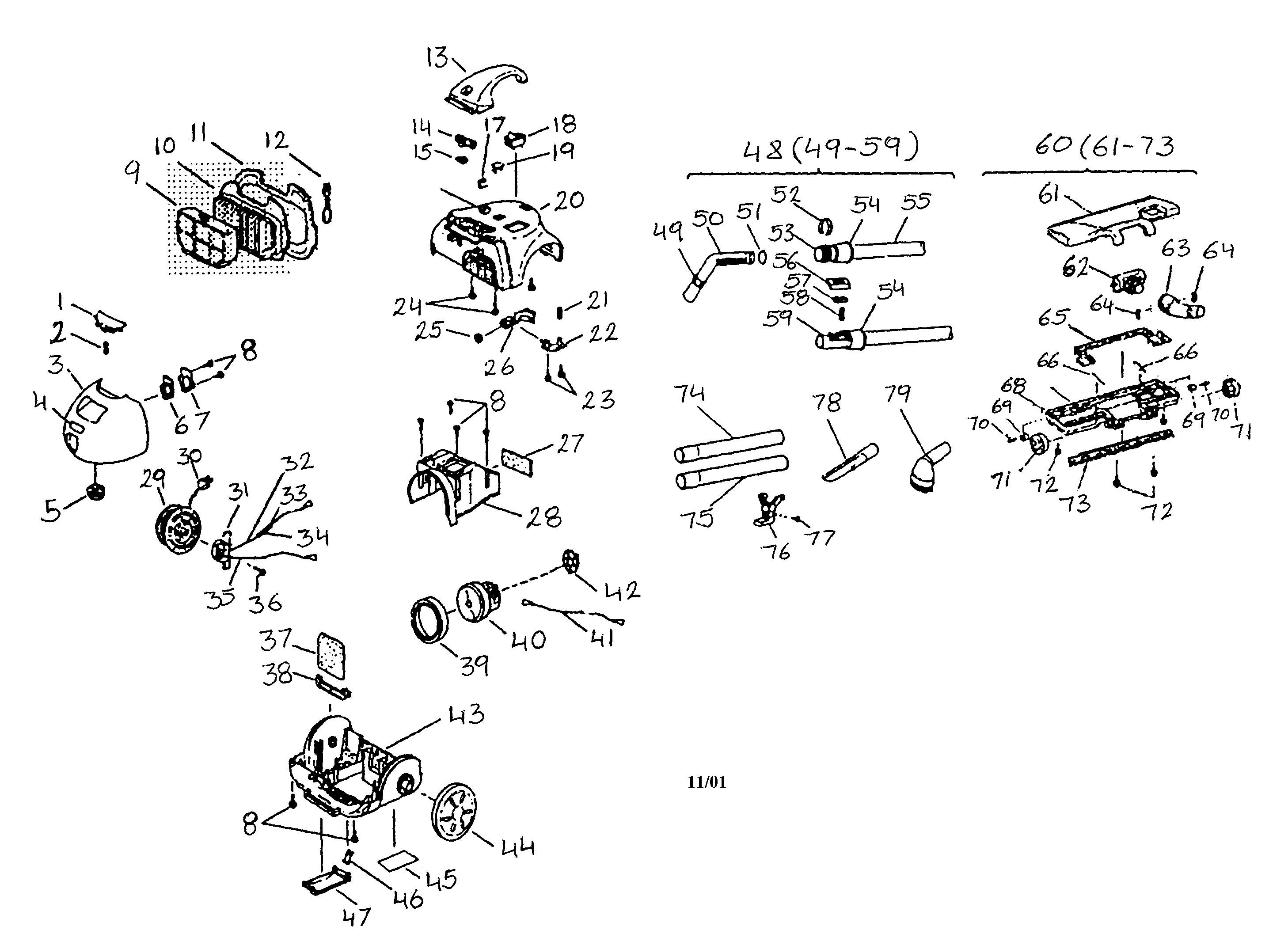

Cabinet parts diagram

Brush assembly

Part #90570

The manufacturer no longer makes this part, and there's no substitute part

Scr 4x20mm 90537
#8

Cabinet parts diagram

Scr 4x20mm

Part #90537

The manufacturer no longer makes this part, and there's no substitute part

Pre-filter 90538
#9

Cabinet parts diagram

Pre-filter

Part #90538

The manufacturer no longer makes this part, and there's no substitute part

Screw 90553
Screw

Part #90553

The manufacturer no longer makes this part, and there's no substitute part

Bumper 90598
#68

Cabinet parts diagram

Bumper

Part #90598

The manufacturer no longer makes this part, and there's no substitute part

Fuse 90562
#33

Cabinet parts diagram

Fuse

Part #90562

The manufacturer no longer makes this part, and there's no substitute part

Wheel 90574
#44

Cabinet parts diagram

Wheel

Part #90574

The manufacturer no longer makes this part, and there's no substitute part

Supporter 90560
#31

Cabinet parts diagram

Supporter

Part #90560

The manufacturer no longer makes this part, and there's no substitute part

Roller 90554
#25

Cabinet parts diagram

Roller

Part #90554

The manufacturer no longer makes this part, and there's no substitute part

Inlet Filter 90566
#37

Cabinet parts diagram

Inlet filter

Part #90566

The manufacturer no longer makes this part, and there's no substitute part
