Model # MER6870AAB Official Maytag electric range

Here are the diagrams and repair parts for Official Maytag MER6870AAB electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

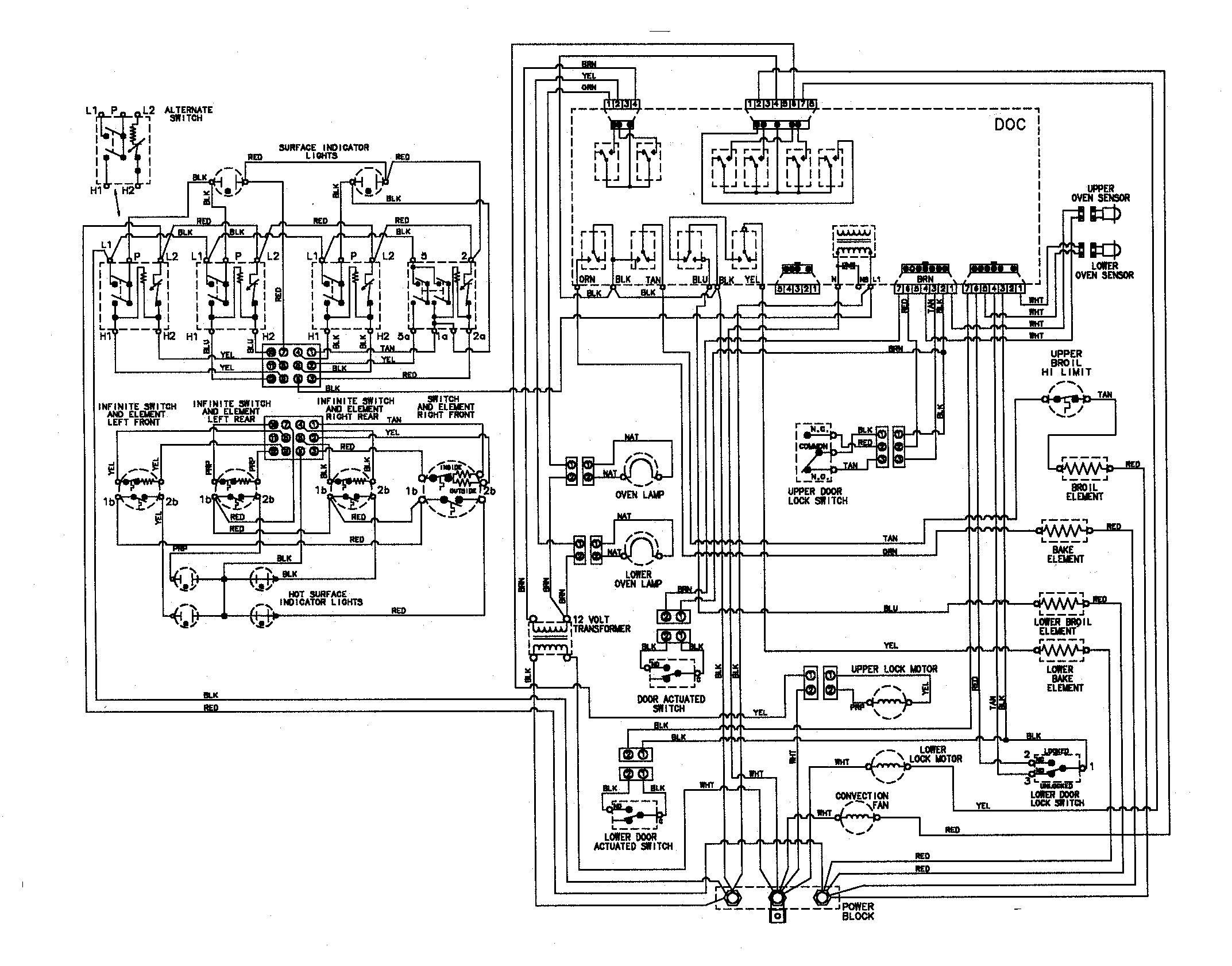

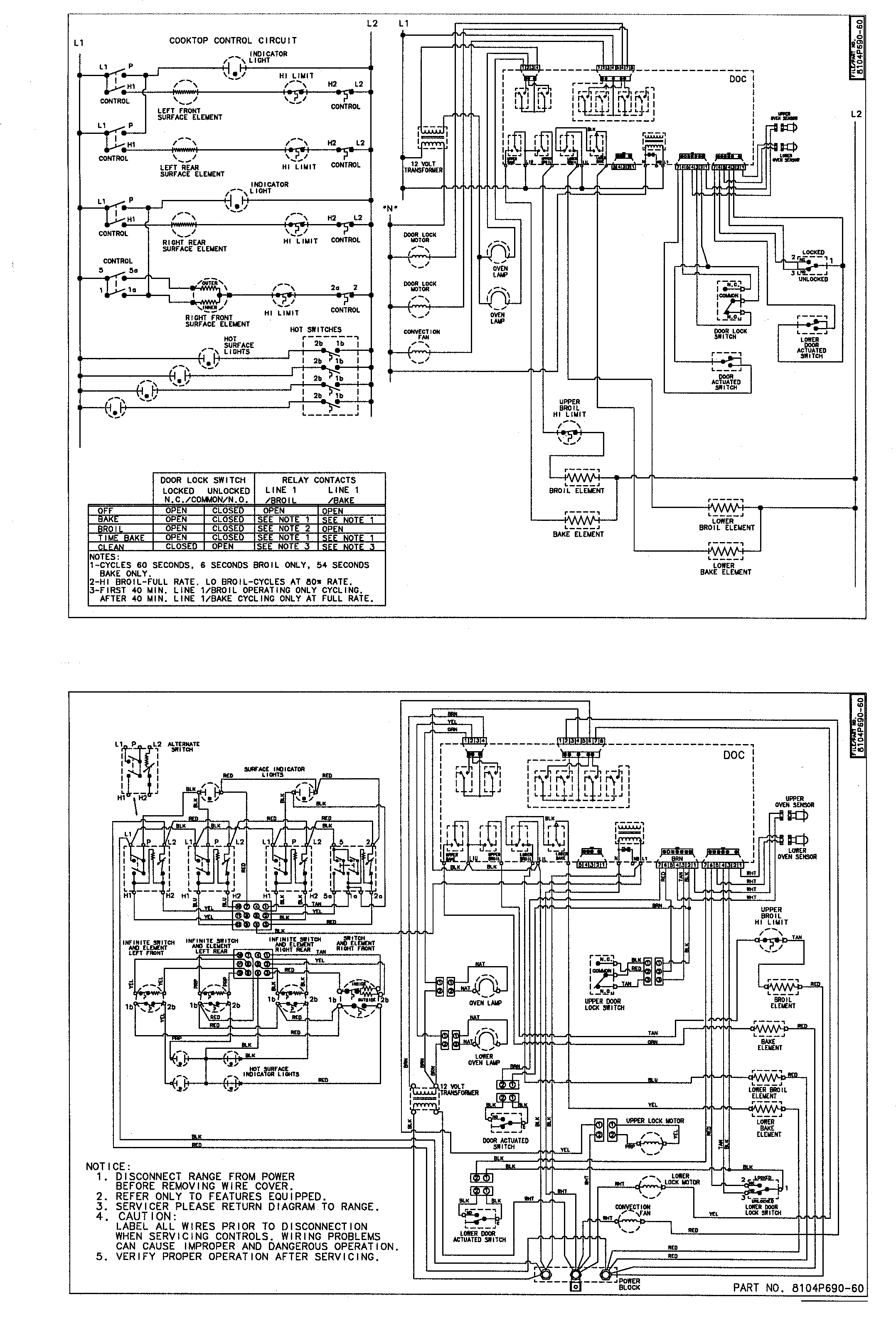

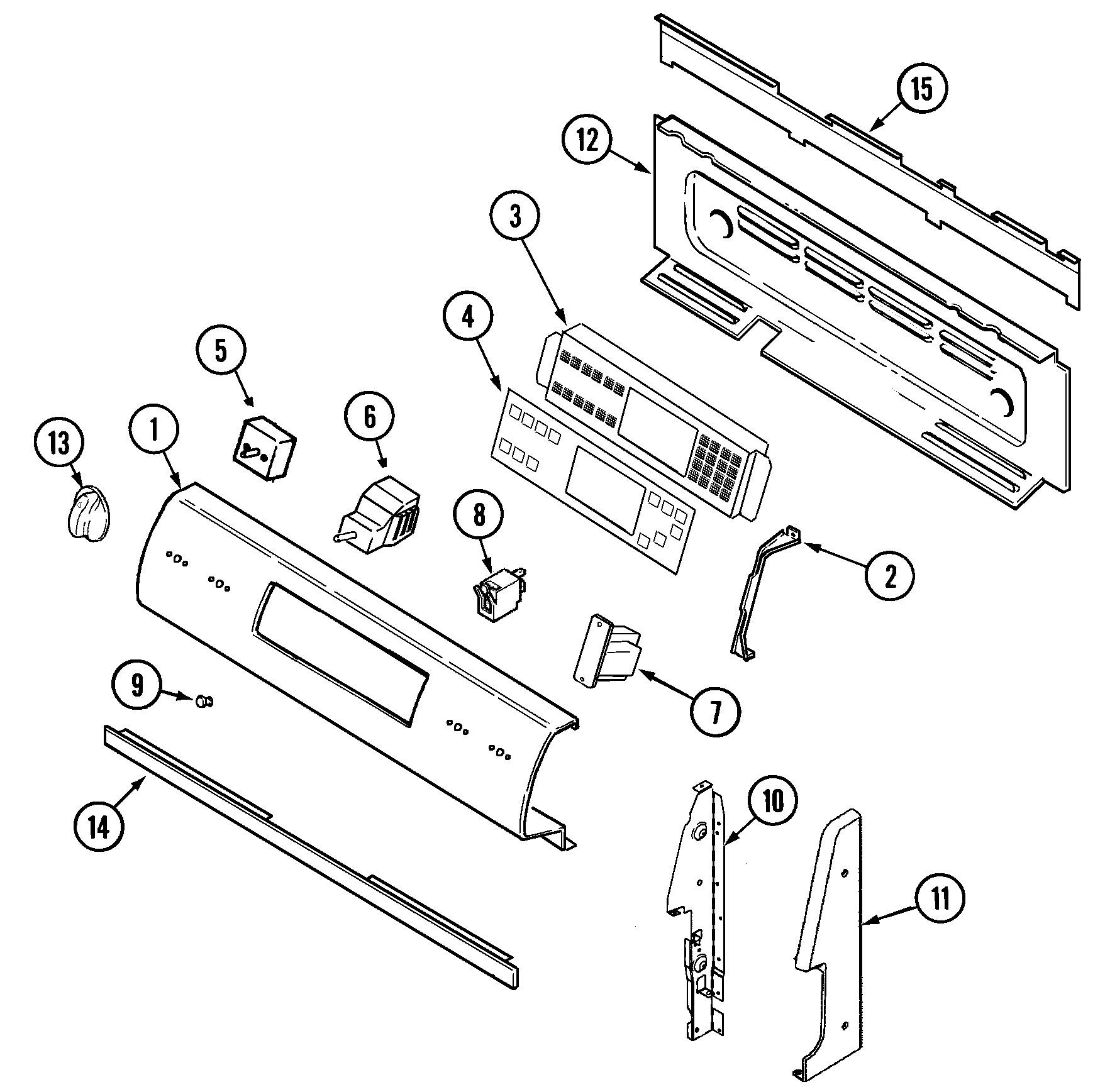

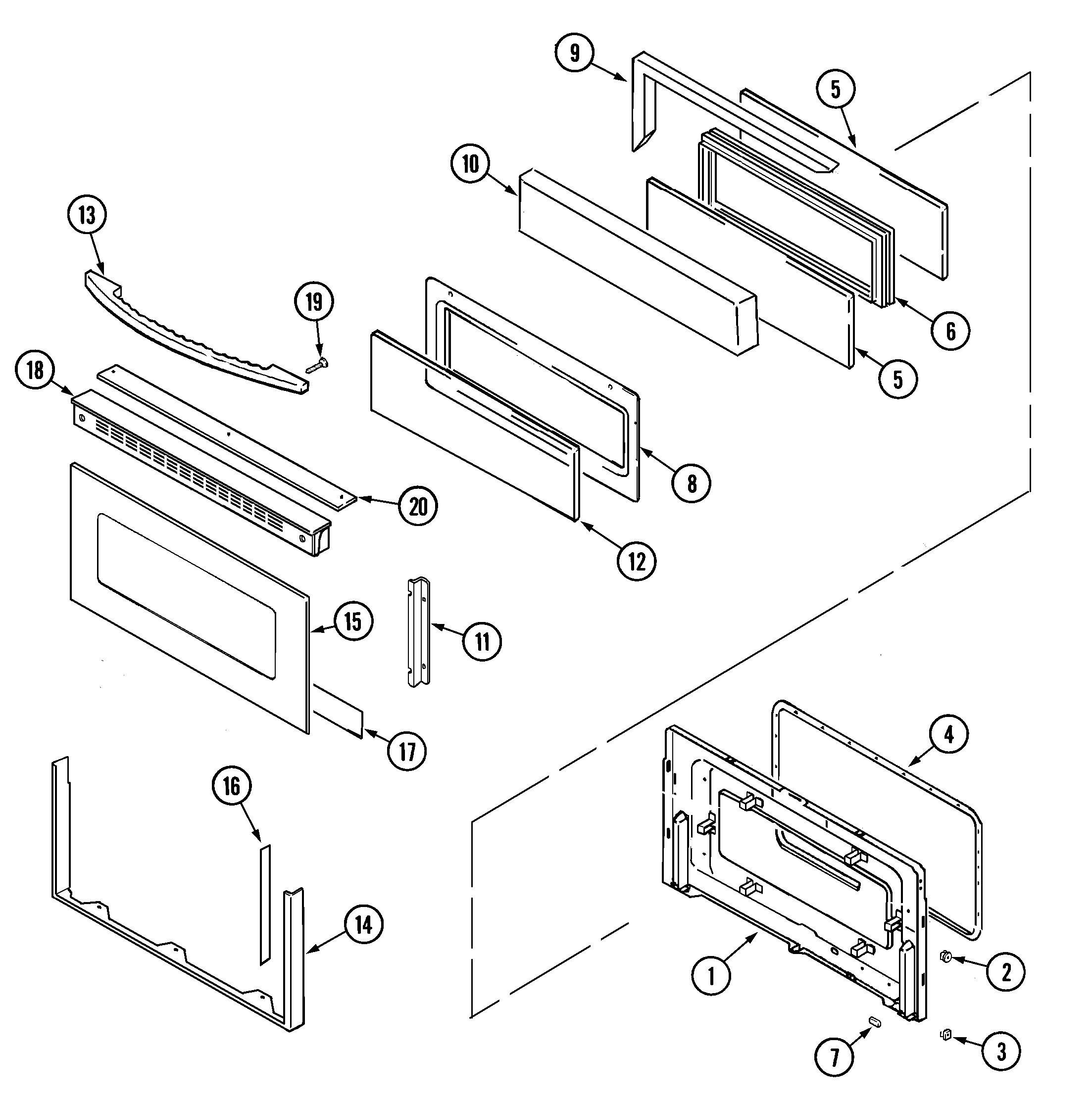

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Terminal Block 7401P039-60
#30

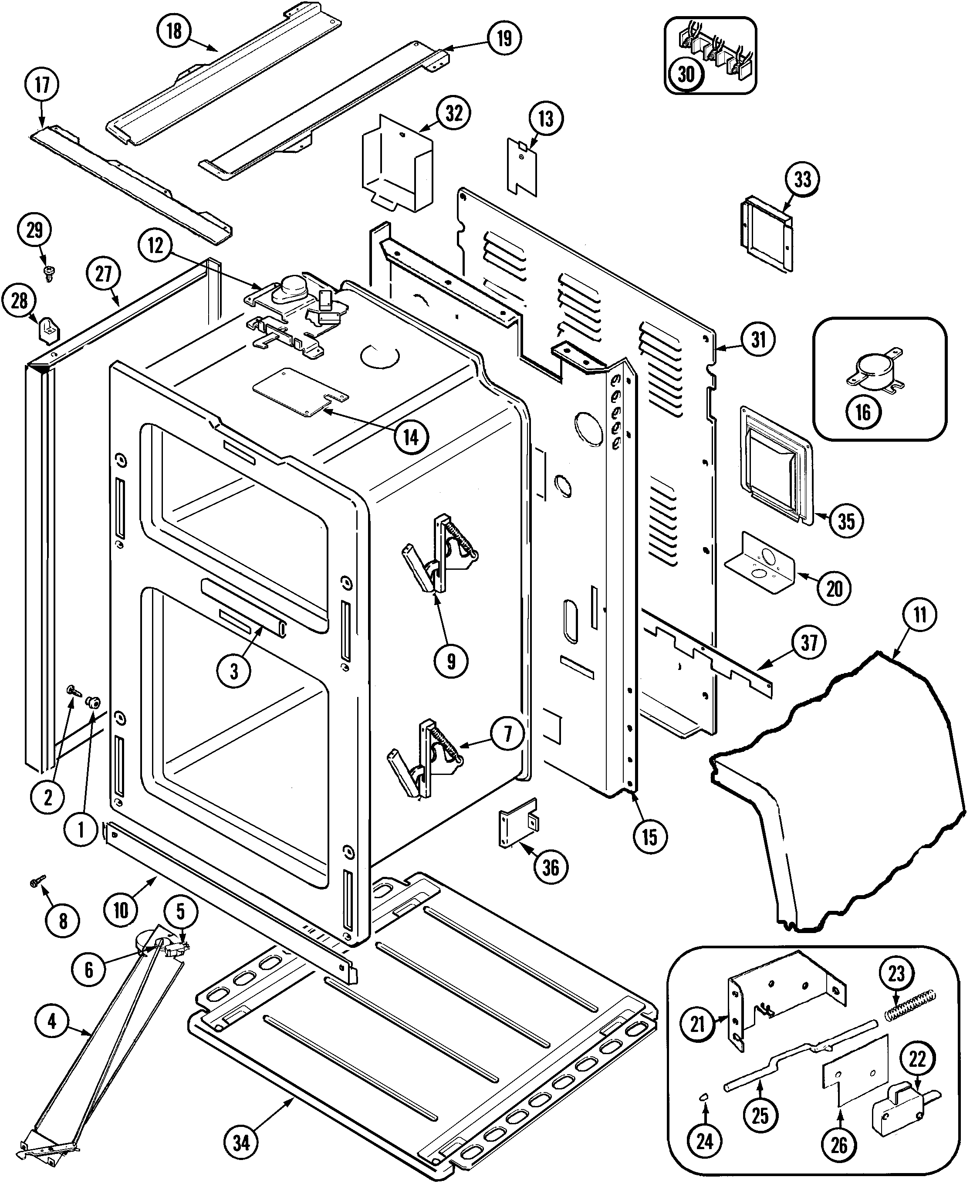

Body diagram

Terminal block

Part #7401P039-60

Replaced by #WPW10245259

?
Manufacturer substitution
This part replaces 7401P039-60. Substitute parts can look different from the original.
BEST SELLER
$34.10 |
15% OFF Phone Price : $40.10
In Stock
Oven Sensor 74004943
#7A

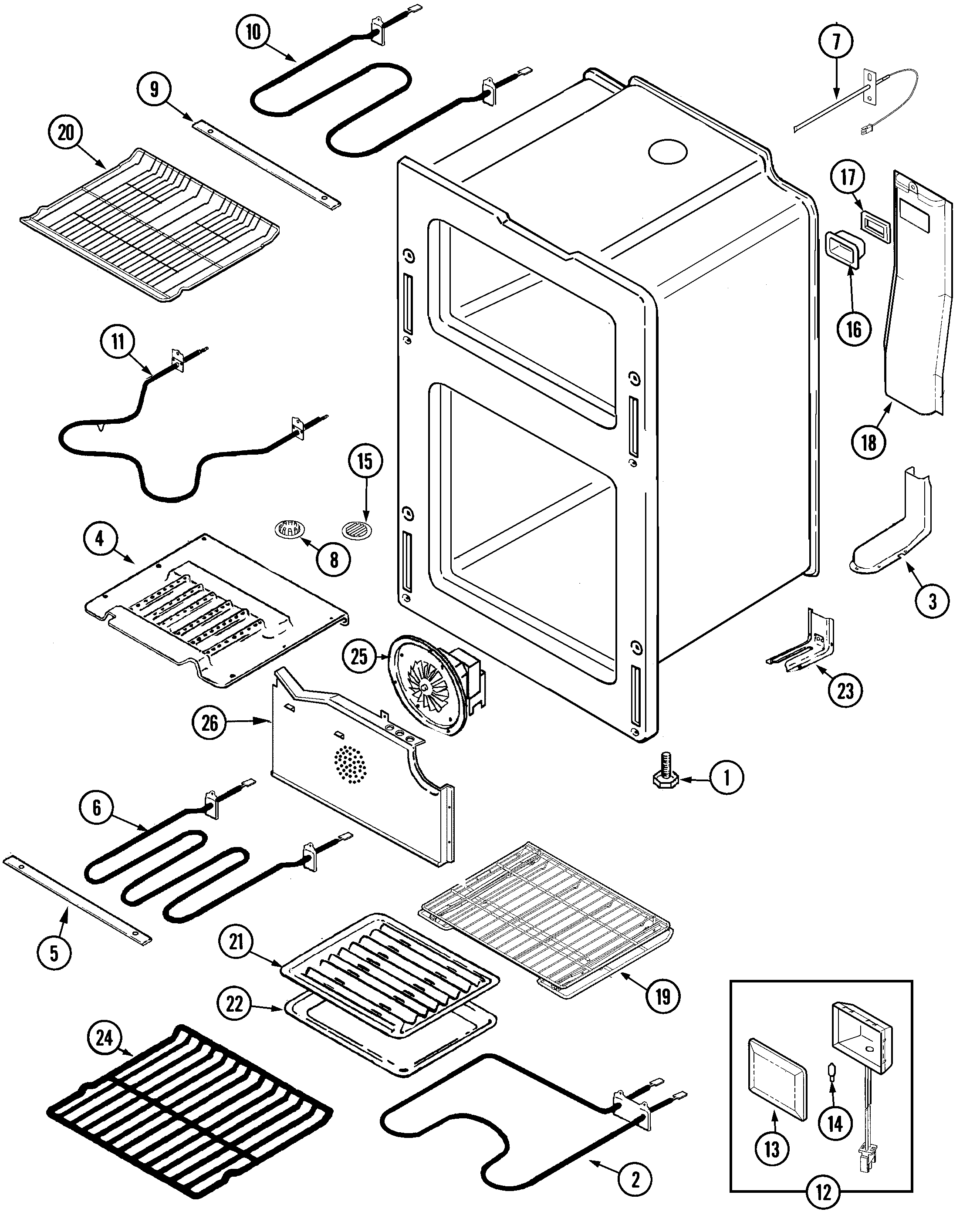

Oven diagram

Oven sensor

Part #74004943

Replaced by #12001656

?
Manufacturer substitution
This part replaces 74004943. Substitute parts can look different from the original.
BEST SELLER
$35.18 |
15% OFF Phone Price : $41.18
In Stock
Cook Top Cle 20000001
#4C

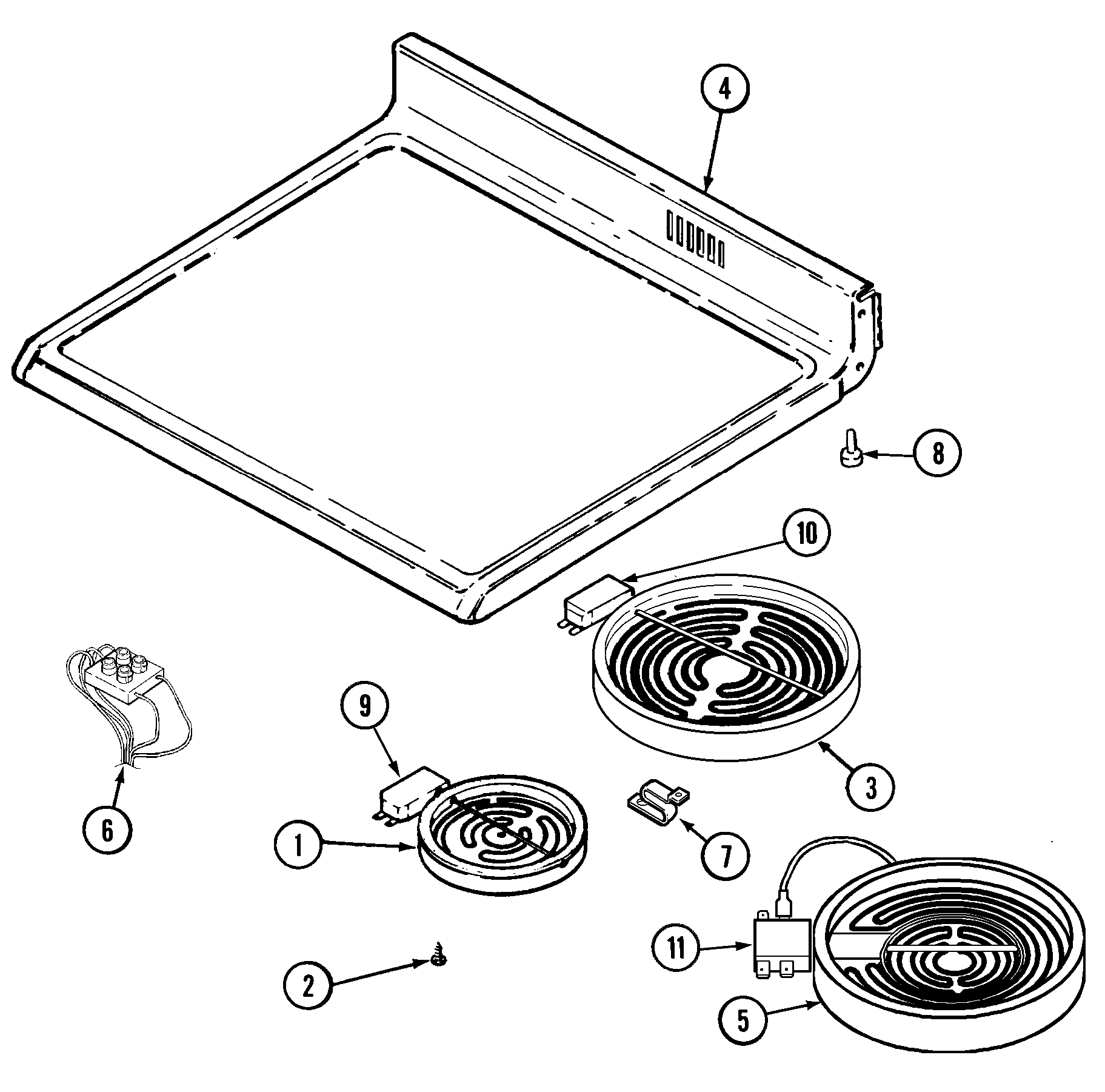

Top assembly diagram

Cook top cle

Part #20000001

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 20000001. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Oven Light Bulb 74004458
#14

Oven diagram

Range oven light bulb

Part #74004458

Replaced by #WP74009925

?
Manufacturer substitution
This part replaces 74004458. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$19.38 |
9% OFF Phone Price : $21.38
In Stock
Element W/li 74005476
#1

Top assembly diagram

Element w/li

Part #74005476

Replaced by #W10823704

?
Manufacturer substitution
This part replaces 74005476. Substitute parts can look different from the original.
BEST SELLER
$153.12 |
7% OFF Phone Price : $165.12
In Stock
Door Gasket 7201P046-60
#4

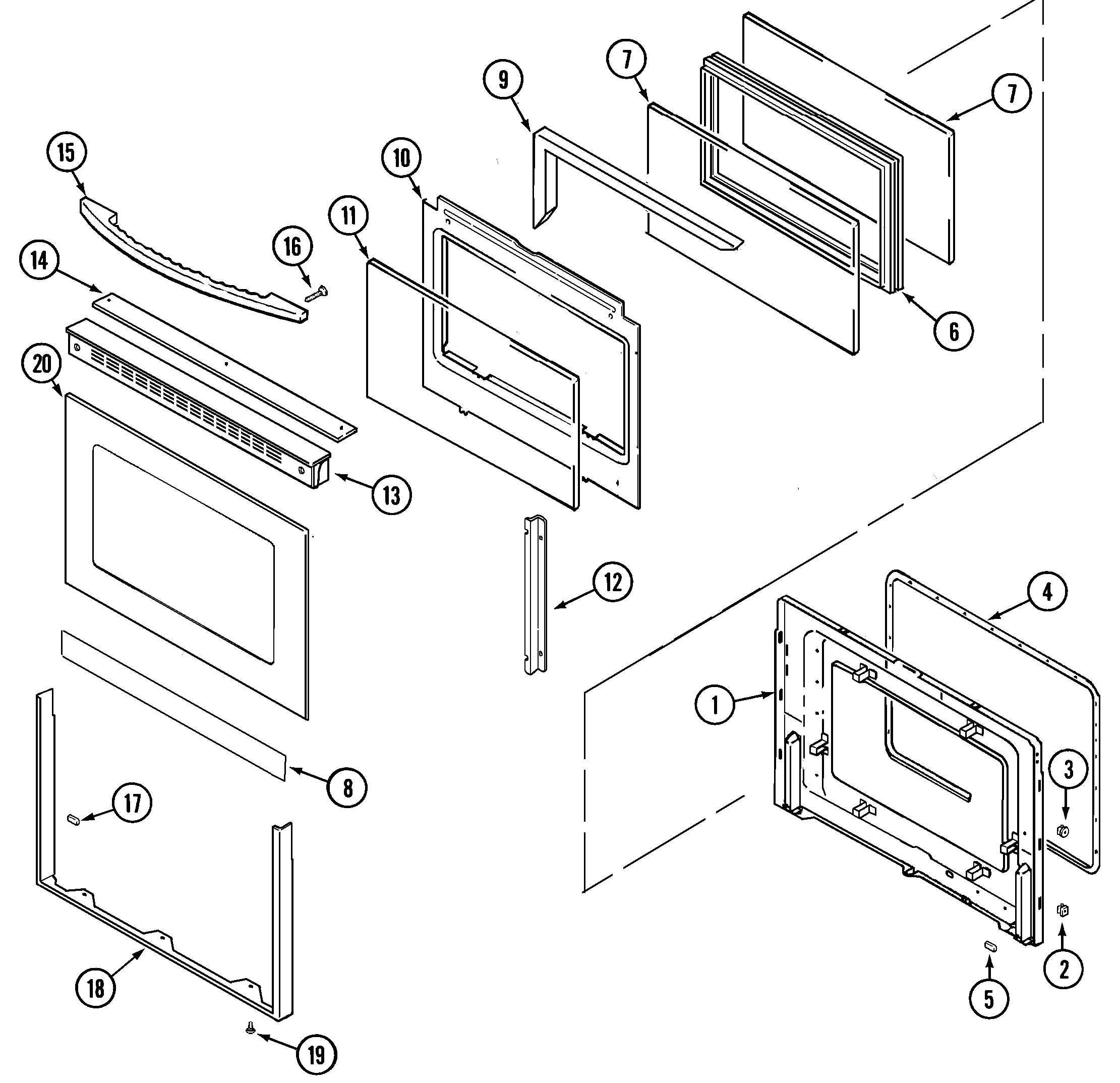

Door (lower) diagram

Door gasket

Part #7201P046-60

Replaced by #WPW10162384

?
Manufacturer substitution
This part replaces 7201P046-60. Substitute parts can look different from the original.
$64.38 |
9% OFF Phone Price : $70.38
In Stock
Range Oven Door Inner Glass (replaces 7902p436-60) 74003645
#7

Door (lower) diagram

Range oven door inner glass (replaces 7902p436-60)

Part #74003645

$104.75 |
10% OFF Phone Price : $116.75
In Stock
Bracket Screw 7101P040-60
Bracket screw

Part #7101P040-60

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 7101P040-60. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Screw 790448
Screw

Part #790448

Replaced by #WP98008545

?
Manufacturer substitution
This part replaces 790448. Substitute parts can look different from the original.
This item is not returnable
$4.67 |
18% OFF Phone Price : $5.67
In Stock
Oven Rack 74001757
#24

Oven diagram

Oven rack

Part #74001757

Replaced by #WPW10282492

?
Manufacturer substitution
This part replaces 74001757. Substitute parts can look different from the original.
$56.89 |
10% OFF Phone Price : $62.89
In Stock
