Frigidaire
Top-Mount Refrigerator

Model # WRTS23V7MW2 Official Frigidaire refrigerator

Here are the diagrams and repair parts for Official Frigidaire WRTS23V7MW2 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

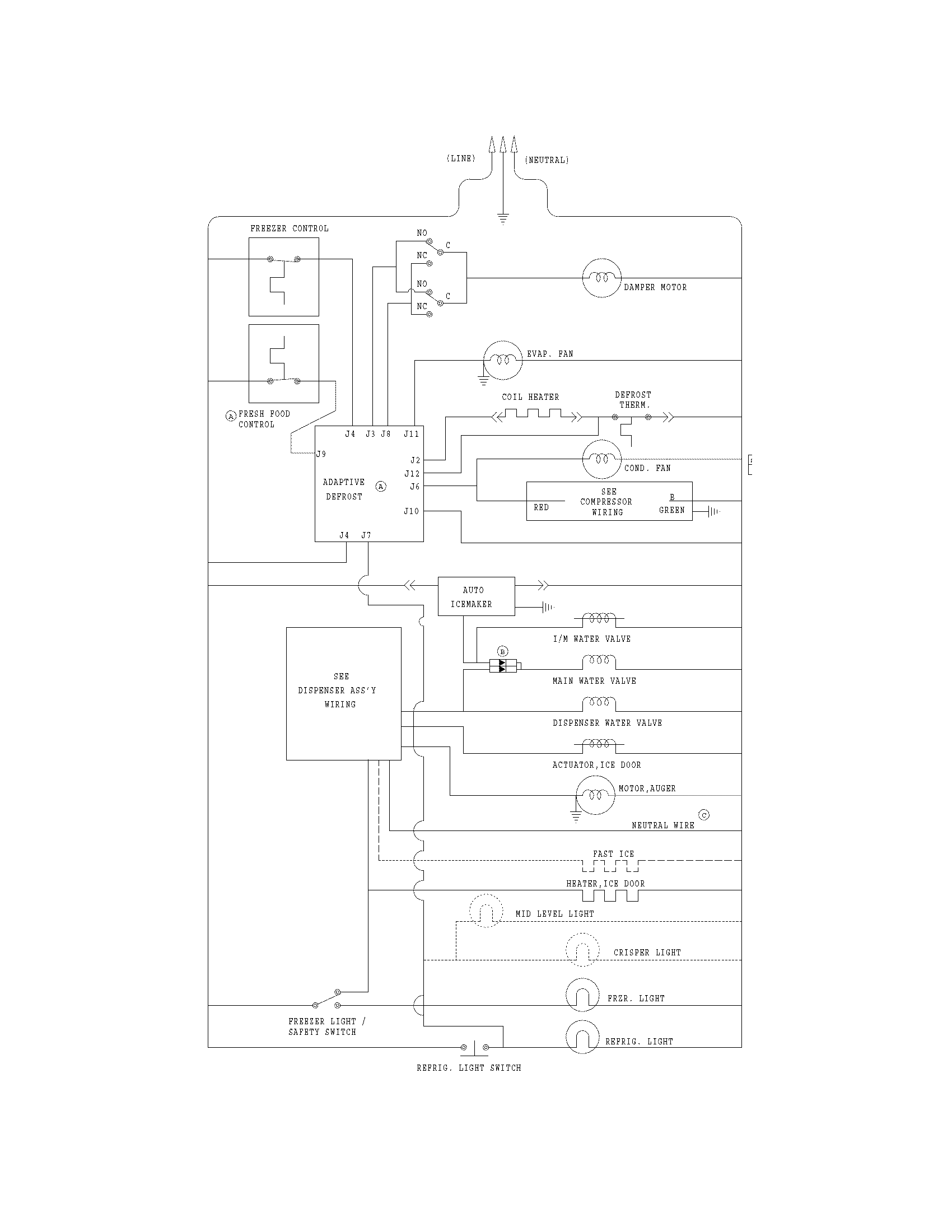

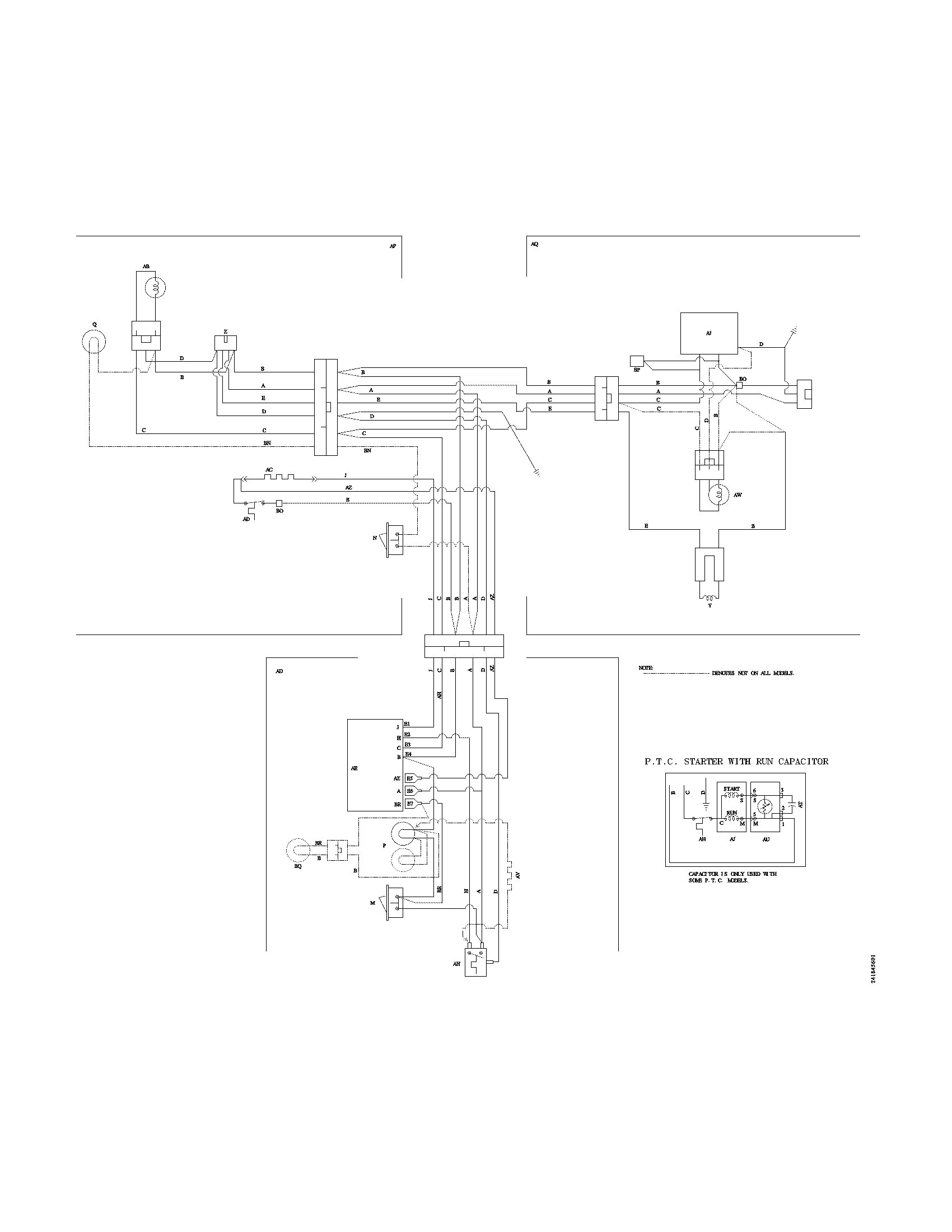

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 139 parts  |
Refrigerator Filter Dryer 242047603
#4

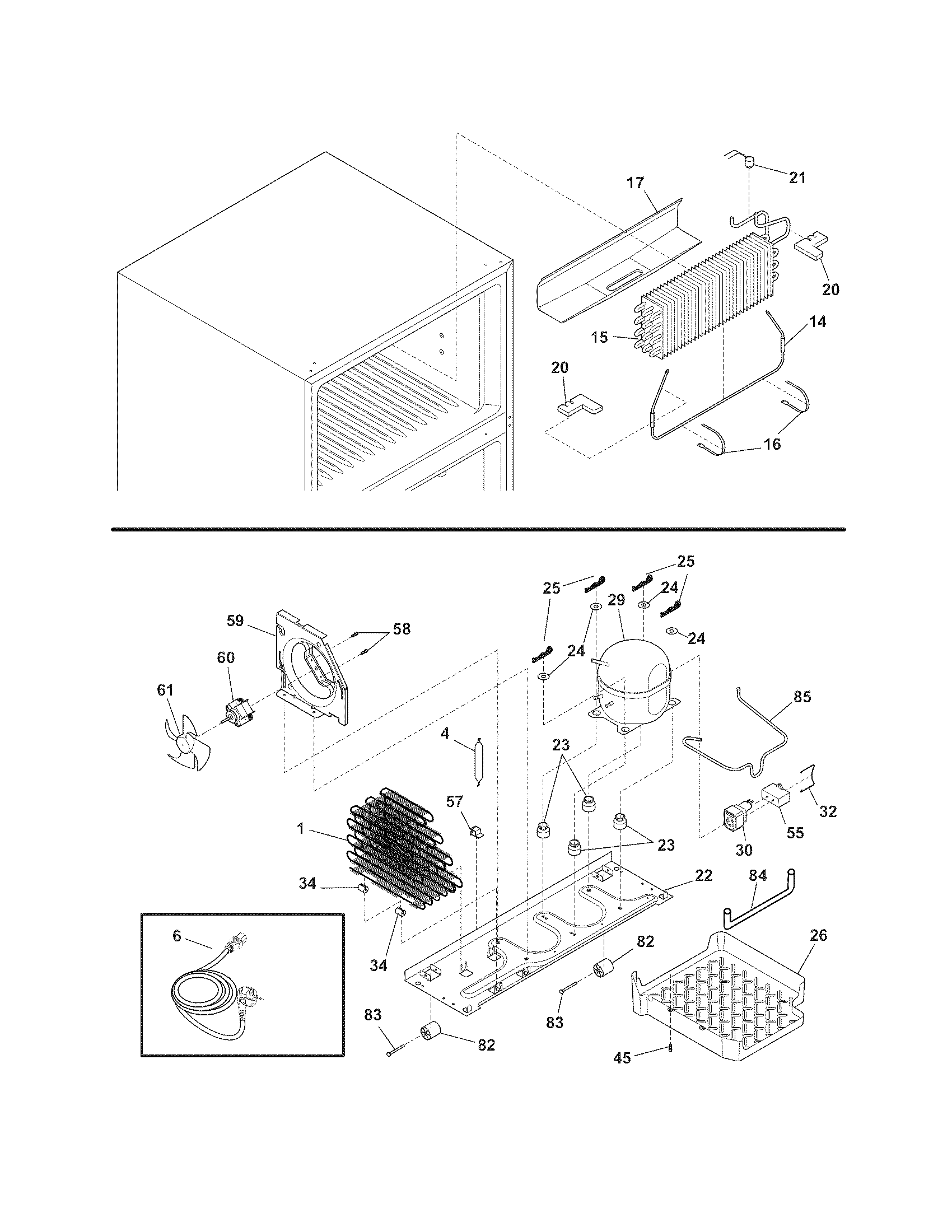

System diagram

Refrigerator filter dryer

Part #242047603

Replaced by #5303305677

?
Manufacturer substitution
This part replaces 242047603. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Refrigerator Evaporator Fan Blade 5308000010
#5

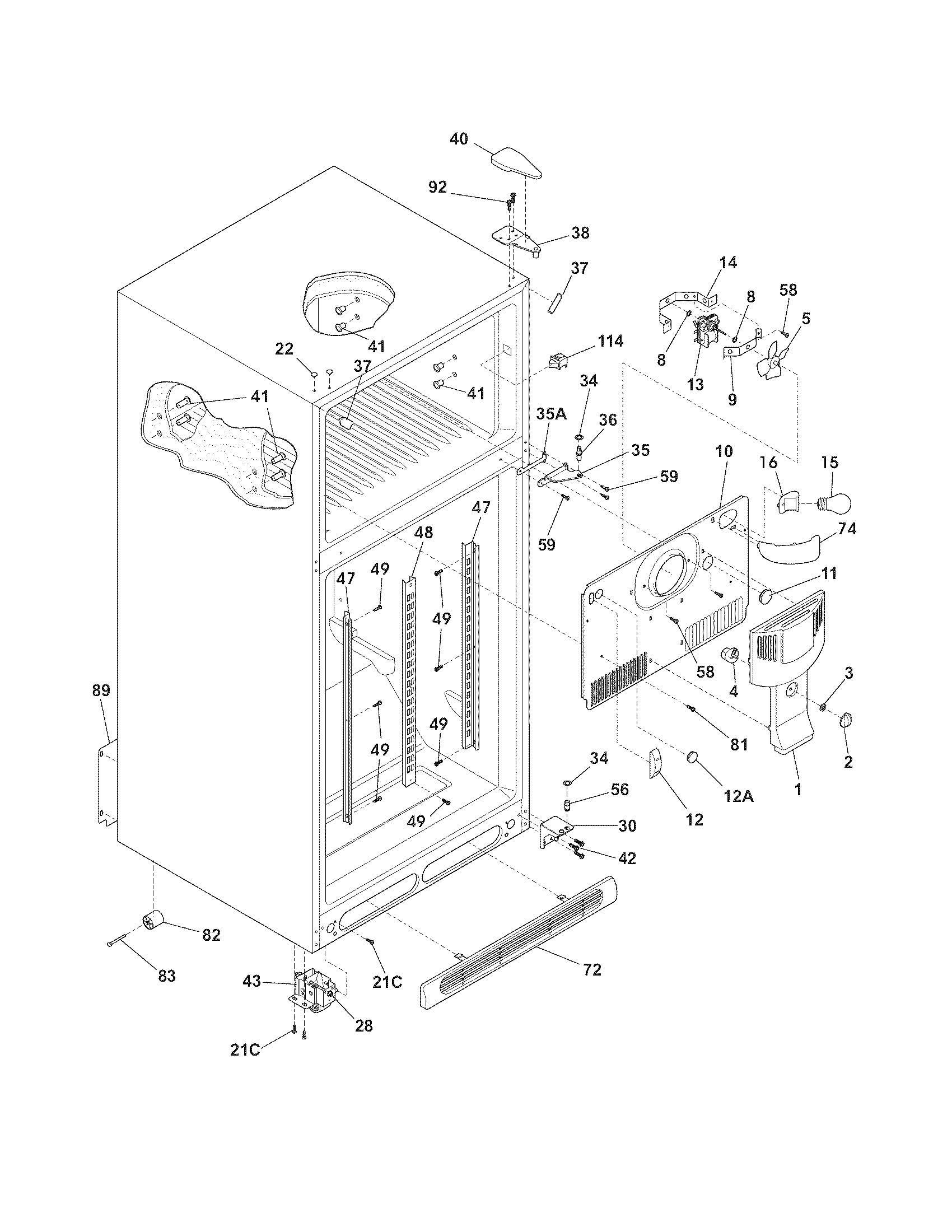

Cabinet diagram

Refrigerator evaporator fan blade

Part #5308000010

BEST SELLER
$41.13 |
13% OFF Phone Price : $47.13
In Stock
Frigidaire Refrigerator Door Bin (replaces 240338104) 240338101
#48

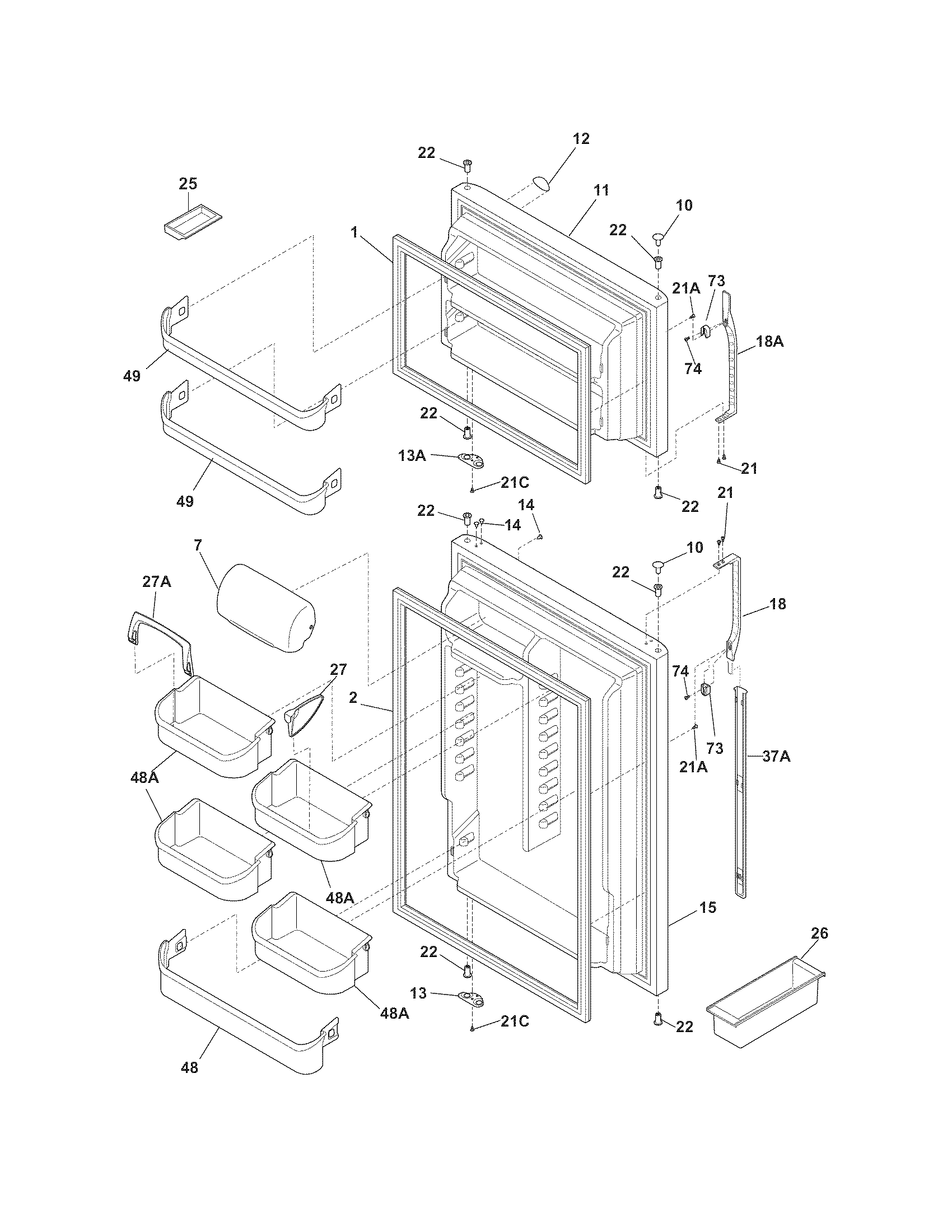

Doors diagram

Frigidaire refrigerator door bin (replaces 240338104)

Part #240338101

BEST SELLER
$51.20 |
10% OFF Phone Price : $57.20
In Stock
Refrigerator Door Hinge Nylon Washer (replaces 240311301) 240311303
#34

Cabinet diagram

Refrigerator door hinge nylon washer (replaces 240311301)

Part #240311303

BEST SELLER
$8.27 |
11% OFF Phone Price : $9.27
In Stock
Refrigerator Pan 240530814
#31

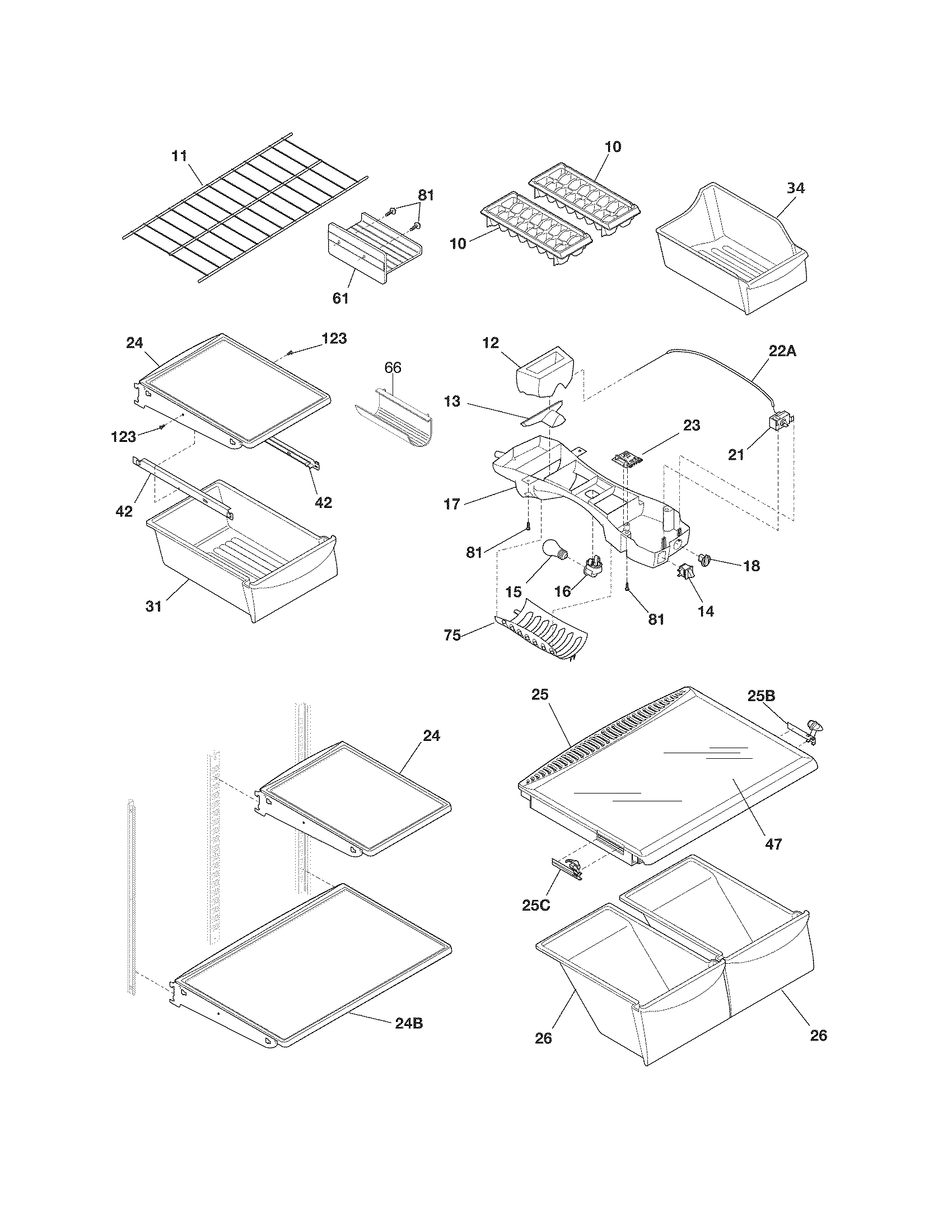

Shelves diagram
