Bottom-Mount Refrigerator

Model # MFX2571XEB3 Official Maytag refrigerator

Here are the diagrams and repair parts for Official Maytag MFX2571XEB3 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

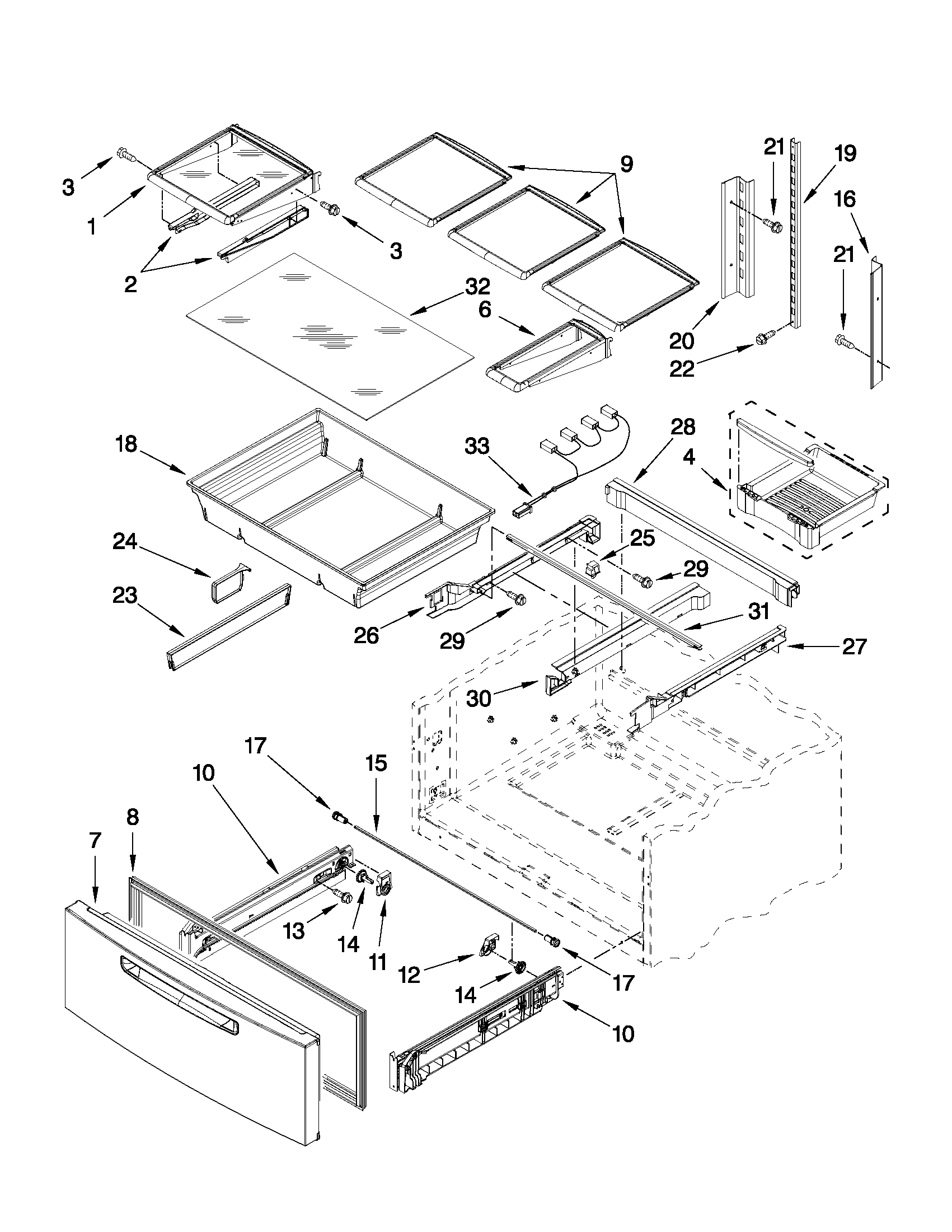

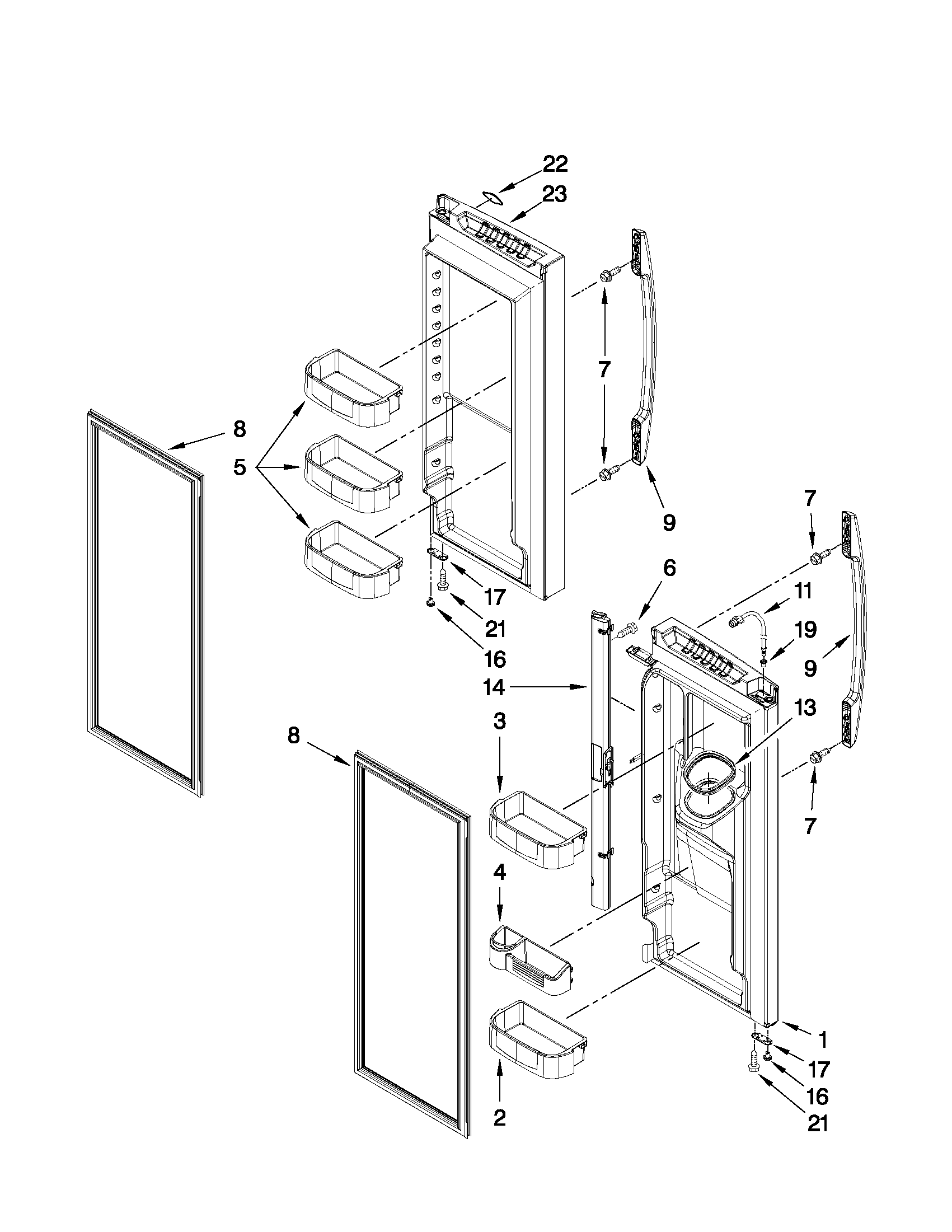

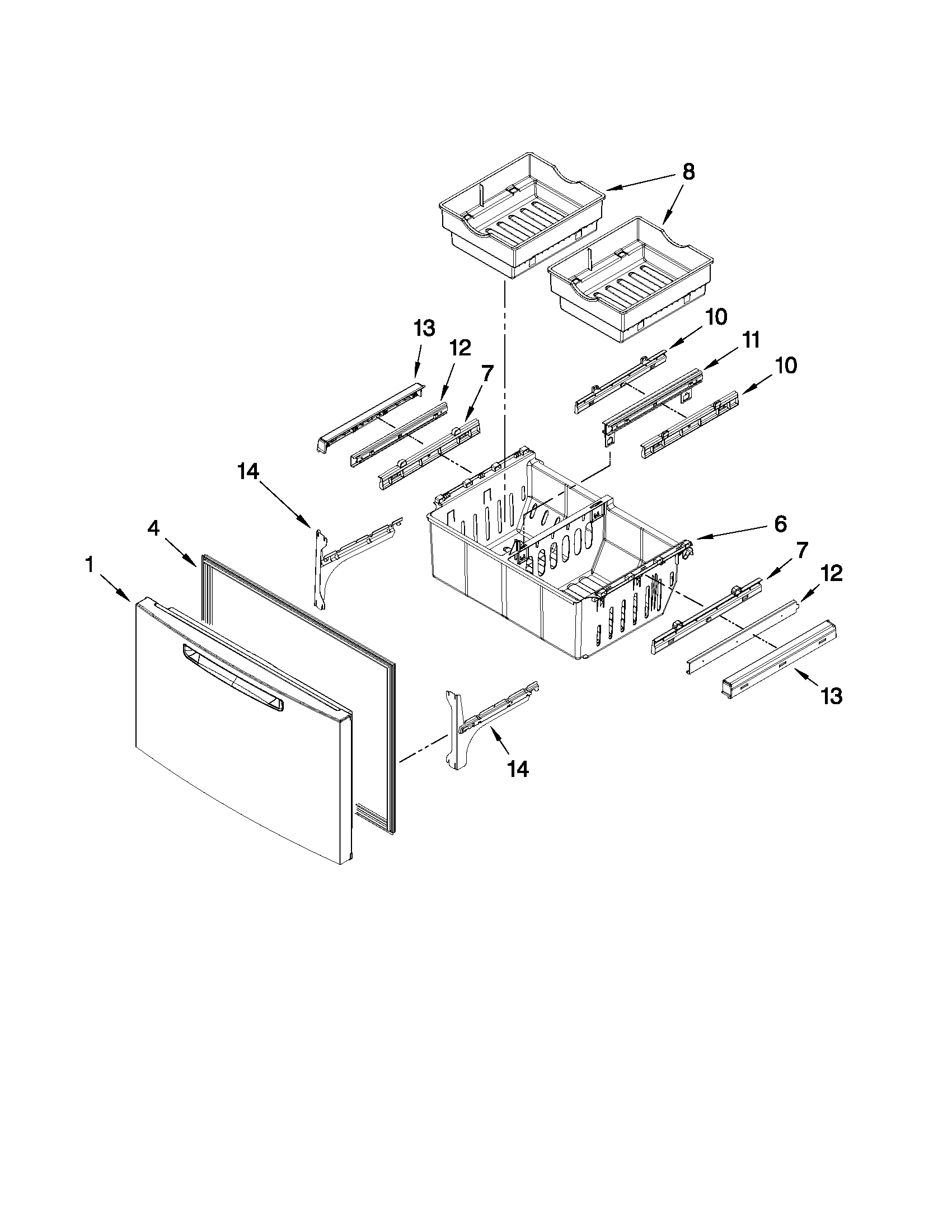

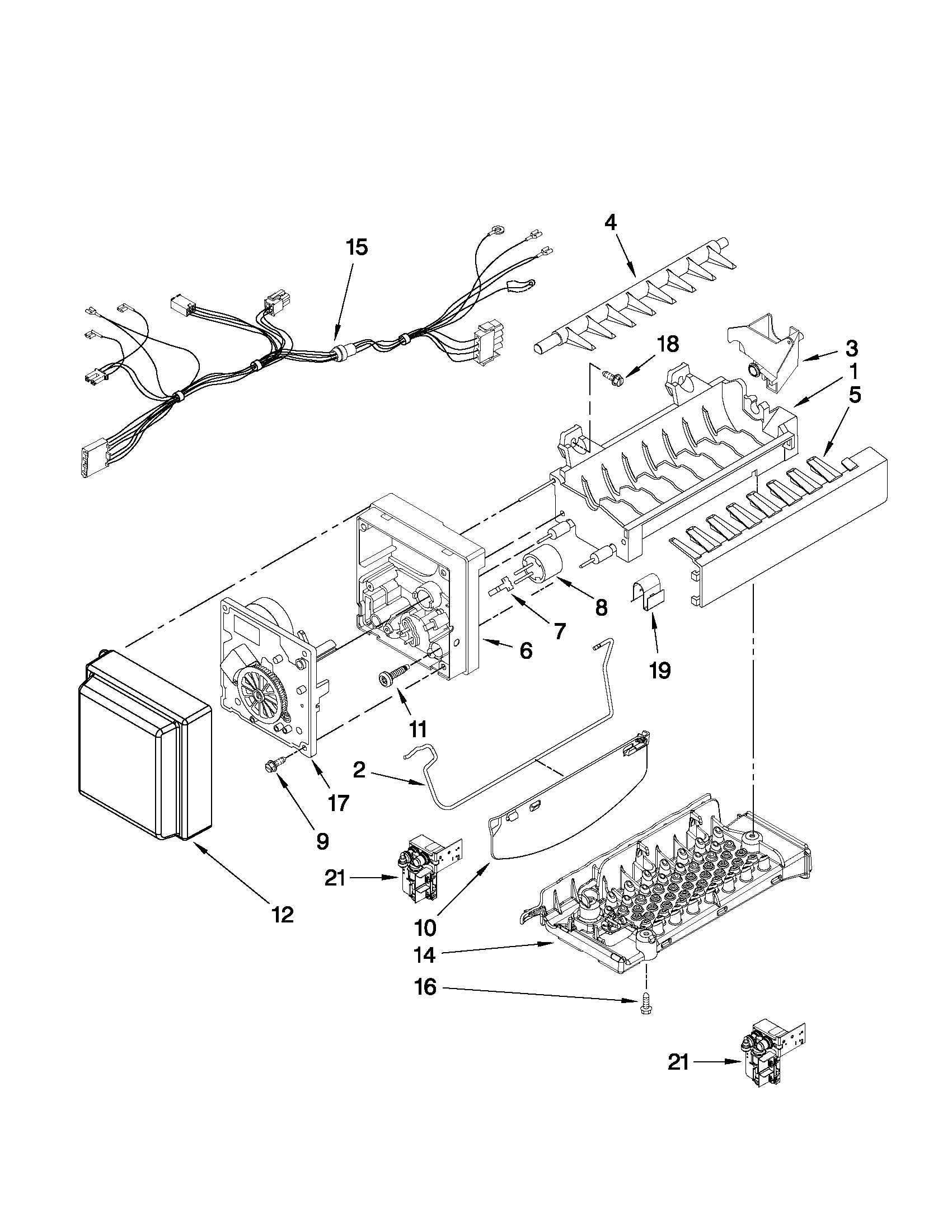

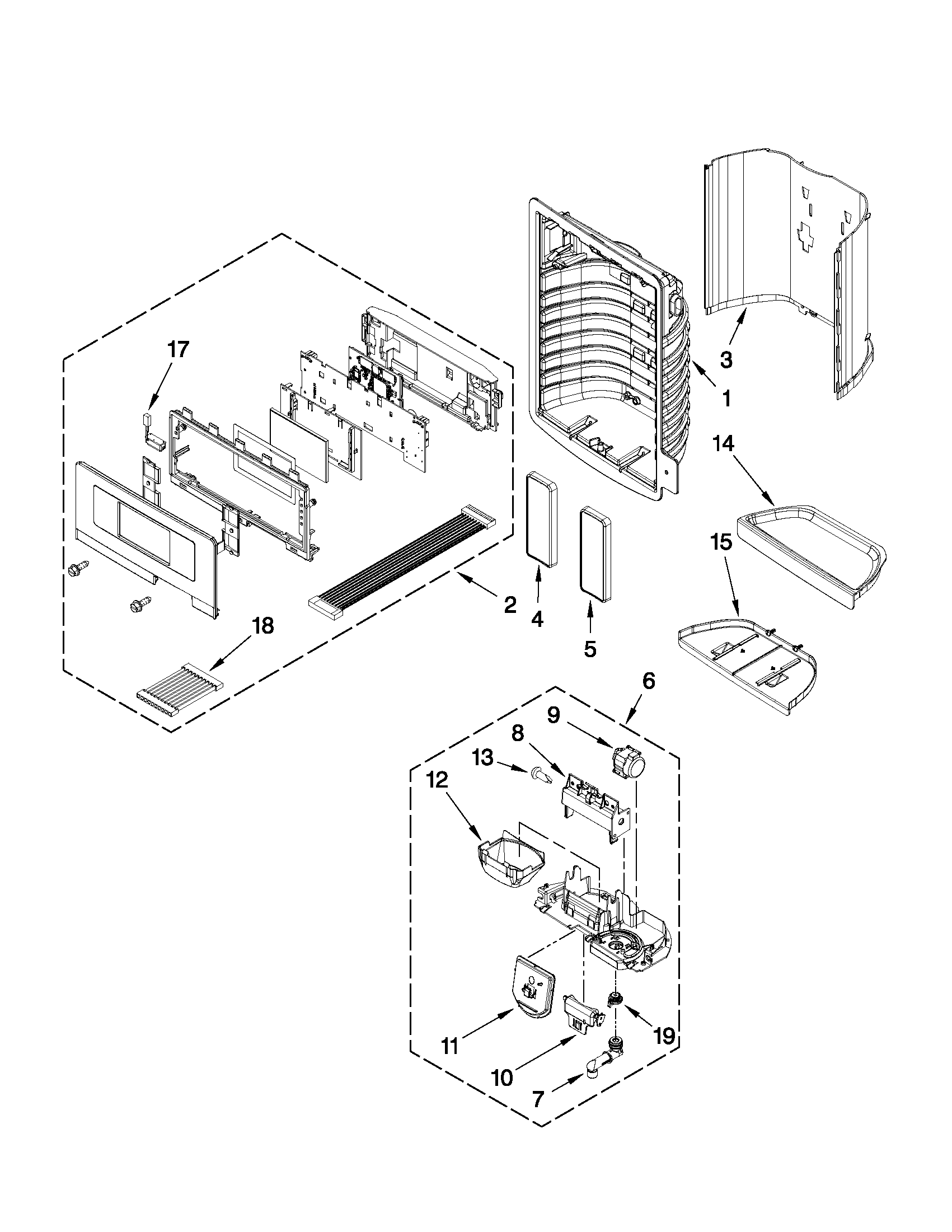

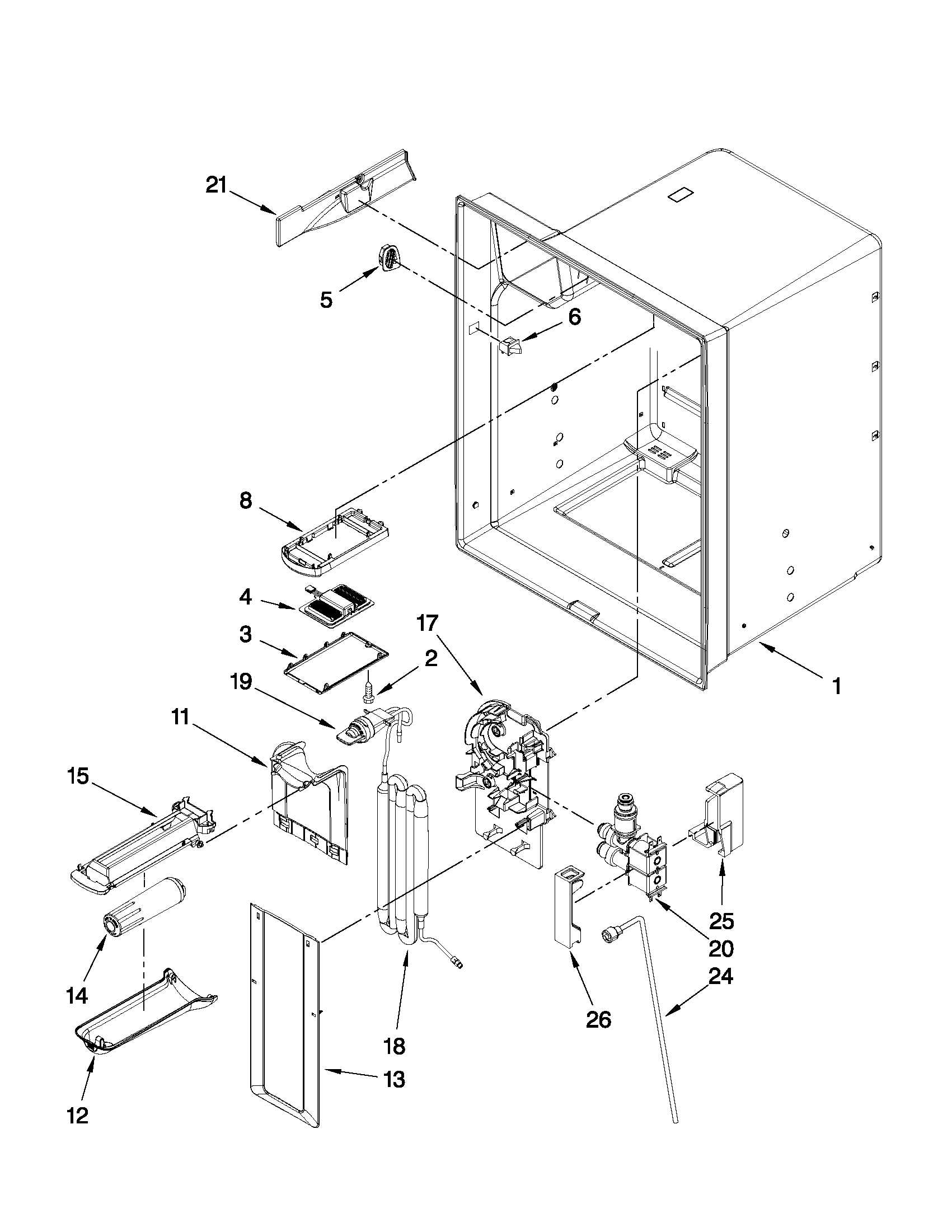

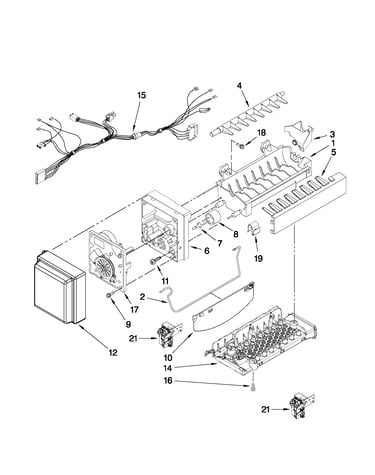

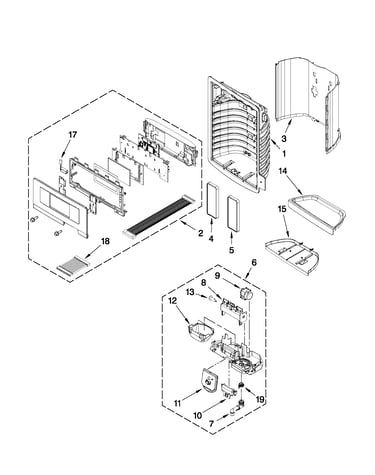

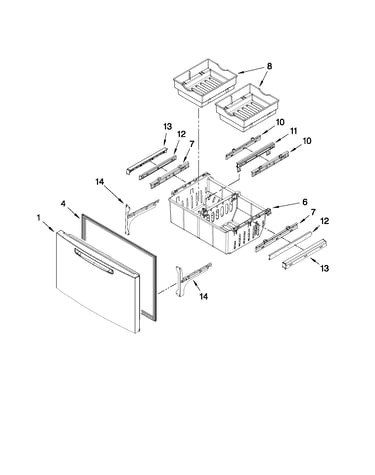

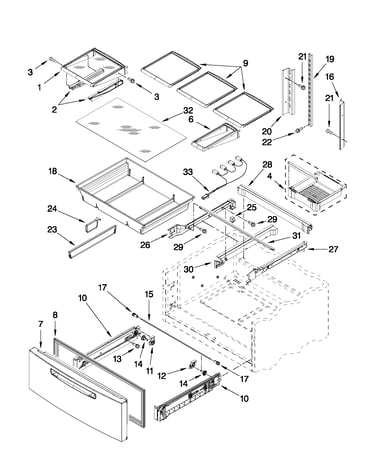

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MFX2571XEB3 Refrigerators
Refrigerator Uv Filter Dryer W10143759
#27

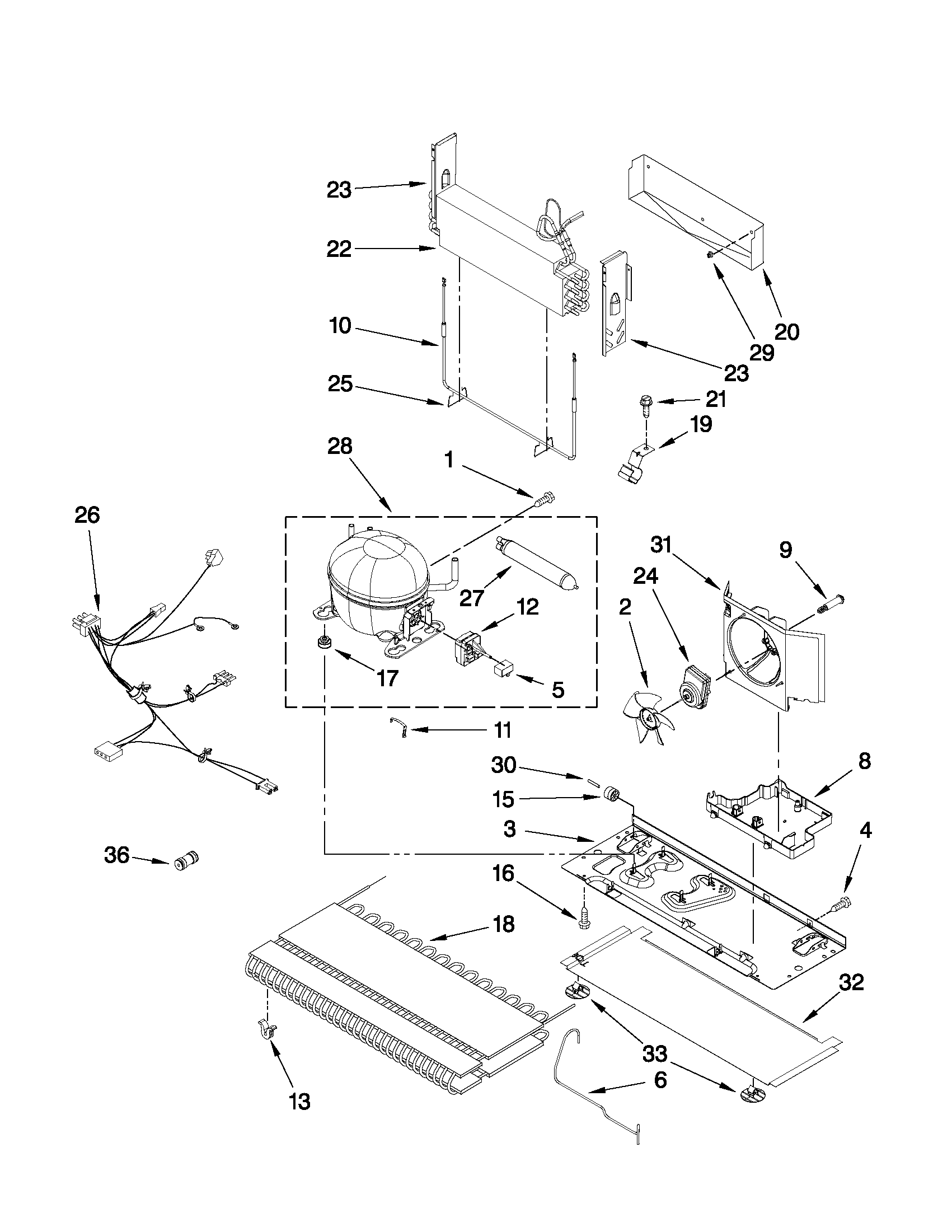

Unit parts diagram

Refrigerator uv filter dryer

Part #W10143759

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces W10143759. Substitute parts can look different from the original.
BEST SELLER
$20.04
23% OFF Phone Price : $26.04
In Stock
Refrigerator Run Capacitor 2264017
#5

Unit parts diagram

Refrigerator run capacitor

Part #2264017

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2264017. Substitute parts can look different from the original.
BEST SELLER
$40.58
13% OFF Phone Price : $46.58
In Stock
Refrigerator Damper Control Assembly W10196393
#11

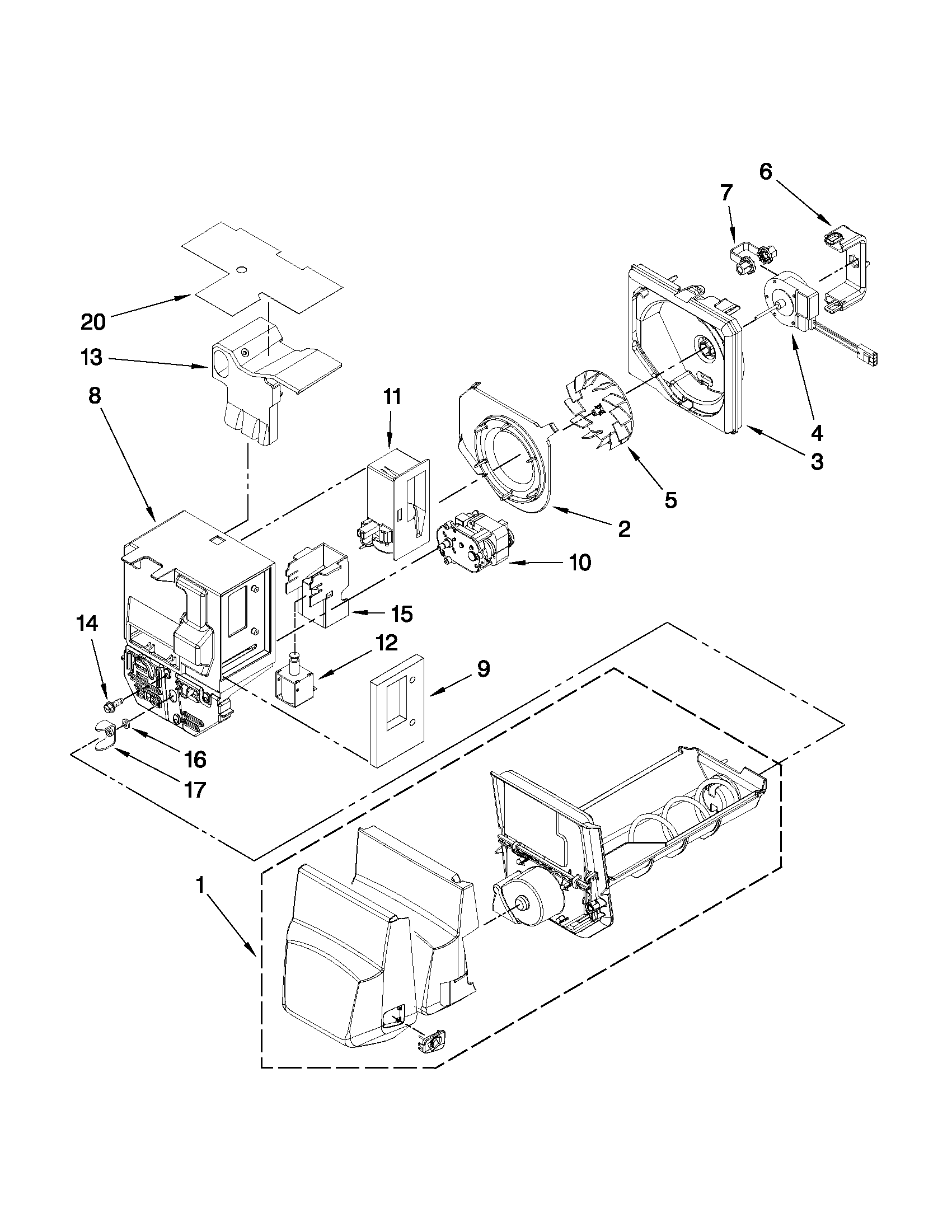

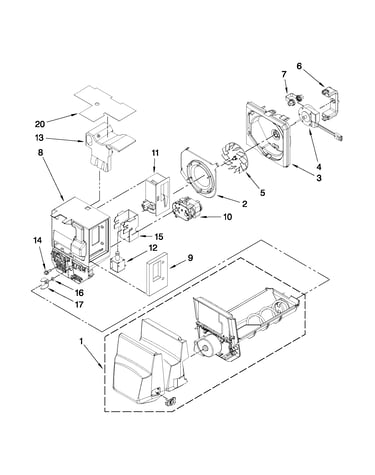

Motor and ice container parts diagram

Refrigerator damper control assembly

Part #W10196393

Replaced by #WPW10196393

?
Manufacturer substitution
This part replaces W10196393. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$73.83
8% OFF Phone Price : $79.83
In Stock
Refrigerator Motor W10309868
#10

Motor and ice container parts diagram

Refrigerator motor

Part #W10309868

Replaced by #W11671282

?
Manufacturer substitution
This part replaces W10309868. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Coupling 63052A001
#17

Motor and ice container parts diagram

Refrigerator coupling

Part #63052A001

Replaced by #WP63052-2

?
Manufacturer substitution
This part replaces 63052A001. Substitute parts can look different from the original.
BEST SELLER
$32.08
16% OFF Phone Price : $38.08
In Stock
Refrigerator Fan Blade 12986101
#24

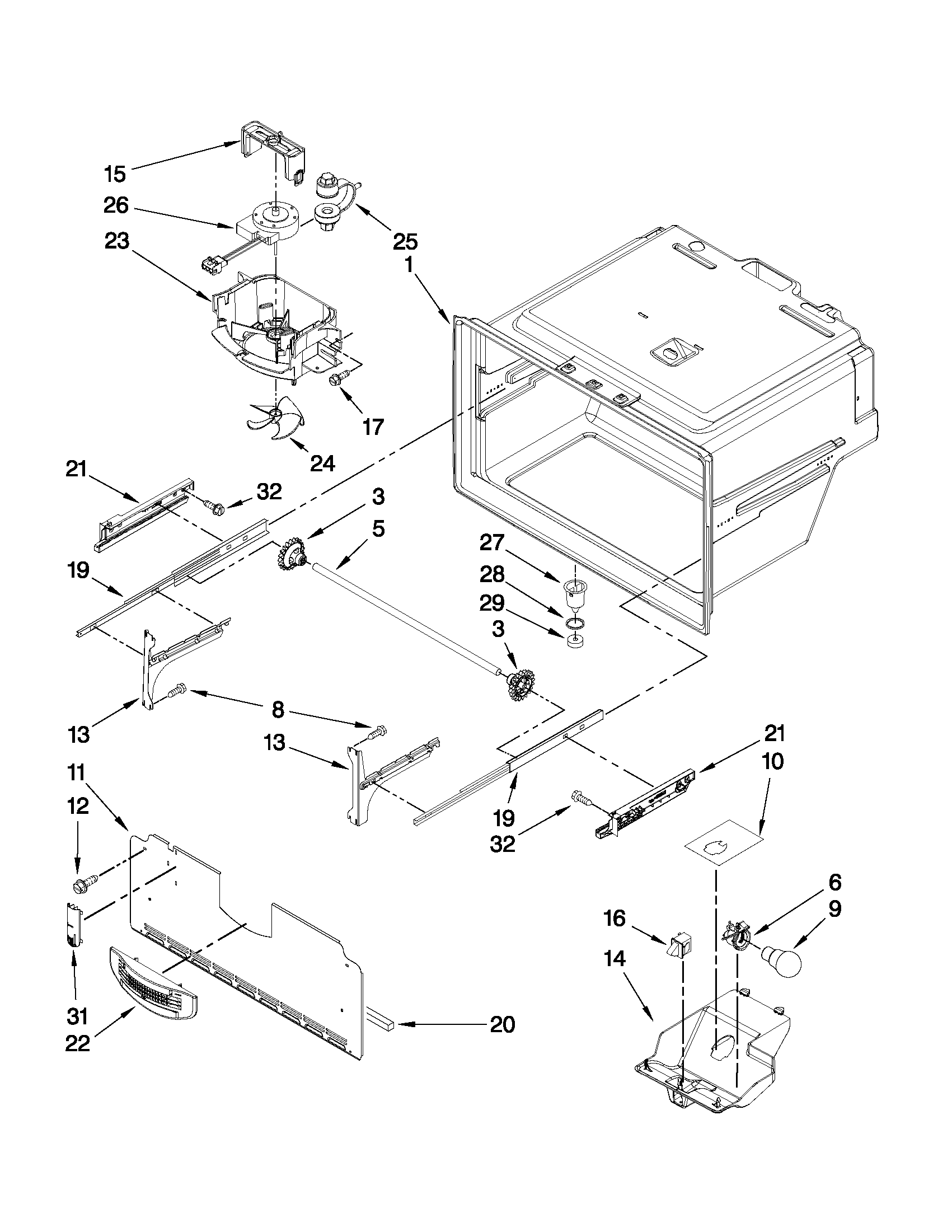

Freezer liner parts diagram

Refrigerator fan blade

Part #12986101

Replaced by #WP67006337

?
Manufacturer substitution
This part replaces 12986101. Substitute parts can look different from the original.
BEST SELLER
$52.87
10% OFF Phone Price : $58.87
In Stock
Refrigerator Freezer Slide Rail W10120018
#19

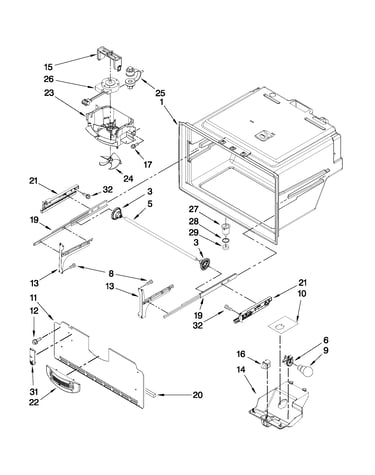

Freezer liner parts diagram

Refrigerator freezer slide rail

Part #W10120018

Replaced by #W11658402

?
Manufacturer substitution
This part replaces W10120018. Substitute parts can look different from the original.
BEST SELLER
In Stock
Refrigerator Evaporator Motor W10308033
#4

Motor and ice container parts diagram

Refrigerator evaporator motor

Part #W10308033

Replaced by #W11529245

?
Manufacturer substitution
This part replaces W10308033. Substitute parts can look different from the original.
BEST SELLER
$71.17
8% OFF Phone Price : $77.17
In Stock
Refrigerator Drain Tube W10210988
#31

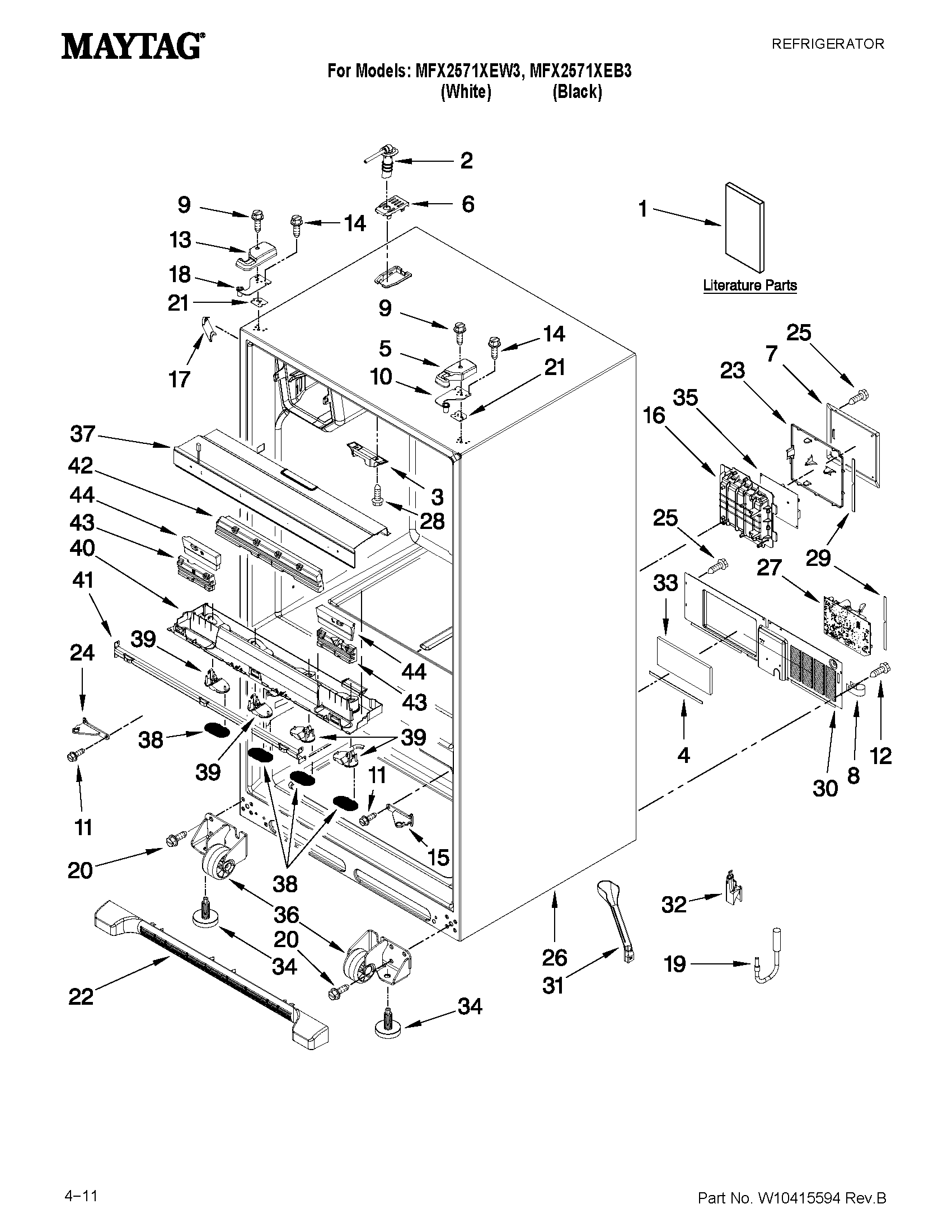

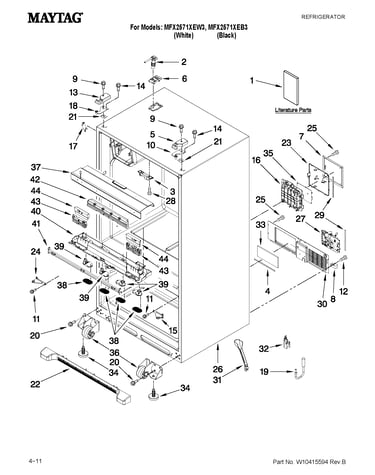

Cabinet parts diagram

Refrigerator drain tube

Part #W10210988

Replaced by #W10619951

?
Manufacturer substitution
This part replaces W10210988. Substitute parts can look different from the original.
BEST SELLER
$27.76
18% OFF Phone Price : $33.76
In Stock
Switch- Ro 12466111SP
#16

Freezer liner parts diagram

Switch- ro

Part #12466111SP

Replaced by #W11445850

?
Manufacturer substitution
This part replaces 12466111SP. Substitute parts can look different from the original.
BEST SELLER
$28.38
17% OFF Phone Price : $34.38
In Stock
