Model # DSC-W230L Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-W230L digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 43 parts |

#205

Gear block/barrier diagram

Gear

Part #X21878651

This item is not returnable

$3.93

In Stock

Qty

#NI08

All parts diagram

Switch

Part #178681922

$8.26

In Stock

Qty

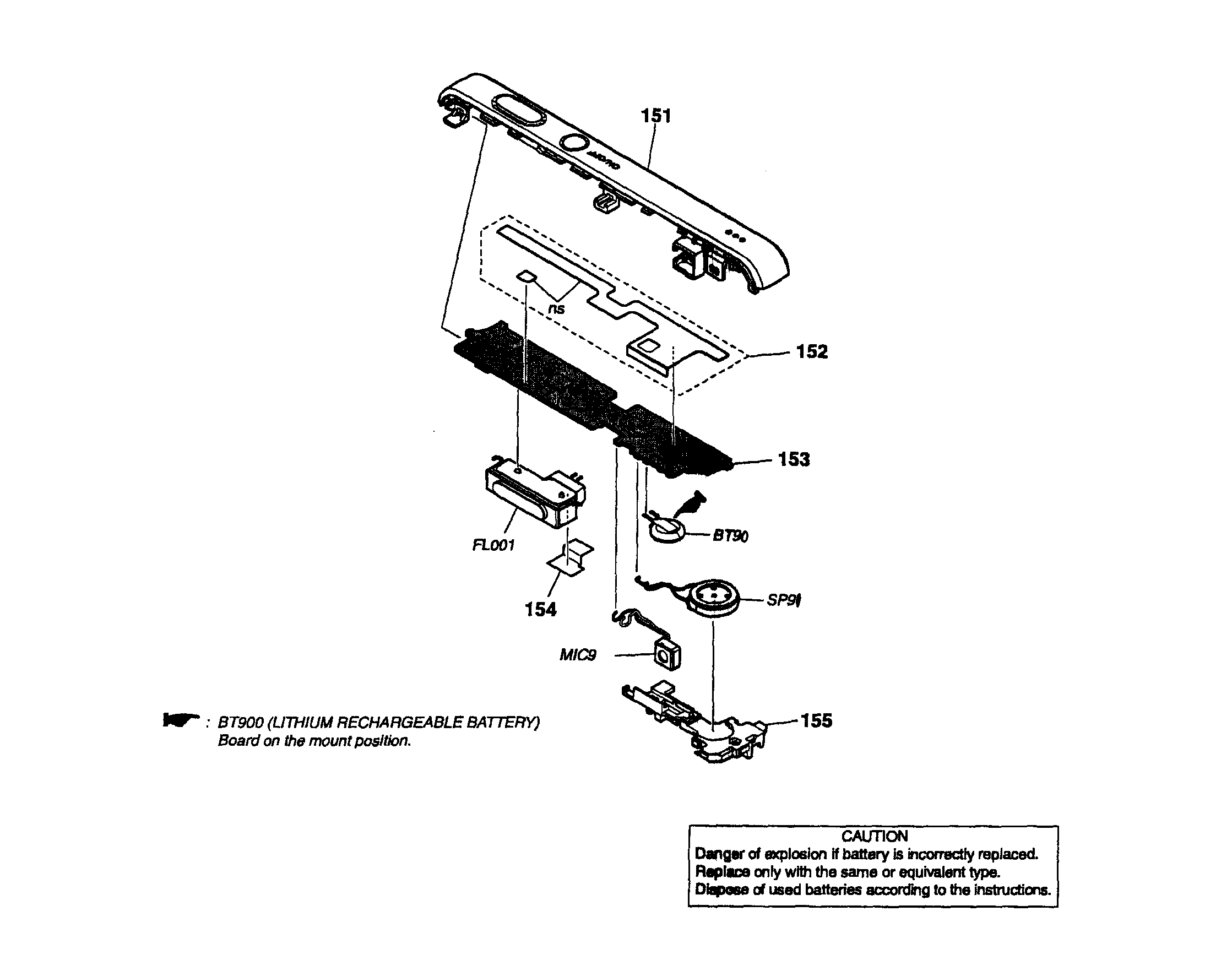

#BT90

Microphone/battery diagram

Lithium battery

Part #175671012

$25.16 |

19% OFF Phone Price : $31.16

In Stock

Qty

#NI11

All parts diagram

Connector

Part #182063451

$11.75

In Stock

Qty

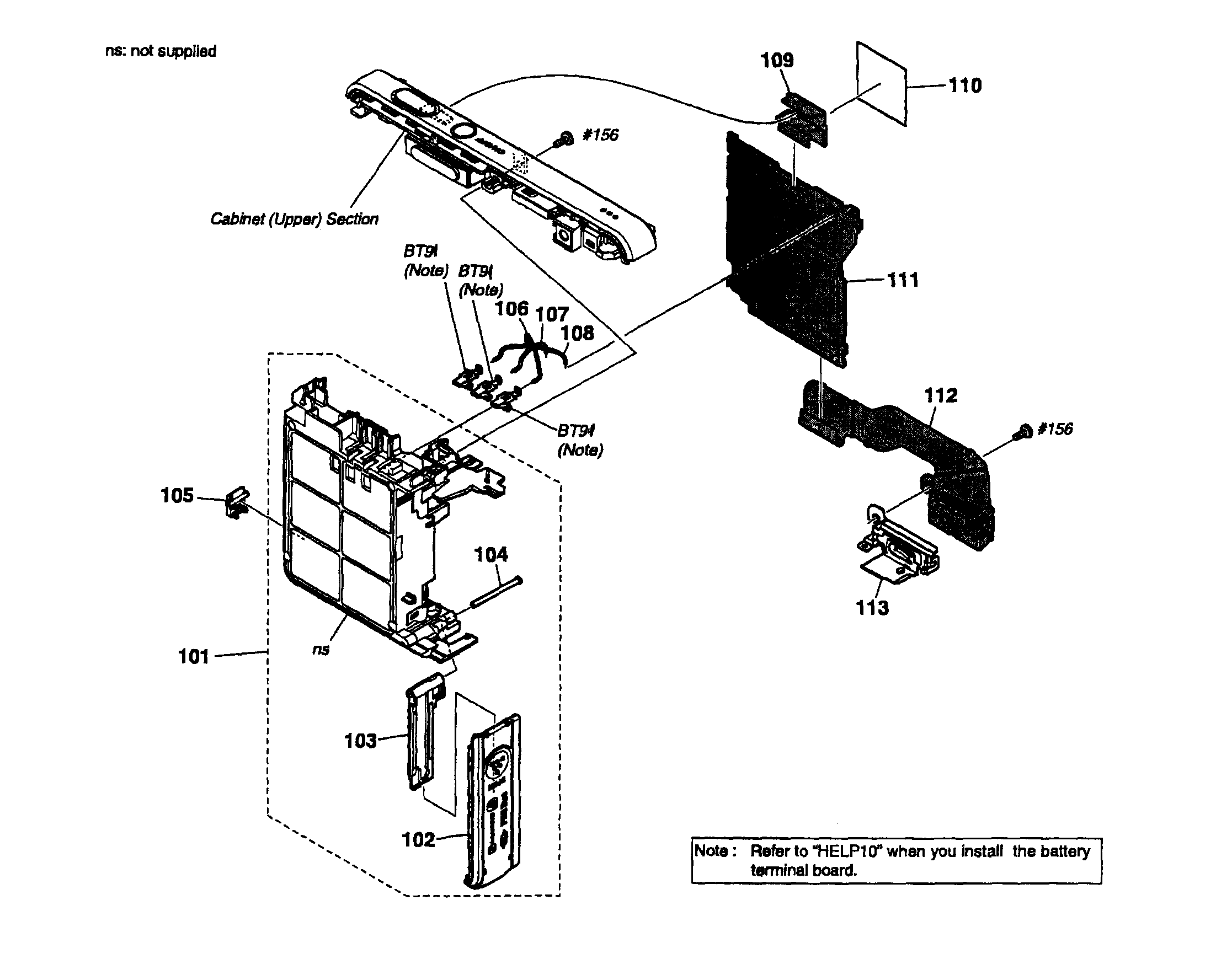

#106

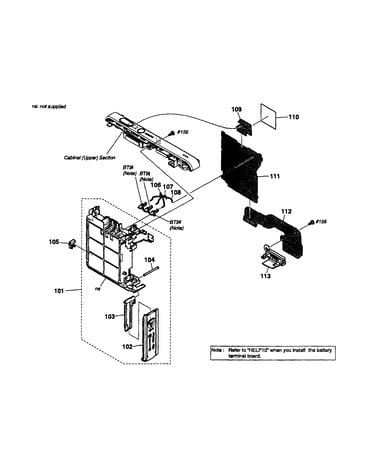

Holder diagram

Harness

Part #196576611

$13.24

In Stock

Qty

Switch

Part #178691431

This item is not returnable

$2.65

In Stock

Qty

#207

Gear block/barrier diagram

Gear block

Part #14803811

This item is not returnable

$2.16

In Stock

Qty

#NI05

All parts diagram

Inductor

Part #140082011

This item is not returnable

$2.30

In Stock

Qty

#BT91

Holder diagram

Terminal

Part #178045621

This item is not returnable

$3.63

In Stock

Qty

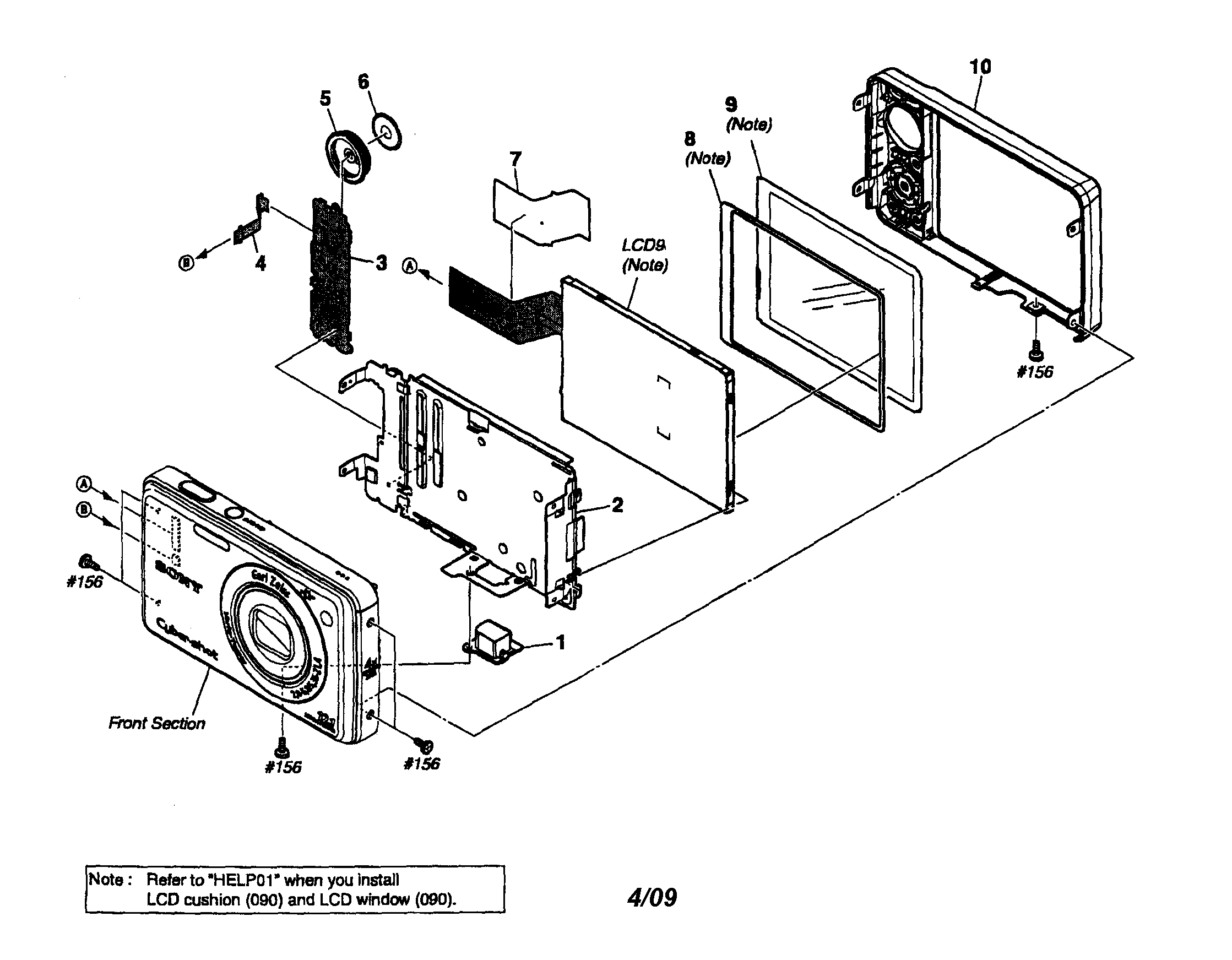

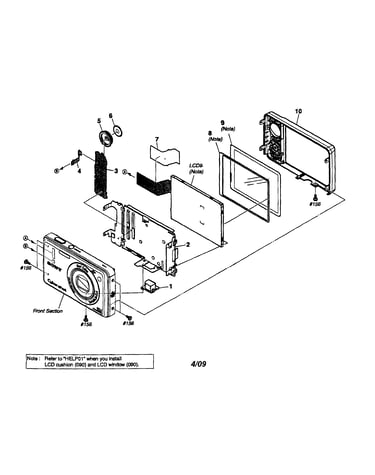

#10

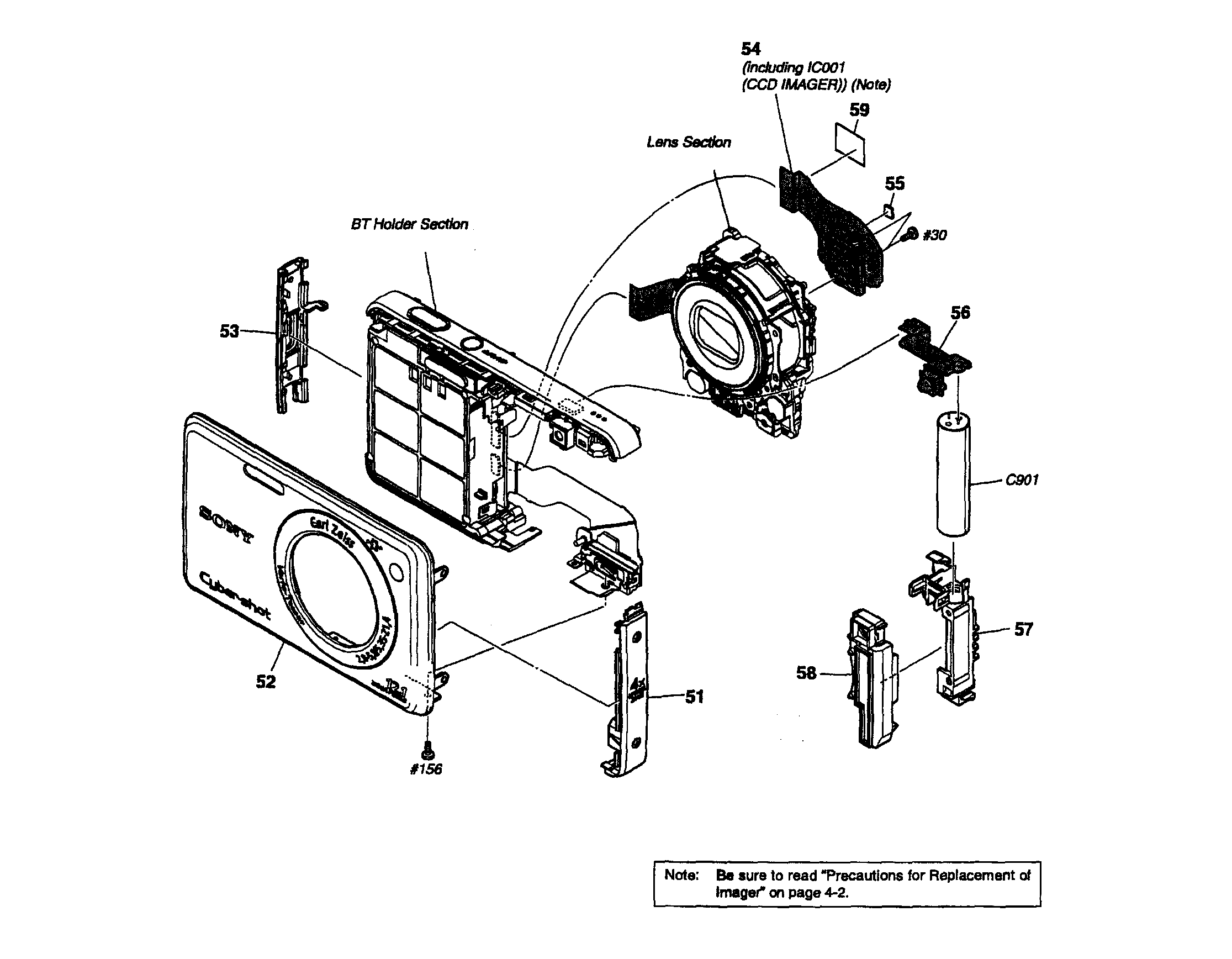

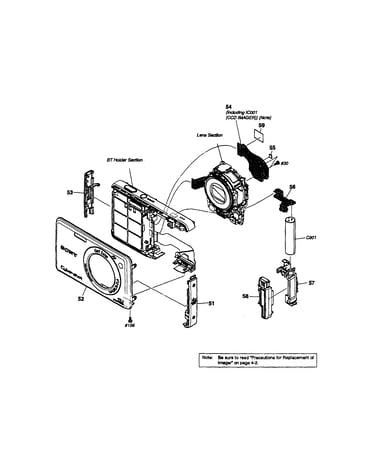

Frame/cabinet diagram

Cabinet

Part #X23457251

$69.78

In Stock

Qty
