DeWalt
Power Sander

Model # DW411 Official DeWalt palm grip sander

Here are the diagrams and repair parts for Official DeWalt DW411 palm grip sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Id Label D 263219-00
#41A

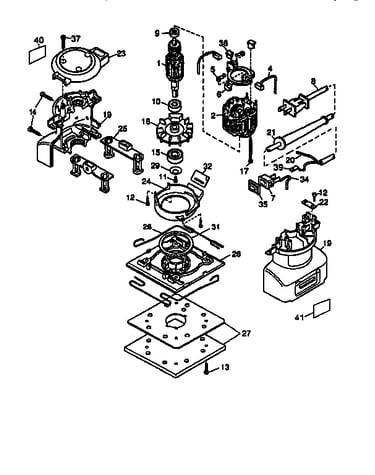

Unit parts diagram

Id label d

Part #263219-00

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 445964-00
#39

Unit parts diagram

Receptacle

Part #445964-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 151652-00
#29

Unit parts diagram

Washer

Part #151652-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 330072-98
#8

Unit parts diagram

Power tool power cord

Part #330072-98

The manufacturer no longer makes this part, and there's no substitute part

Sander Paper Punch 144954-00

#*13521

All parts diagram

Sander paper punch

Part #144954-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Field Nut 144956-00
#36

Unit parts diagram

Black & decker field nut

Part #144956-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Shroud 144964-00
#24

Unit parts diagram

Black & decker shroud

Part #144964-00

The manufacturer no longer makes this part, and there's no substitute part

Sander Screw 464285-00
#13

Unit parts diagram

Sander screw

Part #464285-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 330019-08
#17

Unit parts diagram

Screw

Part #330019-08

The manufacturer no longer makes this part, and there's no substitute part

Sander On/off Switch 144960-00
#7

Unit parts diagram

Sander on/off switch

Part #144960-00

The manufacturer no longer makes this part, and there's no substitute part
