Kenmore
Dishwasher

Model # 58764650 Official Kenmore undercounter dishwasher

Here are the diagrams and repair parts for Official Kenmore 58764650 undercounter dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

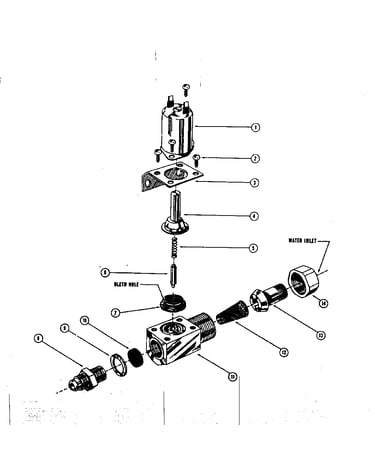

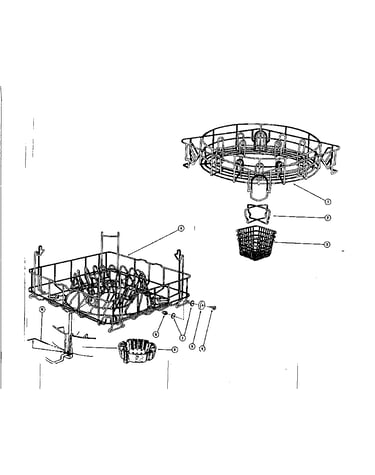

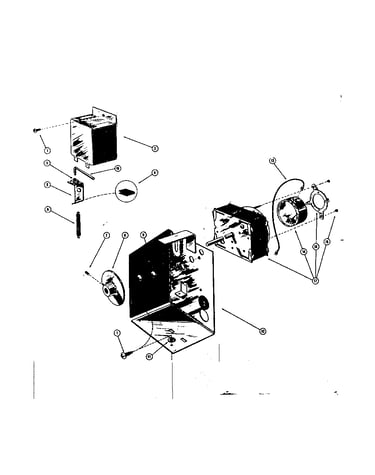

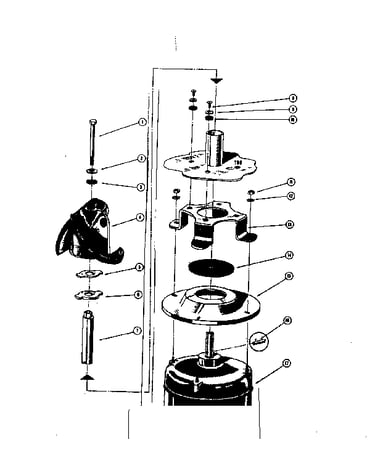

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Gasket 800023
#7

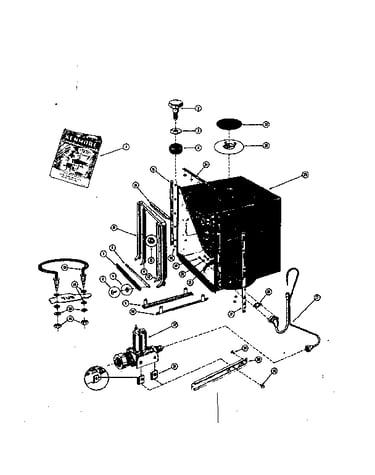

Tub and heater assembly diagram

Gasket

Part #800023

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer WB-04-E6
#2

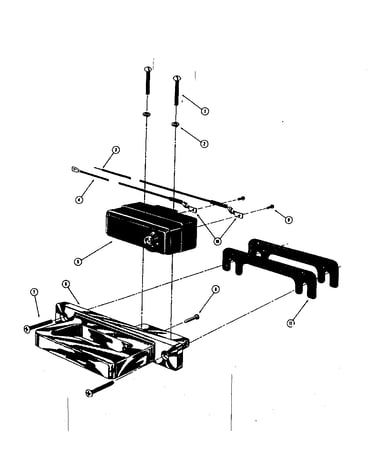

Latch plate assembly diagram

Lock washer

Part #WB-04-E6

The manufacturer no longer makes this part, and there's no substitute part

Bracket 800931
#12

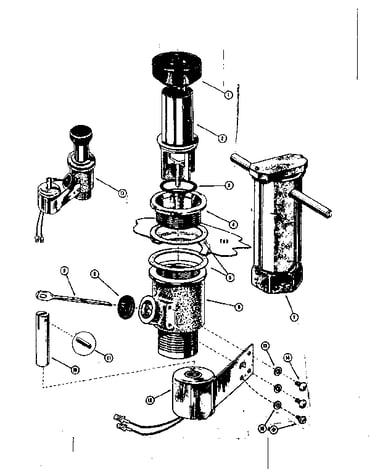

Drain valve & overflow assembly diagram

Bracket

Part #800931

The manufacturer no longer makes this part, and there's no substitute part

Door Switch 800215
#5

Latch plate assembly diagram

Door switch

Part #800215

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 800972
#3

Latch plate assembly diagram

Wire assembly

Part #800972

The manufacturer no longer makes this part, and there's no substitute part

Spring 800375
#24

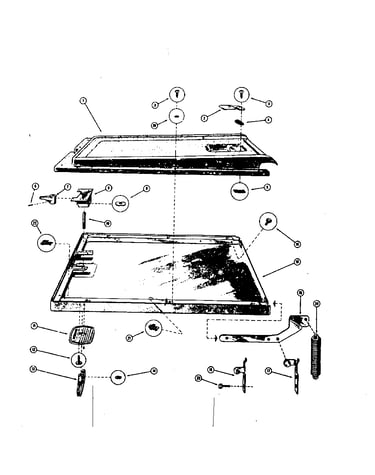

Dishwasher door assembly diagram

Spring

Part #800375

The manufacturer no longer makes this part, and there's no substitute part

Arm 800036
#8

Drain valve & overflow assembly diagram

Arm

Part #800036

The manufacturer no longer makes this part, and there's no substitute part

Arm Assembly 800238
#9

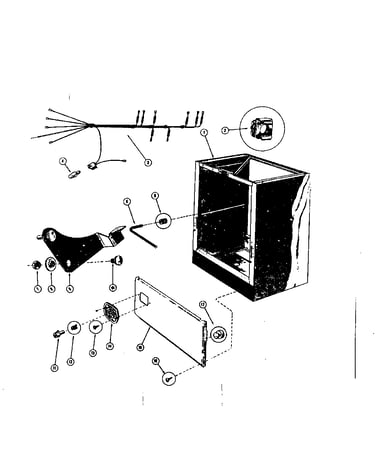

Frame and access panel assemblies diagram

Arm assembly

Part #800238

The manufacturer no longer makes this part, and there's no substitute part

Screw SZ-876-E6
Screw

Part #SZ-876-E6

The manufacturer no longer makes this part, and there's no substitute part

Washer WZ-1512
#9

Dishwasher door assembly diagram

Washer

Part #WZ-1512

The manufacturer no longer makes this part, and there's no substitute part
