Model # ADV14AAG1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE ADV14AAG1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Link WJ01X10093
#41

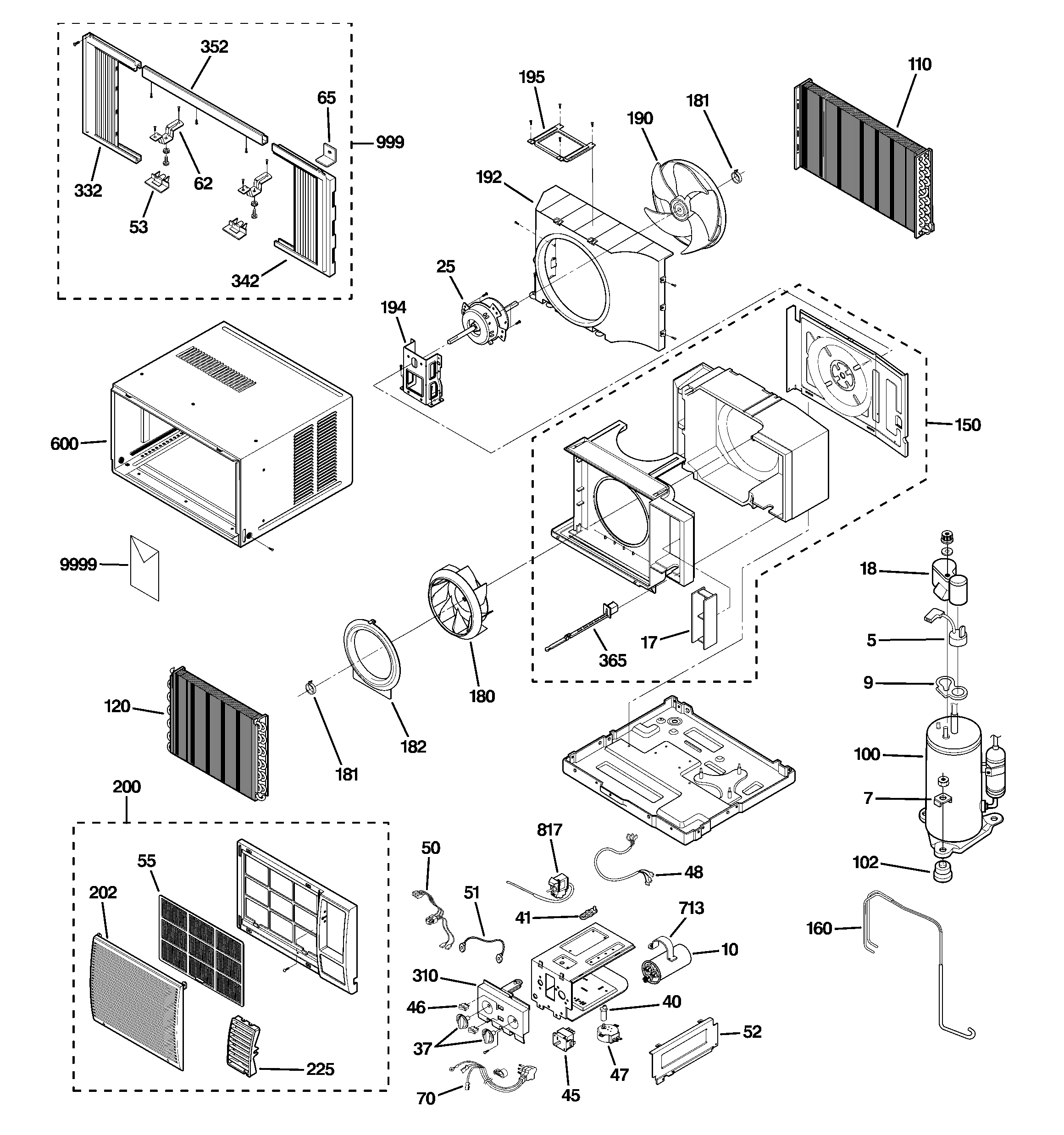

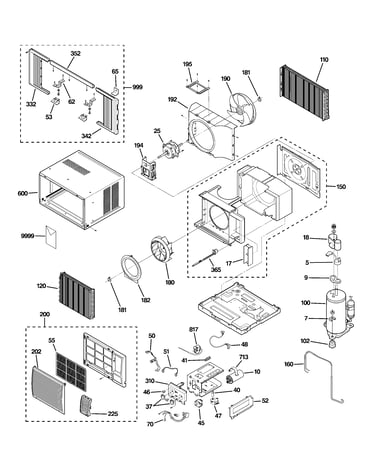

Room air conditioner diagram

Link

Part #WJ01X10093

The manufacturer no longer makes this part, and there's no substitute part

Thermostat WJ28X10013
#817

Room air conditioner diagram

Thermostat

Part #WJ28X10013

The manufacturer no longer makes this part, and there's no substitute part

Compressor WJ98X10112
#100

Room air conditioner diagram

Compressor

Part #WJ98X10112

The manufacturer no longer makes this part, and there's no substitute part

Control Cover WJ79X10024
#52

Room air conditioner diagram

Control cover

Part #WJ79X10024

The manufacturer no longer makes this part, and there's no substitute part

Cover WJ79X10084
#18

Room air conditioner diagram

Cover

Part #WJ79X10084

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Clamp WJ03X10015
#713

Room air conditioner diagram

Capacitor clamp

Part #WJ03X10015

The manufacturer no longer makes this part, and there's no substitute part

Grille Assembly WJ71X10301
#200

Room air conditioner diagram

Grille assembly

Part #WJ71X10301

The manufacturer no longer makes this part, and there's no substitute part

Inlet Grille WJ71X10194
#202

Room air conditioner diagram

Inlet grille

Part #WJ71X10194

The manufacturer no longer makes this part, and there's no substitute part

Cam WJ01X10095
#40

Room air conditioner diagram

Cam

Part #WJ01X10095

The manufacturer no longer makes this part, and there's no substitute part

Turbo Fan WJ73X10090
#180

Room air conditioner diagram

Turbo fan

Part #WJ73X10090

The manufacturer no longer makes this part, and there's no substitute part
