Kenmore Elite
Bottom-Mount Refrigerator

Model # 59676583702 Official Kenmore Elite bottom-mount refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 59676583702 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 190 parts  |
Refrigerator Switch C3680310
#6

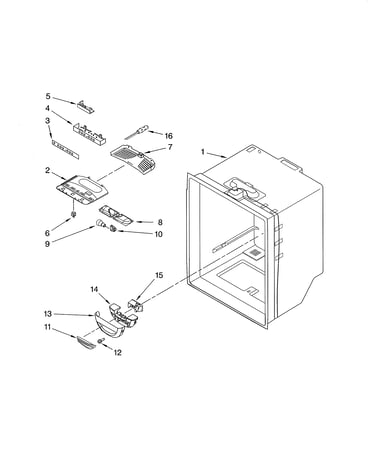

Refrigerator liner diagram

Refrigerator switch

Part #C3680310

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Capacitor 67005562
#11

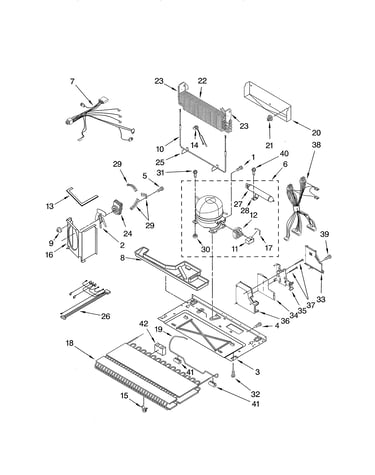

Unit diagram

Refrigerator capacitor

Part #67005562

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005562. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Refrigerator Overload Release 67005561
#12

Unit diagram

Refrigerator overload release

Part #67005561

Replaced by #W10613606

?
Manufacturer substitution
This part replaces 67005561. Substitute parts can look different from the original.
BEST SELLER
$52.03 |
10% OFF Phone Price : $58.03
In Stock
Lid Assembly 67005899
#31

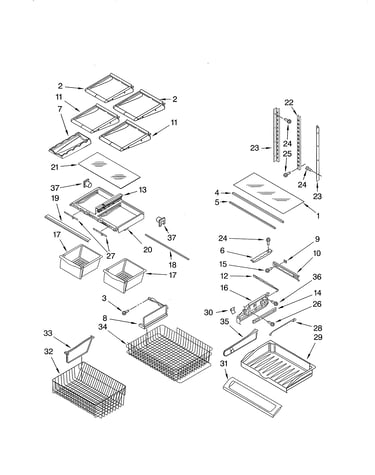

Shelf diagram

Lid assembly

Part #67005899

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Motor 67003636
#26

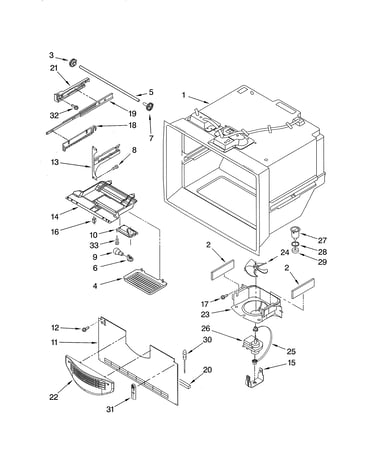

Freezer liner diagram

Evaporator motor

Part #67003636

The manufacturer no longer makes this part, and there's no substitute part

Drier B2150504
#27

Unit diagram

Drier

Part #B2150504

Replaced by #WPB2150504

?
Manufacturer substitution
This part replaces B2150504. Substitute parts can look different from the original.
BEST SELLER
$76.50 |
7% OFF Phone Price : $82.50
In Stock
Refrigerator Mounting Screw 67002935
Refrigerator mounting screw

Part #67002935

Replaced by #WP3387230

?
Manufacturer substitution
This part replaces 67002935. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Danby Appliance Touch-up Paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, W10813125, Y058028) 72017

#NI15

All parts diagram

Danby appliance touch-up paint, 0.6-oz (white) (replaces 21020, 72017r, 8006, w10813125, y058028)

Part #72017

BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Refrigerator Discharge Tube 67004700
#19

Unit diagram

Refrigerator discharge tube

Part #67004700

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Water Inlet Valve 67003753
#12

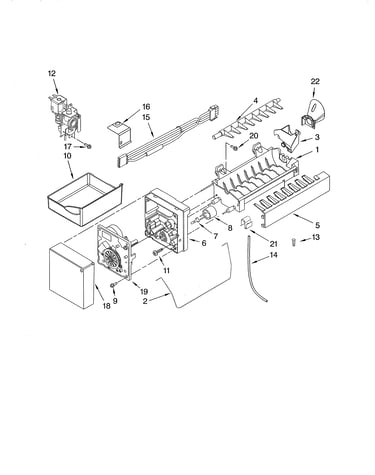

Icemaker diagram

Refrigerator water inlet valve

Part #67003753

The manufacturer no longer makes this part, and there's no substitute part
