Model # 900684250 Official Craftsman electric brad nailer

Here are the diagrams and repair parts for Official Craftsman 900684250 electric brad nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 54 parts |

#39

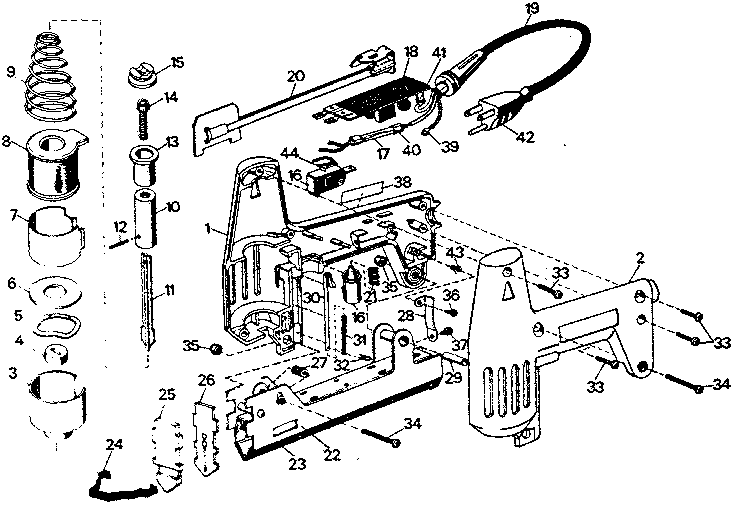

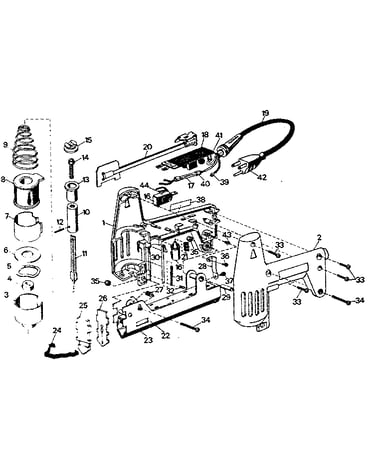

Unit parts diagram

Black & decker terminal

Part #88667-00

The manufacturer no longer makes this part, and there's no substitute part

#42

Unit parts diagram

Attach plug

Part #234900-01

The manufacturer no longer makes this part, and there's no substitute part

#17

Unit parts diagram

Fuse

Part #95372-03

The manufacturer no longer makes this part, and there's no substitute part

#41

Unit parts diagram

Receptacle

Part #130725-00

The manufacturer no longer makes this part, and there's no substitute part

#19

Unit parts diagram

Cord plug

Part #137933-01

The manufacturer no longer makes this part, and there's no substitute part

#18

Unit parts diagram

Pc board

Part #137931-00

The manufacturer no longer makes this part, and there's no substitute part

#10

Unit parts diagram

Plunger

Part #138807-00

The manufacturer no longer makes this part, and there's no substitute part

#25

Unit parts diagram

Nosepiece

Part #137964-00

The manufacturer no longer makes this part, and there's no substitute part

#15

Unit parts diagram

Ret bumper

Part #137922-00

The manufacturer no longer makes this part, and there's no substitute part

#28

Unit parts diagram

Ground clip

Part #137999-00

The manufacturer no longer makes this part, and there's no substitute part
