Bosch
Angle Grinder

Model # 1375A Official Bosch angle grinder

Here are the diagrams and repair parts for Official Bosch 1375A angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Field 1604220330
#2

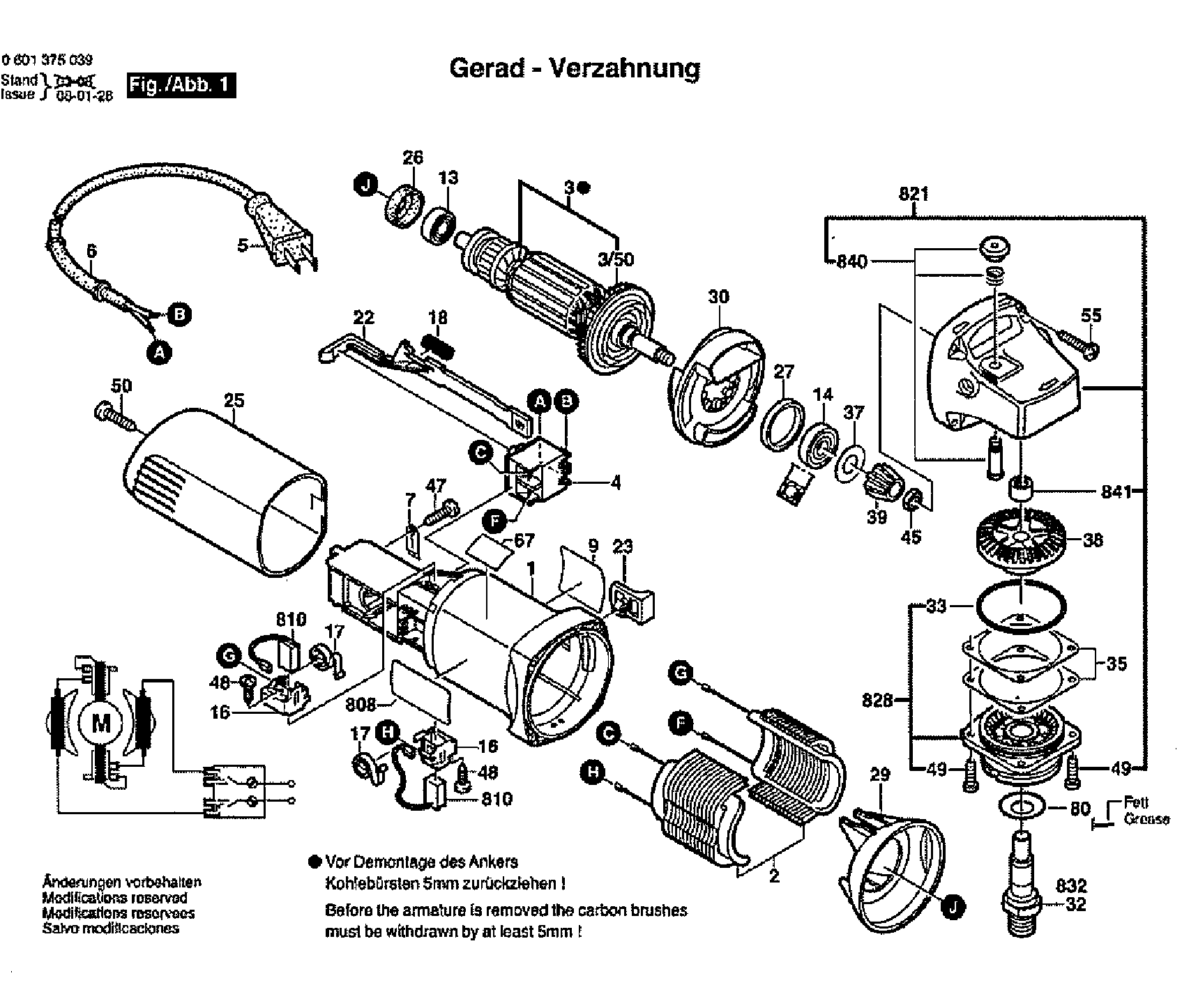

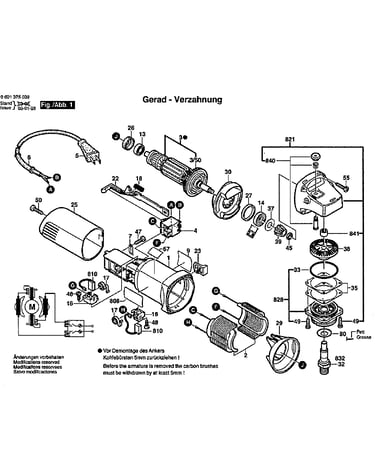

Main asy diagram

Field

Part #1604220330

The manufacturer no longer makes this part, and there's no substitute part

Switch 1602319009
#22

Main asy diagram

Switch

Part #1602319009

The manufacturer no longer makes this part, and there's no substitute part

Crown Gear 2609110150
#38

Main asy diagram

Crown gear

Part #2609110150

The manufacturer no longer makes this part, and there's no substitute part

Cover Disc 1600100033
#37

Main asy diagram

Cover disc

Part #1600100033

The manufacturer no longer makes this part, and there's no substitute part

Shim 1600136016
#35

Main asy diagram

Shim

Part #1600136016

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 2609100017
#23

Main asy diagram

Switch button

Part #2609100017

The manufacturer no longer makes this part, and there's no substitute part

Bearing Fl 1605805090
#828

Main asy diagram

Bearing fl

Part #1605805090

The manufacturer no longer makes this part, and there's no substitute part

Ring 1600591024
#30

Main asy diagram

Ring

Part #1600591024

The manufacturer no longer makes this part, and there's no substitute part

Deflector 1600591023
#29

Main asy diagram

Deflector

Part #1600591023

The manufacturer no longer makes this part, and there's no substitute part

Bosch Plate Ref 1601110358
#67

Main asy diagram

Bosch plate ref

Part #1601110358

The manufacturer no longer makes this part, and there's no substitute part
