Countertop Microwave

Model # MMC5000BDW Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag MMC5000BDW microwave, as well as links to manuals and error code tables, if available.

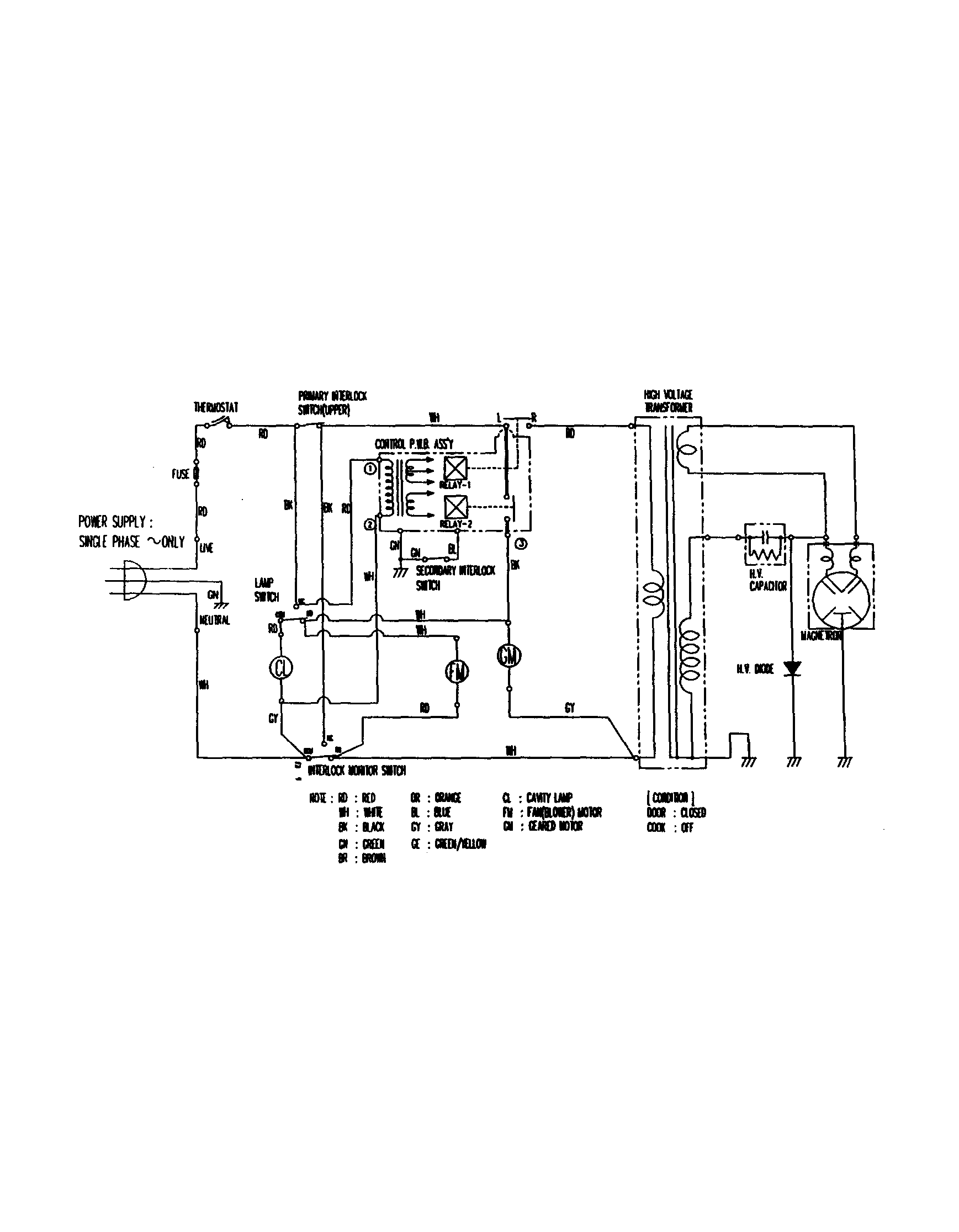

By Schematic

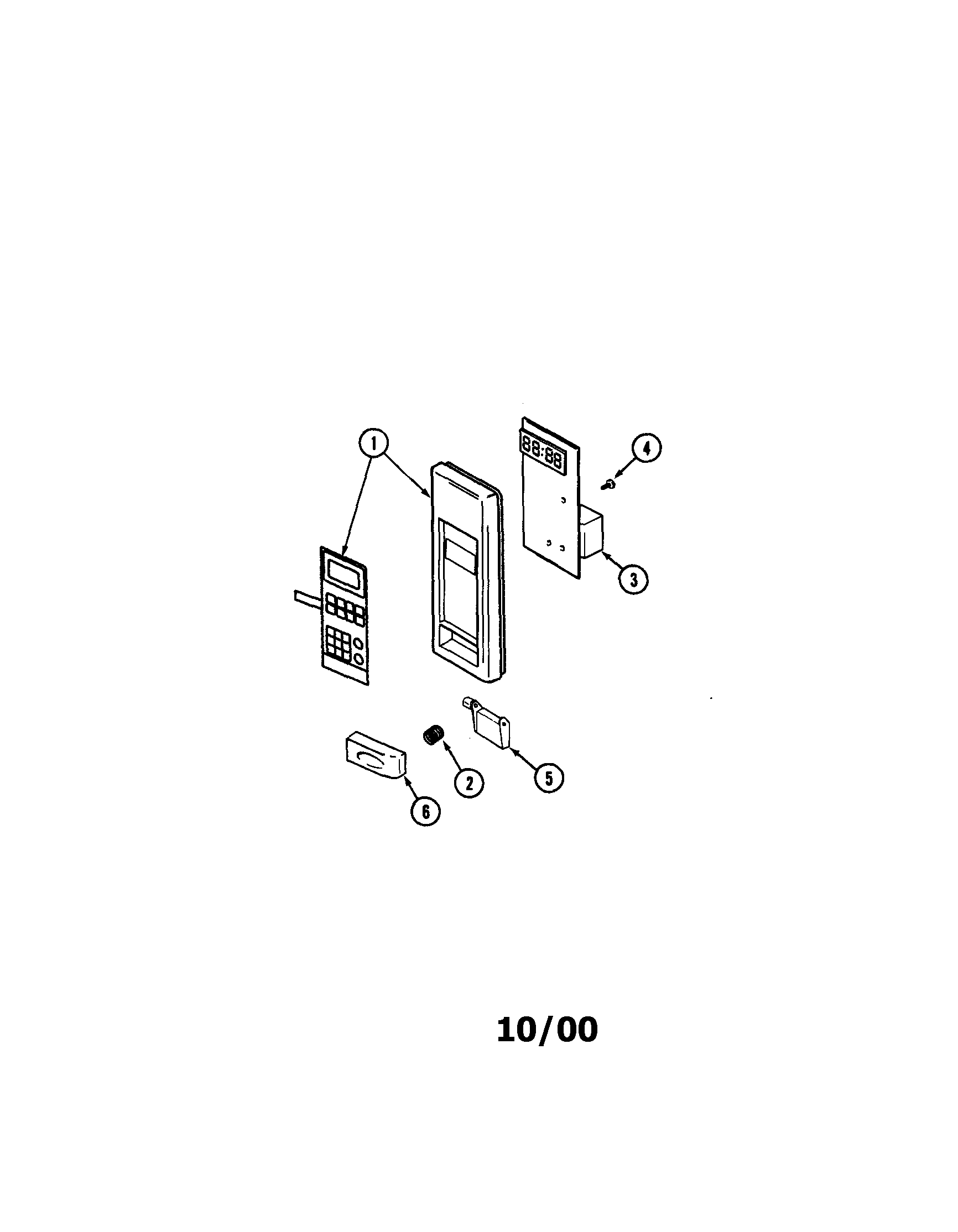

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
MMC5000BDW Microwaves
Screw 56001230
#23A

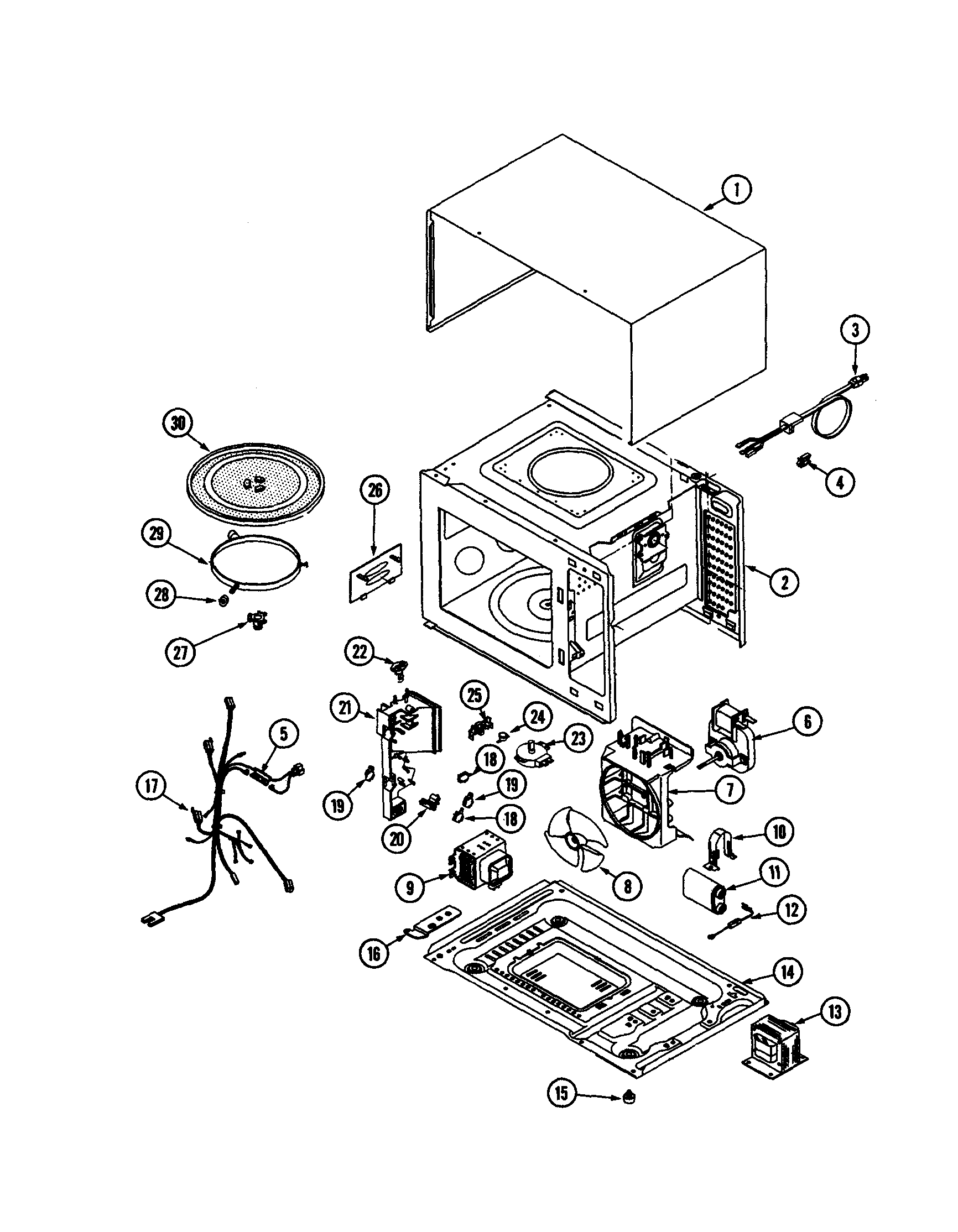

Cabinet-base-cavity diagram

Screw

Part #56001230

Replaced by #W10491985

?
Manufacturer substitution
This part replaces 56001230. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Diode 56001220
#12

Cabinet-base-cavity diagram

Diode

Part #56001220

Replaced by #WP13091701

?
Manufacturer substitution
This part replaces 56001220. Substitute parts can look different from the original.
$23.01 |
21% OFF Phone Price : $29.01
In Stock
Screw 56001151
Screw

Part #56001151

Replaced by #WP56001173

?
Manufacturer substitution
This part replaces 56001151. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Weld Door 56001204
#4

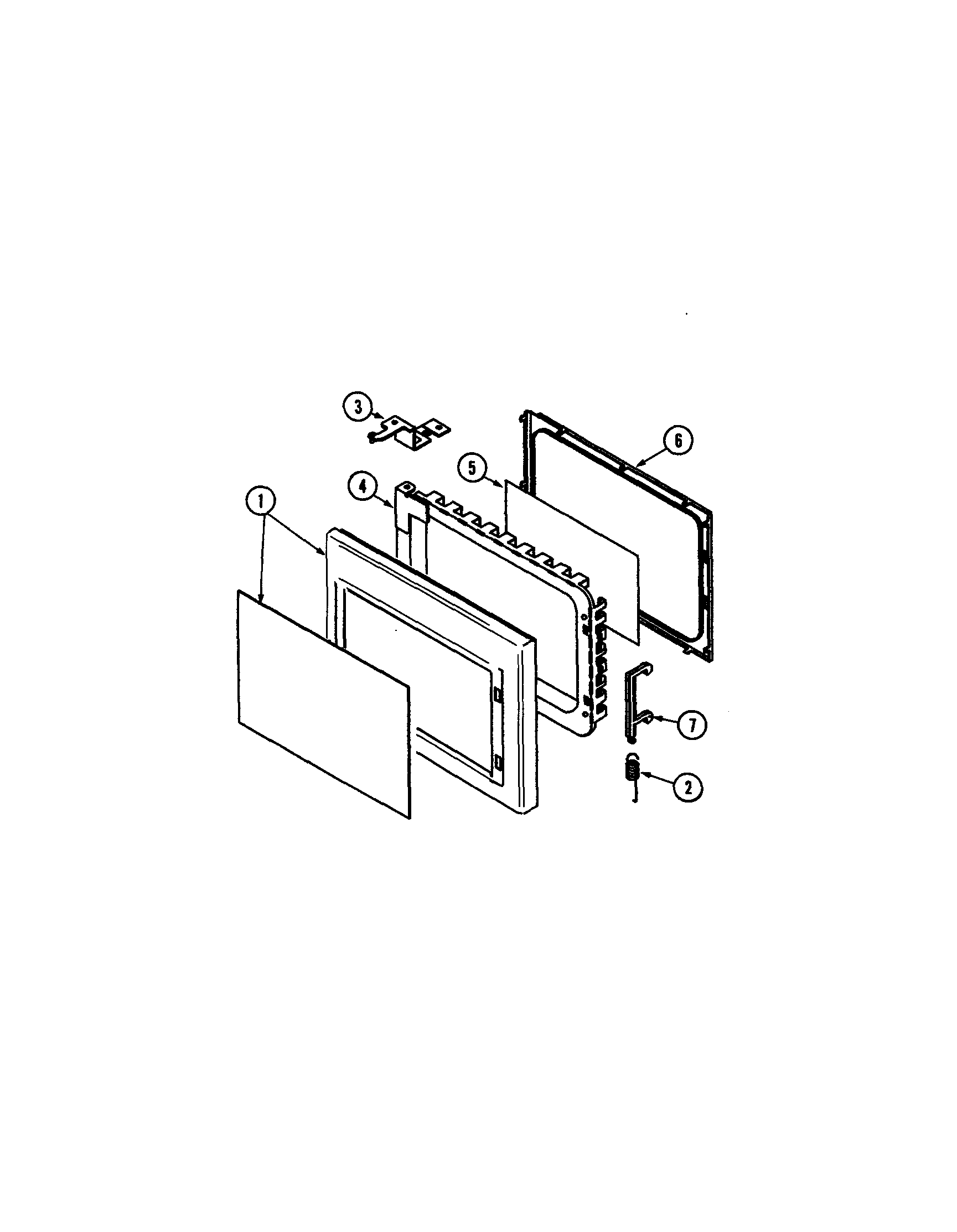

Door diagram

Weld door

Part #56001204

$56.20
In Stock
Magnetron 56001239
#9

Cabinet-base-cavity diagram

Magnetron

Part #56001239

The manufacturer no longer makes this part, and there's no substitute part

Fuse 51001303
#5A

Cabinet-base-cavity diagram

Fuse

Part #51001303

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 51001303. Substitute parts can look different from the original.
This item is not returnable
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Primary Switch 56001036
#18

Cabinet-base-cavity diagram

Primary switch

Part #56001036

Replaced by #WP56001036

?
Manufacturer substitution
This part replaces 56001036. Substitute parts can look different from the original.
$71.82
In Stock
Secondary Switch 56001037
#19

Cabinet-base-cavity diagram

Secondary switch

Part #56001037

Replaced by #W10915404

?
Manufacturer substitution
This part replaces 56001037. Substitute parts can look different from the original.
This item is not returnable
$14.75 |
12% OFF Phone Price : $16.75
In Stock
"holder, Ther" 56001233
#25

Cabinet-base-cavity diagram

"holder, ther"

Part #56001233

The manufacturer no longer makes this part, and there's no substitute part

Window Frame 56001242
#1

Door diagram

Window frame

Part #56001242

The manufacturer no longer makes this part, and there's no substitute part
