Model # 527252783 Official Sears pool table

Here are the diagrams and repair parts for Official Sears 527252783 pool table, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

End Rail 821-173
#10

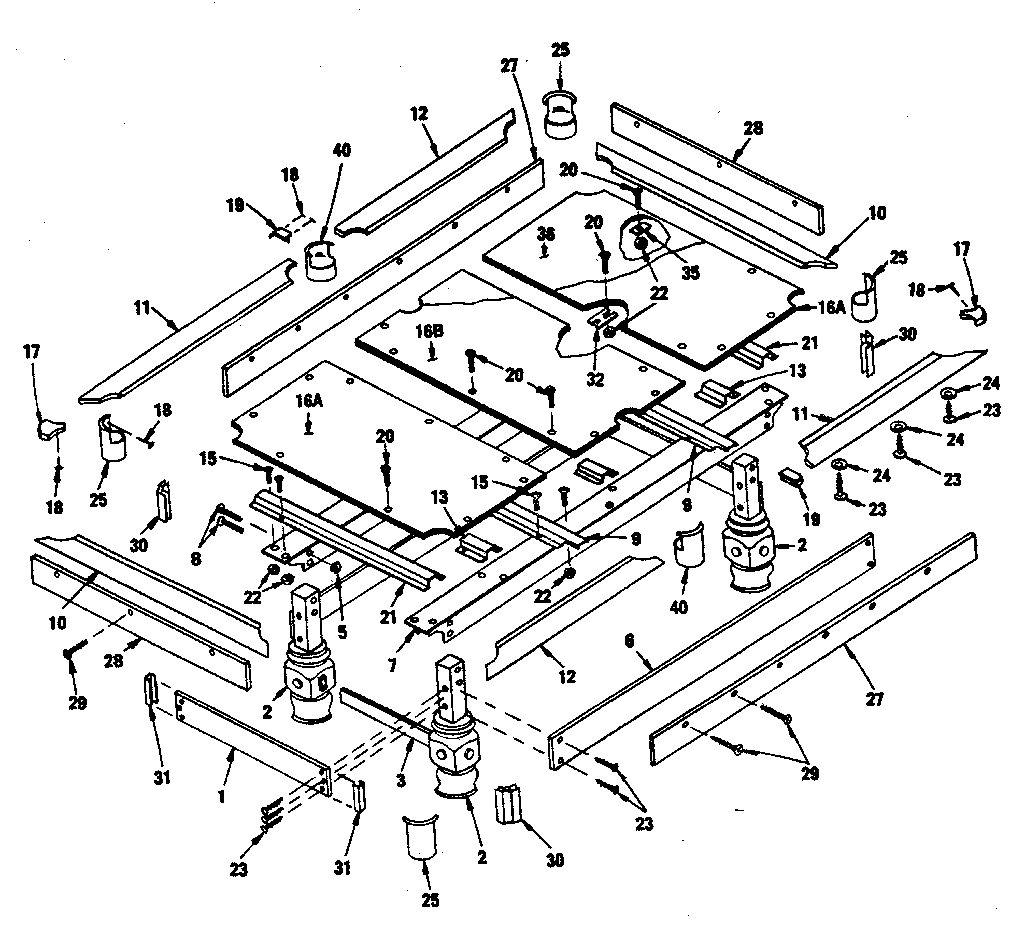

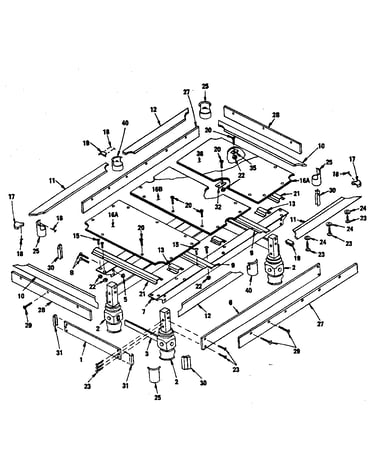

Unit parts diagram

End rail

Part #821-173

The manufacturer no longer makes this part, and there's no substitute part

Plastr/paris 818-18
#39

Unit parts diagram

Plastr/paris

Part #818-18

The manufacturer no longer makes this part, and there's no substitute part

#8 X 1-1/4" Screw 801-58
#29

Unit parts diagram

#8 x 1-1/4" screw

Part #801-58

The manufacturer no longer makes this part, and there's no substitute part

Slate-ctr Se 809-552
#16B

Unit parts diagram

Slate-ctr se

Part #809-552

The manufacturer no longer makes this part, and there's no substitute part

Jam Nut 801-37
#5

Unit parts diagram

Jam nut

Part #801-37

The manufacturer no longer makes this part, and there's no substitute part

Sht Shims 818-23
#34

Unit parts diagram

Sht shims

Part #818-23

The manufacturer no longer makes this part, and there's no substitute part

Board Screw 801-77
#23

Unit parts diagram

Board screw

Part #801-77

The manufacturer no longer makes this part, and there's no substitute part

Steel Slat 810-46
#21

Unit parts diagram

Steel slat

Part #810-46

The manufacturer no longer makes this part, and there's no substitute part

Leg 429-28
#2

Unit parts diagram

Leg

Part #429-28

The manufacturer no longer makes this part, and there's no substitute part

Washer 810-50
#35

Unit parts diagram

Washer

Part #810-50

The manufacturer no longer makes this part, and there's no substitute part
