Frigidaire
Dehumidifier

Model # FDL25P12 Official Frigidaire dehumidifier

Here are the diagrams and repair parts for Official Frigidaire FDL25P12 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

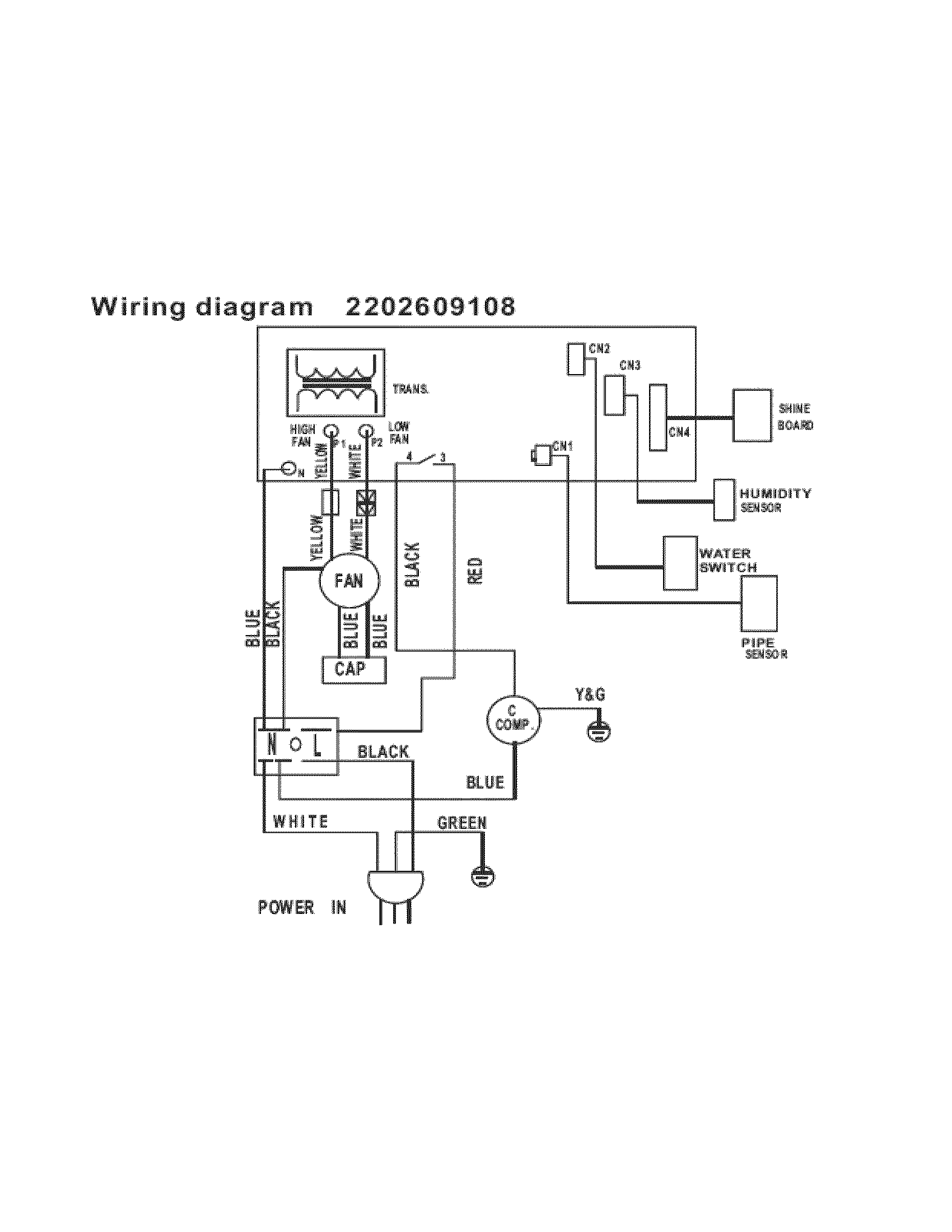

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Power Cord 5304448416
#NI

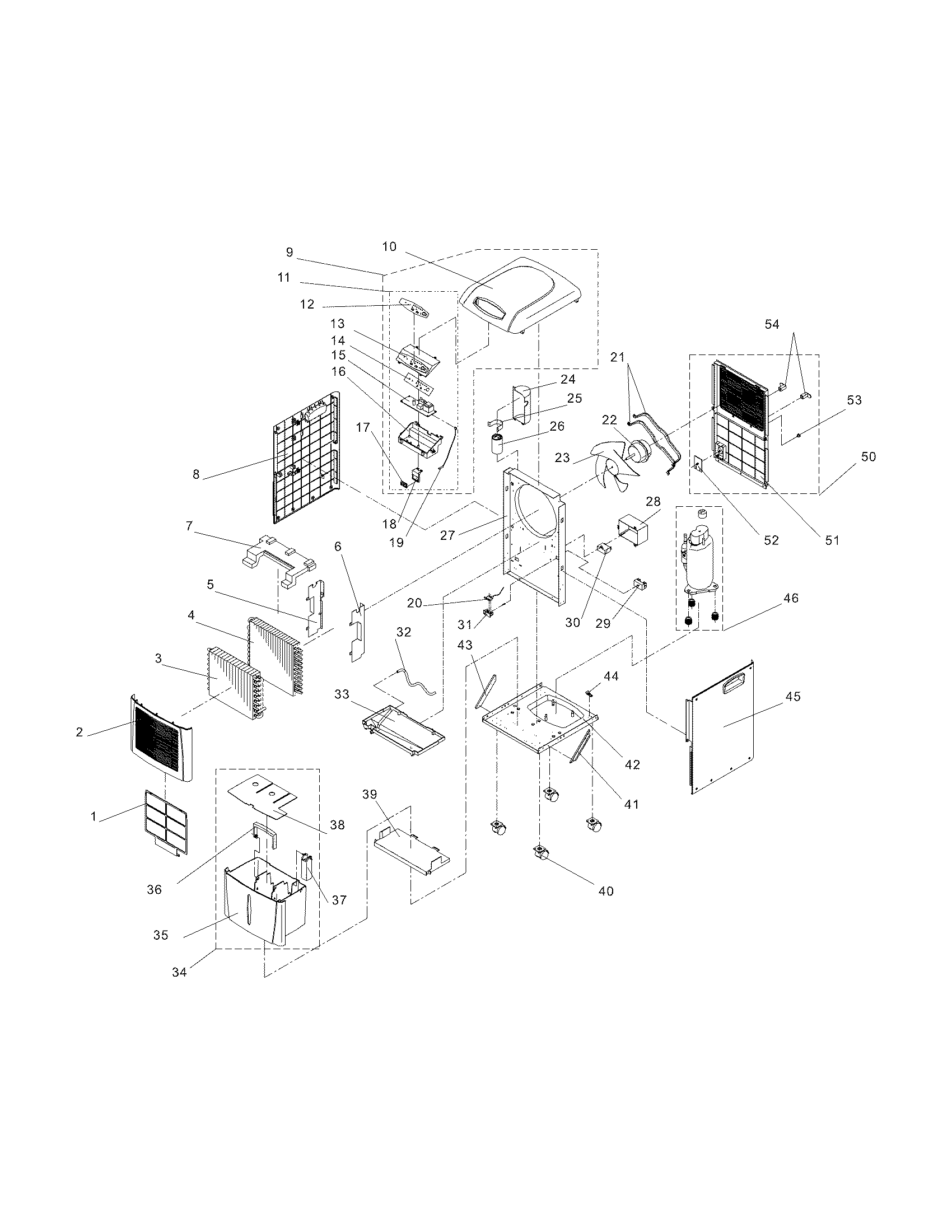

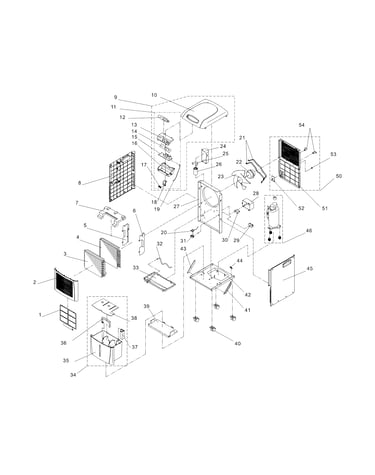

Recommended spare parts diagram

Power cord

Part #5304448416

$28.91
In Stock
Supporting B 5304447267
#41

Recommended spare parts diagram

Supporting b

Part #5304447267

This item is not returnable
$2.66
In Stock
Compressor 5304447272
#46

Recommended spare parts diagram

Compressor

Part #5304447272

$163.99
In Stock
Terminal Element 5304447255
#29

Recommended spare parts diagram

Terminal element

Part #5304447255

This item is not returnable
$3.50
In Stock
Air Condenser 5304447108
#4

Recommended spare parts diagram

Air condenser

Part #5304447108

$78.70
In Stock
Humdi Sensor 5304447246
#17

Recommended spare parts diagram

Humdi sensor

Part #5304447246

$99.09
In Stock
Fan Motor 5304447278
#22

Recommended spare parts diagram

Fan motor

Part #5304447278

$32.88
In Stock
Fan Motor Capacitor 5304447256
#30

Recommended spare parts diagram

Fan motor capacitor

Part #5304447256

$7.79
In Stock
Base 5304447268
#42

Recommended spare parts diagram

Base

Part #5304447268

$27.31
In Stock
Bracket 5304447247
#18

Recommended spare parts diagram

Bracket

Part #5304447247

This item is not returnable
$2.16
In Stock
