Model # GWE23GYNDFS Official GE refrigerator

Here are the diagrams and repair parts for Official GE GWE23GYNDFS refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

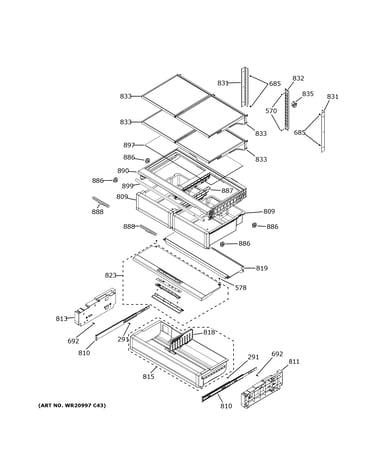

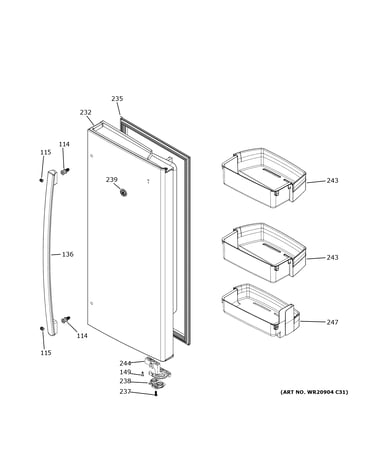

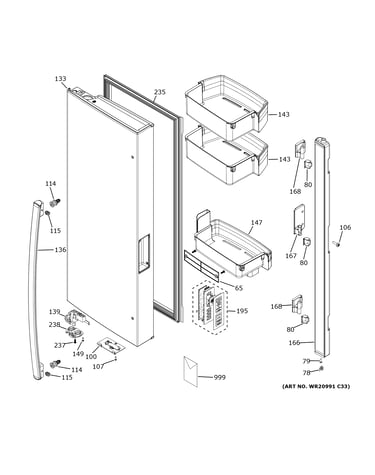

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Refrigerator Temperature Sensor WR55X11153
#955

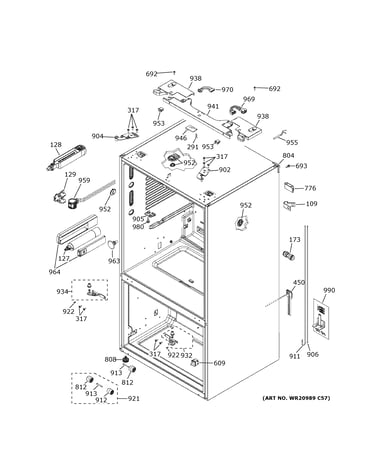

Case parts diagram

Refrigerator temperature sensor

Part #WR55X11153

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11153. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock
Refrigerator Temperature Sensor WR55X11152
#719

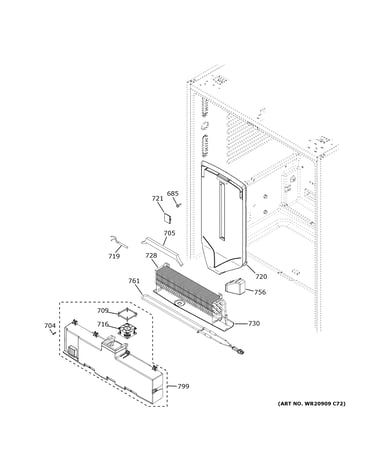

Fresh food section diagram

Refrigerator temperature sensor

Part #WR55X11152

Replaced by #WR55X10025

?
Manufacturer substitution
This part replaces WR55X11152. Substitute parts can look different from the original.
BEST SELLER
$19.47 |
9% OFF Phone Price : $21.47
In Stock

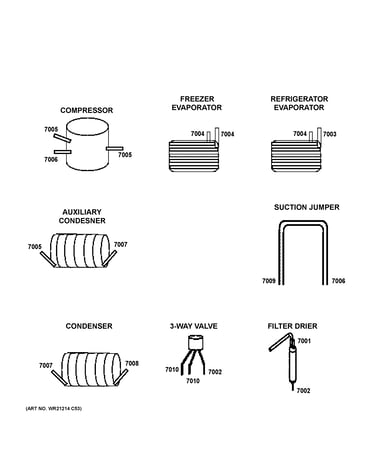

Refrigerator Filter Dryer WR86X10089
#940

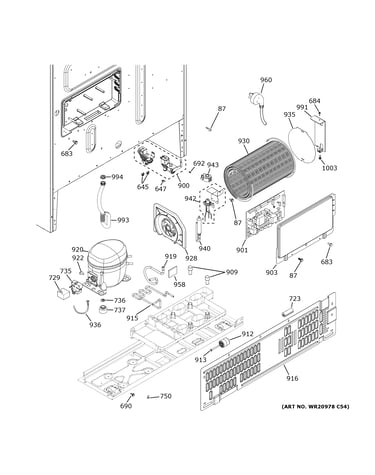

Machine compartment diagram

Refrigerator filter dryer

Part #WR86X10089

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X10089. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Refrigerator Freezer Door Gasket WR14X31558
#312

Freezer door diagram

Refrigerator freezer door gasket

Part #WR14X31558

Replaced by #WR14X36194

?
Manufacturer substitution
This part replaces WR14X31558. Substitute parts can look different from the original.
BEST SELLER
$58.11 |
9% OFF Phone Price : $64.11
In Stock
Fresh Food Door Light Switch WR23X29162
#953

Case parts diagram

Fresh food door light switch

Part #WR23X29162

Replaced by #WR23X29161

?
Manufacturer substitution
This part replaces WR23X29162. Substitute parts can look different from the original.
BEST SELLER
$8.96 |
10% OFF Phone Price : $9.96
In Stock
Refrigerator Water Filter Head WR02X13684
#959

Case parts diagram

Refrigerator water filter head

Part #WR02X13684

BEST SELLER
$39.73 |
13% OFF Phone Price : $45.73
In Stock
Refrigerator Fan Motor WR60X35665
#716

Fresh food section diagram

Refrigerator fan motor

Part #WR60X35665

Replaced by #WR60X35205

?
Manufacturer substitution
This part replaces WR60X35665. Substitute parts can look different from the original.
BEST SELLER
$102.20
In Stock
Refrigerator Evaporator WR87X36486
#728

Fresh food section diagram

Refrigerator evaporator

Part #WR87X36486

Replaced by #WR87X36103

?
Manufacturer substitution
This part replaces WR87X36486. Substitute parts can look different from the original.
BEST SELLER
$86.35
In Stock
Ice Maker WR30X29368
#550

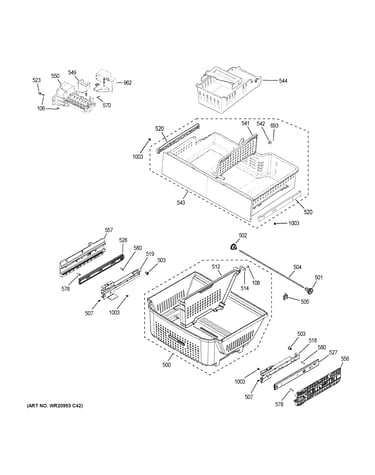

Freezer shelves diagram

Ice maker

Part #WR30X29368

Replaced by #WR30X28682

?
Manufacturer substitution
This part replaces WR30X29368. Substitute parts can look different from the original.
BEST SELLER
$91.75 |
6% OFF Was : $97.10
In Stock
Refrigerator Refrigerant Valve (replaces Wr86x10091, Wr86x10093) WR86X10094
#942

Machine compartment diagram

Refrigerator refrigerant valve (replaces wr86x10091, wr86x10093)

Part #WR86X10094

BEST SELLER
$81.39 |
7% OFF Phone Price : $87.39
In Stock
