Panasonic
Countertop Microwave

Model # NN-SD697S Official Panasonic microwave

Here are the diagrams and repair parts for Official Panasonic NN-SD697S microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

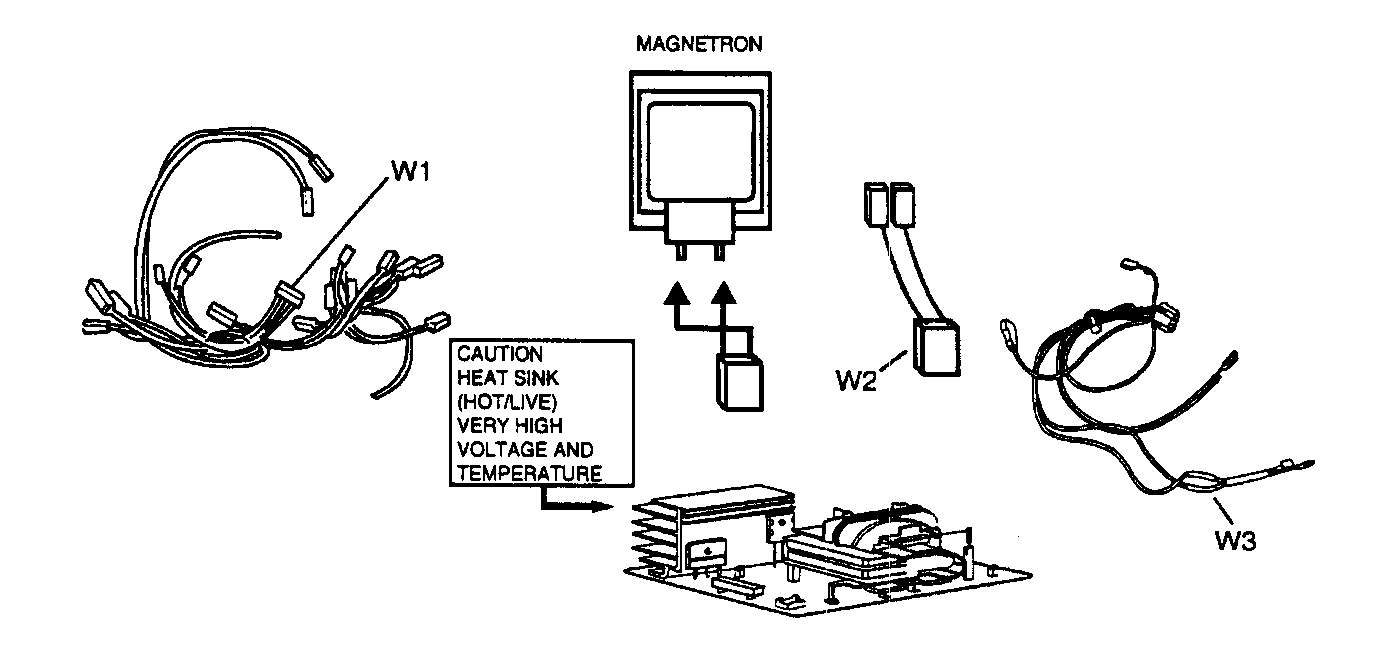

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |
Switch J61414T00AP
#27

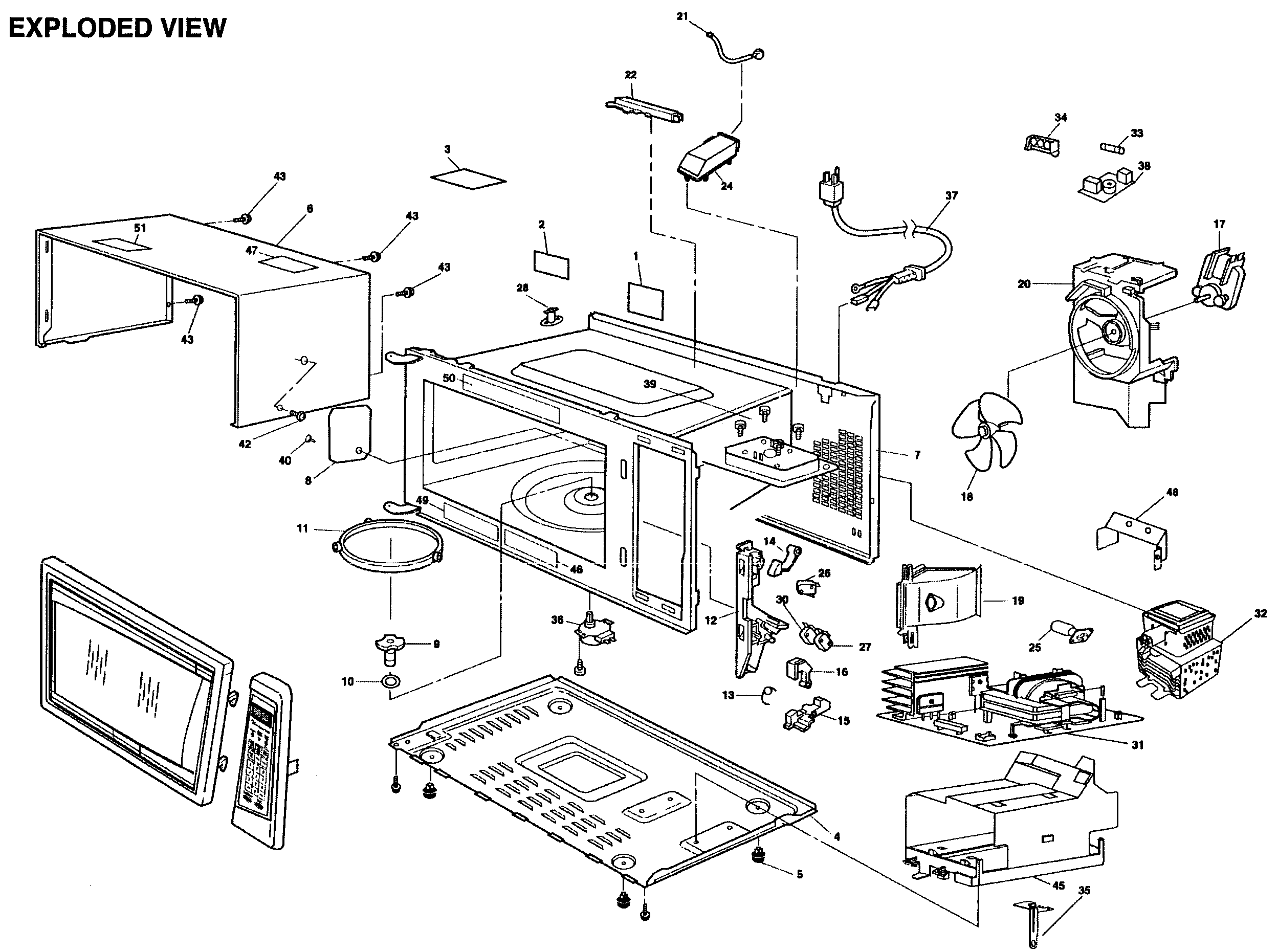

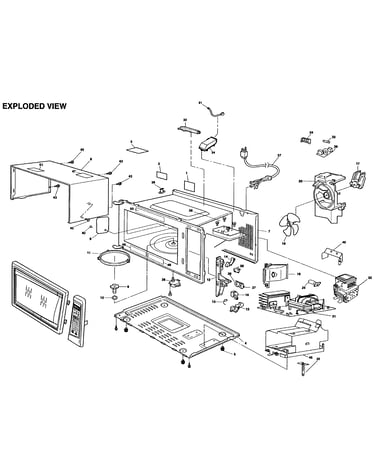

Cabinet assy diagram

Switch

Part #J61414T00AP

Replaced by #3B73362F

?
Manufacturer substitution
This part replaces J61414T00AP. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Panasonic Roller F290D9330AP
#11

Cabinet assy diagram

Panasonic roller

Part #F290D9330AP

$15.79 |
11% OFF Phone Price : $17.79
In Stock
Microwave Door Latch F30186P40AG
#D1

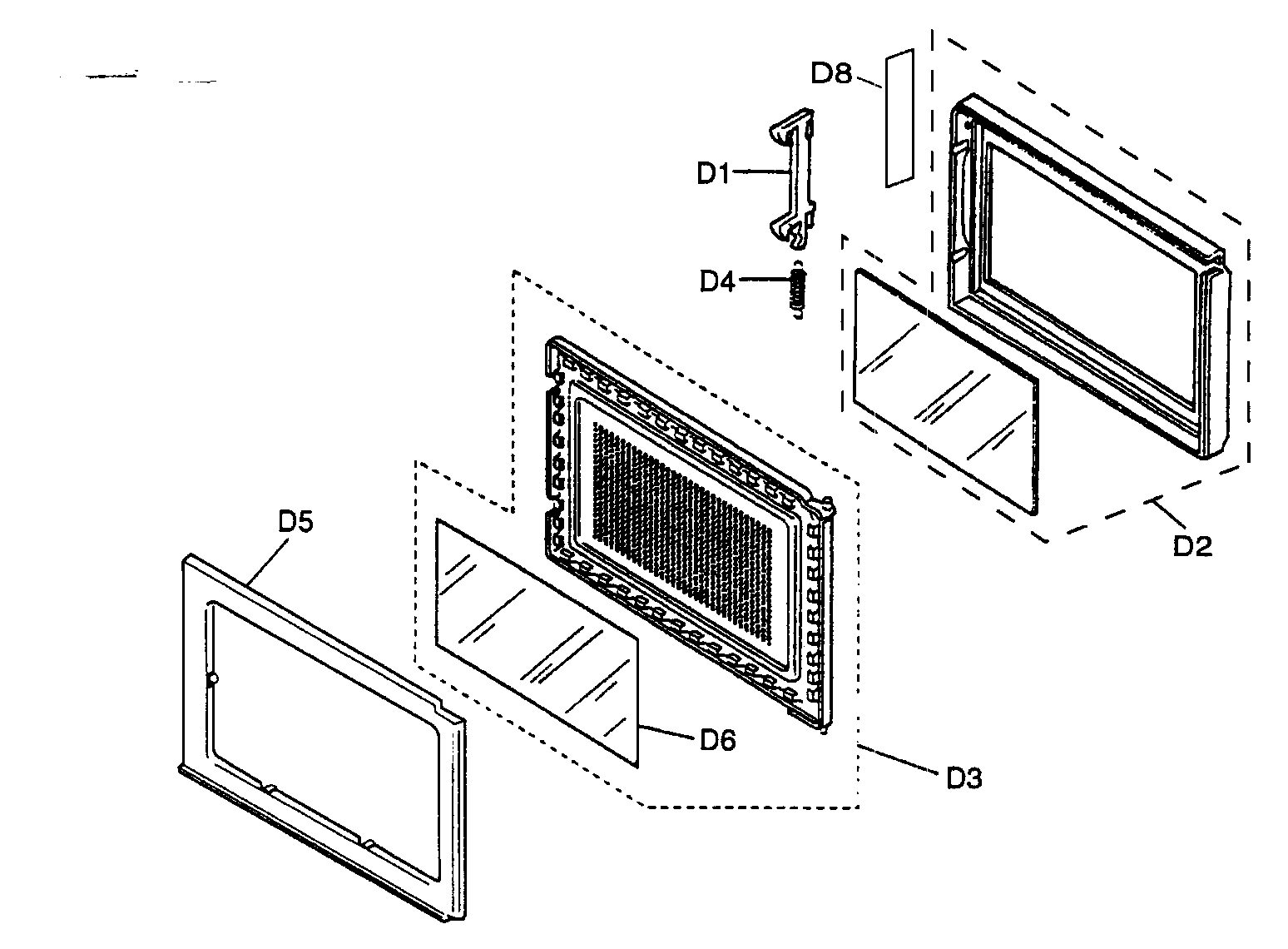

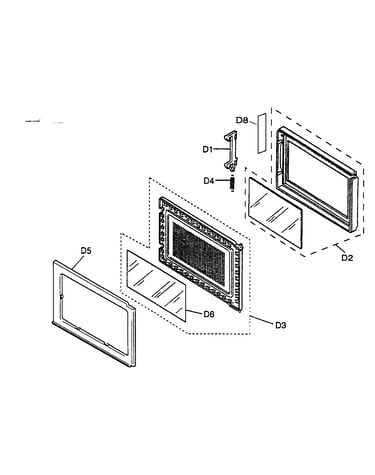

Door assy diagram

Microwave door latch

Part #F30186P40AG

Replaced by #F30186P40CP

?
Manufacturer substitution
This part replaces F30186P40AG. Substitute parts can look different from the original.
This item is not returnable
$8.88
In Stock
Panasonic Panasonic Button F80725Y00SAP
#E6

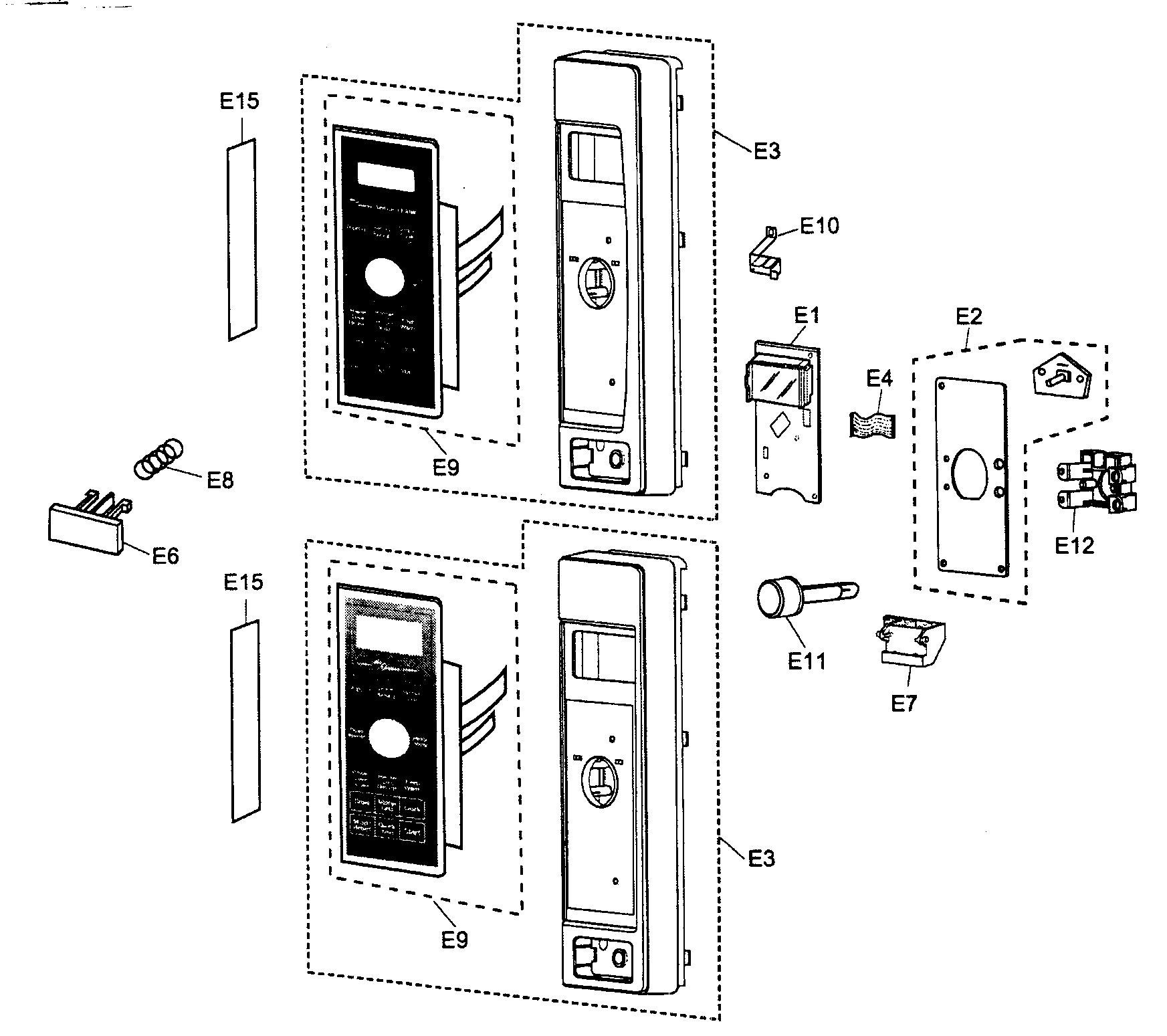

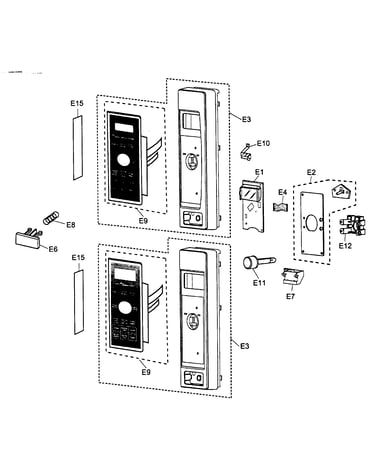

Control assy diagram

Panasonic panasonic button

Part #F80725Y00SAP

$12.49
In Stock
Panasonic Cutout F61456N60AP
#28

Cabinet assy diagram

Panasonic cutout

Part #F61456N60AP

This item is not returnable
$16.59 |
11% OFF Phone Price : $18.59
In Stock
Panasonic Magnetron 2M261-M32KLP
#32

Cabinet assy diagram

Panasonic magnetron

Part #2M261-M32KLP

$120.95
In Stock
Panasonic Inverter F606Y8M00AP
#31

Cabinet assy diagram

Panasonic inverter

Part #F606Y8M00AP

$145.70
In Stock
Panasonic Switch F61785U30XN
#30

Cabinet assy diagram

Panasonic switch

Part #F61785U30XN

$14.89 |
12% OFF Phone Price : $16.89
In Stock
Panasonic Dial F803G7D00BAP
#E11

Control assy diagram

Panasonic dial

Part #F803G7D00BAP

$44.49
In Stock
Panasonic Panasonic Owners Man F00038M00AP
#NI

Cabinet assy diagram

Panasonic panasonic owners man

Part #F00038M00AP

$27.49
In Stock
