Model # TDX9SNXBRWH Official GE refrigerator - x series

Here are the diagrams and repair parts for Official GE TDX9SNXBRWH refrigerator - x series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

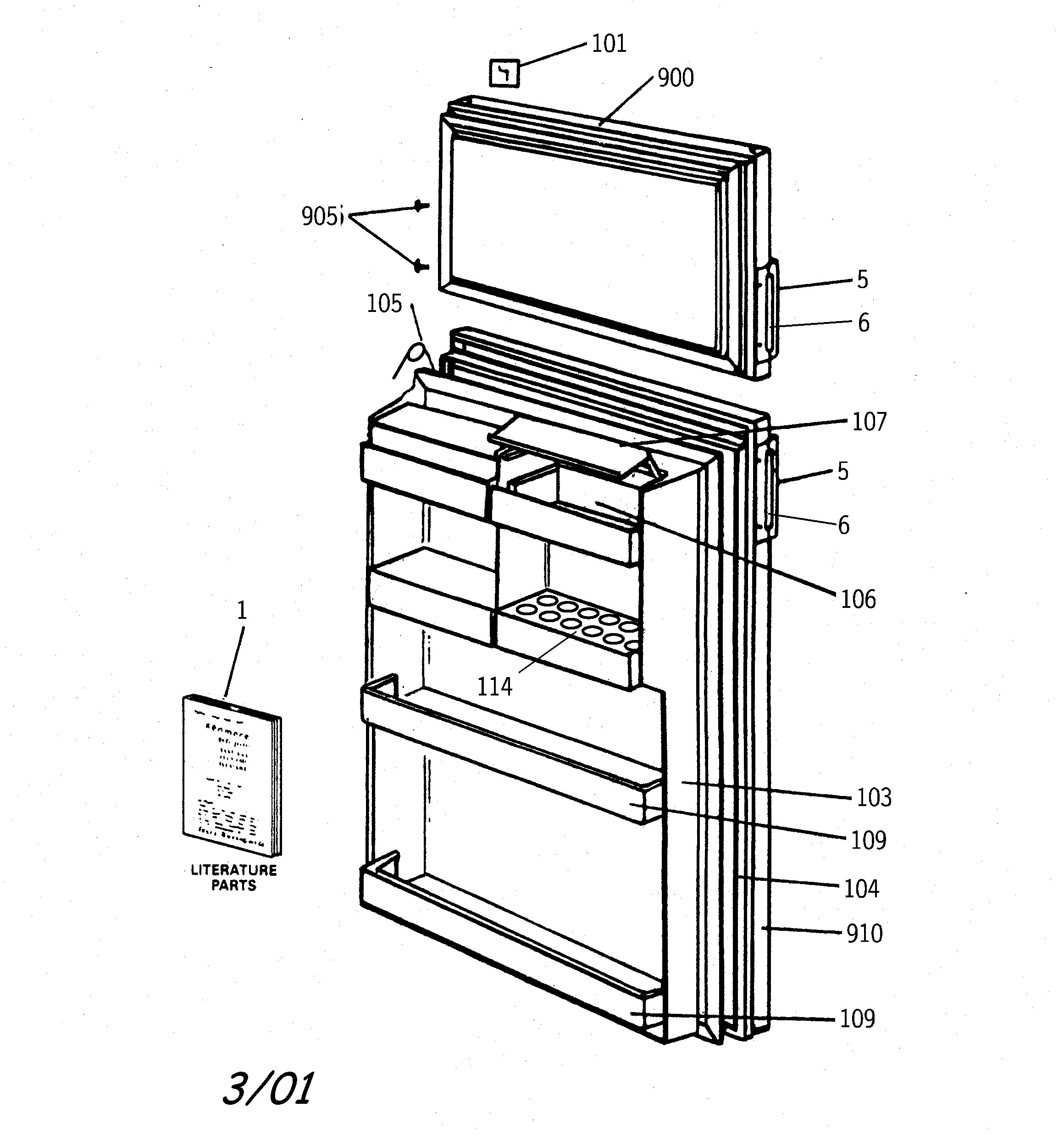

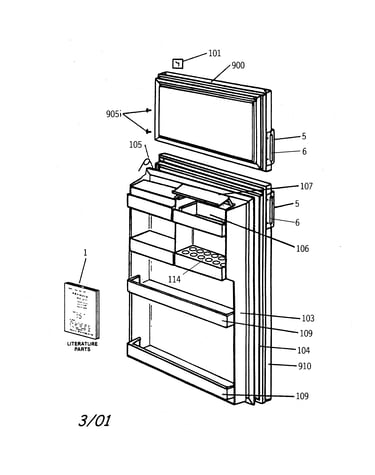

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |
Dryer Filter WR86X0096
#740

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X0108
#626

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Kenmore Socket WR23X5180
#435

Unit parts diagram

Kenmore socket

Part #WR23X5180

$40.00
In Stock
Foot WR02X8319
#287

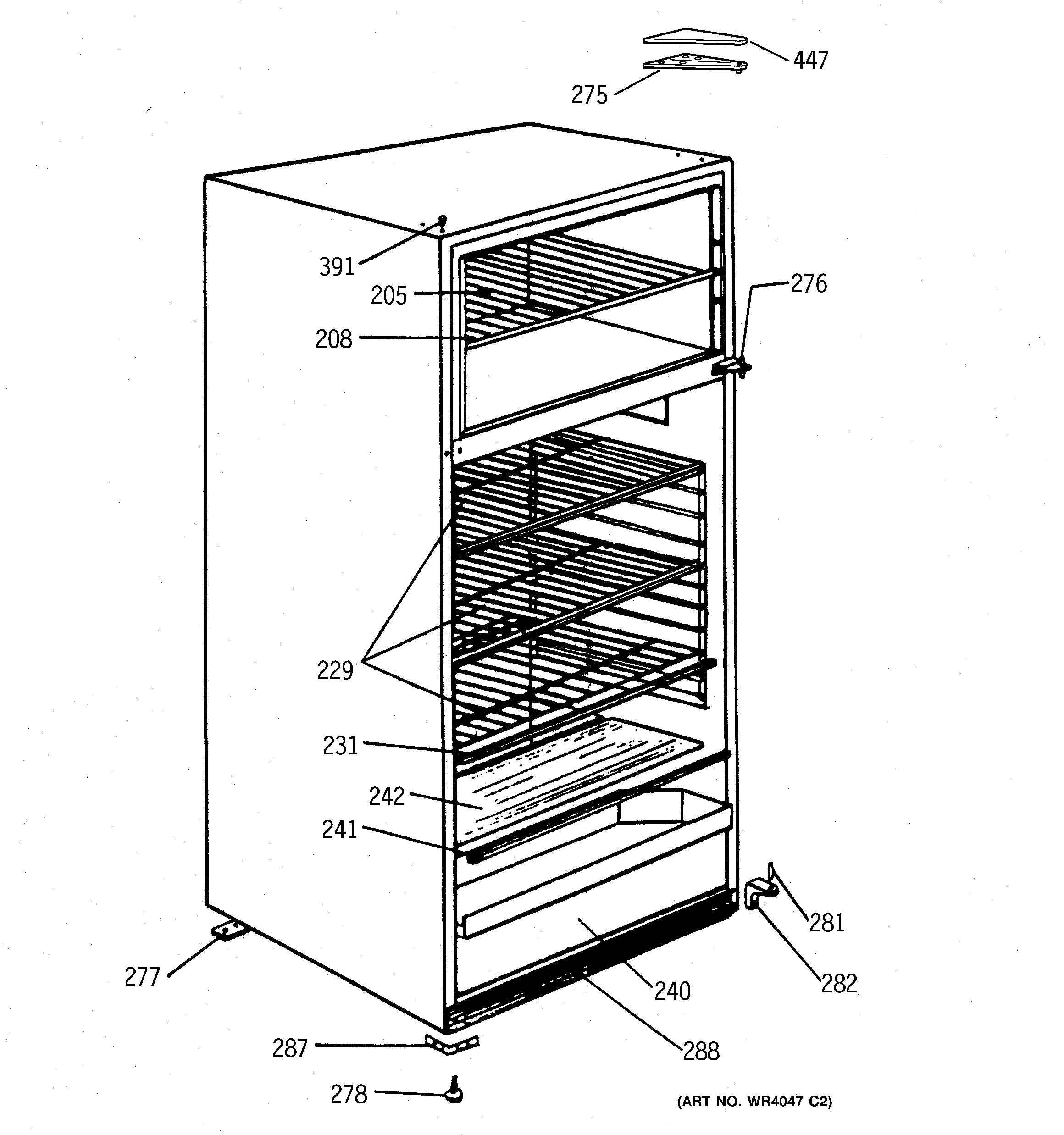

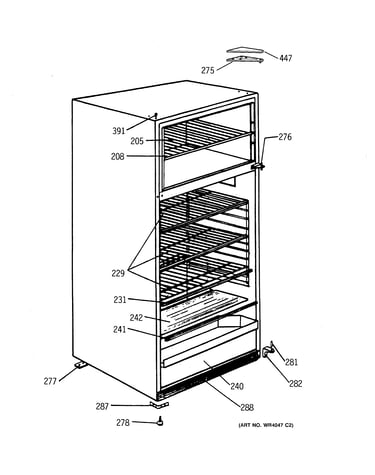

Cabinet diagram

Foot

Part #WR02X8319

Replaced by #WR2X8319

?
Manufacturer substitution
This part replaces WR02X8319. Substitute parts can look different from the original.
$25.01
In Stock
Refrigerator Evaporator Assembly NOT-AVAILA
#726

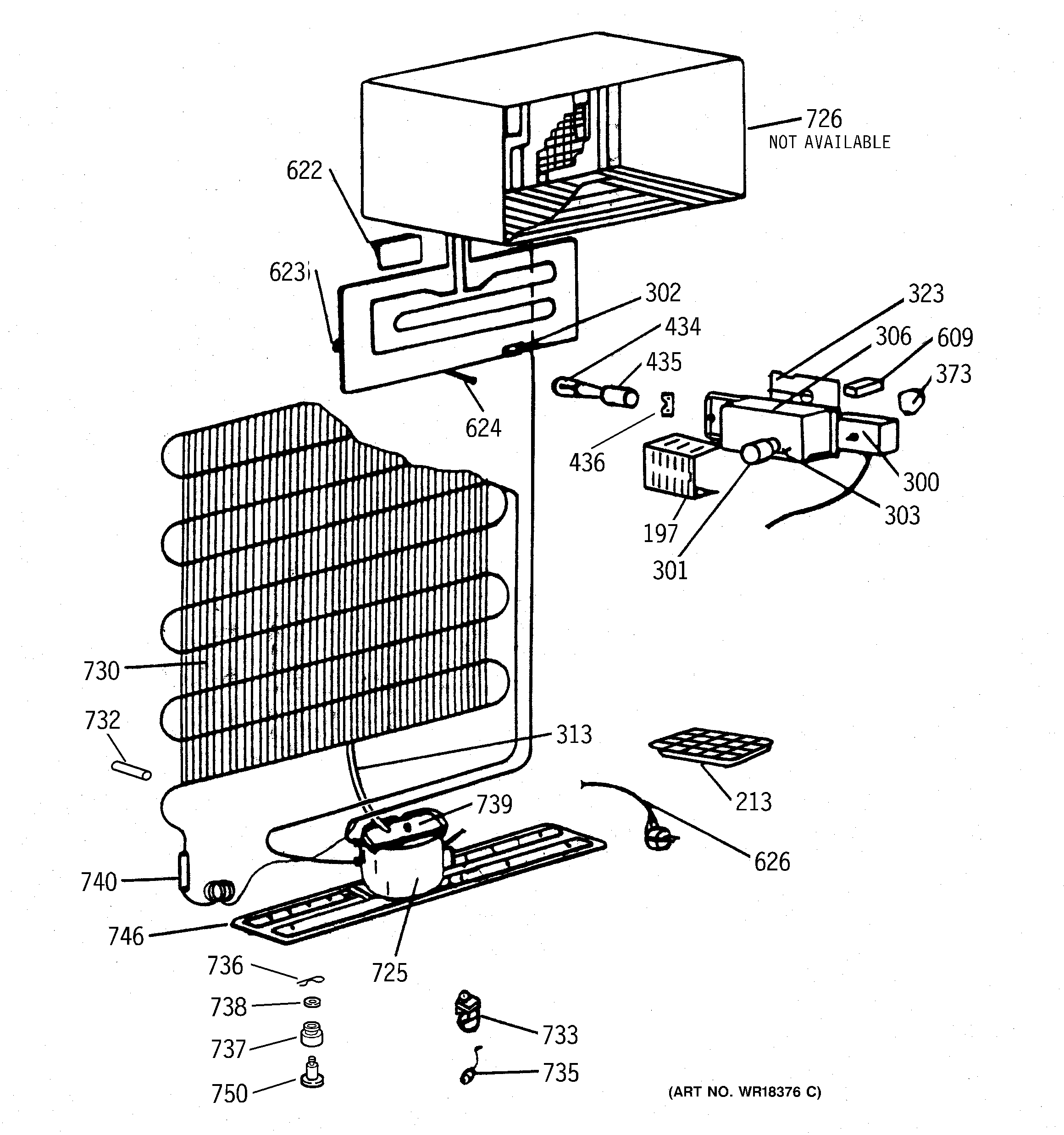

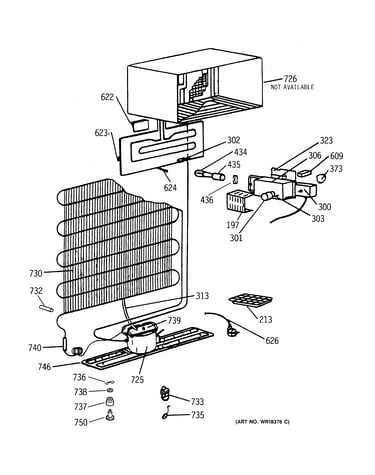

Unit parts diagram

Refrigerator evaporator assembly

Part #NOT-AVAILA

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spacer WR02X8322
#623

Unit parts diagram

Refrigerator spacer

Part #WR02X8322

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Trim WR38X5423
#208

Cabinet diagram

Refrigerator trim

Part #WR38X5423

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Spring WR01X5772
#303

Unit parts diagram

Refrigerator spring

Part #WR01X5772

The manufacturer no longer makes this part, and there's no substitute part

Water Pan WR17X6487
#746

Unit parts diagram

Water pan

Part #WR17X6487

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Door Switch WR23X5181
#609

Unit parts diagram

Refrigerator door switch

Part #WR23X5181

The manufacturer no longer makes this part, and there's no substitute part
