Model # 58052650000 Official Kenmore dehumidifier

Here are the diagrams and repair parts for Official Kenmore 58052650000 dehumidifier, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 37 parts |

#8-C

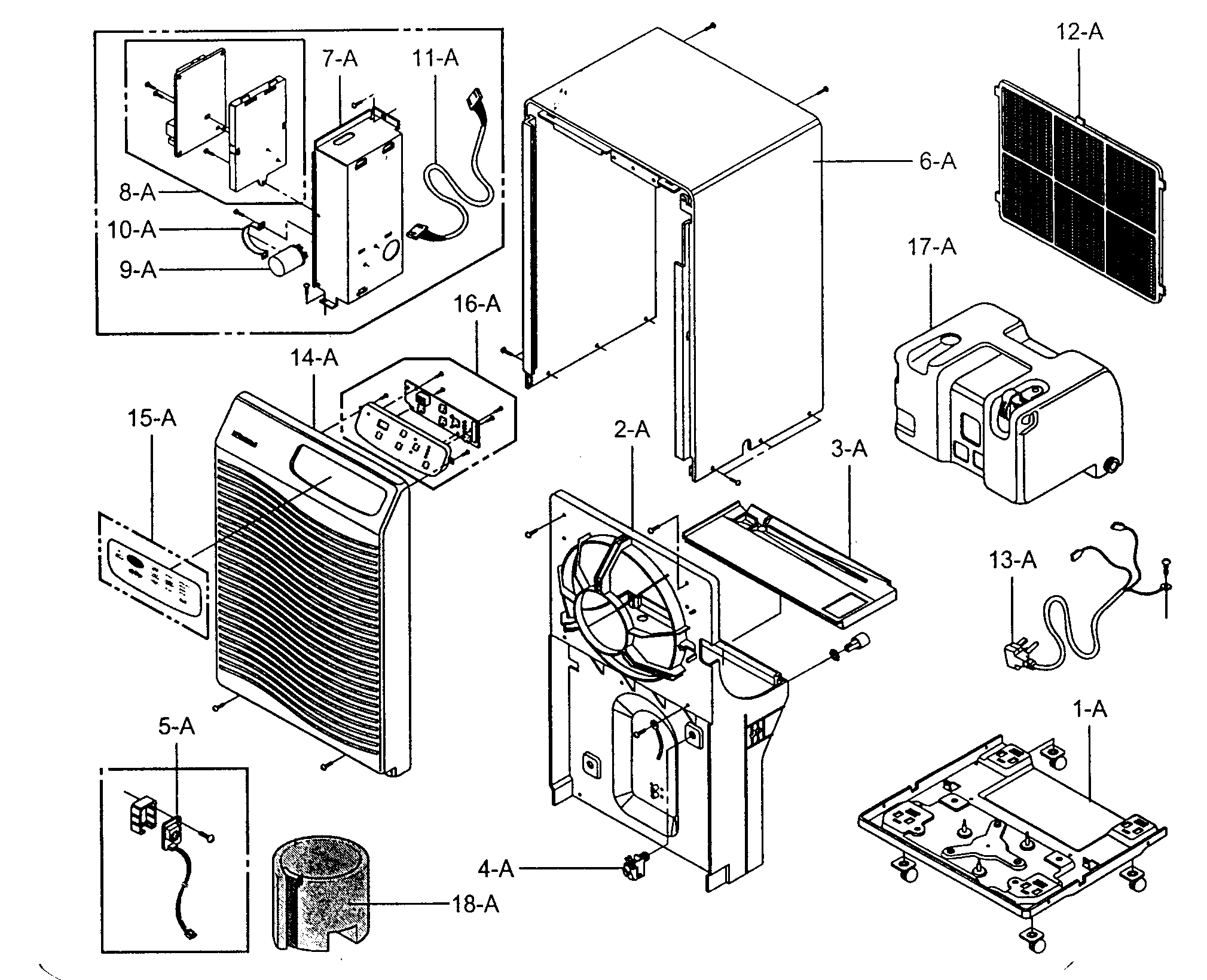

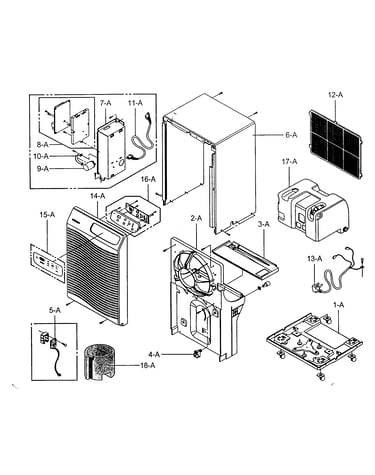

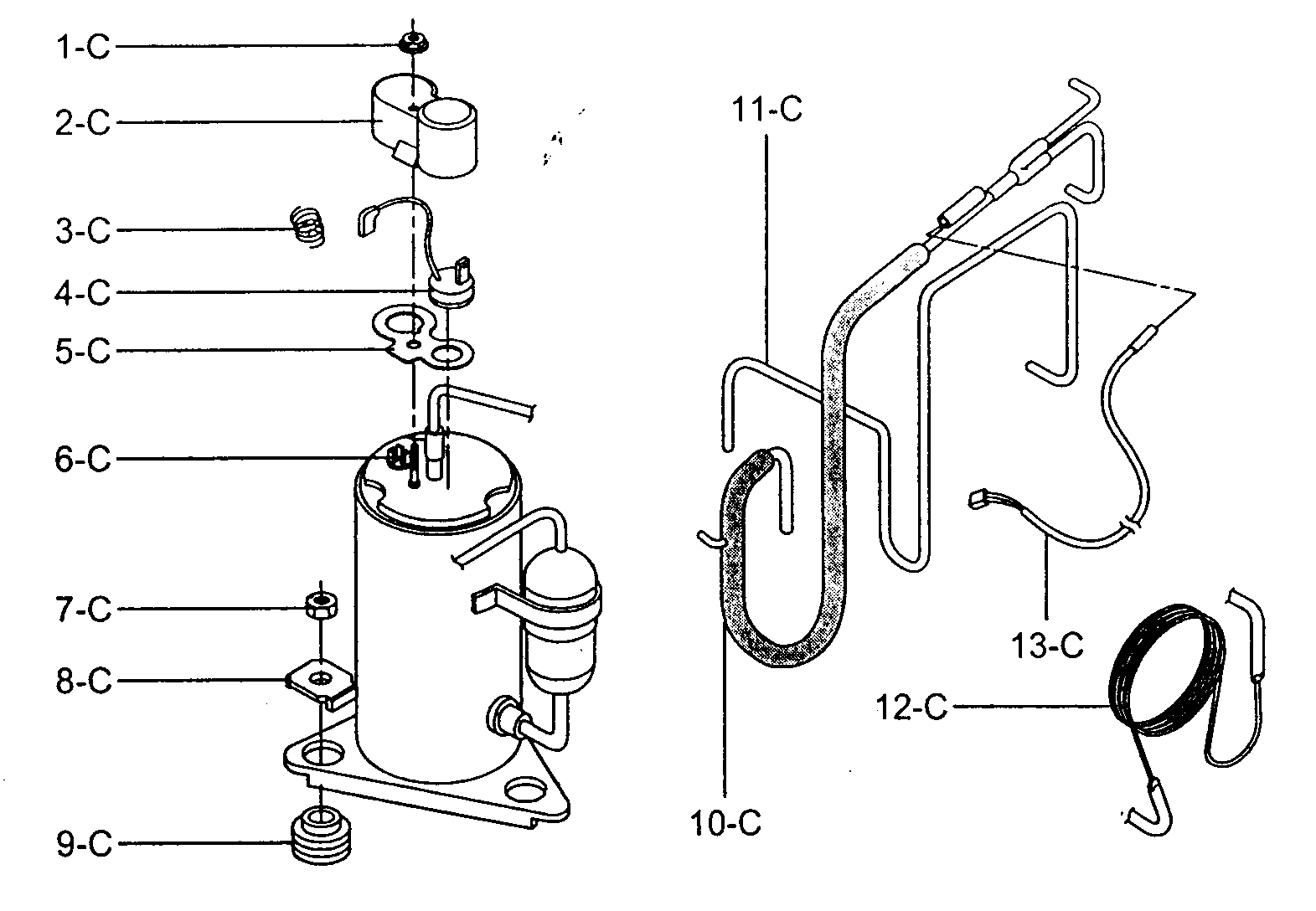

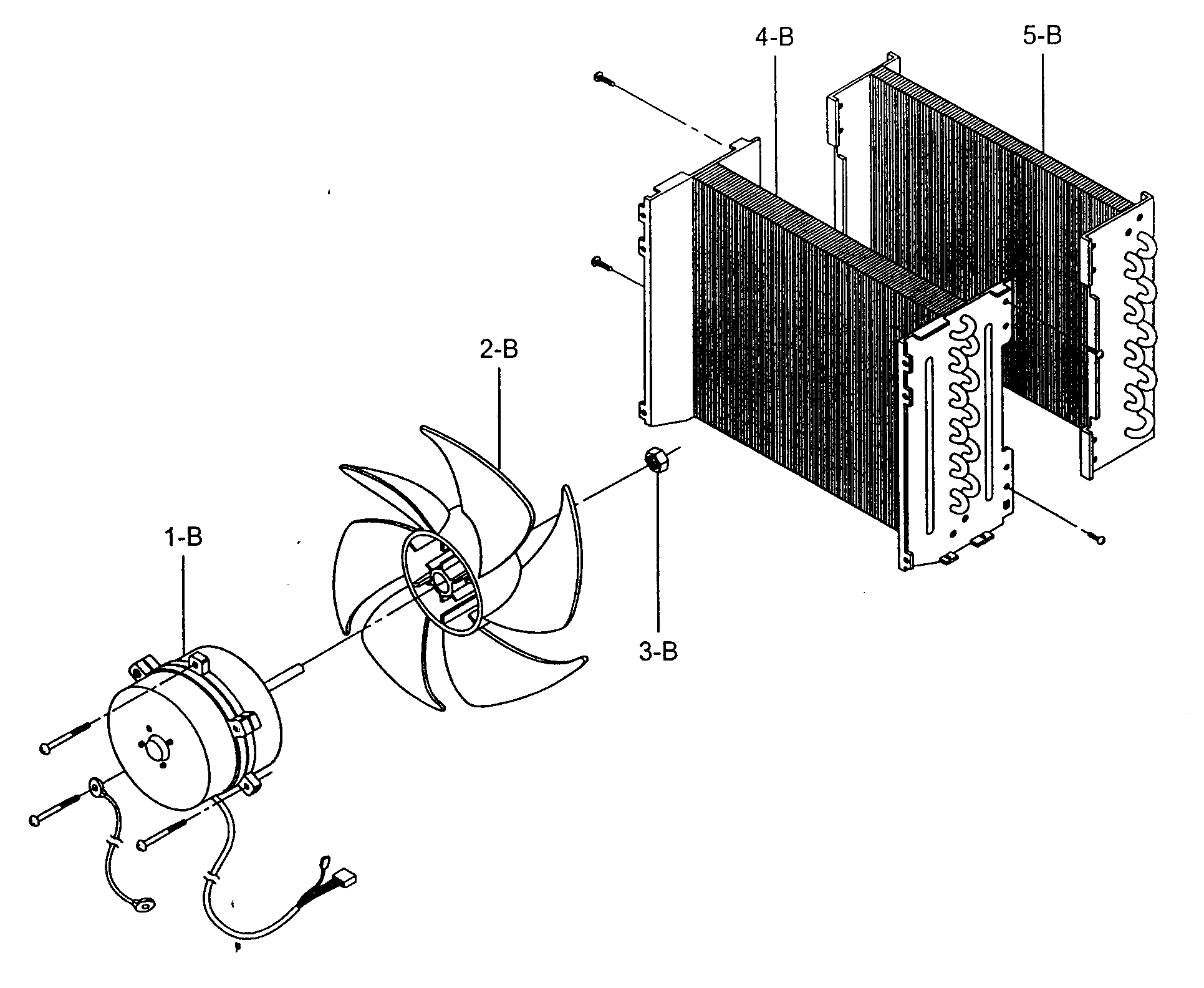

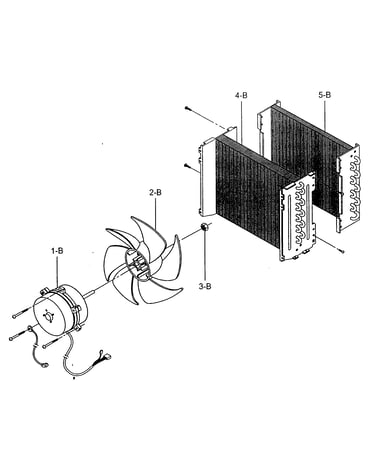

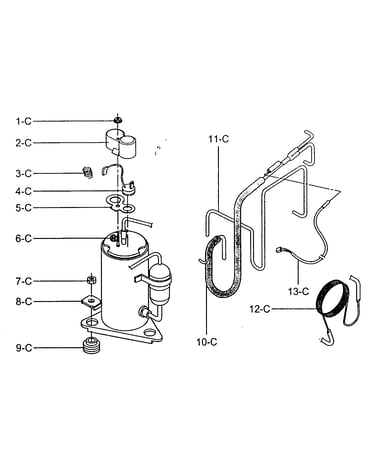

Cabinet parts diagram

Brkt,wshr

Part #4810AR4155A

This item is not returnable

$4.51

In Stock

Qty

#3-B

Cabinet parts diagram

Lg nut

Part #4H02861A

This item is not returnable

$4.51

In Stock

Qty

#2-C

Cabinet parts diagram

Goldstar cover

Part #3550-CL001D

$106.86

In Stock

Qty

#10-A

Cabinet parts diagram

Clamp

Part #4H00442J

This item is not returnable

$4.51

In Stock

Qty

#7-C

Cabinet parts diagram

Hex nut

Part #1NHA0801206

This item is not returnable

$4.51

In Stock

Qty

Room Air Conditioner Compressor Overload Protector 6750U-L035A

#4-C

Cabinet parts diagram

Room air conditioner compressor overload protector

Part #6750U-L035A

$23.07

In Stock

Qty

#1-C

Cabinet parts diagram

Nut

Part #4H00947A

This item is not returnable

$4.51

In Stock

Qty

#14-A

Cabinet parts diagram

Front grille

Part #3530A10006F

$26.93

In Stock

Qty

#9-C

Cabinet parts diagram

Bushing

Part #4830A30005A

The manufacturer no longer makes this part, and there's no substitute part

#9-A

Cabinet parts diagram

Capacitor

Part #OCZZA20001F

Replaced by #0CZZA20001F

$35.96

In Stock

Qty
