Model # 900277240 Official Craftsman 5" angle grinder

Here are the diagrams and repair parts for Official Craftsman 900277240 5" angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |
Craftsman Holder 402869-03
#132

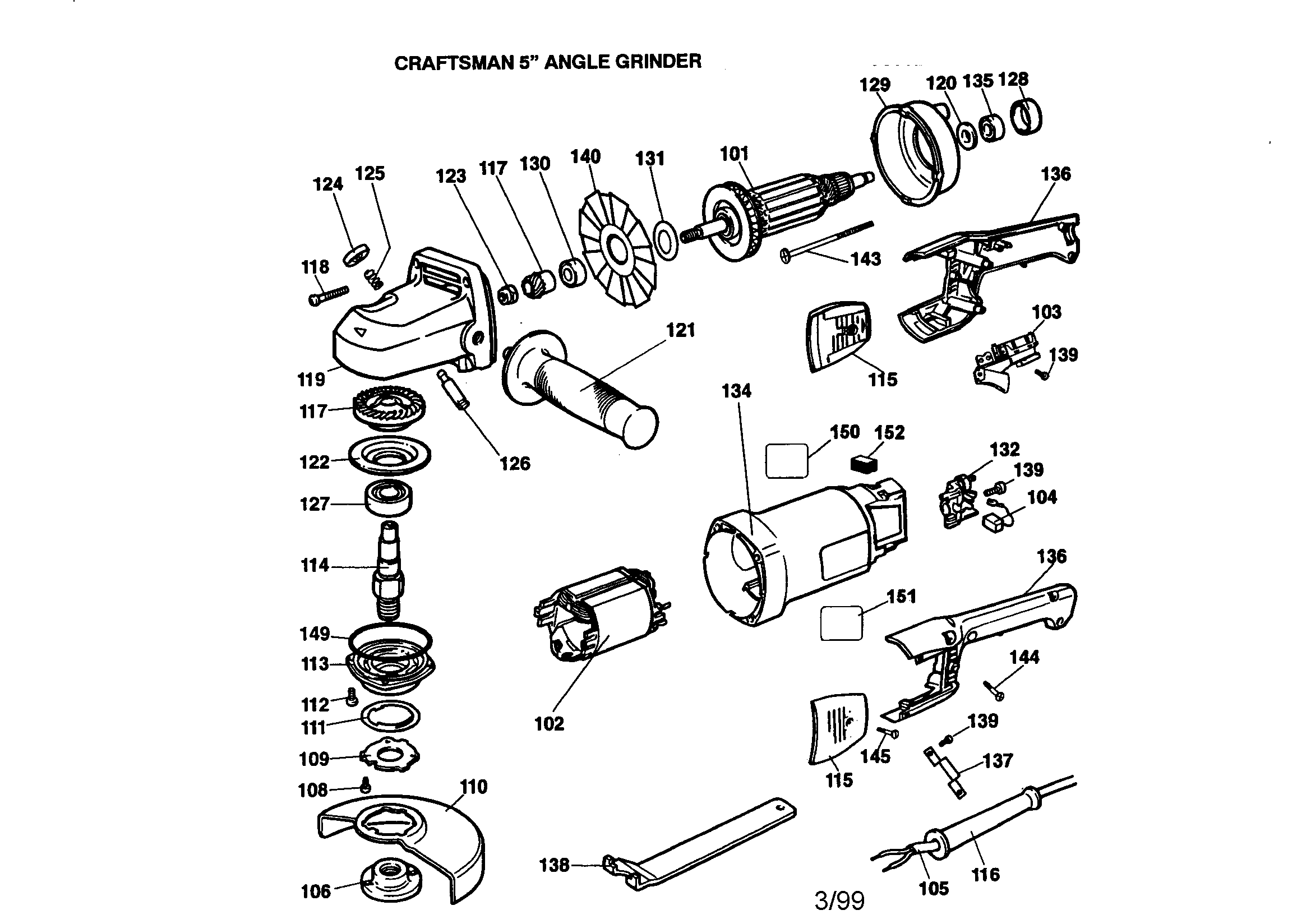

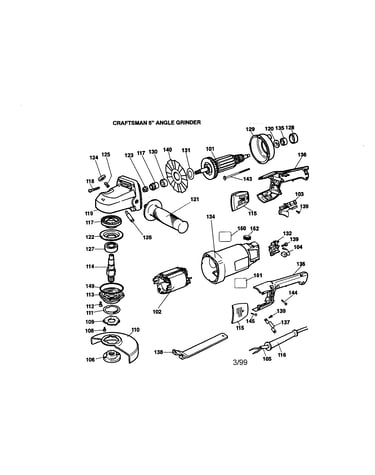

Craftsman 5" angle grinder diagram

Craftsman holder

Part #402869-03

The manufacturer no longer makes this part, and there's no substitute part

Screw 945280-00
#145

Craftsman 5" angle grinder diagram

Screw

Part #945280-00

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Screw 562160-00
#108

Craftsman 5" angle grinder diagram

Dewalt screw

Part #562160-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 562097-03
#144

Craftsman 5" angle grinder diagram

Screw

Part #562097-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Angle Grinder Spindle Lock Button 944575-00
#124

Craftsman 5" angle grinder diagram

Dewalt angle grinder spindle lock button

Part #944575-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw, 2-pack 562097-11
#143

Craftsman 5" angle grinder diagram

Craftsman screw, 2-pack

Part #562097-11

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Wrench 401680-00
#138

Craftsman 5" angle grinder diagram

Angle grinder wrench

Part #401680-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Baffle 402856-00
#129

Craftsman 5" angle grinder diagram

Craftsman baffle

Part #402856-00

The manufacturer no longer makes this part, and there's no substitute part

Washer 930753-00
#131

Craftsman 5" angle grinder diagram

Washer

Part #930753-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 562097-10
#118

Craftsman 5" angle grinder diagram

Screw

Part #562097-10

The manufacturer no longer makes this part, and there's no substitute part
