Model # FGWD3065PFA Official Frigidaire warming drawer

Here are the diagrams and repair parts for Official Frigidaire FGWD3065PFA warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

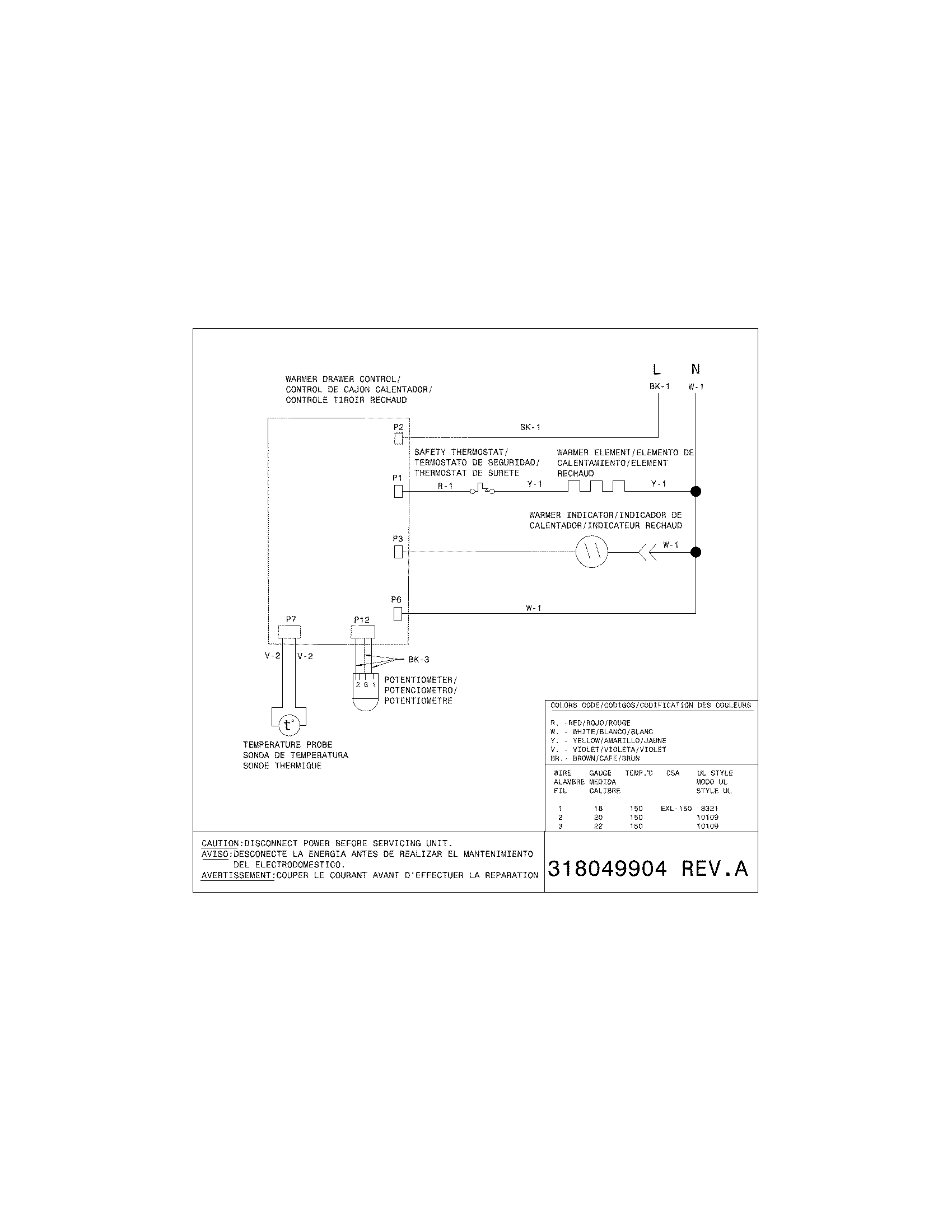

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |

Range Oven Temperature Sensor 318562500
#11

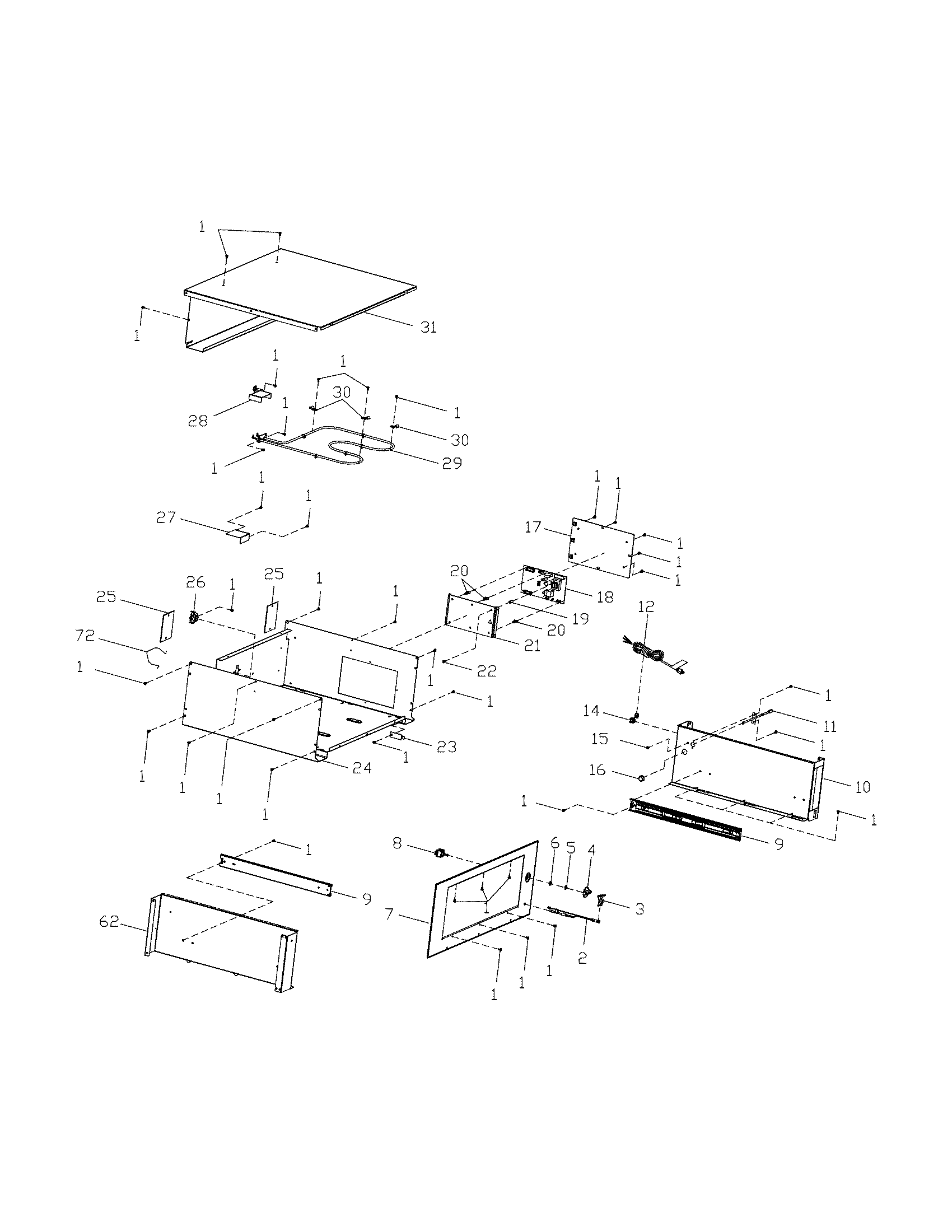

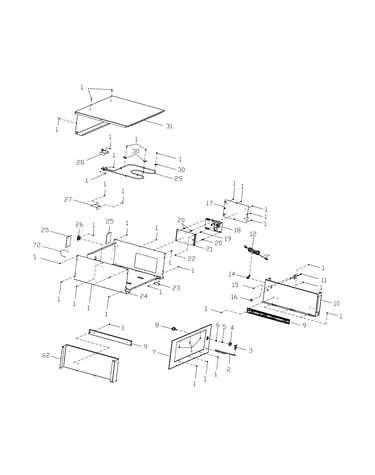

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$31.56
16% OFF Phone Price : $37.56
In Stock
Range Lock Washer 316247800
#5

Body diagram

Range lock washer

Part #316247800

This item is not returnable
In Stock
Range Nut 316247700
#6

Body diagram

Range nut

Part #316247700

This item is not returnable
In Stock
Handle 316554005
#51

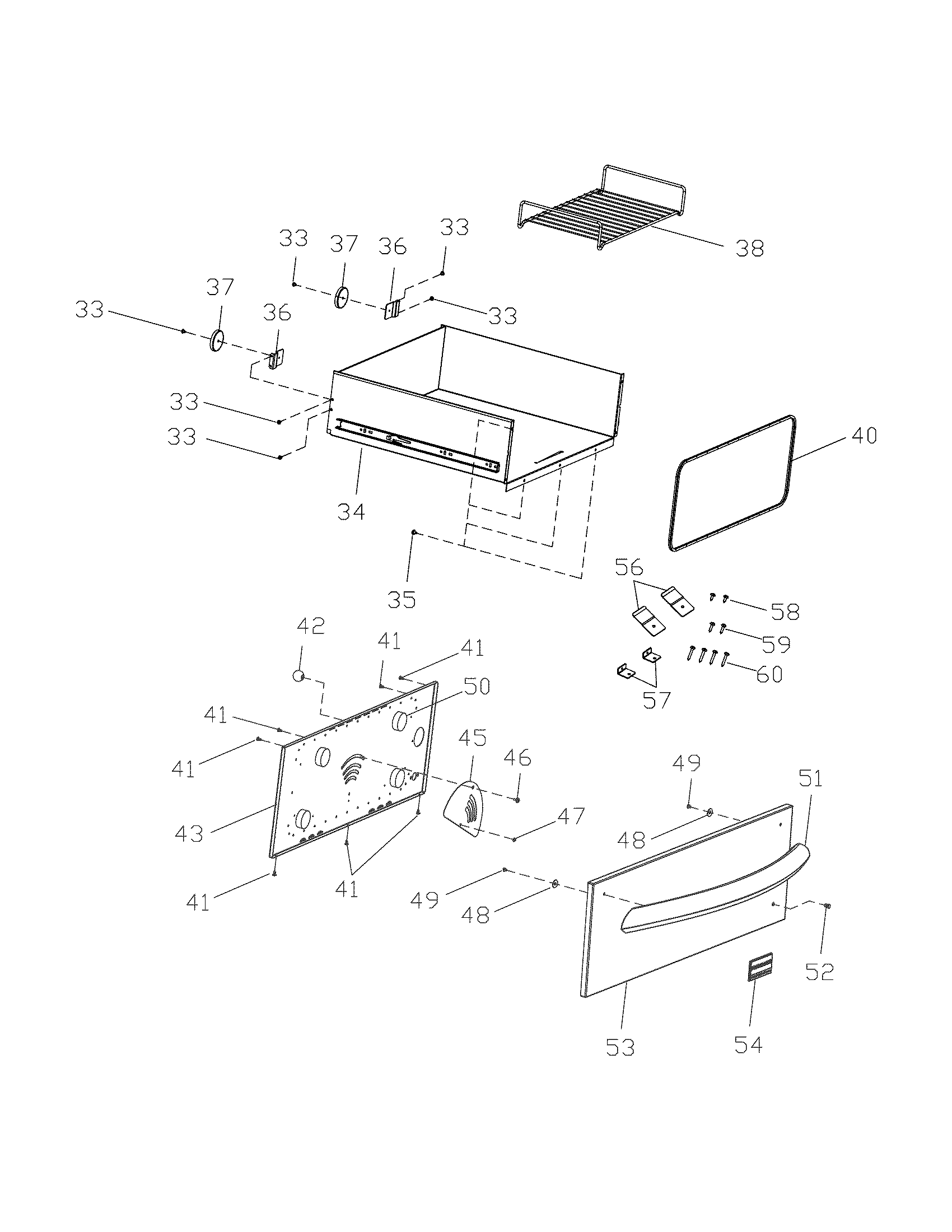

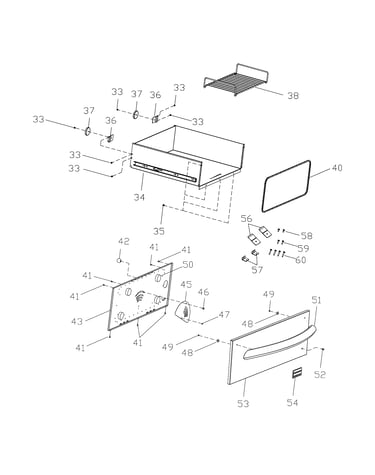

Drawer diagram

Handle

Part #316554005

Replaced by #316554010

?
Manufacturer substitution
This part replaces 316554005. Substitute parts can look different from the original.
$116.30
9% OFF Phone Price : $128.30
In Stock
Rack 318345601
#38

Drawer diagram

Rack

Part #318345601

Replaced by #807328301

?
Manufacturer substitution
This part replaces 318345601. Substitute parts can look different from the original.
$65.52
8% OFF Phone Price : $71.52
In Stock
Ikea Holder 202855101
#72

Body diagram

Ikea holder

Part #202855101

This item is not returnable
In Stock
Shield 807319701
#28

Body diagram

Shield

Part #807319701

In Stock
Bumper 808561901
#50

Drawer diagram

Bumper

Part #808561901

In Stock
Screw 305338504
#33

Drawer diagram

Screw

Part #305338504

This item is not returnable
In Stock
Screw 305309702
#1

Body diagram

Screw

Part #305309702

This item is not returnable
In Stock
