GE
Electric Wall Oven

Model # JKP15BW2BB Official GE electric oven

Here are the diagrams and repair parts for Official GE JKP15BW2BB electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
G.e. Range Oven Temperature Sensor (replaces Wb02x5318, Wb20k0004, Wb20k4, Wb20x0106, Wb20x106, Wb21x5263, Wb21x5275, Wb21x5296, Wb21x5318, Wb21x5321, Wb21x5347, Wb8k5007) WB21X5301
#253

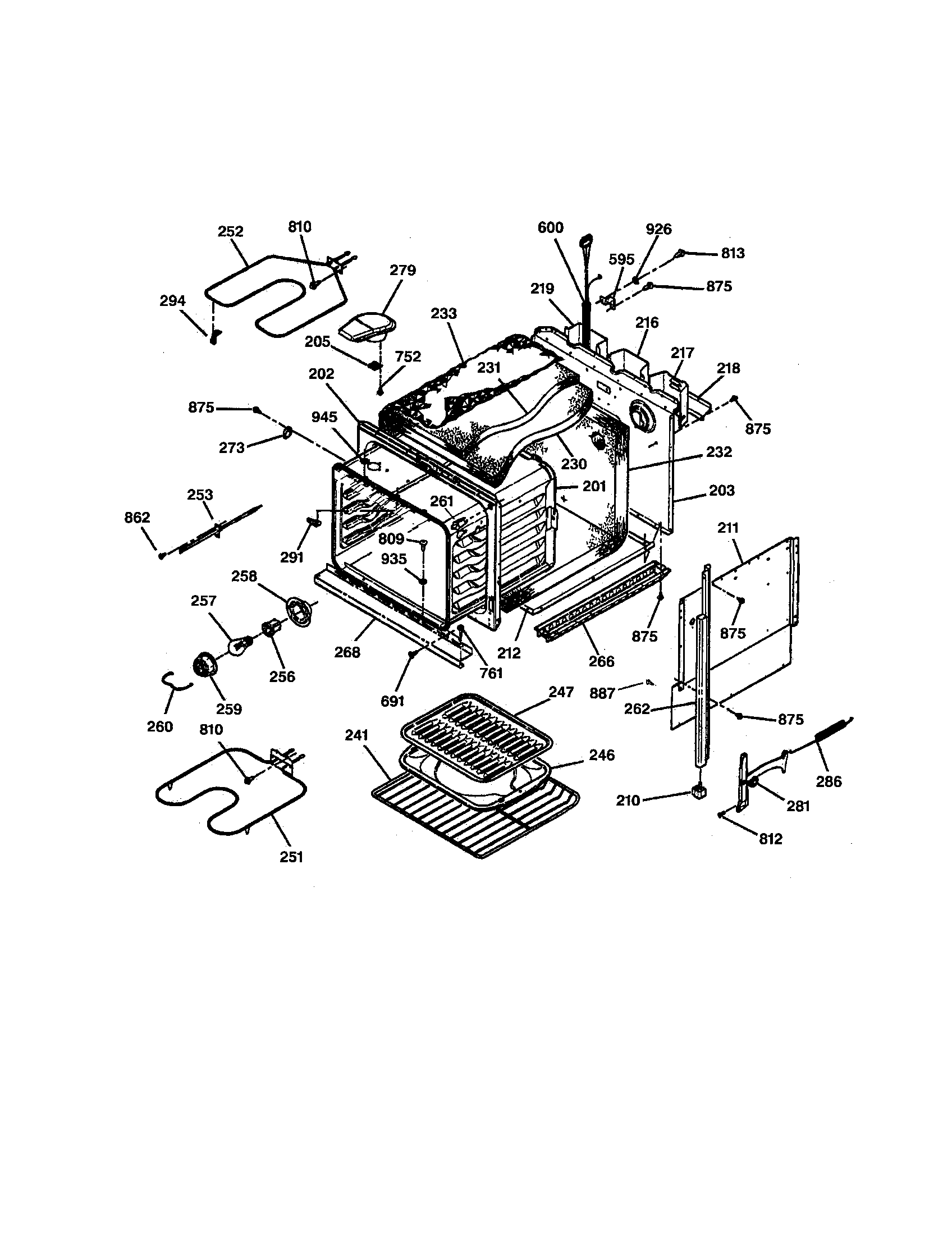

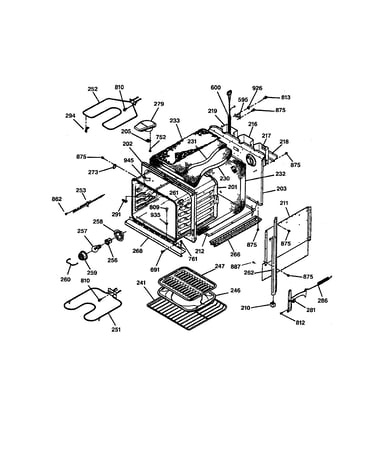

Body diagram

G.e. range oven temperature sensor (replaces wb02x5318, wb20k0004, wb20k4, wb20x0106, wb20x106, wb21x5263, wb21x5275, wb21x5296, wb21x5318, wb21x5321, wb21x5347, wb8k5007)

Part #WB21X5301

BEST SELLER
$147.17 |
8% OFF Phone Price : $159.17
In Stock
Range Bake Element (replaces 347753, Wb44k5008) WB44K5013
#251

Body diagram

Range bake element (replaces 347753, wb44k5008)

Part #WB44K5013

BEST SELLER
$69.19 |
8% OFF Phone Price : $75.19
In Stock
Broil Support WB02X9719
#294

Body diagram

Broil support

Part #WB02X9719

Replaced by #WB2X9719

?
Manufacturer substitution
This part replaces WB02X9719. Substitute parts can look different from the original.
BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Lamp Cover WB36X0192
#259

Body diagram

Lamp cover

Part #WB36X0192

Replaced by #WB36X192

?
Manufacturer substitution
This part replaces WB36X0192. Substitute parts can look different from the original.
This item is not returnable
$9.54 |
9% OFF Phone Price : $10.54
In Stock
Range Oven Door Handle WB15K5068
#136

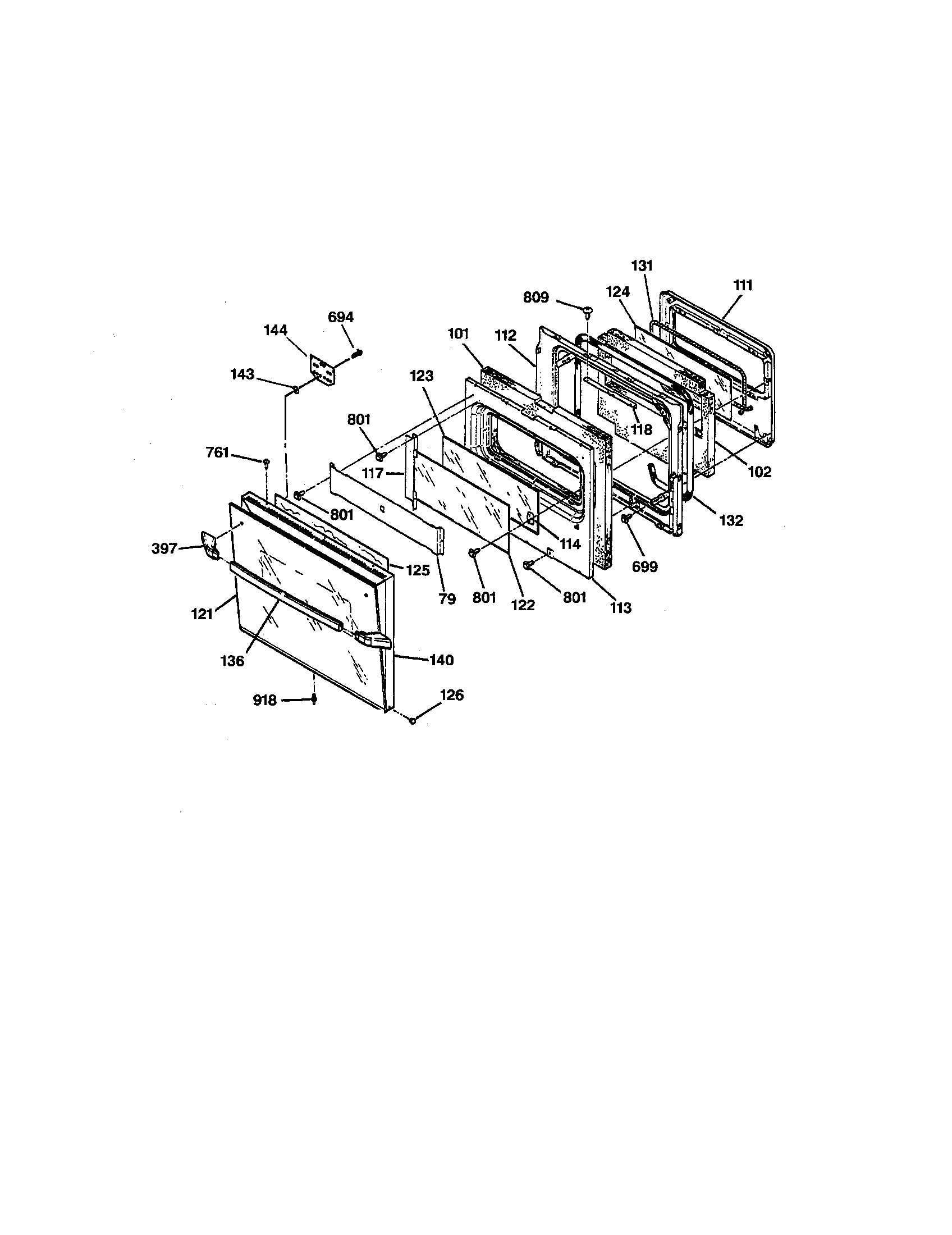

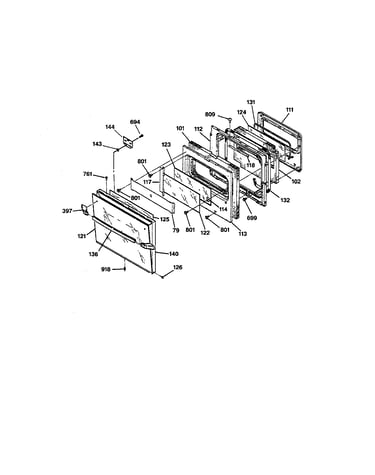

Oven door diagram

Range oven door handle

Part #WB15K5068

$76.76 |
7% OFF Phone Price : $82.76
In Stock
Dr Hndl Ecap WB15K5069
#397

Oven door diagram

Dr hndl ecap

Part #WB15K5069

Replaced by #WB7X7183

?
Manufacturer substitution
This part replaces WB15K5069. Substitute parts can look different from the original.
$15.82 |
11% OFF Phone Price : $17.82
In Stock
Oven Rack WB48K5006
#241

Body diagram

Oven rack

Part #WB48K5006

Replaced by #WB48T10093

?
Manufacturer substitution
This part replaces WB48K5006. Substitute parts can look different from the original.
$43.96 |
12% OFF Phone Price : $49.96
In Stock
Wall Oven Cooling Fan Limit Switch WB24K5033
#158

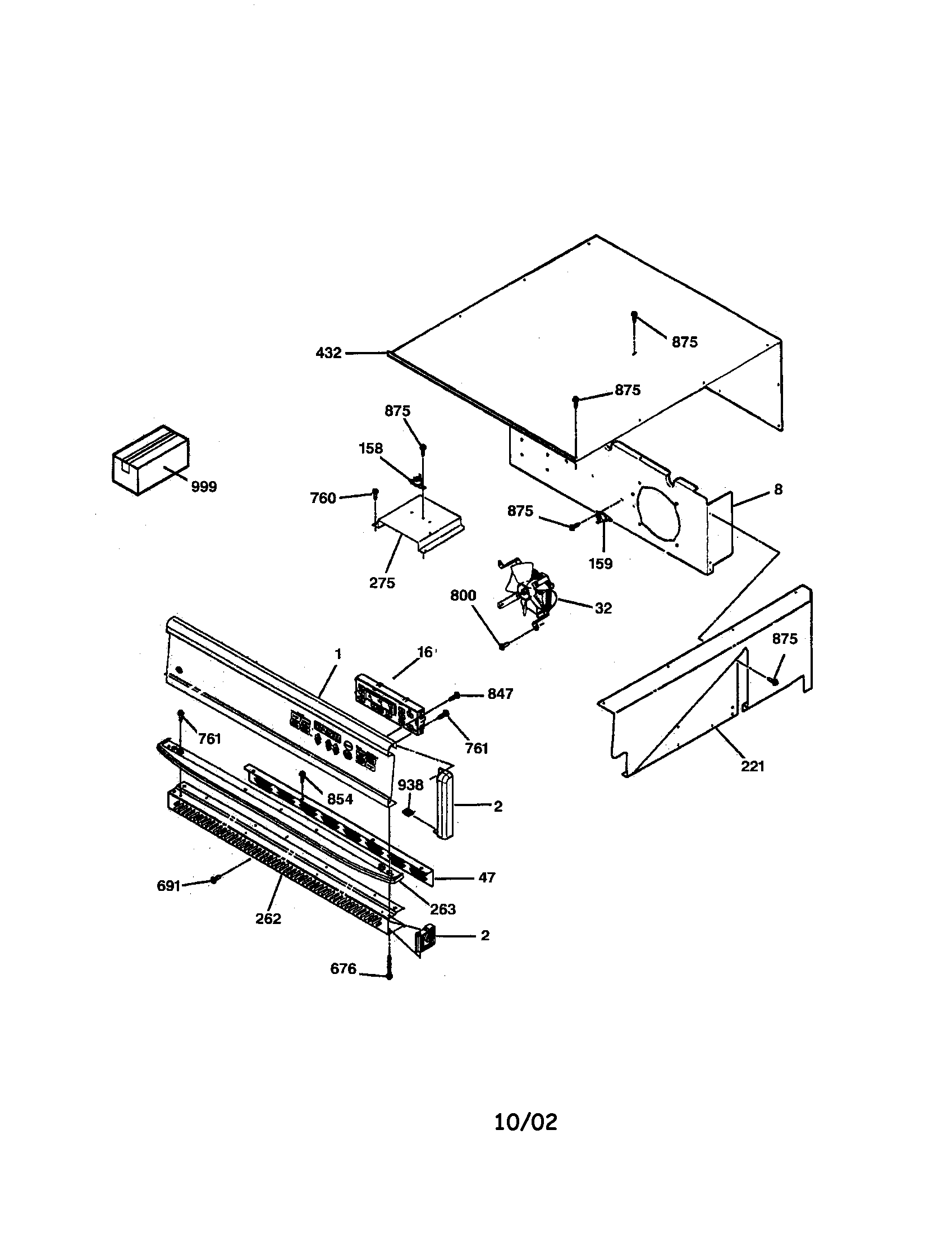

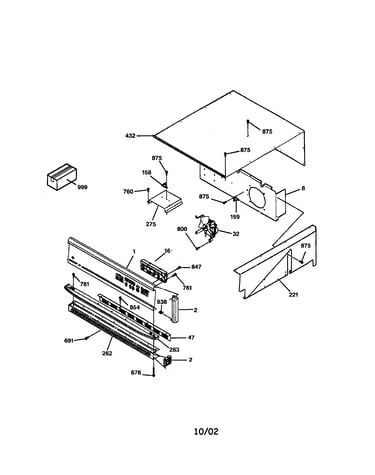

Control panel diagram

Wall oven cooling fan limit switch

Part #WB24K5033

$23.29 |
20% OFF Phone Price : $29.29
In Stock
Wall Oven Thermal Fuse (replaces Wb24k5034) WB24K5085
#159

Control panel diagram

Wall oven thermal fuse (replaces wb24k5034)

Part #WB24K5085

$48.47 |
11% OFF Phone Price : $54.47
In Stock
Drive Lock Plate WB34K5228
#184

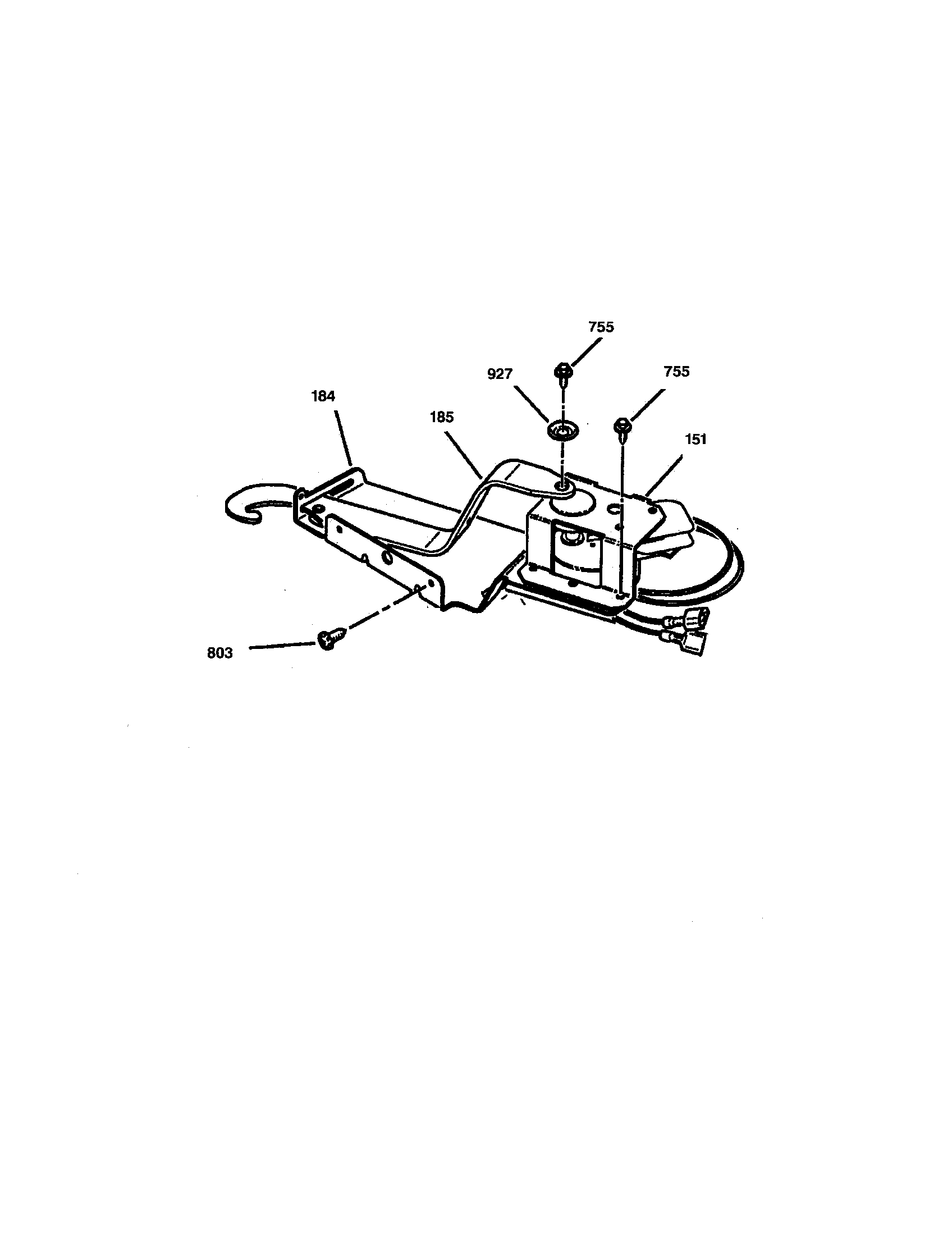

Lock-door diagram

Drive lock plate

Part #WB34K5228

$105.14
In Stock
