Model # 8676461 Official Kenmore gas-fired sectional furnace

Here are the diagrams and repair parts for Official Kenmore 8676461 gas-fired sectional furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

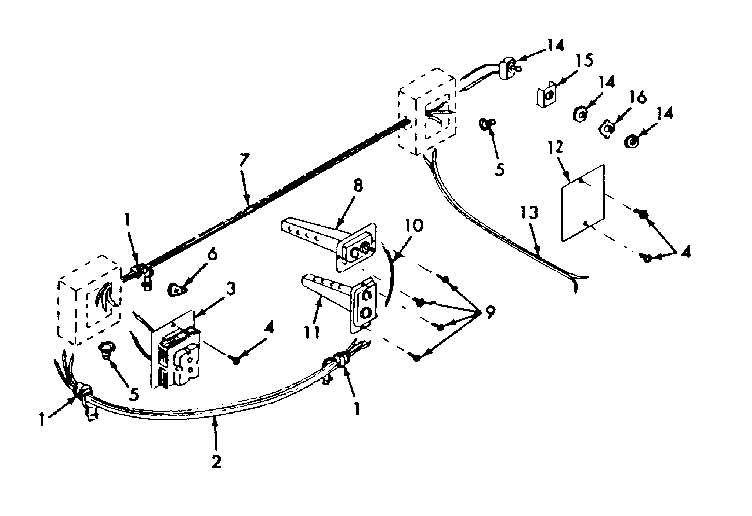

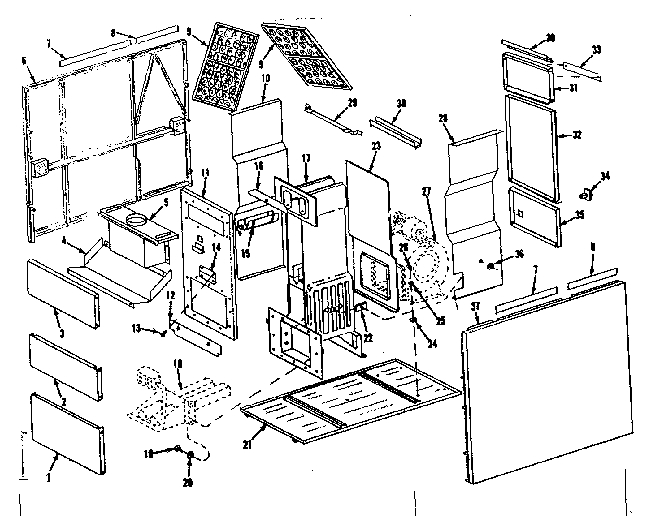

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 193 parts  |
Thermocouple 64449
Thermocouple

Part #64449

The manufacturer no longer makes this part, and there's no substitute part

Thermocouple 40096
Thermocouple

Part #40096

The manufacturer no longer makes this part, and there's no substitute part

Plate 9181

#NI

All parts diagram

Plate

Part #9181

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 64383
Twist-on wire connector

Part #64383

Replaced by #STD375005

?
Manufacturer substitution
This part replaces 64383. Substitute parts can look different from the original.
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Limit Control 69287
Limit control

Part #69287

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64488
Air filter

Part #64488

The manufacturer no longer makes this part, and there's no substitute part

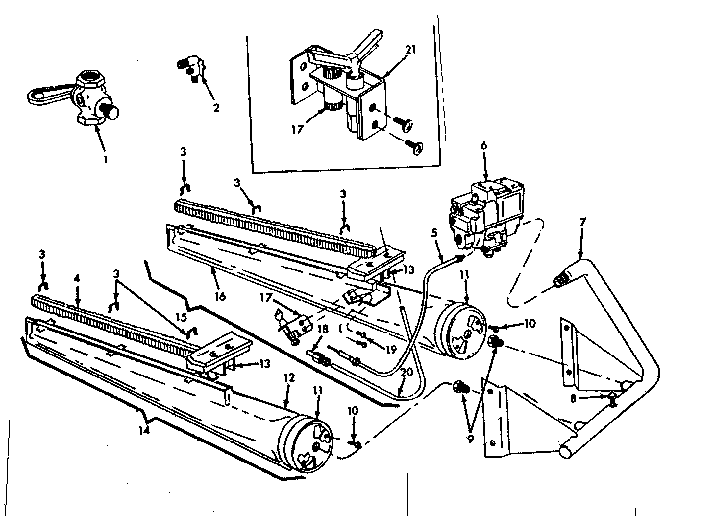

Pilot Burner 46555
Pilot burner

Part #46555

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64758
Air filter

Part #64758

The manufacturer no longer makes this part, and there's no substitute part

Bearing 67695
#4B

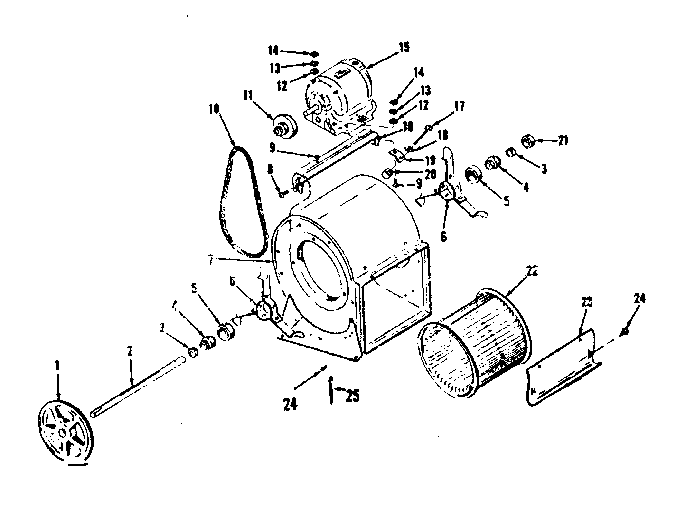

H-q blower assembly diagram

Bearing

Part #67695

Replaced by #2110257

?
Manufacturer substitution
This part replaces 67695. Substitute parts can look different from the original.
$12.54
In Stock
Orifice 46632
Orifice

Part #46632

The manufacturer no longer makes this part, and there's no substitute part
